Product Description

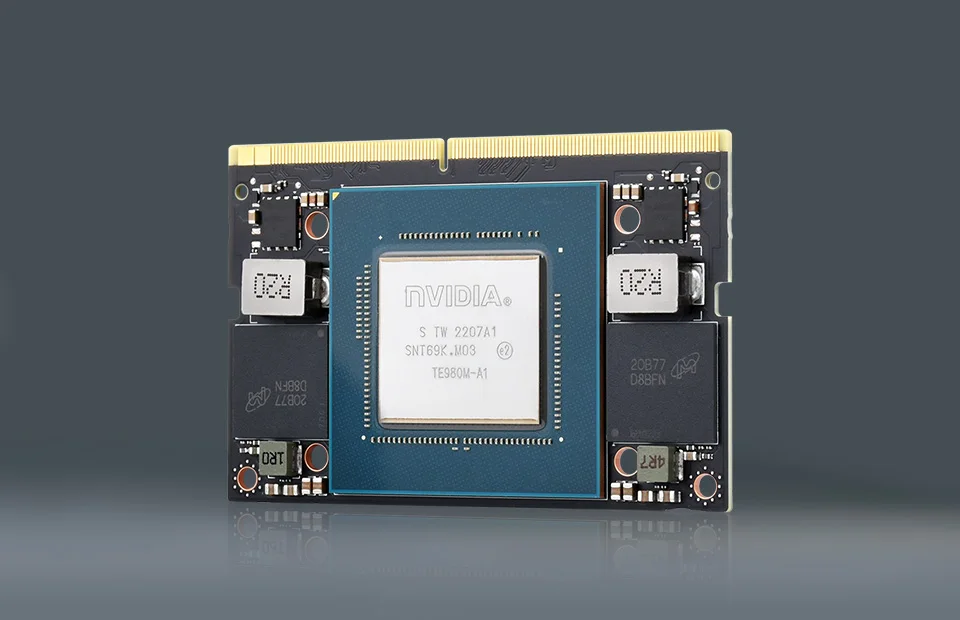

NVIDIA Jetson Orin NX AI Development Module, System-on-Module, NANO Size, 16GB 128-bit LPDDR5, up to 100TOPS
NVIDIA Jetson Orin NX AI Development Module, System-on-Module, NANO Size, 16GB 128-bit LPDDR5, up to 100TOPSDESCRIPTION
N-VIDIA Jetson Orin NX AI Development Module, System-On-Module, NANO SizeJetson Orin NX
Advanced AI Computer For Smaller, Lower-Power Autonomous Machines
N-VIDIA® Jetson Orin™ NX module delivers up to 100 TOPS and 5X the performance of the last generation for multiple concurrent AI inference pipelines, with high-speed interface support for multiple sensors, it is an ideal solution for a new age of robotics.Product Features
Jetson Orin NX module delivers up to 100 TOPS of AI performance in a compact and small form factor, with power configurable between 10W and 25W, up to 3X the performance of Jetson AGX Xavier and 5X the performance of Jetson Xavier NX.
SpecificationsVERSION | 8GB (to be released) | 16GB |
AI PERFORMANCE | 70TOPS | 100TOPS |
GPU | 1024-core N-VIDIA Ampere architecture GPU with 32 Tensor Cores | |
GPU FREQUENCY | 765MHz (Max) | 918MHz (Max) |
CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 1.5MB L2 + 4MB L3 | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 2MB L2 + 4MB L3 |
CPU FREQUENCY | 2GHz (Max) | |
DL ACCELERATOR | 1x N-VDLA v2 | 2x N-VDLA v2 |
DLA FREQUENCY | 614MHz (Max) | |
VISION ACCELERATOR | 1x PVA v2 | |
MEMORY | 8GB 128-bit LPDDR5, 102.4GB/s | 16GB 128-bit LPDDR5, 102.4GB/s |
STORAGE | Supports external NVMe | |
POWER | 10W ~ 20W | 10W ~ 25W |
PCIE | 1 x1 (PCIe Gen3) + 1 x4 (PCIe Gen4), total 144 GT/s* | |
USB* | 3x USB 3.2 2.0 (10 Gbps) | |
CSI CAMERA | Up to 4 cameras (8 via virtual channels**) | |
VIDEO ENCODE | 1x 4K60 (H.265) | 3x 4K30 (H.265) | |
VIDEO DECODE | 1x 8K30 (H.265) | 2x 4K60 (H.265) | 4x 4K30 (H.265) | |
DISPLAY | 1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1 | |
OTHER | 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIO | |
NETWORKING | 1x GbE | |
DIMENSIONS | 69.6 mm x 45 mm | |
* USB 3.2, MGBE, and PCIe share UPHY Lanes. See the Product Design Guide for supported UPHY configurations. |
Professional Application Software And Models
N-VIDIA Software
All N-VIDIA Jetson modules and developer kits are supported by the same N-VIDIA Jetson software stack, so you can develop once and deploy everywhere. Jetson software is designed to provide end-to-end acceleration for AI applications and accelerate the time to market. This brings the powerful N-VIDIA technologies that power data centers and cloud deployments to the edge.

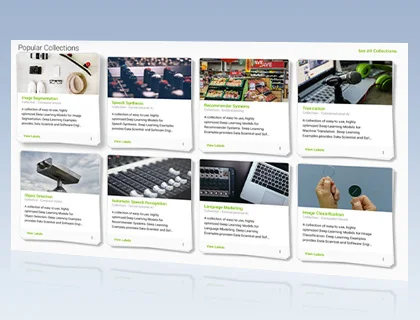

Pretrained Models
Many AI applications have common needs: classification, object detection, language translation, text-to-speech, recommender engines, sentiment analysis, and more. Pretrained models from the NGC™ catalog are performance-optimized and ready to be fine-tuned with the N-VIDIA TAO Toolkit and customer datasets, reducing time and cost for production AI software development.
N-VIDIA Software Platforms Including Isaac For Robotics, Riva For AI Speech, And Metropolis For Video Analytics, Are Available To Speed Vertical-Specific Applications
N-VIDIA Isaac
Robots improve efficiency and quality of life in industries such as manufacturing, logistics, healthcare, and service. N-VIDIA Isaac™ accelerates the process with enhanced robotics development, simulation, and deployment.
N-VIDIA Riva
N-VIDIA Riva is a fully accelerated SDK for building multimodal conversational AI applications using an end-to-end deep-learning pipeline, suitable for optimized skills in speech, vision, and natural language processing (NLP) tasks.
N-VIDIA Metropolis
N-VIDIA Metropolis includes an application framework, s set of developer tools, and the partner ecosystem. It brings visual data and AI together to improve operational efficiency and safety across a broad range of industries.
MODEL | MODULE | DEVELOPER KIT |
Jetson Nano |
|
|
| ||
Jetson TX2 |
|
|
Jetson TX2 NX |
|
|
Jetson Xavier NX |
|
|
| ||
Jetson AGX Xavier |
|
|
Jetson Orin NX |
|
|
Note: some models haven't been released yet, please contact the Waveshare service team if you need them. |
As An NVIDIA Official Authorized Partner, Waveshare Is Capable Of Providing Genuine Products And Reliable Tech Support
PACKAGE CONTENT
Weight:0.026 kg
Jetson Orin NX 16GB x1
