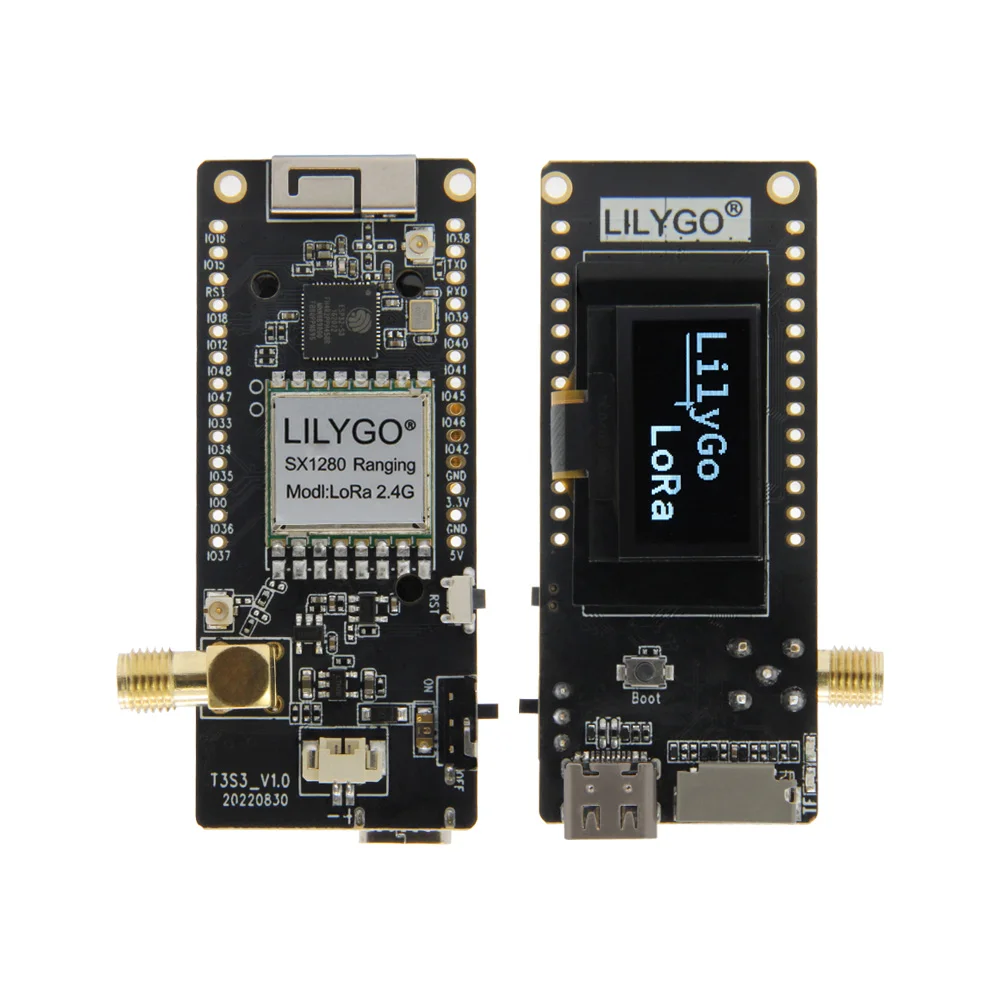

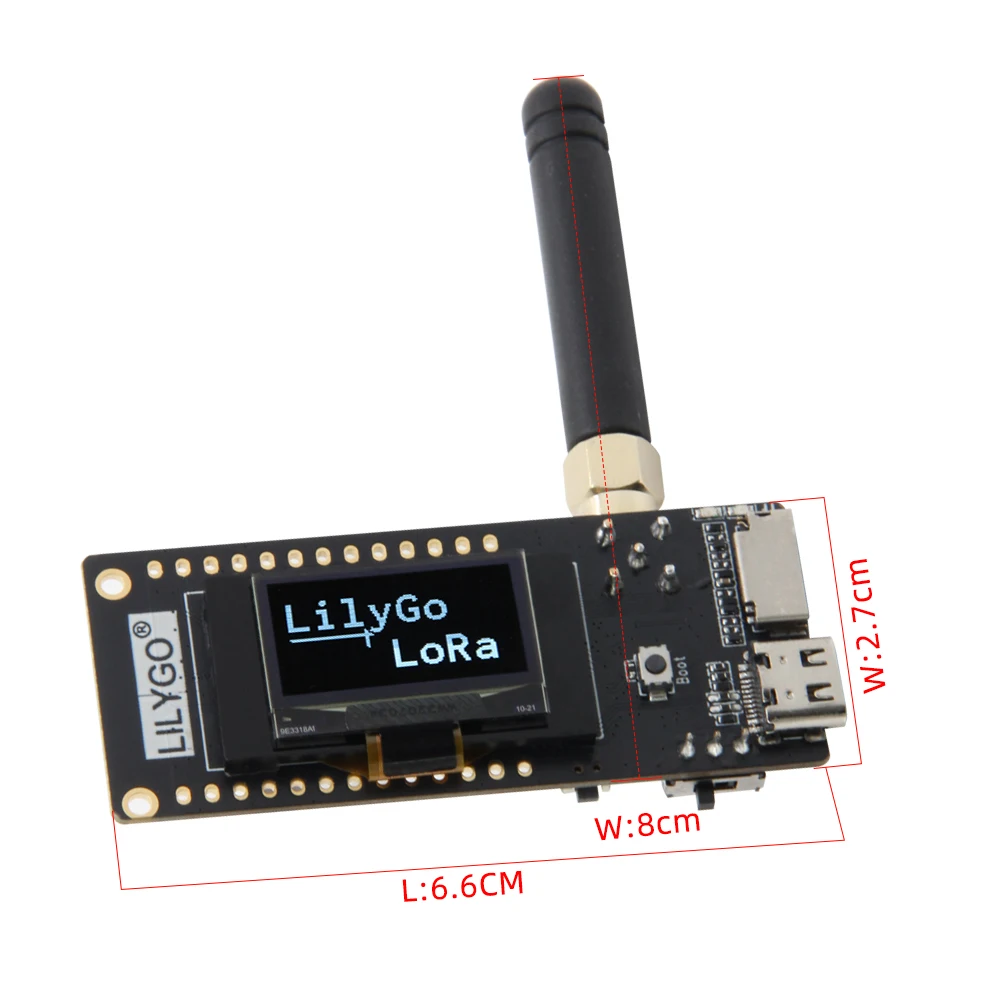

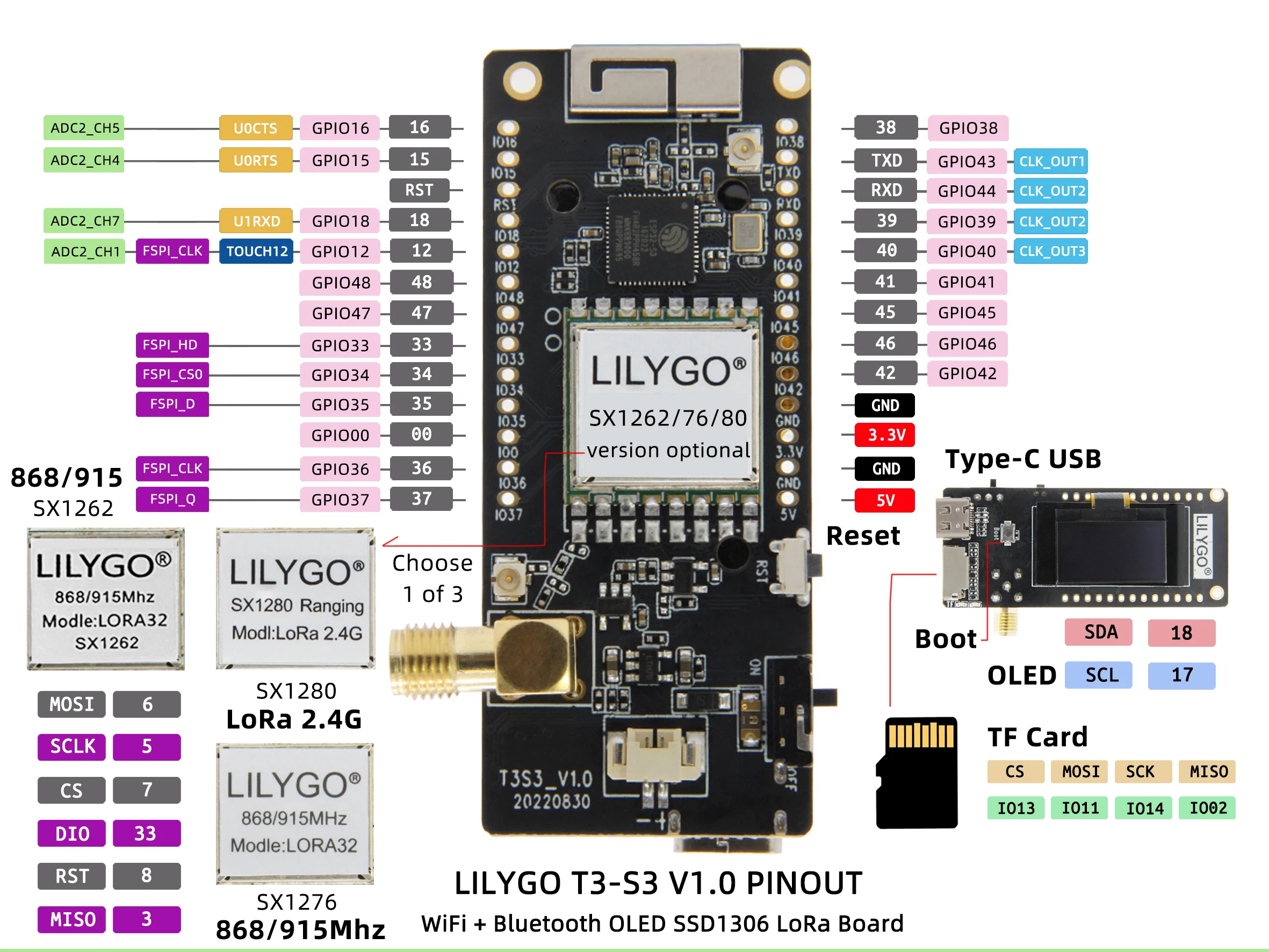

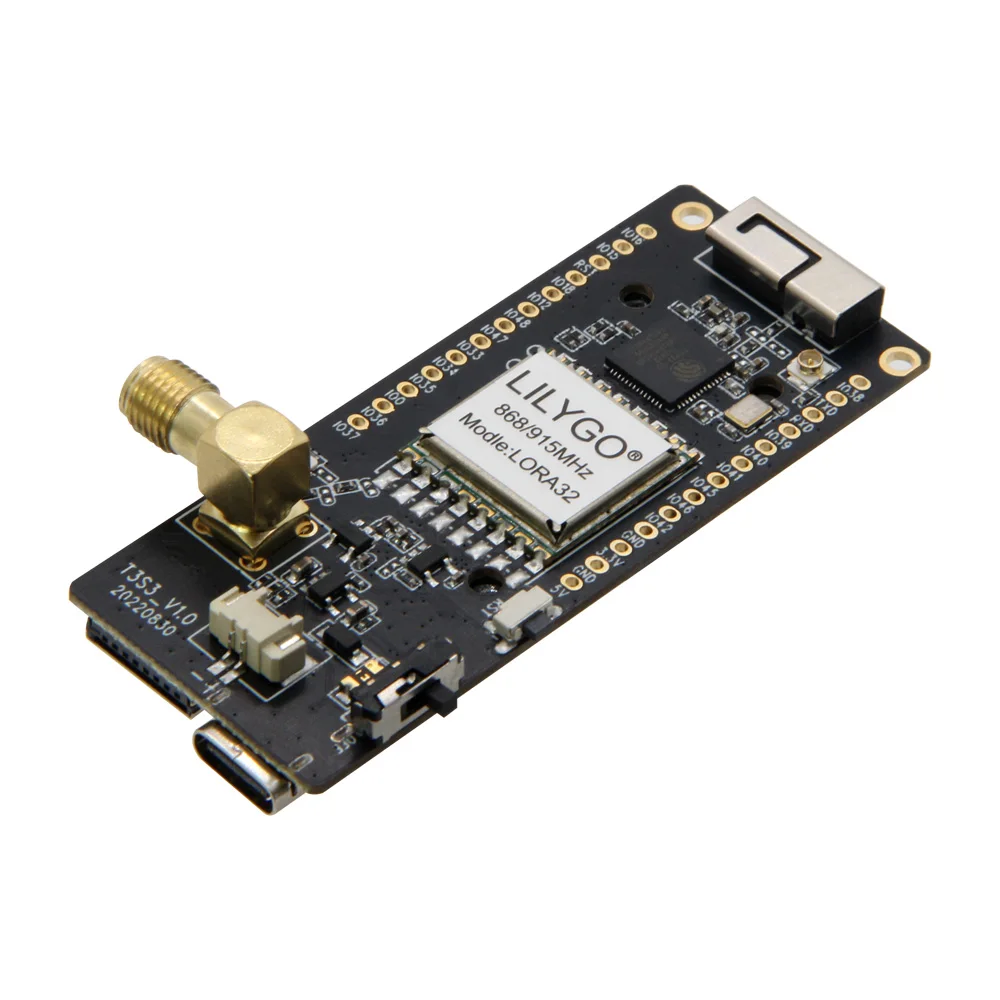

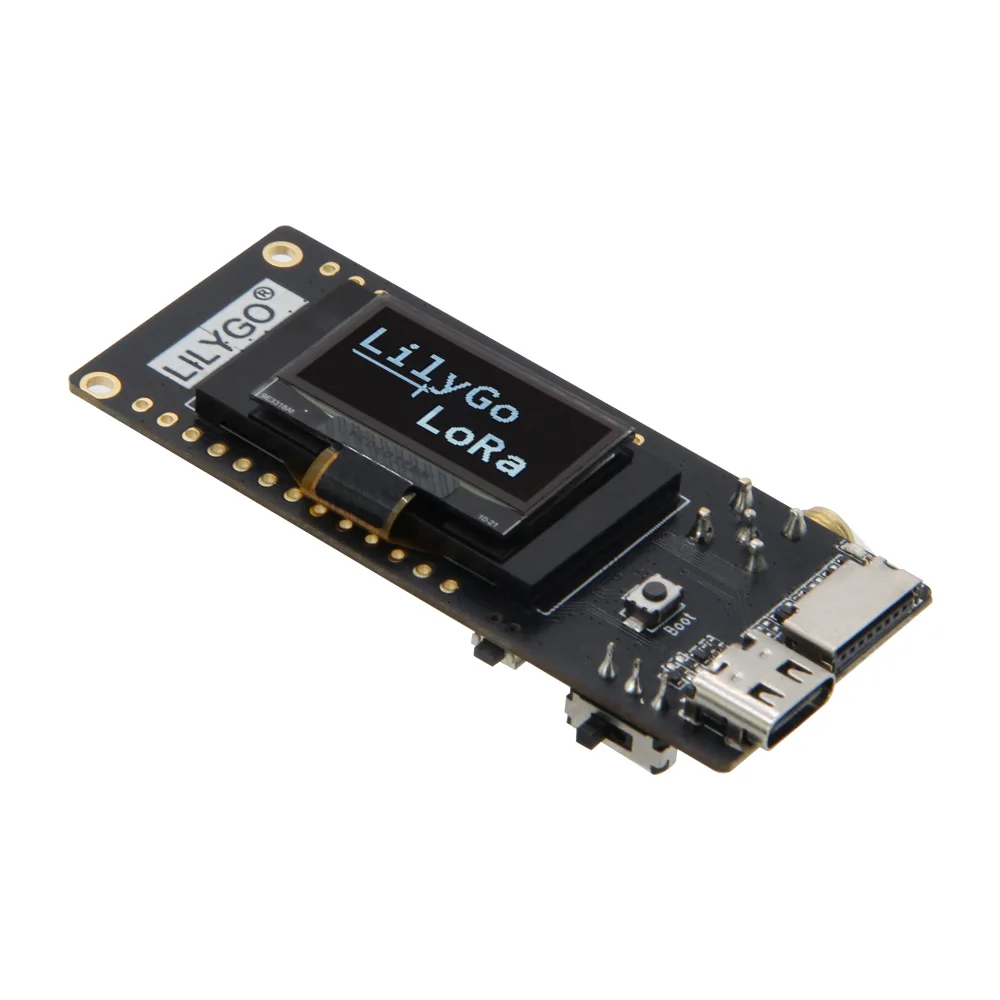

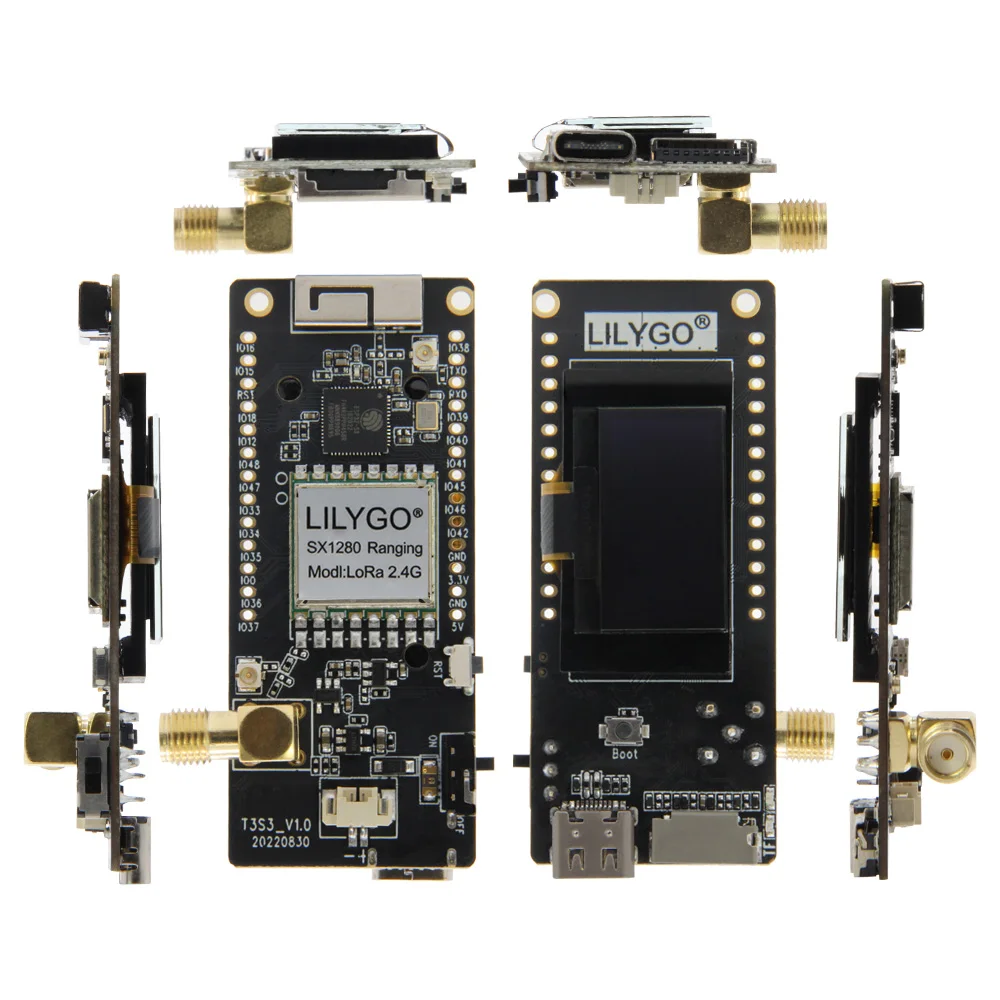

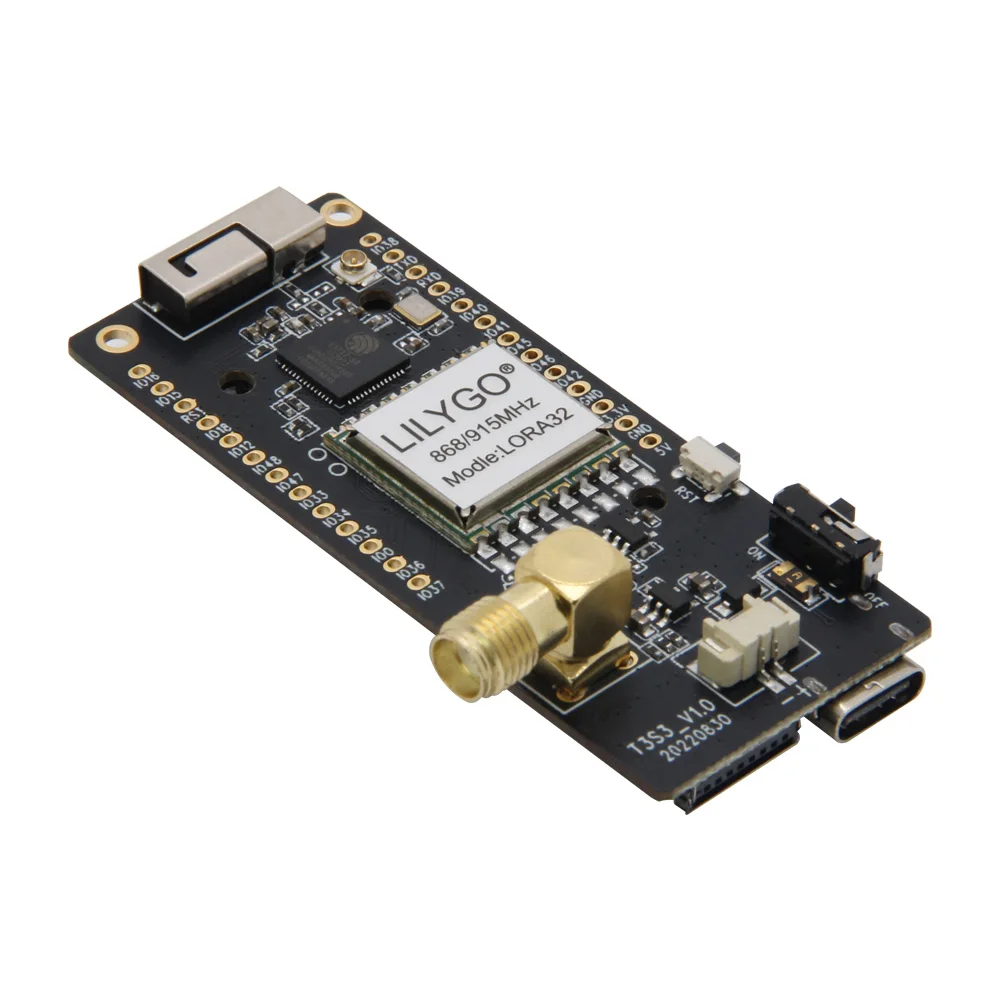

T3S3 V1.0 ESP32-S3 LoRa SX1280 2.4G Development Board WiFi Bluetooth Wireless Mo

Product Description

T3S3 Introduction

T3S3 V1.0 is a new version of the LoRa series (formerly LoRa32 series), featuring the SX1280 LoRa module supporting the LoRa 2.4G frequency band for global use. It is also equipped with the ESP32-S3 main control chip and supports TF cards.

Key Selling Points:

Powerful LoRa Communication Performance:Equipped with the LoRa module, it delivers outstanding long-range communication performance, suitable for IoT applications requiring extended reach and low power consumption.

Global Usability with LoRa 2.4G Frequency Band:Optional the LoRa 2.4G frequency band ensures stable operation globally, complying with different countries' and regions' spectrum regulations.

Advanced Main Control Chip:Integrated with the ESP32-S3 main control chip, providing higher computing performance and additional interface options, enhancing device flexibility and expandability.

TF Card Support:The device supports TF cards (microSD cards) for extended storage, facilitating users in storing and managing data, particularly useful in scenarios requiring large-capacity storage.

Wide Range of Applications:Leveraging the long-range capabilities of LoRa technology, this module finds applications in various IoT scenarios, including smart agriculture, smart cities, and industrial IoT.

LILYGO® July 20, 2022

Sample Code For Reference

If you need technical support please check below link to find more details.

What's in the box?

• 1 X T3S3 V1.0

• 2 X 2.54mm Male PIN（1*13P）

• 1 X Battery Cable

• 1 X LoRa Antenna

⚠️It is recommended to control the output power of the SX1280 chip between 2-5 dBm when using the SX1280 PA module, to ensure that the entire module outputs a power of 20 dBm.

If the output power of the SX1280 chip is higher than 5 dBm, it will exceed the maximum allowable input for the FEM chip and cause damage.

However, if the output power is lower than 2 dBm, the module's output power will still be within 20 dBm.

Therefore, the output power setting of the SX1280 chip must be carefully controlled and not exceed 2-5 dBm to avoid damaging the FEM chip.

Setting the output power to 3 dBm will ensure an output power of 20 dBm.
