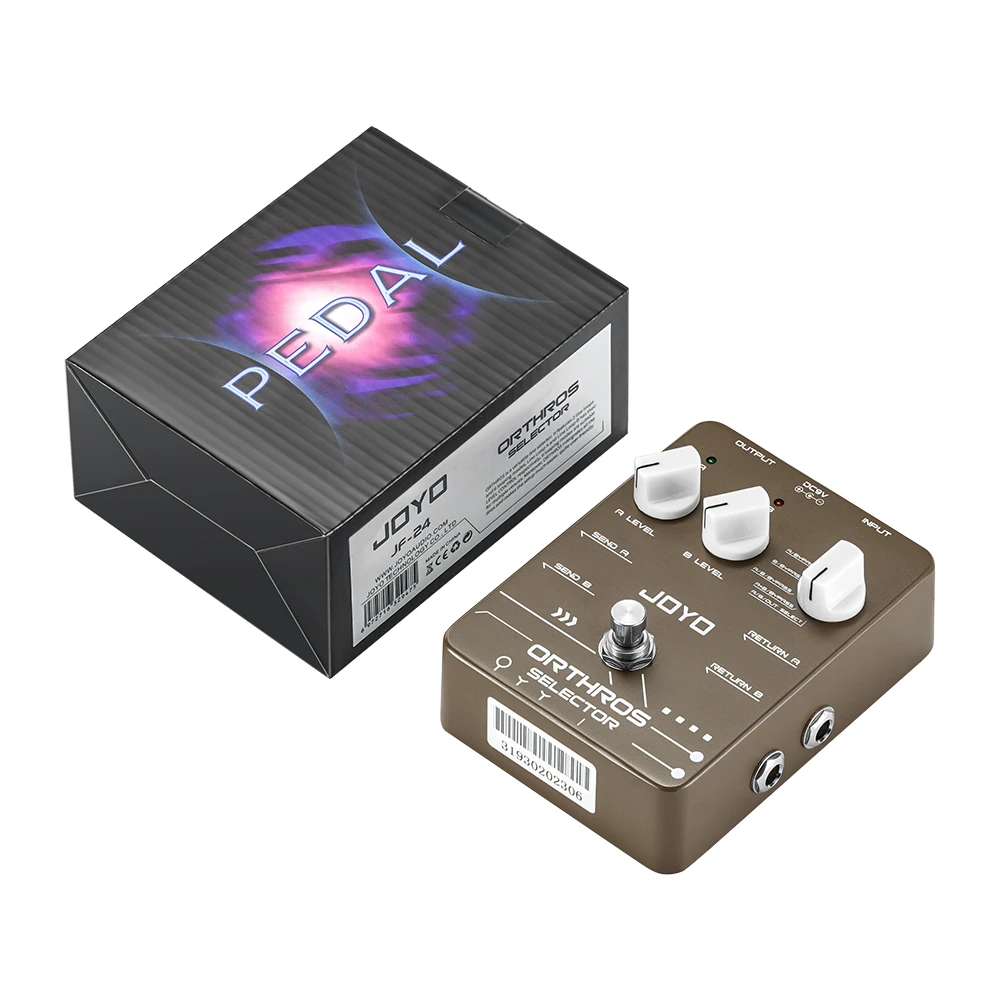

JF-24 ORTHROS SELECTOR Line Selector Guitar Pedal A/B 2 Line Loops Independent C

Product Description

Features:

- JF-24 is a line selector guitar pedal offers 2 effect loops and 6 Looping modes, flexiblely fit multiple devices and digital pedals.
- A/B: 2 line loops can easily be switched to connect different music styles effect pedal chains by Send/Return jack.
- 6 mode line selectors can be shift by independent footswitch including A/B, A/BYPASS, B/BYPASS, A/B/BYPASS, A+B/BYPASS, A/B/BYPASS.

Quickly Master The Line Selector

Such A/B mode (2 choice): Upon power-up, the signal will exclusively route through either Line A or Line B. The LED indicator clearly displays which line is currently active
A/BYPASS or B/BYPASS mode: choose to control one of the lines separately
A/B/BYPASS (3 choice)：only Line A ,or only Line B,or only BYPASS
A+B/BYPASS (2 choice): only Line A and Line B blend (They all have signals), or only BYPASS
A/B/Out Selector (3 choice) : only "send A "signal, only "send B"signal, Or only Output signal.

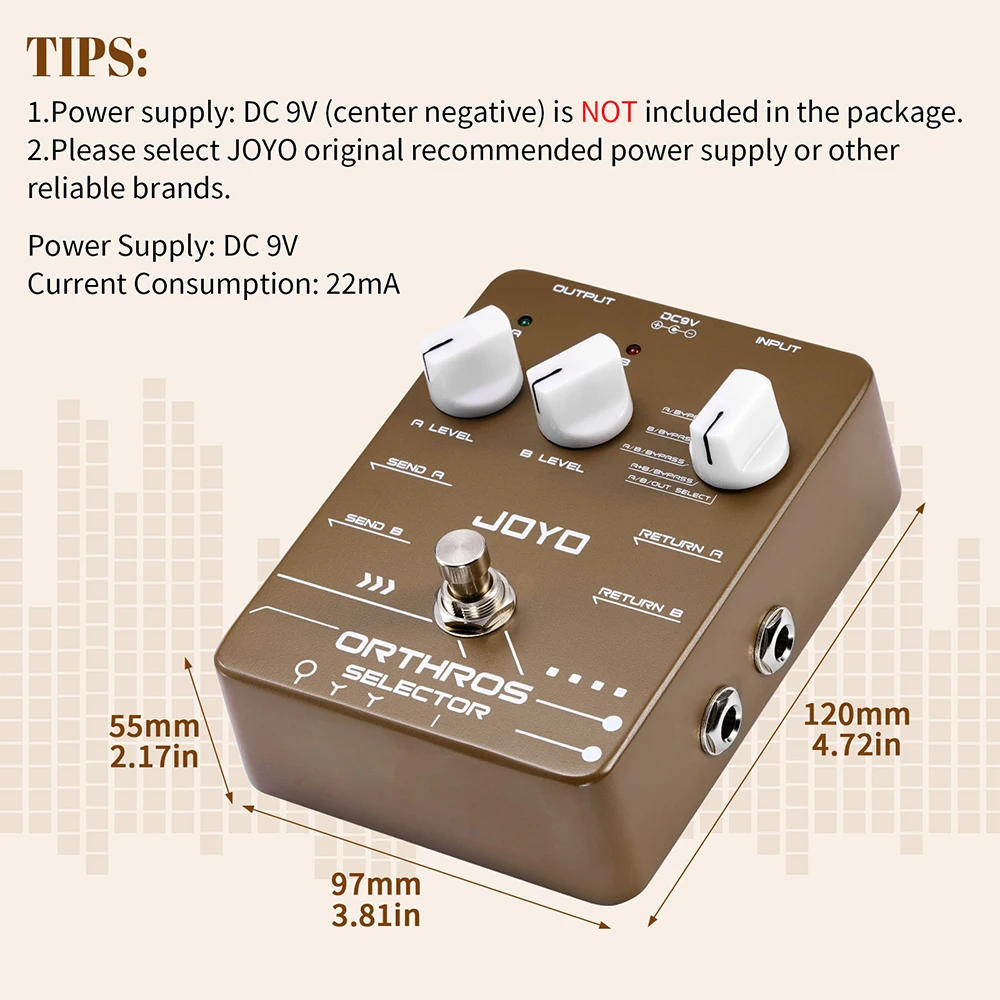

Specifications:

Working Voltage: DC 9V (center negative)
Current Consumption: 22mA
INPUT: 1/4" Mono Audio Jack(Impedance 1MΩ)
OUTPUT: 1/4" Mono Audio Jack(Impedance 1KΩ)
SEND A: 1/4* Mono Audio JackImpedance 1KΩ)
SEND B: 1/4* Mono Audio Jack(mpedance 1KΩ)
RETURN A: 1/4" Mono Audio Jack(lmpedance 1MΩ)
RETURN B: 1/4" Mono Audio Jack(Impedance 1MΩ)

Package Included:

1* JF-24 Orthros Selector Guitar Pedal
1* User's Manual

Note:

- Before you test the pedal or before playing, make sure the guitar is fully connected with the pedal;
- More importantly, you need to make sure it meets the working current requirement of each single pedal.
- In order to make JOYO pedals work properly, avoiding unexpected noise caused by power supply, we recommend that you purchase a JOYO original power adapter, or choose other reliable brands.
