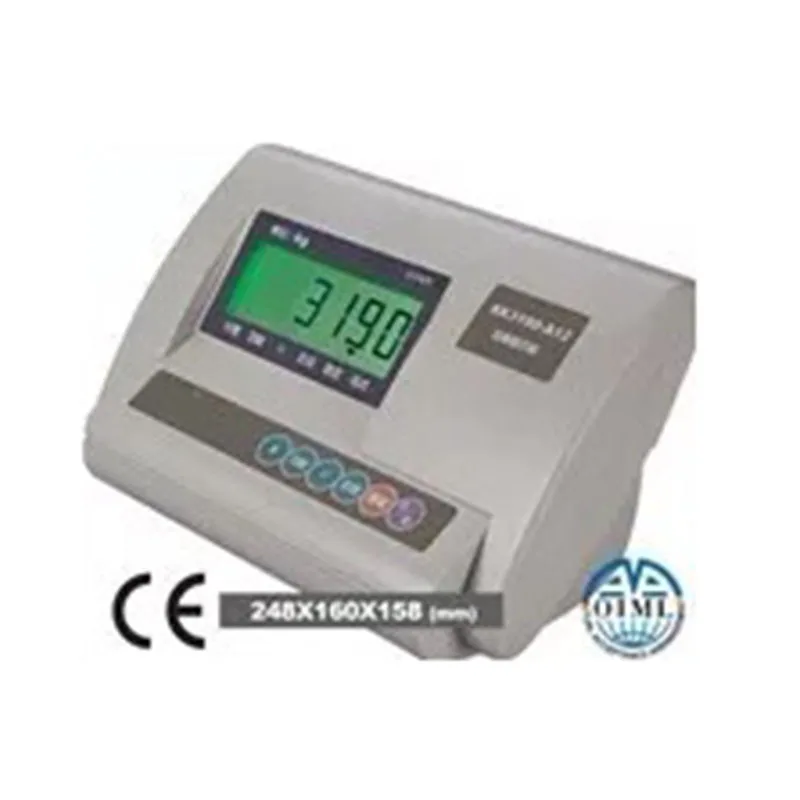

XK3190-A12 Digital Weighing Indicator LCD Display Head 6 Digit Anti-Vibration 350Ω Load Cell RS232 for Platform Floor Scale
A/D conversion method: ∑ - Δ conversion method
A/D conversion rate: 20 times/second
Maximum A/D conversion: 20 bits
Input signal range: -10mV to 15mV
Input sensitivity: ≥ 1 μ V/e
Sensor bridge power supply C5V; I≤150mA
Number of connected sensors: Can connect 4 350 Ω sensors
Sensor connection method: 4-wire system
Calibration division number: 3000
Maximum external degree: 30000
Maximum internal resolution: 300000
Division value: 1/2/5/10/20/50 optional
Display mode (A12): 6-digit LCD, 6 status indicators
Display mode (A12E): 6-digit LED digital display, 6 status indicators
Display range: -2000 to 150000 (e=10)
Large screen interface (optional)
Signal output mode: serial output
Signal: Current loop signal
Transmission distance: Current loop signal ≤ 100 meters
Serial communication interface (optional)
Baud rate: 1200/2400/4800/9600 optional
Communication mode: automatic continuous mode/command mode
Transmission distance: RS232C ≤ 30 meters
AC power supply: AC187-242V; 49～51Hz
DC power supply: built-in battery DC6V/4AHProduct size: 248 * 160 * 158MM
