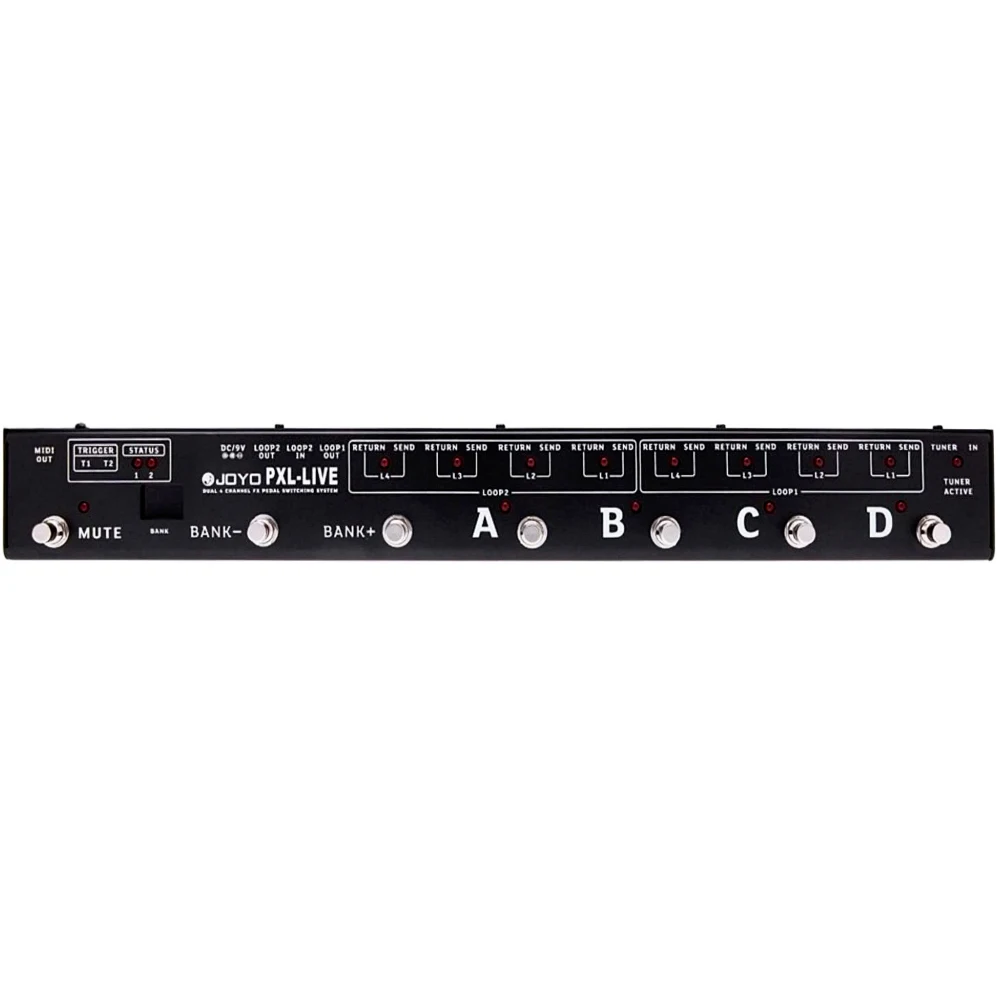

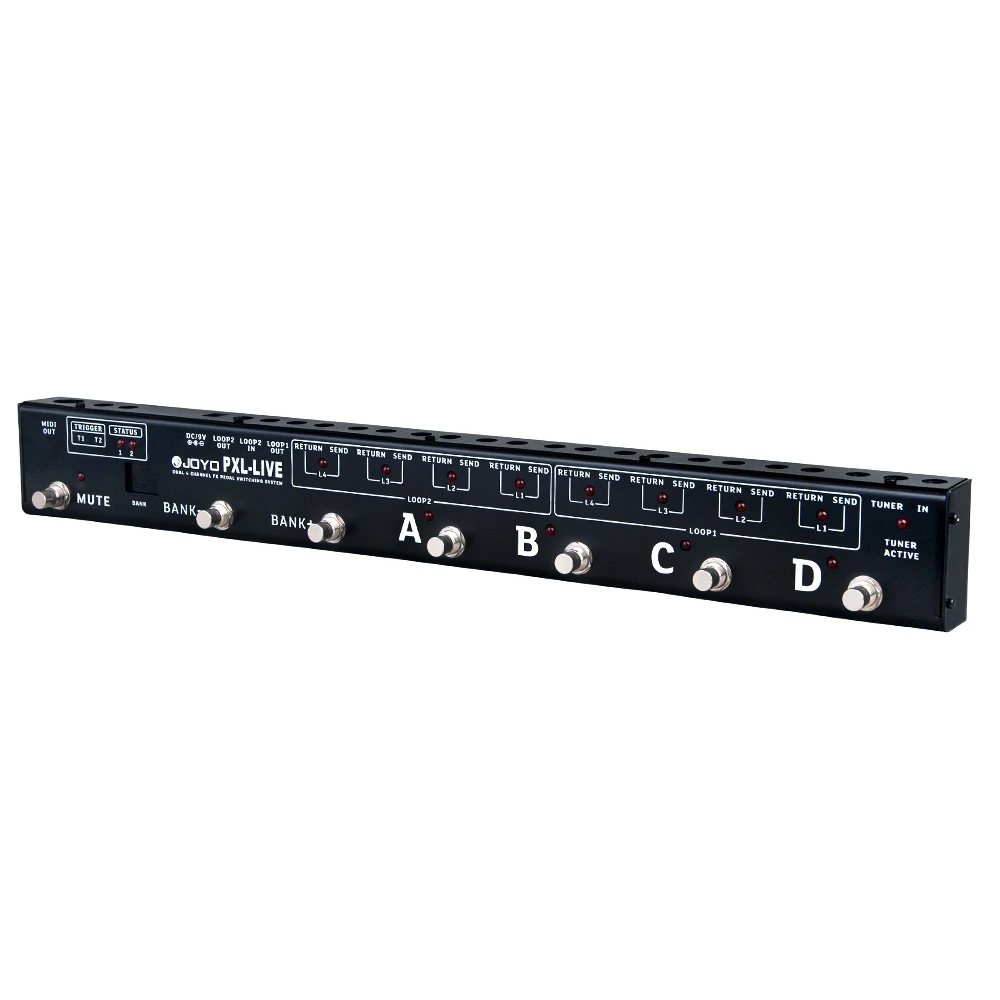

PXL-LIVE Foot Pedal Controller with Programmable MIDI Dual Four Looping Channel

Product Description

Description:

Dual Four Channel Design

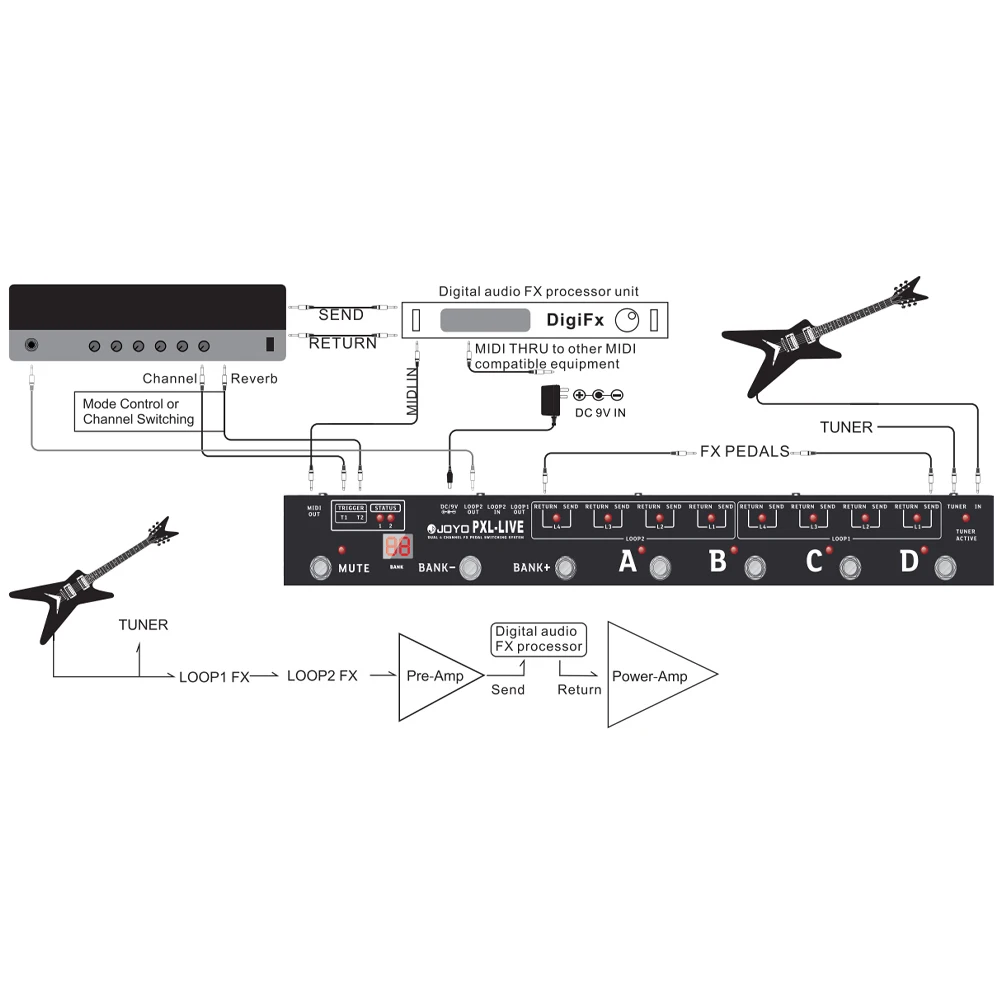

Flexible dual four channel design, It can be used as 8 separate channels or used as 2 separate sets of 4 channel (looping). If you have an amplifier with an internal effects loop,you will realize this is a really great function. You can use your Wah-Wah, Compressor, EQ, Distortion etc. to set up a single loop channel in connected to the front of your amp. Then have your modulation, delay, reverb setup as a separate loop that takes the output of your amp's effect pedal loop.

2 Programmable Trigger
Often we would like our amp's tone and pedals to be switched simultaneously. The PXL-Live offers two fully programmable triggers (two relays), which can help you to do this by connecting to your amp's function control (like FX, reverb,channel switching,etc.). Each of the two triggers has the following programming features:
*Polarity
*MOM or LATCH Mode
*Trigger external equipment's function when curent patch is activated.
*Trigger external equipment's function when current patch is inactivated (LOOP1& LOOP2 are bypassed)
With these characteristics,the PXL-Live can be used to control loops allowing you to use your amp and effect pedals in one central performance control system,instantly switch tones with a flip of a switch.
(The PXL-LIVE triggering mechanism is a switch which used to activate your external devices. It has two modes; one is MOM,which uses relay electronics to quickly activate. The other one is LATCH, in this model, Relay will change from one state to another, and it remains unchanged till next command is received.)

Programmable MIDI Controller
Today many types of professional audio equipment have a MIDl connector, allowing users to control functions or parameters of the device. To realize it, a MIDI controller is included in the PXL-LIVE and it can transmit the following messages:
MIDI Program Change.
MIDI Continuous Control message (MIDI CC#).

Specifications:

Working voltage: 9V DC
Full-load working current: 220mA
BYPASS type: BUFFERED BYPASS
Channels: 4LOOPSx2
Other controls: Trigger x 2,MIDI Out x 1
MIDI Functionality: MIDI CC and MIDI program change commands can be sent simultaneously

Package Included:

1* JOYO PXL-LIVE Foot Pedal Controller
1* User Manual

Note:

- It can support at most two messages simultaneously.
- Being able to transmit the above MIDl messages,together with its other features,the PXL-LIVE can become your control center when you perform,alowing you to switch tones with simplicity and ease.
- The PXL-LIVE MIDI interface supports output functionality but does not support input functionality, meaning it cannot be controlled via other MIDI controllers.
