1000W 1500W E-Bicycle Controller 36V 48V 52V 64V MAX30A 3-mode sine wave control

Product Description

36V 48V 52V 64V Black Gold Sine Wave Brushless Motor Controller 30A 1000W Controller Suitable for 6Pin SM Connector No. 2 Protocol Instrument Electric Bicycle

Specifications: 1000w 1500 W 36v/48v/52v/64v

Material: Aluminum Alloy sliver

Working Voltage: 36v/48v/52v/64v

Undervoltage: 32v

Rated Power: 1000W 1500W

Current: 30A

Shell Size: 15*8.5*4cm

MOS Tube: HY3410

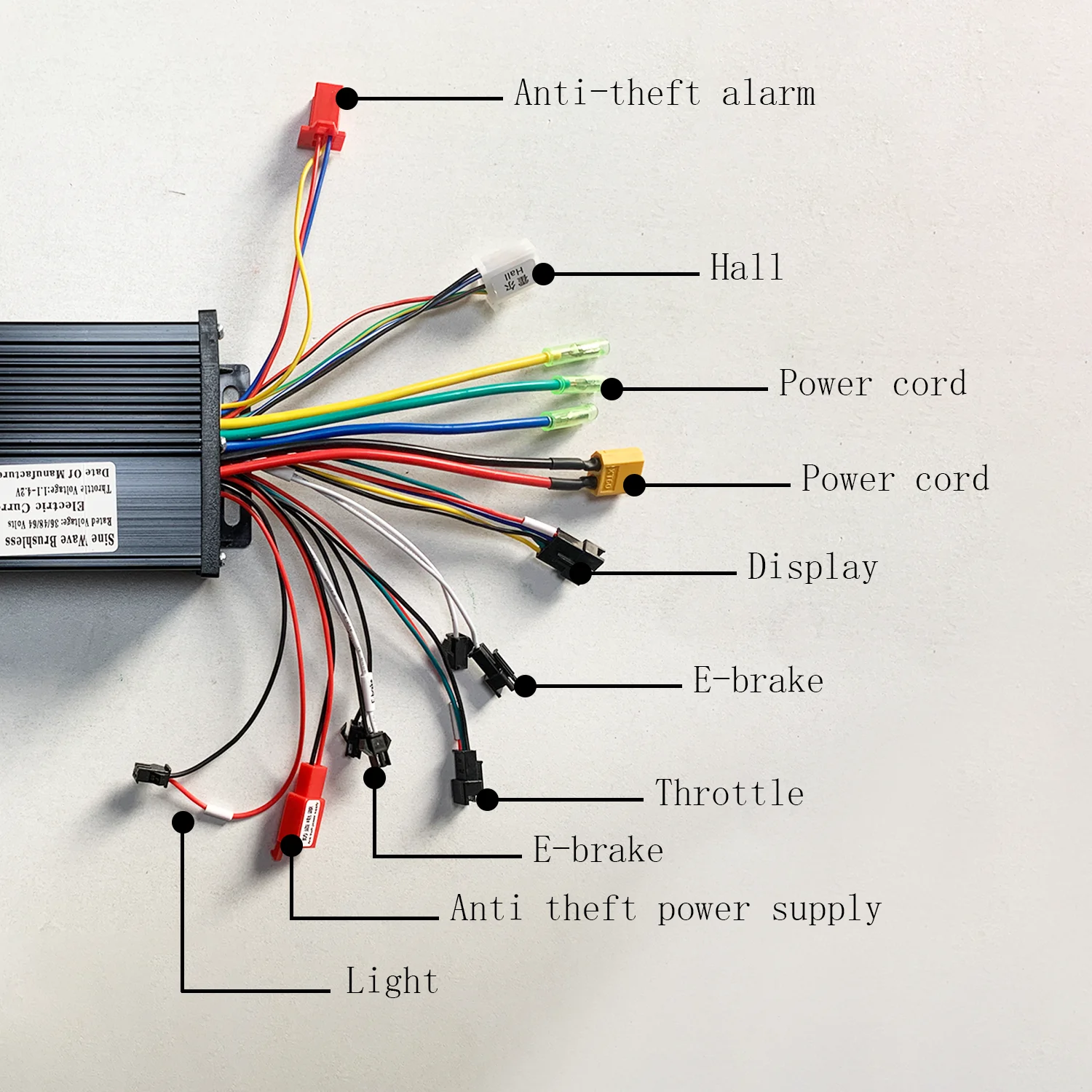

Function: Headlight Power Supply (Light), Throttle, No. 2 Protocol Instrument (Display), Hall, E-brake, Anti-theft Power Supply

NO.1

Connect three motor wires.(the motor wires have no positive or negative poles and can be connected arbitrarily).Connect the three wires of the controller to the three wires of the electric vehicle motor,

NO.2

Learning Line Firstly, please insert a pair of white learning wires of the controller together, then plug in the power key and turn on the power to observe whether the motor rotates:1. if the motor rotates forward, it indicates that learning has been completed, please unplug the learning wires,2. if the motor rotates in reverse, unplug the learning wire and reinsert it. Wait for the motor to rotate forward before unplugging the learning wire.
