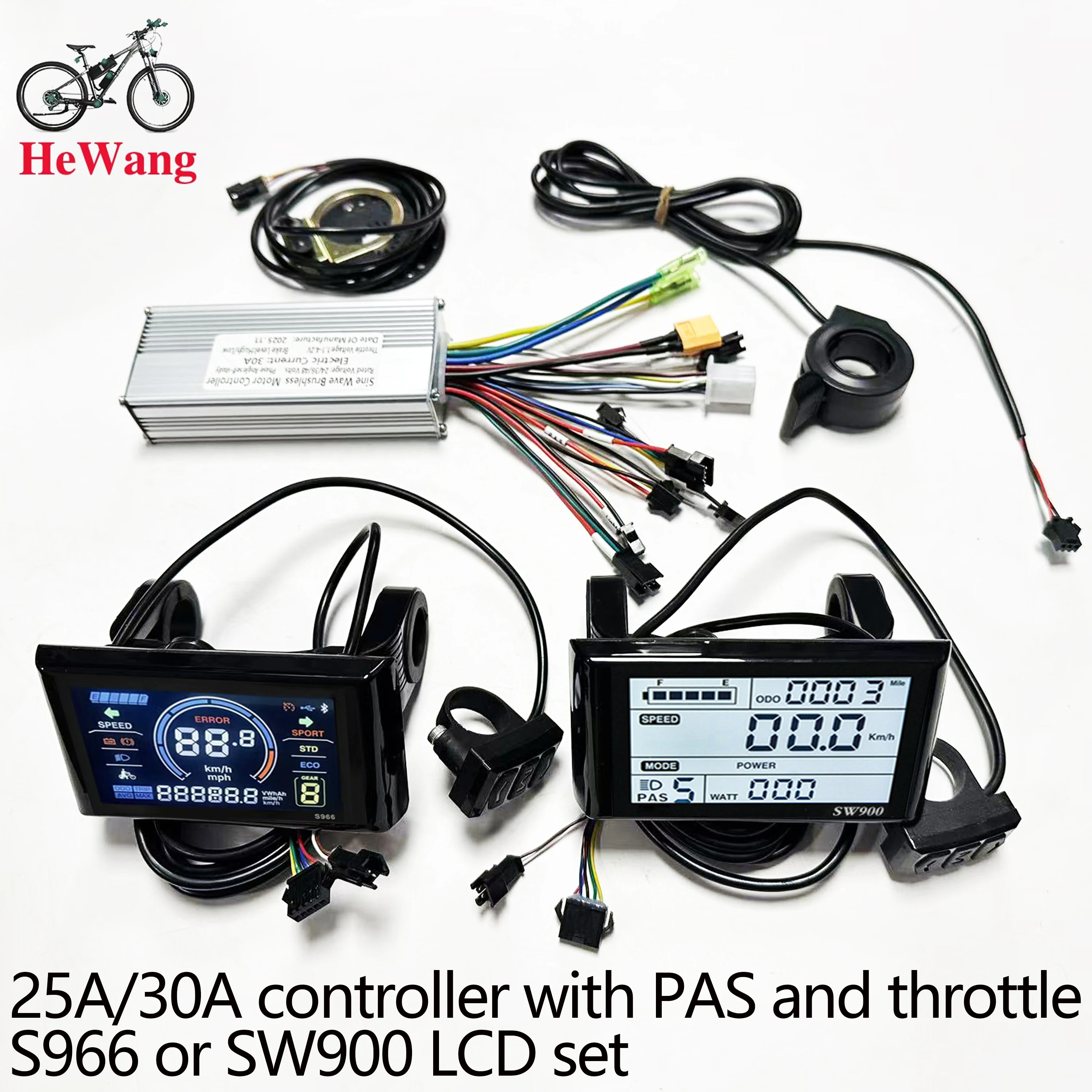

E-bike 25A/30A Brushless Motor Controller 24V 36V 48V 350W-1000W and S966/ SW900

Product Description

Packaging Contents:

Package List:

1 x 25A/30A Controller

1X PAS

1X throttle

25A SET 24-48V-S966:

24V/36V/48V sine wave Brushless motor controller 350W 500W 20A with S966 display

For S866 V889 No. 2 protocol LCD instrument electric bicycle scooter

24V, 36V, and 48V sine-wave brushless motor controller, 250W/

350W-500W controller, suitable for 6-pin SM connector,

protocol 2 instrumentation, e-bikes, lithium-ion scooters, mountain bikes, power-assisted scooters, etc.

Specifications: 350W-500W, 24V/36V/48V

Material: Aluminum Alloy

Operating Voltage: 24V/36V/48V

Rated Power: 350W-500W

Current: 25A

Case Dimensions: 9*5*3cm

MOSFET: HY3208

Functions: Headlight Power Supply, Throttle, protocol 2 instrumentation (display), 6-pin Hall Effect sensor, dual low-pressure brake (E-brake), power assist (PAS), self-study

Package List:

1 x 25A Controller

1X PAS

1X throttle

Controller Features

★Multi-voltage support

★Self-learning matching motor function

★Real high current

★High speed drive motor

★UART-No.2 communication protocol

★Housing aluminum alloy plating process

★Reserve pedal assist sensor interface

Tip:

This controller hall sensor is 6 wire, LCD get hall speed display, this controller is also compatible with 5 wire hall sensor.

30A SET 24-48V-S966:

1 x S966Panel

1 x 30A Controller

1X PAS

1X throttle

24V/36V/48V sine wave Brushless motor controller 500W 750W 1000W 30A For S866 V889 No. 2 protocol LCD instrument electric bicycle scooter

24V, 36V, and 48V sine-wave brushless motor controller, 500W-1000W controller, suitable for 6-pin SM connector,protocol 2 instrumentation, e-bikes, lithium-ion scooters, mountain bikes, power-assisted scooters, etc.

Specifications: 500W-1000W, 24V/36V/48V

Material: Aluminum Alloy

Operating Voltage: 24V/36V/48V

Rated Power: 500W-1000W

Current: 30A

Case Dimensions: 12.5*5*3cm

MOSFET: HY3410

Functions: Headlight Power Supply, Throttle, protocol 2 instrumentation (display), 6-pin Hall Effect sensor, dual low-pressure brake (E-brake), power assist (PAS), self-studyNote: the product has only one controller

25A SET 24-48V-SW900:

1 x SW900 Panel

1 x 25A Controller

1X PAS

1X throttle

30A SET 24-48V-SW900:

1 x SW900 Panel

1 x 30A Controller

1X PAS

1X throttleMust match communication protocol No. 2

Type LCD SW900 Display

Voltage 24V,36V,48V

Compatible withcontroller

Plug : 5pin +2pi

Material;Plastic

Weight：242

Waterproof : IP56

LCD-SW900 LCD instrument data display 5+2 pin SM connector L=168cm 36/48/52/64/72V for No. 2 protocol SM output controller electric bicycle1.Material&Dimension

1)Material

Caser and Cover and Press button: ABS

LCD window: PMMA

2)Outside and mounting dimensions(mm)

3)Press button outside and mounting dimensions(mm)

4)Connection diagram:

Wire definition:

Red: Power supply-VCC

Blue: Electronic lock-DS

Black:GND

Green: Data RXD

Yellow: Data TXD

BROWN:Head light(+)-DD

White: Head light(-)-GND

Remark: Connectors and Wire colors could be customized

5)Installation

Install the display in the middle of handlebar, thenadjust to suitable angle, install the press button to leftside of handlebar.

Power off the device, connect the device to controller.

Power on

6)Back light adjustment:

3-level adjustment

7)Assist level:

From 0 to5,press button to change assist level, 0-no assist,

5-default value

8)Distance:

ODO/Trip/Driving duration

9)Error code:

Please refer to appendix table 1 for definition

10) 6km mode:

in this mode, it will display "WALk" on the screen

11)Parameter setting:

Set parameters, such as: wheel size, speed limit etc

Description:

*Brand new and high quality

*Made of high quality material, durable and practical to use

*SW900 LCD Display Meter Control Panel 24/36/48V E-Bike Electric Bicycle Scooter

*Can be automatically identified and compatible 24V ,36V and 48V Voltage.

*It will show the true reflection of the battery charge, real time recording of the power consumption to ensure riding mileage.

*The individual joints are clearly set up to help with cost-effective installation.

*When connected to a bicycle, this product will display a lot of useful data on your bike, such as riding speed, time, power and temperature.

*The color display on the meter makes it easier for you to see the data on the panel.

*The SW900 LCD Display has multiple functions serving as a trip computer as well as controlling the whole ebike system after the conversion.

*Wheel size can be changed for different applications.

*Applicable to E-Bike Electric Bicycle Scooter

Specification:

*Material: LCD, Plastic

*Color: Black

*Size: 110*61mm(As Pictures Show)

*Type:LCD SW900 Display

Voltage: 36V,48V，52V，64

*Compatible with :JN controller

*Plug:5pin+2pin

*Plug Type:SM Plug/ Waterproof Plug

*Wire length: about 167cm/19cm

*Weight: about 240.2g /202.6g

*Waterproof:IP56

Package Includes:

1 x LCD Display

Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

2. Please allow slight manual measurement deviation for the data.Thank you!
