36/48V 500W Brushless DC Motor Dual Mode Controller for Electric Bicycle Electri

Product Description

36V-48V 500W brushless controller function：
Rated Voltage: 36V/48V
Low Voltage : 31V/42V±0.5V
Rated Power: 500W
Limit Current: 31A

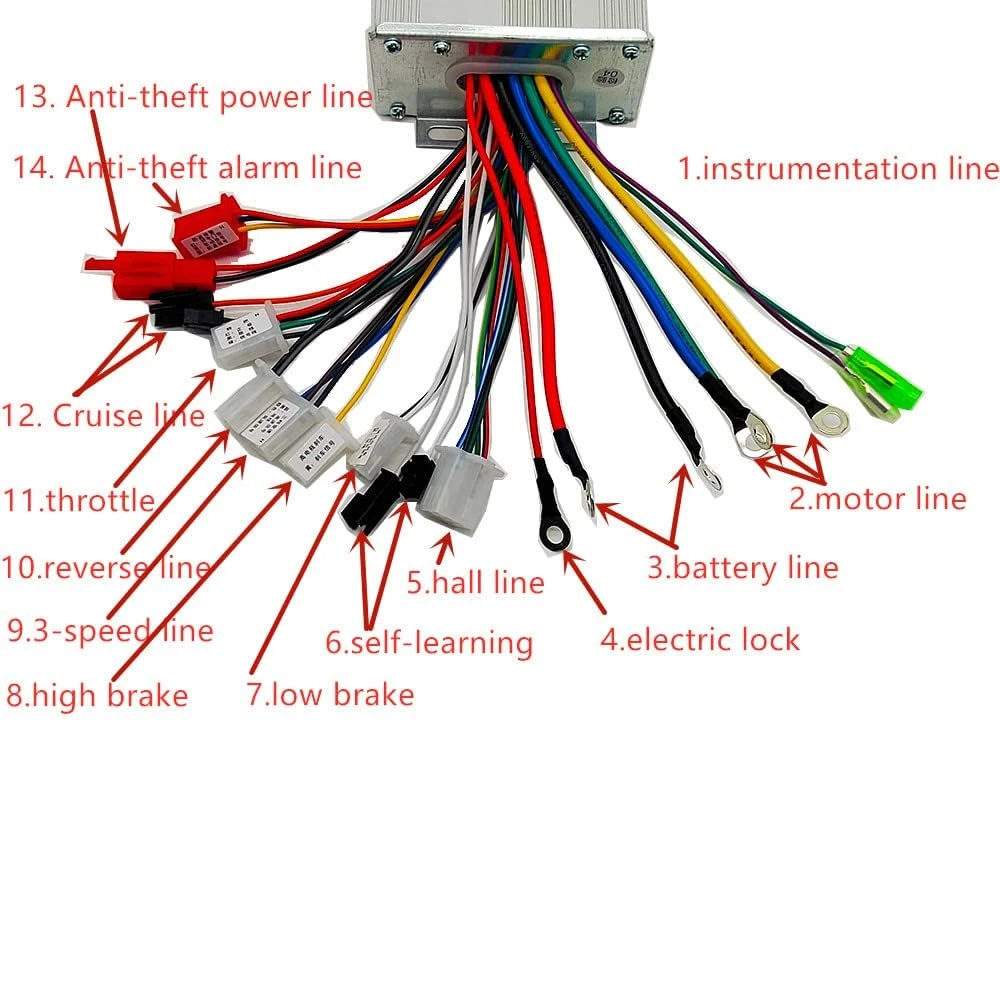

1. instrumentation line
（There are two instrument wires, one is suitable for pointer type instrument (green wire), and the other is suitable for liquid crystal type instrument (purple wire), choose wiring according to different instruments）
2. motor line
3. battery line
4. electric lock line
5. hall line
6.self-learning line
7. low brake
8. high brake line
9. 3-speed line
10.reverse line
11.throttle line
12. Cruise speed line
13. Anti-theft power line
14. Anti-theft alarm line

1.connect the motor line (color to color）
2. connect the battery line(red:battery + , black:battery-)
3. connect the controller throttle line, electric lock（if throttle not have electric lock, connect controller electric lock to battery+ ）
4.connect the hall line(if motor without hall line, don’t need connect)
5.docking the two self-learning lines, the wheel will forward or reverse.
(1.if wheel forward ,Separate the self-learning line.
2.if wheel reverse, Separate the self-learning line. Docking the self-learning line again
if wheel forward ,Separate the self-learning line.)
6.other functions can be connected as needed.
