350W/450W/500W/800W three-mode sine wave controller 48V/52V/64V e-bike brushless motor controller 18A/25A/33A/30A for e-scooters
350W/450W/500W/800W three-mode sine wave controller 48V/52V/64V e-bike brushless motor controller 18A/25A/33A/30A for e-scooters350W/450W/500W/800W three-mode sine wave controller 48V/52V/64V e-bike brushless motor controller 18A/25A/33A/30A for e-scooters
The product has only one controller

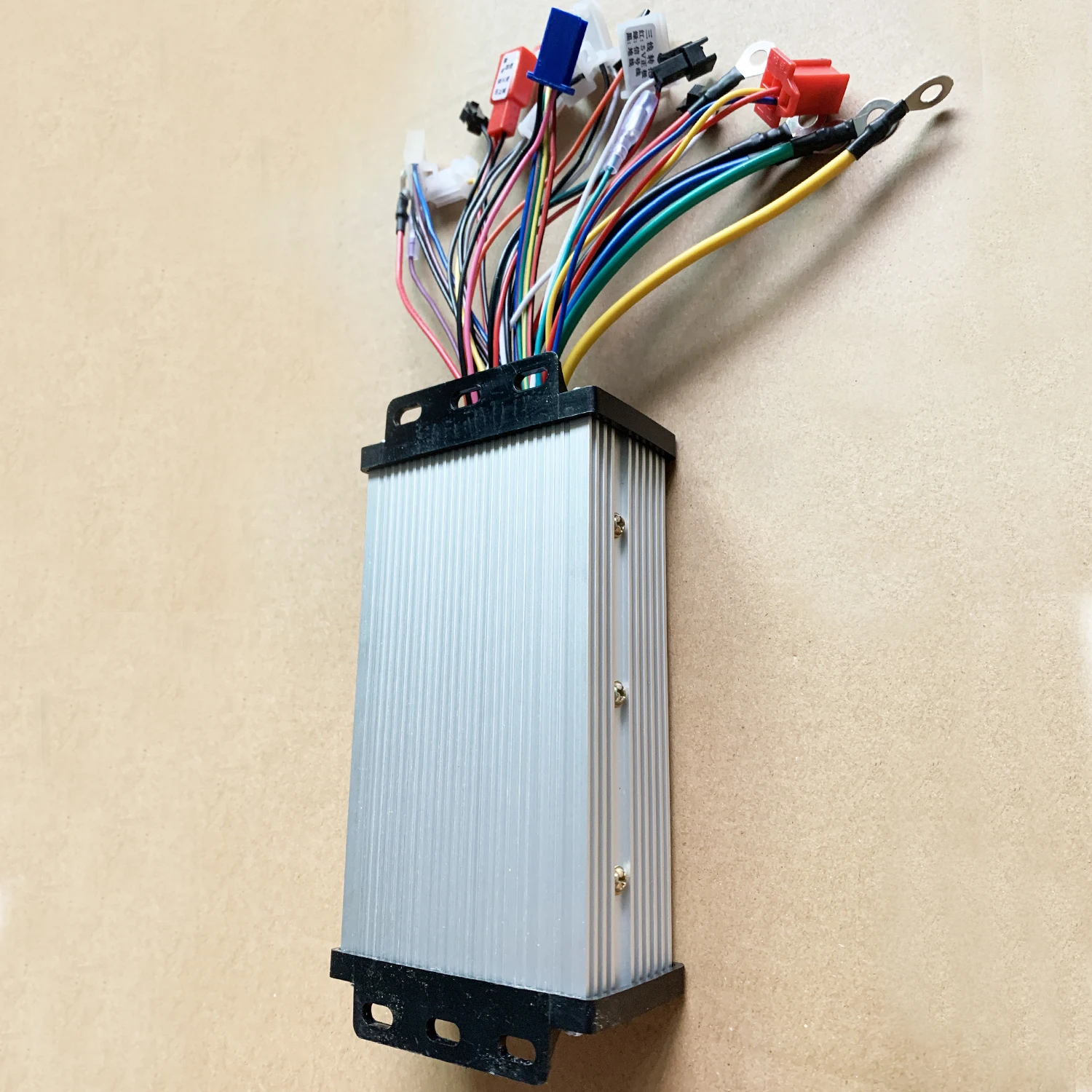

Product Introduction

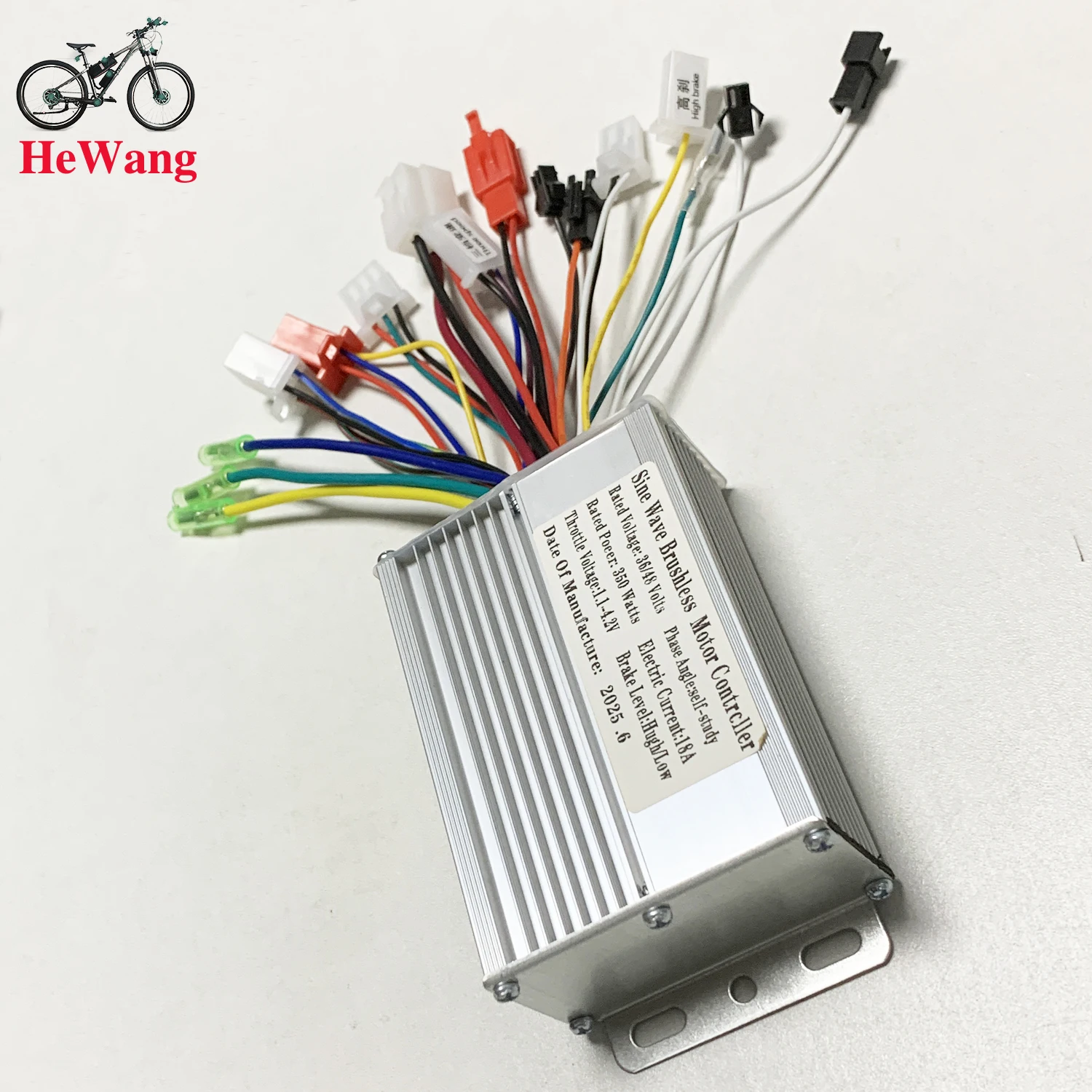

350W 6mosfet 18A
Sine Wave Brushless Motor Controller
Rated Voltage : 48/52/64 Volts
Rated Power :350 Watts
Phase Angle : self-study
Throttle Voltage : 1.1-4.2V
Brake Level:High/Low
Adaptation current:18A
Mosfet：6 MOSFET

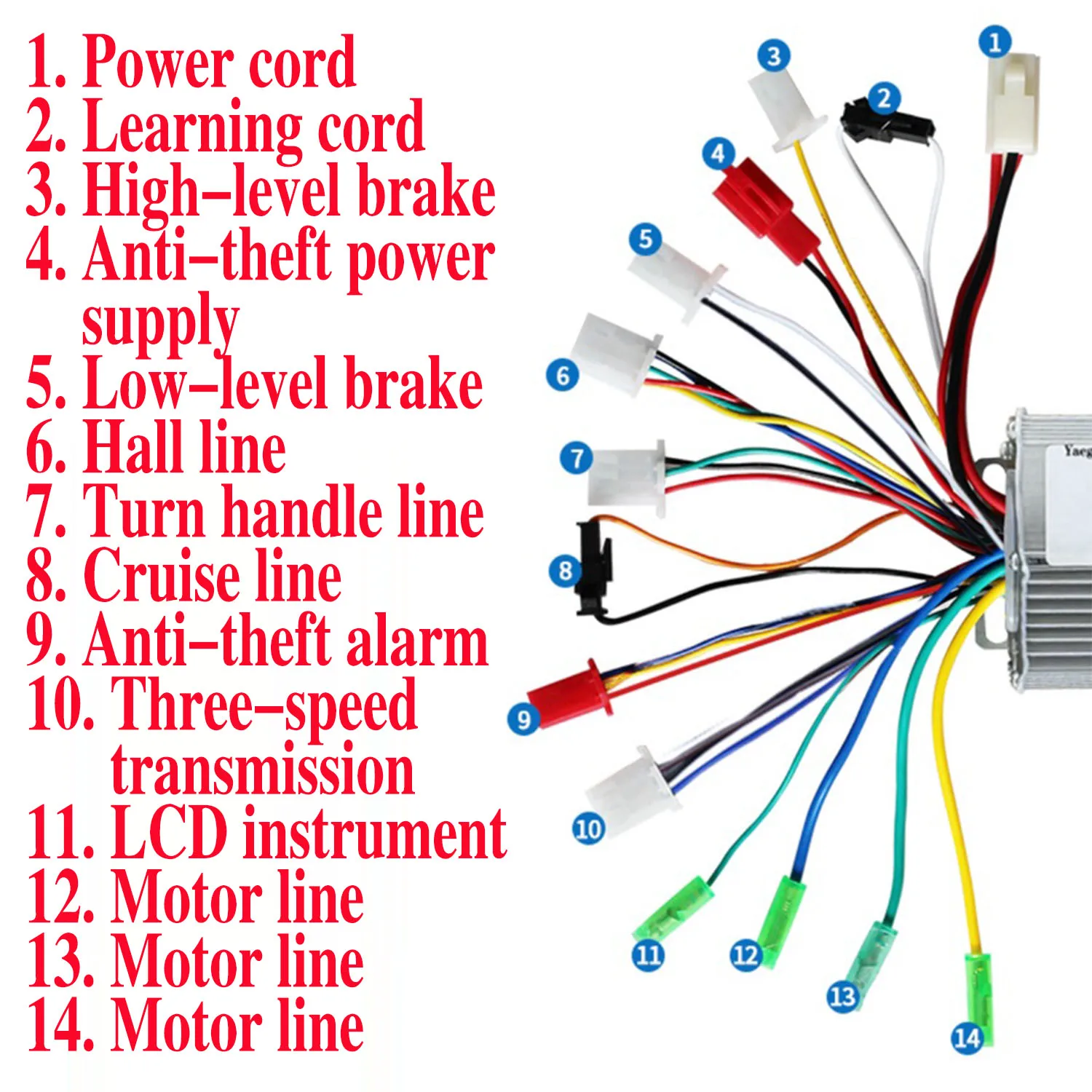

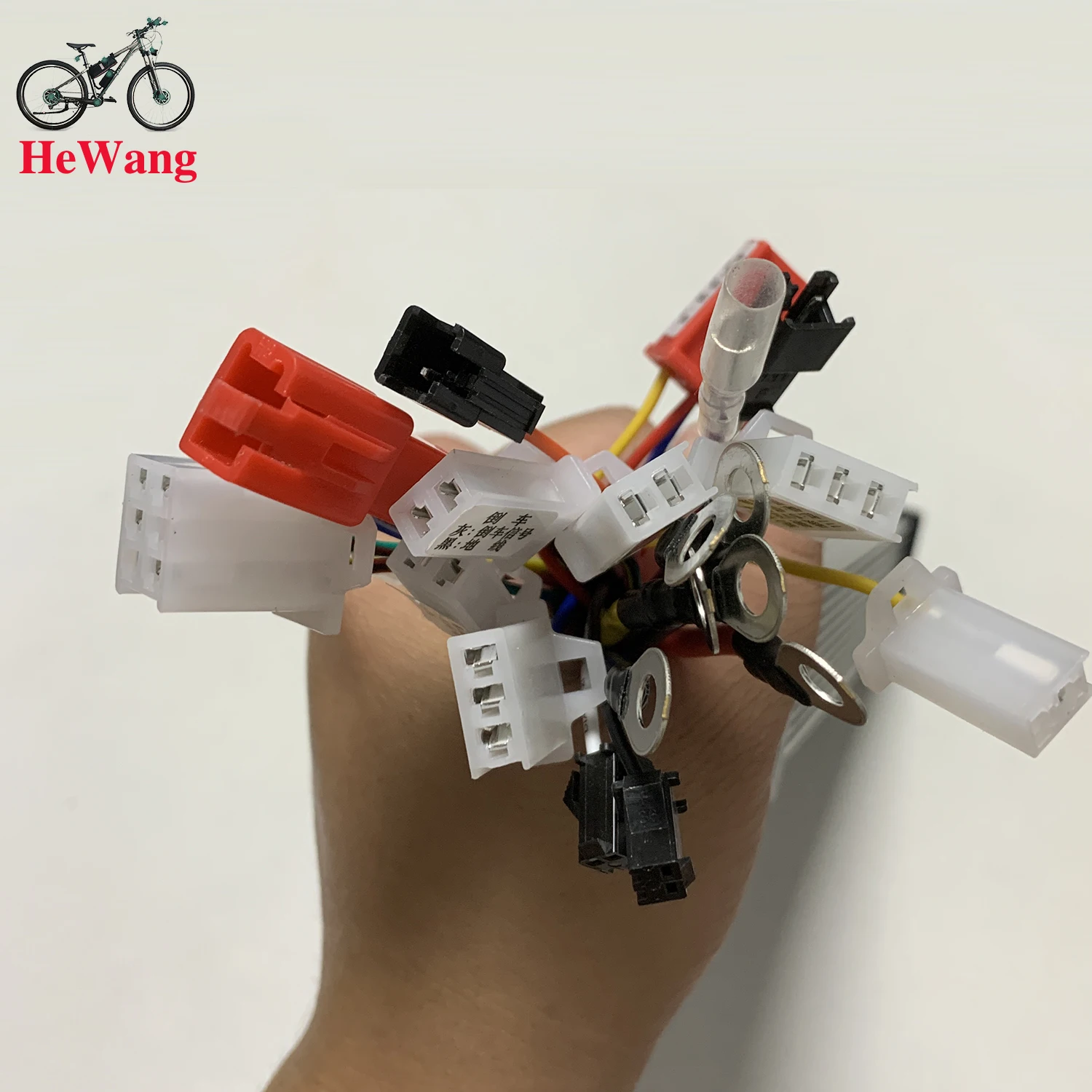

1. Power cord
2. Learning cord
3. High-level brake
4. Anti-theft power supply
5. Low-level brake
6. Hall line
7. Turn handle line
8. Cruise line
9. Anti-theft alarm
10. Three-speed transmission
11. LCD instrument
12. Motor line
13. Motor line
14. Motor line

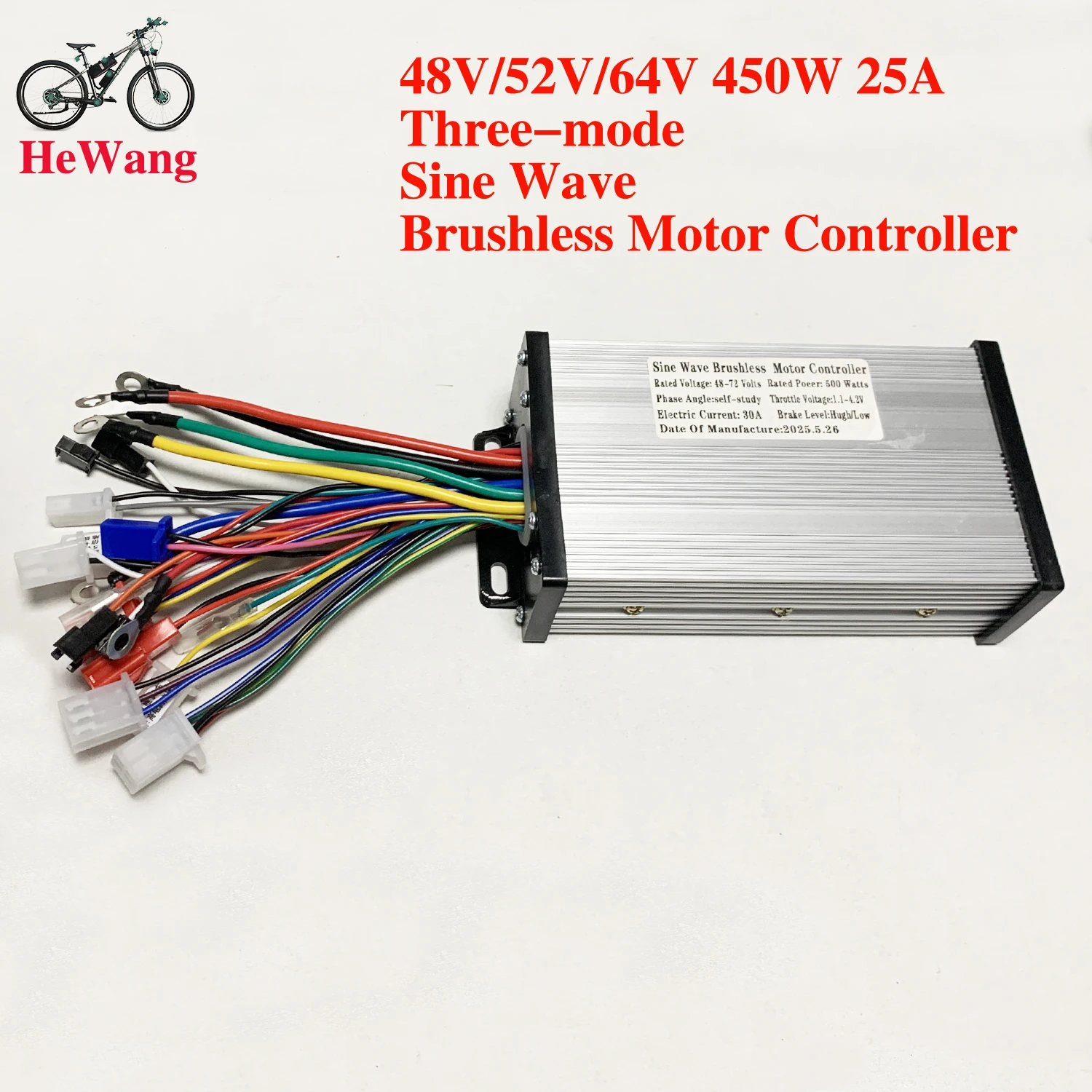

450W 9mosfet 25A
Sine wave 450w48v/64v three-mode silent electric bicycle brushless motor controller, suitable for electric bicycles, lithium scooters, skateboards, balance cars, modified cars, electric motorcycles, etc.
Specifications: 450w48v/60v/64v wide voltage
Material: aluminum alloy
Working voltage: 48v-64v peak
Undervoltage: 42v
Rated power: 450w
Current: 22A-25A
Shell size: 13*8.7*4CM
MOS tube: HY3208
Function: three-speed shift, three-speed inching, reverse, anti-theft alarm, smart cruise, pointer instrument, LCD instrument, high battery brake, low battery brake, no Hall start, learning line
1. Electric door lock key line：thin red line
2. Power line positive line：thick red line
3. Power line negative line：thick black line
4. Reverse line：倒车.
灰色：倒车信号, 黑色：地线
Reverse.
Gray: Reverse signal, Black: Ground wire
5. LCD instrument line：thin purple line
6. Three-speed transmission line: 三档变速，
蓝色：高速信号，黑色：地线，
棕色低速信号
Three-speed gear shift, blue: high speed signal, black: ground wire,
brown: low speed signal
7. Cruise line：thin line orange
Cruise line：thin lineblack
8.Anti-theft power cord：防盗电源 红：正极 黑：地线
Anti-theft power supply Red: positive pole Black: ground wire
9. Three-speed line of inching button： 按键三速 ：
粉：按键信号，黑：接地线.
Three-speed key:
pink: key signal, black: ground wire.
10. Throttle line：三线转把：
红：5V正极，绿：信号线，黑：地线
Three-wire handle:
red: 5V positive pole, green: signal line,
black: ground line
11. Motor Hall line：电机霍尔：
红：5V正极，黑：地线，
黄绿蓝：霍尔
Motor Hall:
Red: 5V positive pole, black: ground wire,
yellow, green and blue: Hall
12. Anti-theft alarm line：防盗报警线：
红：接电门锁
黄：轮动信号
蓝：防盗信号
Anti-theft alarm line:
Red: connected to the electric door lock
Yellow: wheel signal
Blue: anti-theft signa
13. High battery brake line：高电瓶刹车
黄：高电刹信号
High battery brake
Yellow: High battery brake signal
14. Low battery brake line：低电瓶刹车
白：刹车信号
黑：地线
Low battery brake
White: brake signal
Black: ground wire
15. Learning line：white thin line
16. Learning line：white thin line
17. Hall pointer instrument line：green signal line
18. Motor line
19. Motor line
20. Motor line

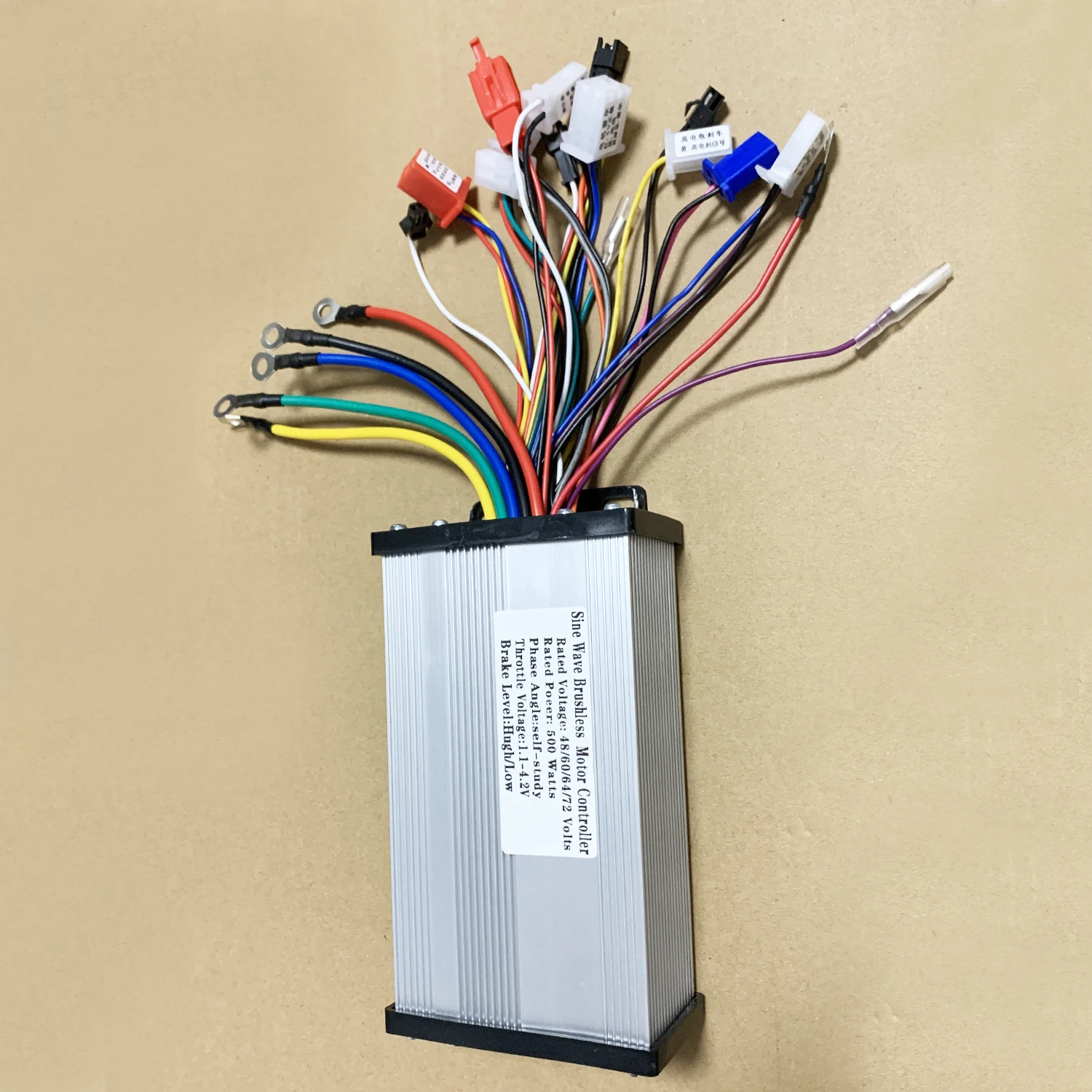

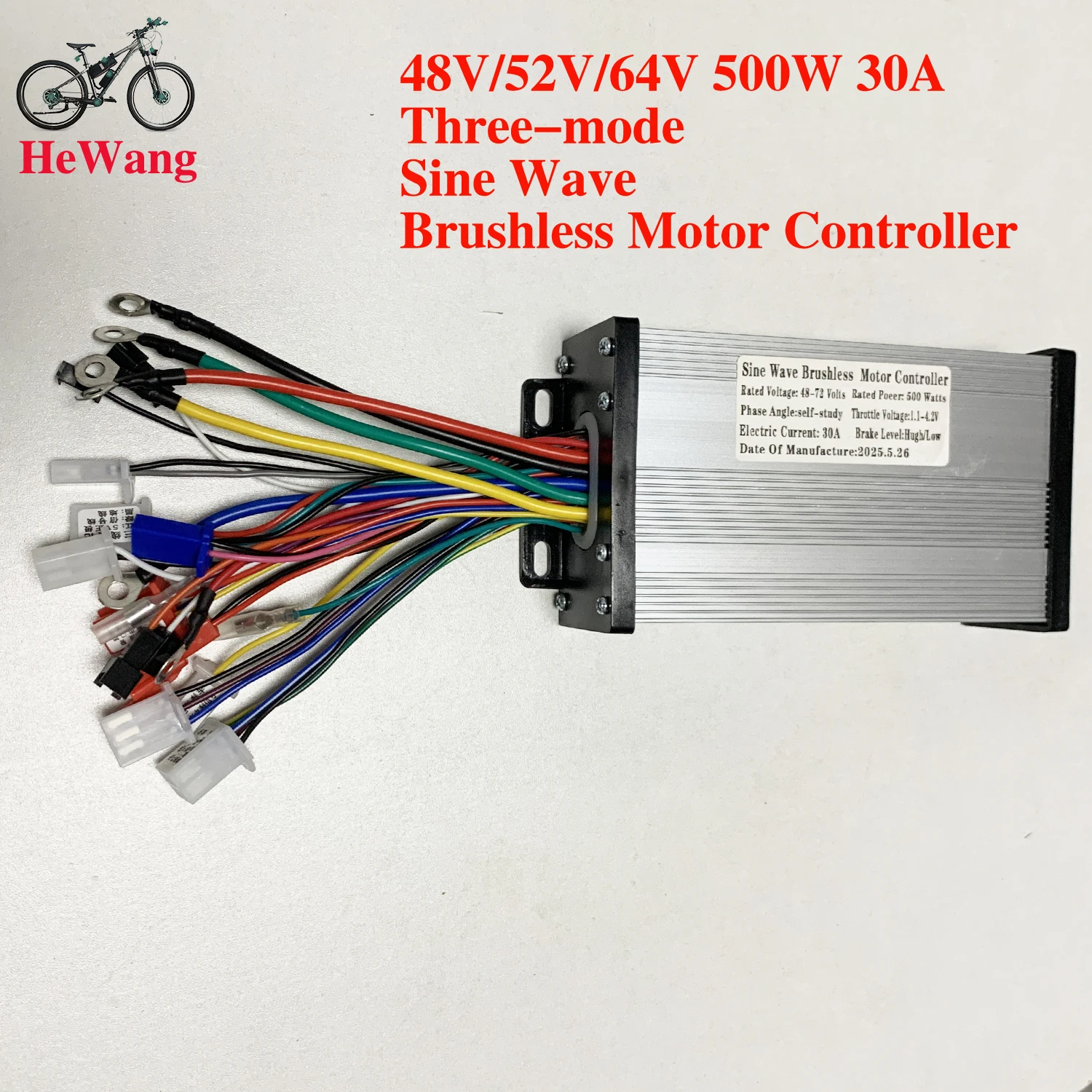

500W 12mosfet 30A
48 60-72v500W-600W electric bicycle three-sine wave silent brushless motor controller, suitable for electric motorcycles, electric bicycles, lithium electric scooters, scooters, balance cars, etc.
Specifications: sine wave three-mode 12 tubes 500W-600W 60v-72
Material: aluminum alloy
Working voltage: 60V-72V
Rated power: 500w-600w
Current: 30-32A
Size: 15*8.7*4cm
MOS tube: S10H16R
Function: three-speed shift, anti-theft alarm, reverse, smart cruise, pointer instrument, LCD instrument, high battery brake, low battery brake, no Hall start, learning line
1. Electric door lock key line
2. Power line positive line
3. Power line negative line
4. Reverse line
5. LCD instrument line
6. Three-speed transmission line
7. Cruise line
8. Cruise line
9. Three-speed line of inching button
10. Throttle line
11. Motor Hall line
12. Anti-theft alarm line
13. High battery brake line
14. Low battery brake line
15. Learning line
16. Learning line
17. Hall pointer instrument line
18. Motor line
19. Motor line
20. Motor line

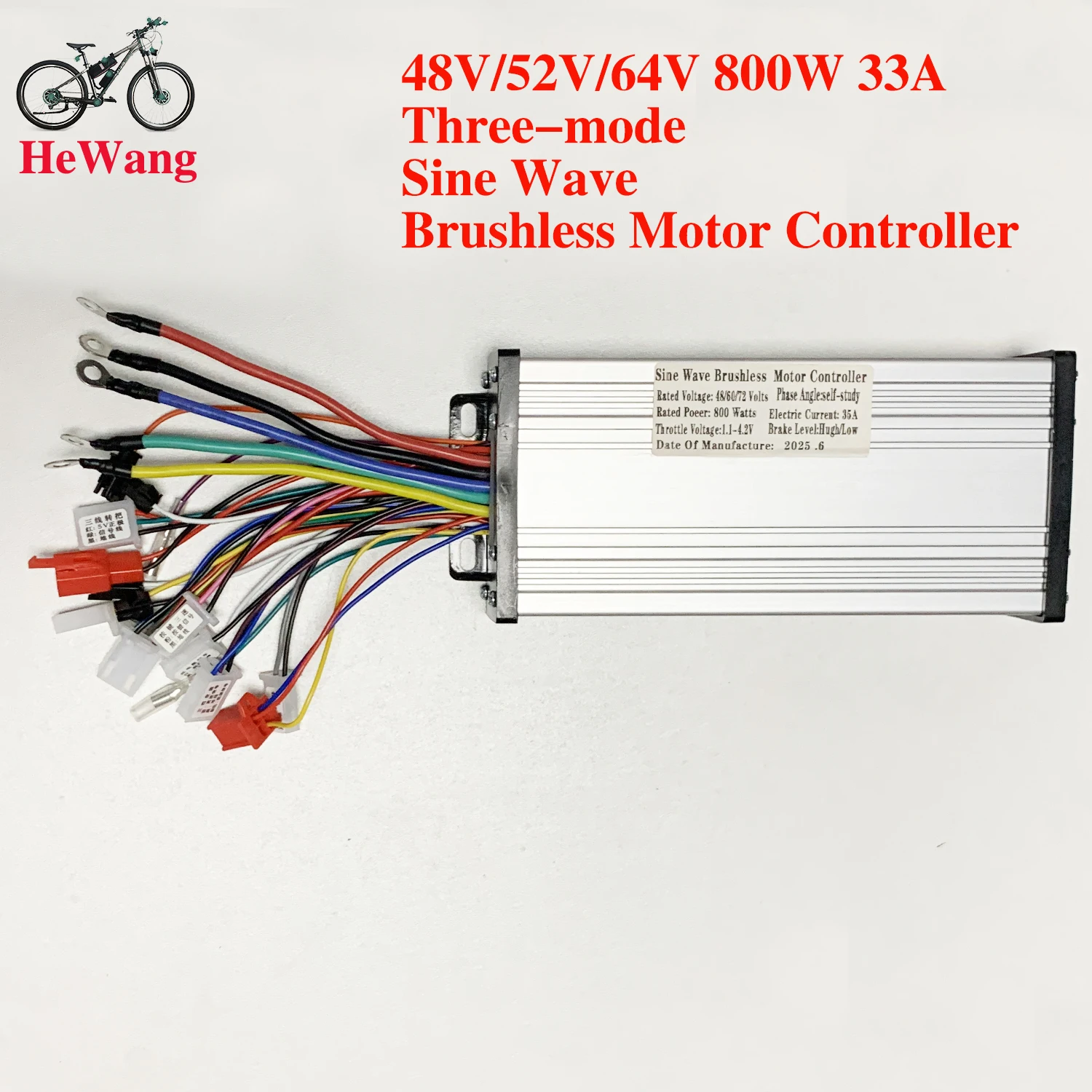

800W 15mosfet 33A:
Sine wave 800w48v/72v three-mode silent electric bicycle brushless motor controller, suitable for electric bicycles, lithium scooters, skateboards, balance cars, modified cars, electric motorcycles, etc.
Specifications: 800w48v-72v wide voltage
Material: aluminum alloy
Working voltage: 48v-72v peak
Undervoltage: 42v
Rated power: 800w
Current: 35A
Shell size: 18.5*8.7*4CM
MOS tube: HY3410
Function: three-speed shift, three-speed inching, reverse, anti-theft alarm, smart cruise, pointer instrument, LCD instrument, high battery brake, low battery brake, no Hall start, learning line
1. Electric door lock key line：thin red line
2. Power line positive line：thick red line
3. Power line negative line：thick black line
4. Reverse line：倒车.
灰色：倒车信号, 黑色：地线
Reverse.
Gray: Reverse signal, Black: Ground wire
5. LCD instrument line：thin purple line
6. Three-speed transmission line: 三档变速，
蓝色：高速信号，黑色：地线，
棕色低速信号
Three-speed gear shift, blue: high speed signal, black: ground wire,
brown: low speed signal
7. Cruise line：thin line orange
Cruise line：thin lineblack
8.Anti-theft power cord：防盗电源 红：正极 黑：地线
Anti-theft power supply Red: positive pole Black: ground wire
9. Three-speed line of inching button： 按键三速 ：
粉：按键信号，黑：接地线.
Three-speed key:
pink: key signal, black: ground wire.
10. Throttle line：三线转把：
红：5V正极，绿：信号线，黑：地线
Three-wire handle:
red: 5V positive pole, green: signal line,
black: ground line
11. Motor Hall line：电机霍尔：
红：5V正极，黑：地线，
黄绿蓝：霍尔
Motor Hall:
Red: 5V positive pole, black: ground wire,
yellow, green and blue: Hall
12. Anti-theft alarm line：防盗报警线：
红：接电门锁
黄：轮动信号
蓝：防盗信号
Anti-theft alarm line:
Red: connected to the electric door lock
Yellow: wheel signal
Blue: anti-theft signa
13. High battery brake line：高电瓶刹车
黄：高电刹信号
High battery brake
Yellow: High battery brake signal
14. Low battery brake line：低电瓶刹车
白：刹车信号
黑：地线
Low battery brake
White: brake signal
Black: ground wire
15. Learning line：white thin line
16. Learning line：white thin line
17. Hall pointer instrument line：green signal line
18. Motor line
19. Motor line
20. Motor line
STEP.1 Connect the three wires of the motor first (the motor wires have no positive and negative poles, so you can connect them at will)
Connect the three thick yellow, green and blue wires of the motor with the three motor wires of the electric car, and use the rear wheel to feel if there is any resistance. If there is no resistance, continue to the second step. If there is resistance, check if the three wires of the motor are not connected properly. (How to detect whether the motor is good or bad: touch the motor wires of the car in pairs. If there is resistance, it means the motor is good. If there is no force, it means the motor has a problem).
STEP.2 Connect the positive and negative poles of the power supply and the electric door lock wire
The power wire of the controller, the thick red is the positive pole, the thick black is the negative pole, and the thin red wire is the electric door lock wire, which can be matched with the positive and negative poles of the power supply and the electric door lock wire of your electric vehicle! (Note that the positive and negative poles of the power supply must not be connected in reverse, otherwise the controller will be burned. If the electric vehicle does not have an electric door lock wire, the electric door lock wire on the controller and the positive pole of the power supply can be short-circuited together)
STEP.3 Connect the learning wire
There is a pair of white learning wires on the controller. Plug the learning wires together, then plug in the power key, turn on the power, and see if the motor rotates automatically. If it rotates forward, just unplug the learning wire directly. If it rotates reversely, unplug the learning wire and re-plug it to rotate forward, and then unplug the learning wire to complete the learning (after this step is completed, the motor automatically rotates to prove that the controller is good, and if it does not rotate, it proves that there is a problem with the controller)
STEP.4 Connect the Hall wire
Plug in the Hall wire, which has 5 wires with one head. Note: The Hall wire has positive and negative poles. The positive pole of the Hall wire of our controller is red, and the negative pole is black. As long as the positive and negative poles are correct, it doesn't matter if the other 3 wires have different colors. Our controller is a brushless controller, which can be used with or without Hall wires. However, if the Hall wire of the electric vehicle motor is broken, the following situations will occur: 1. The vehicle will shake and be weak when starting, but it will be fine when riding; 2. The anti-theft alarm can be used, but the motor lock function cannot be used; 3. The high gear of the three-speed cannot be used, but the low gear can be used
STEP.5 Connect the throttle wire
Find the throttle wire for control, red, green and black, red is the positive pole of the throttle, black is the negative pole of the throttle, green is the signal wire of the throttle, then find the throttle wire on the electric vehicle, note that the throttle wire of the electric vehicle must come out from the throttle. If necessary, you can disassemble the throttle to identify which one is the throttle connector in the electric vehicle, connect the throttle connector, turn the throttle, and see if the motor rotates. If there is no response when turning the throttle at this time:
1. The positive and negative poles of the throttle are not connected correctly;
2. The throttle is broken, just change a throttle. (Friends with a multimeter can use the multimeter to test the throttle signal wire to see if there is a voltage output. Set the multimeter to the voltage output state, connect the red needle to the green signal wire of the throttle, and connect the black needle to the black ground wire of the throttle to see if there is a 0-5V voltage. If there is no voltage, it proves that the throttle is broken. Be sure to connect the controller and the throttle and turn on the power to test, otherwise it will not work).
STEP.6 Connect high and low battery brake wires
1. The controller has both a single yellow high battery brake wire and a white and black low battery brake wire. High battery brakes and low battery brakes are distinguished by brake voltage. If the brake voltage is higher than 5V, use the high battery brake, and if the brake voltage is lower than 5V, use the low battery brake. The effect of high battery and low battery brakes is to cut off the power of the brake. First, identify how many wires come out of your brake handle, one for the high battery brake and two for the low battery brake. (If your car is a turn brake, you need to pull out the white and black low battery brake and put it together with the turn handle wire to achieve the effect of cutting off the power of the brake). 2. Because EABS electronic brakes are built into the controller program, the electronic brake effect will be generated as long as the brake power is cut off. The electronic brake is when the brake power is cut off. The motor generates a reverse force to brake. Sometimes there will be a "click" sound, which has no effect on the motor. Please feel free to use it.
STEP.7 Connect the instrument cable
The instrument cable is a single thin green cable, suitable for pointer instruments. If it is an LCD instrument, please choose carefully, as there may be mismatches.
STEP.8 Connect the cruise line
Cruise can be divided into automatic cruise (just plug the cruise line) and button cruise (just connect the two lines from the button to the cruise line).
STEP.9 Connect the anti-theft alarm function
The anti-theft function line consists of two groups of lines: the anti-theft power supply and the anti-theft signal. Among them, the red and black lines of the anti-theft power supply represent the positive and negative poles of the battery respectively, while the red line of the anti-theft signal is the electric door lock line, the yellow line is the wheel signal line, and the blue line is the anti-theft signal line. Be careful not to connect the different types of lines incorrectly!
