24V 36V 48V 750W 1000W 26A-35A E-bike Brushless Motor Controller with S866 LCD D

Product Description

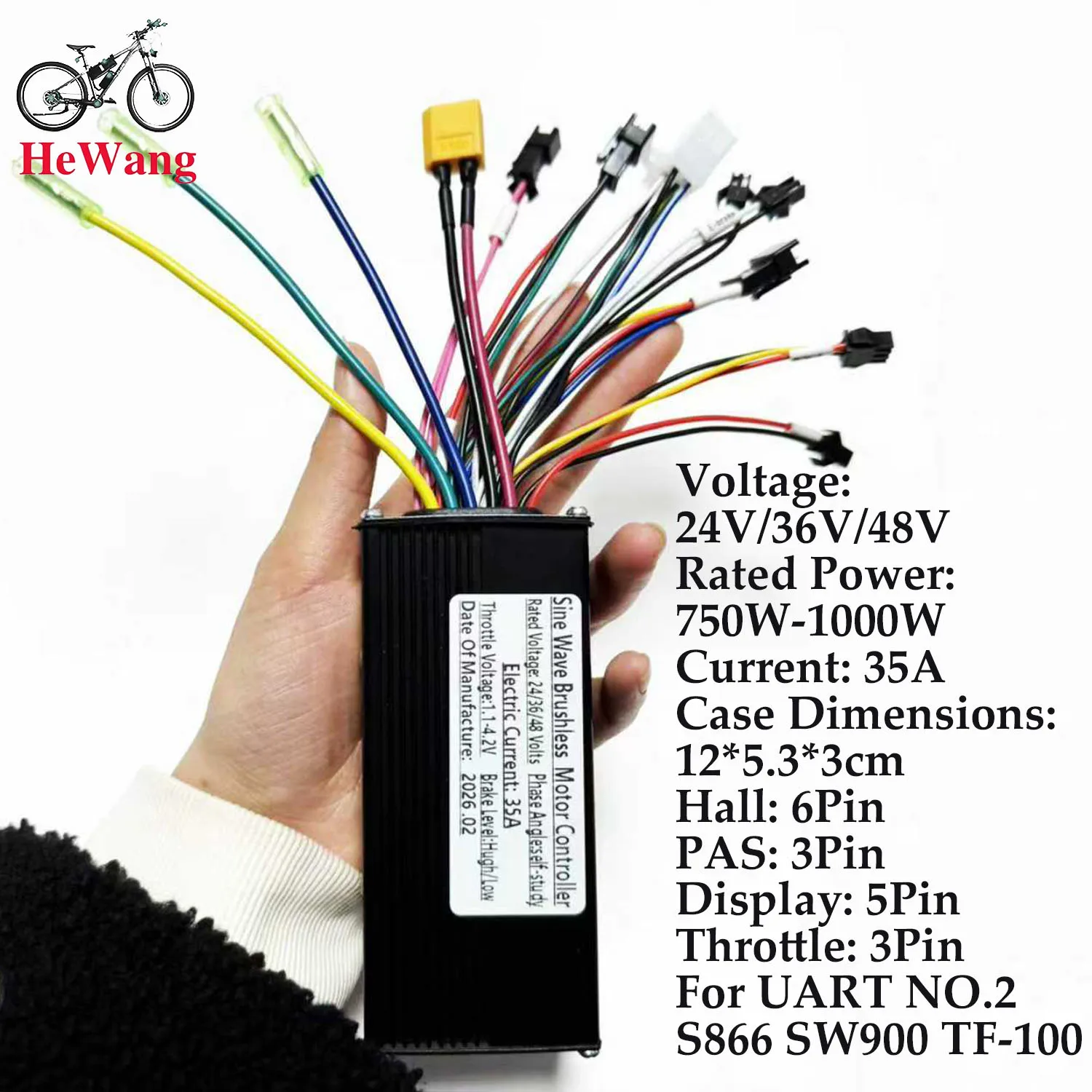

Voltage:24V/36V/48V

Rated Power:750W-1000W

Current: 26-35A

Case Dimensions:12*5.3*3cm

Hall: 6Pin

PAS: 3Pin

Display: 5Pin

Throttle: 3Pin

MOSFET: HY3410

Functions: Headlight Power Supply, Throttle, protocol 2 instrumentation (display), 6-pin Hall Effect sensor, dual low-pressure brake (E-brake), power assist (PAS), self-studyNote: the product has only one controller

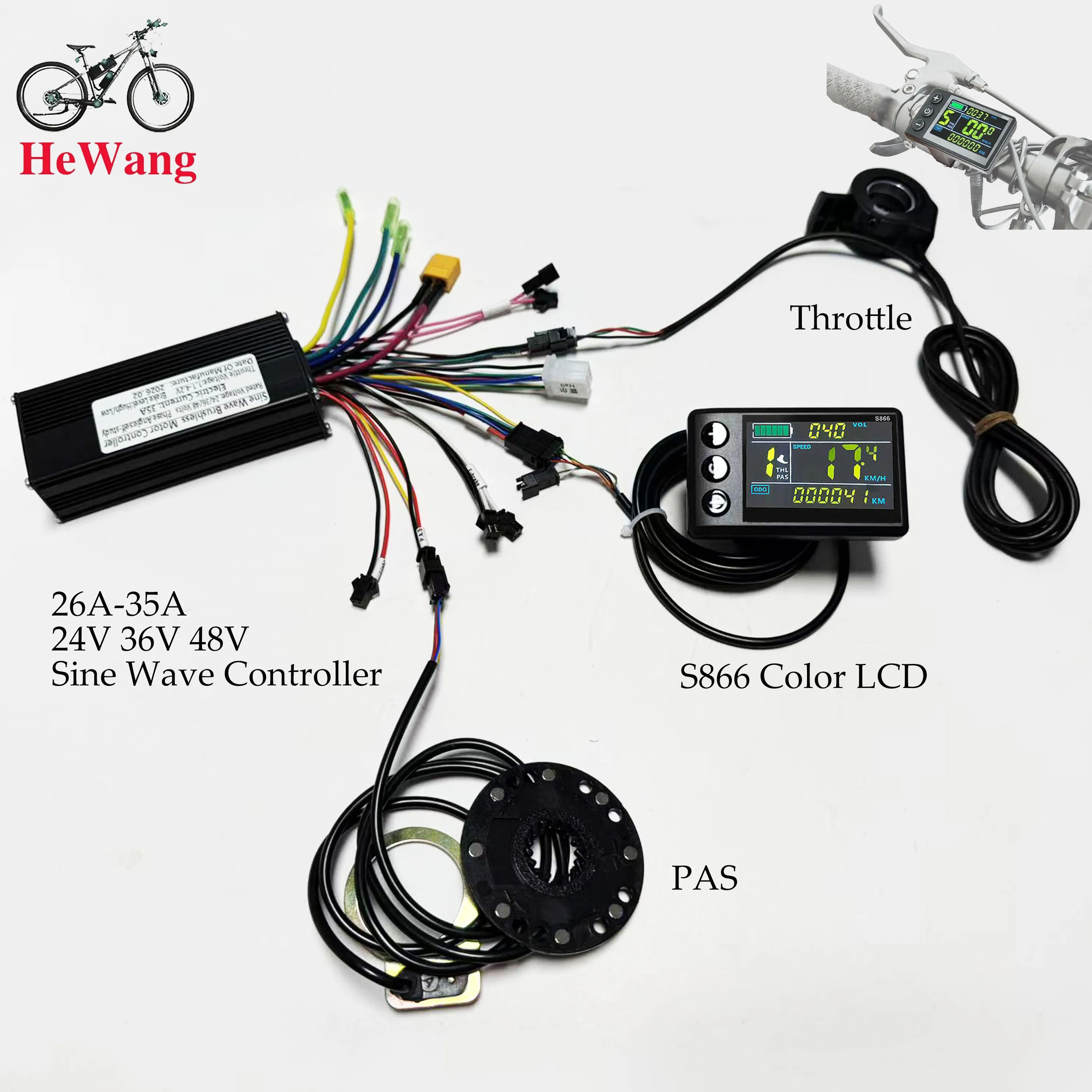

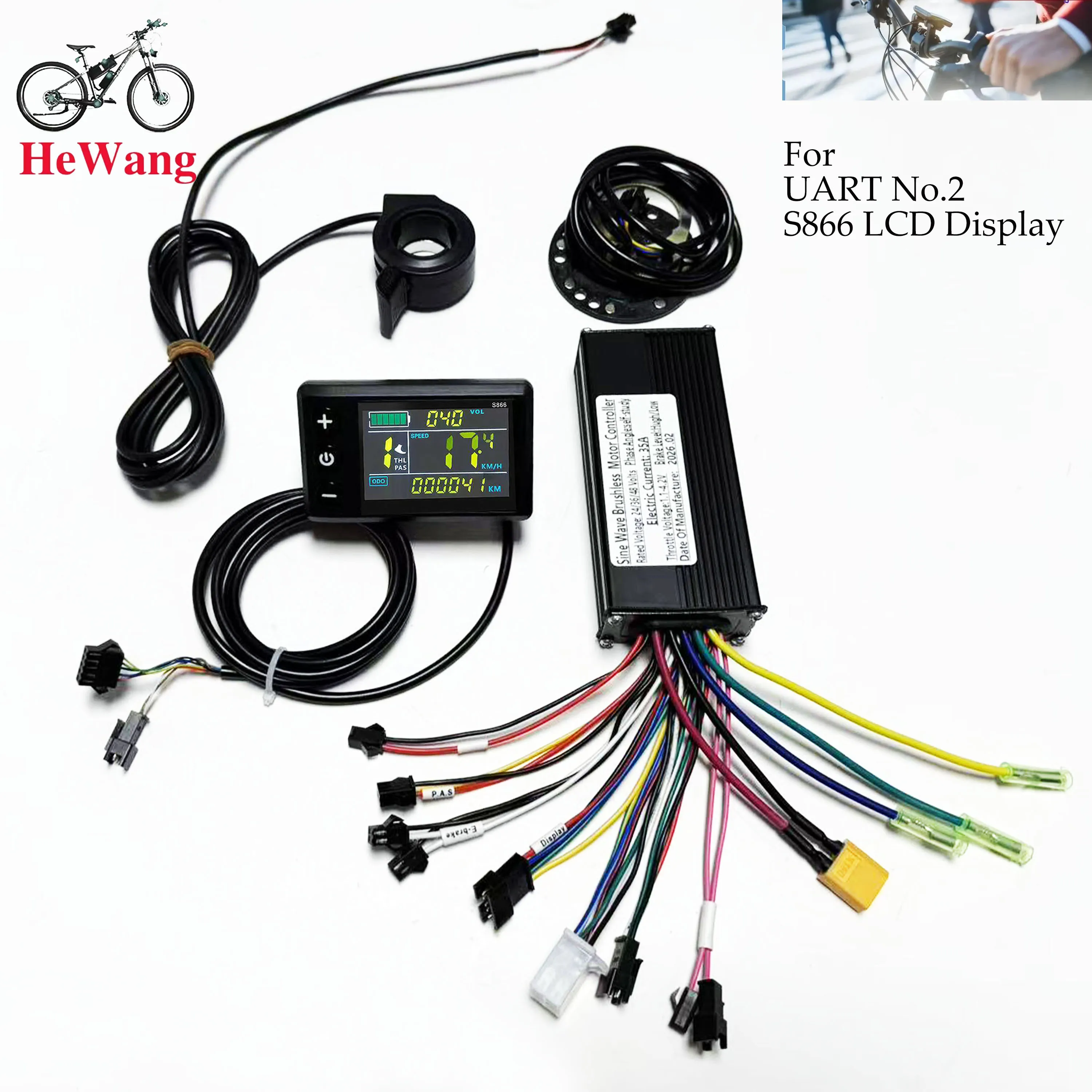

Packing list:

1 x S866 LCD display

1 x controller

1 x pas sensor

1 x throttle

Note:

Each cable is marked with different colors for different purposes.

Q1. What voltages does this controller support?

A: This controller supports 24V, 36V, 48V batteries.

Q2. Is my motor a brushless motor? How can I tell?

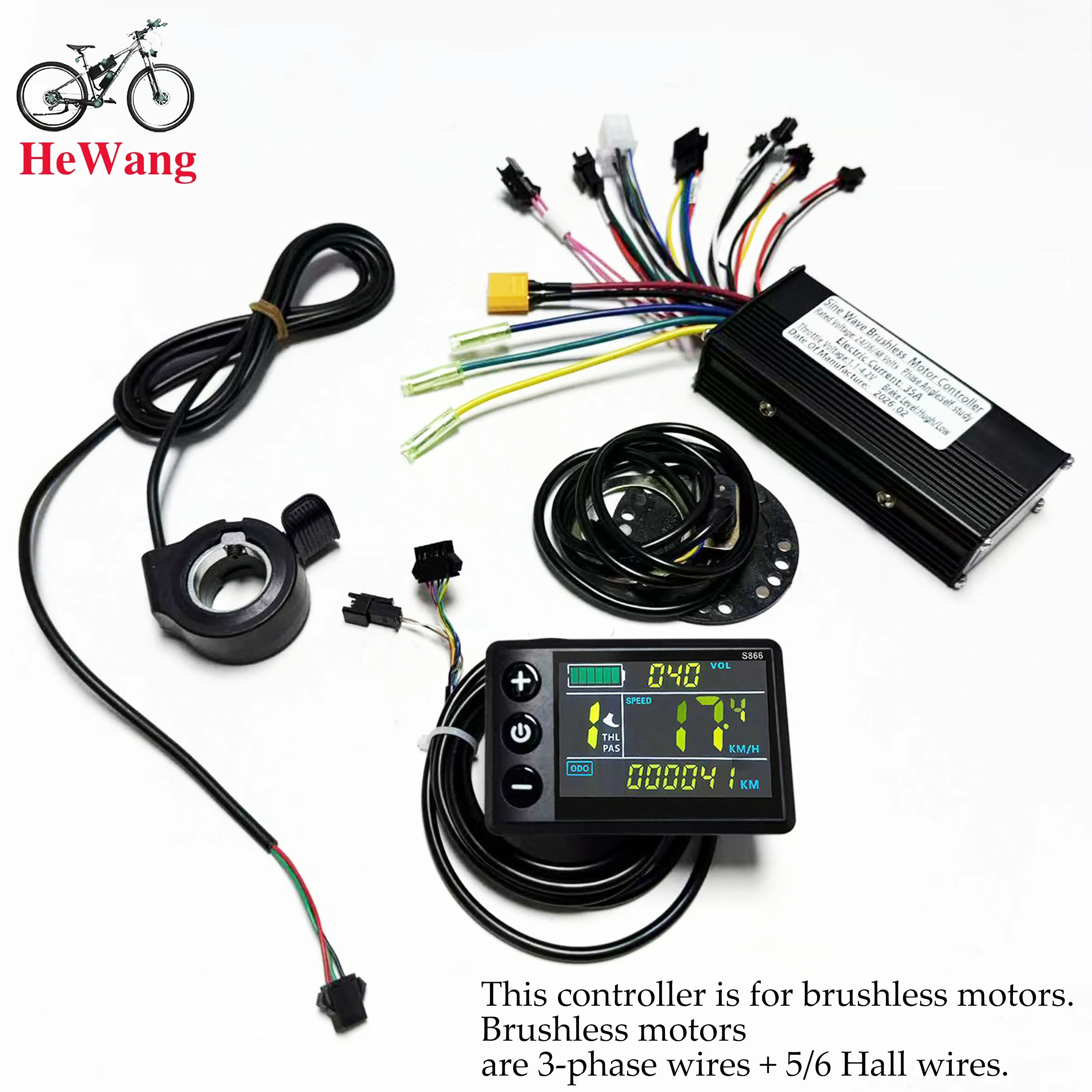

A: This controller is for brushless motors. Brushless motors are 3-phase wires + 5/6 Hall wires.

Q3. The LCD displays an E06 error code after I install it, what is the problem?

A: This is a battery undervoltage code, check if the battery is full and also please set your voltage in P03 in the LCD settings.

Q4. The LCD shows E07 error code after my installation, what is the problem?

A: This is a motor fault code, please check if the hall sensor and phase wire are connected correctly. And drive the motor with 4-5 high speed, E07 will disappear.

Q5. My brushless motor only has 3-phase wires, can I use this LCD kit?

A: We do not recommend LCD kit, but Hall will show E07 error code. We recommend our S810 LED panel kit, you can search in our shop.

Q6. My motor reverses, what do I do?

A: Please plug in the learning wire (auto-detect) to check your motor parameters for normal drive and compatibility, disconnect and plug in again to change the motor drive direction.
