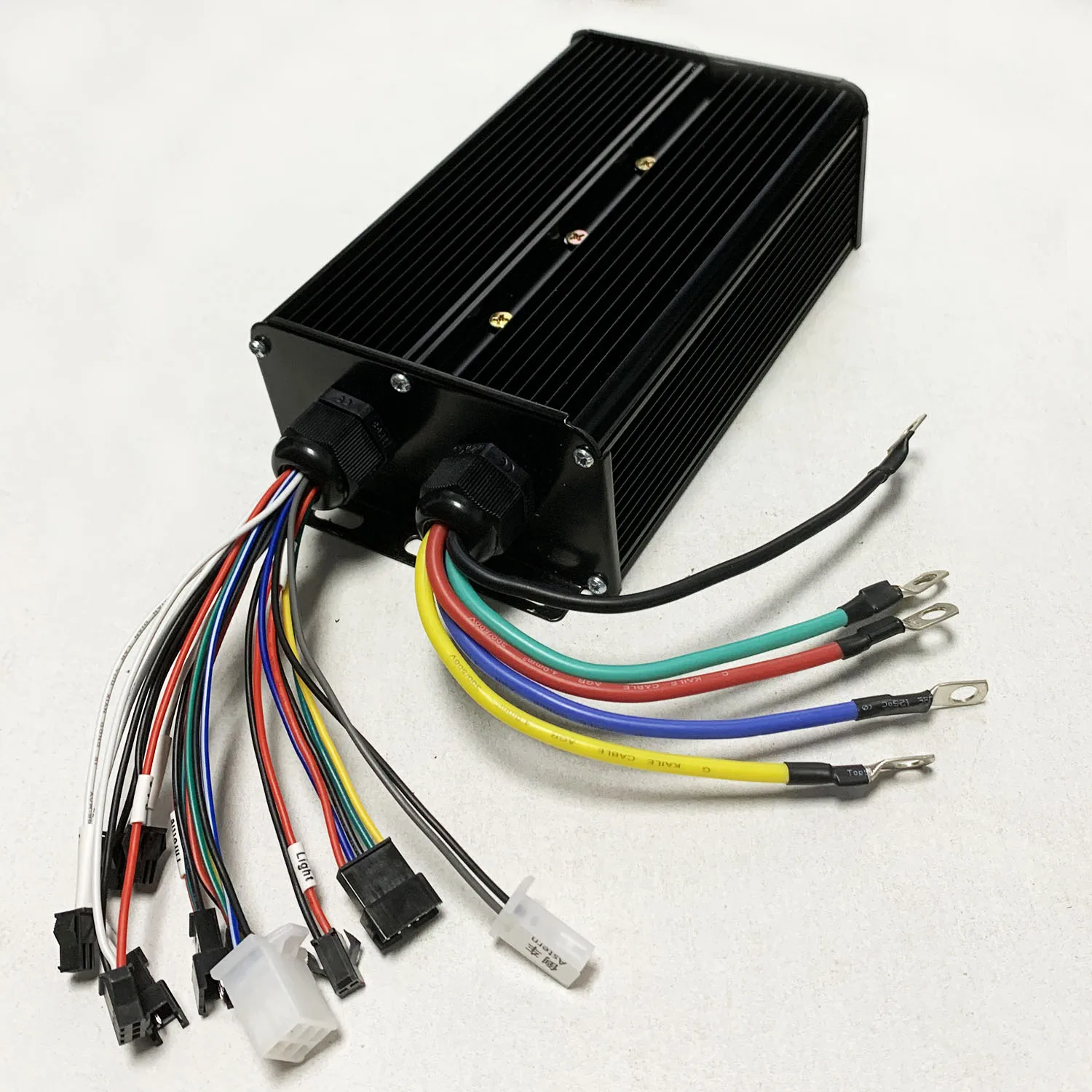

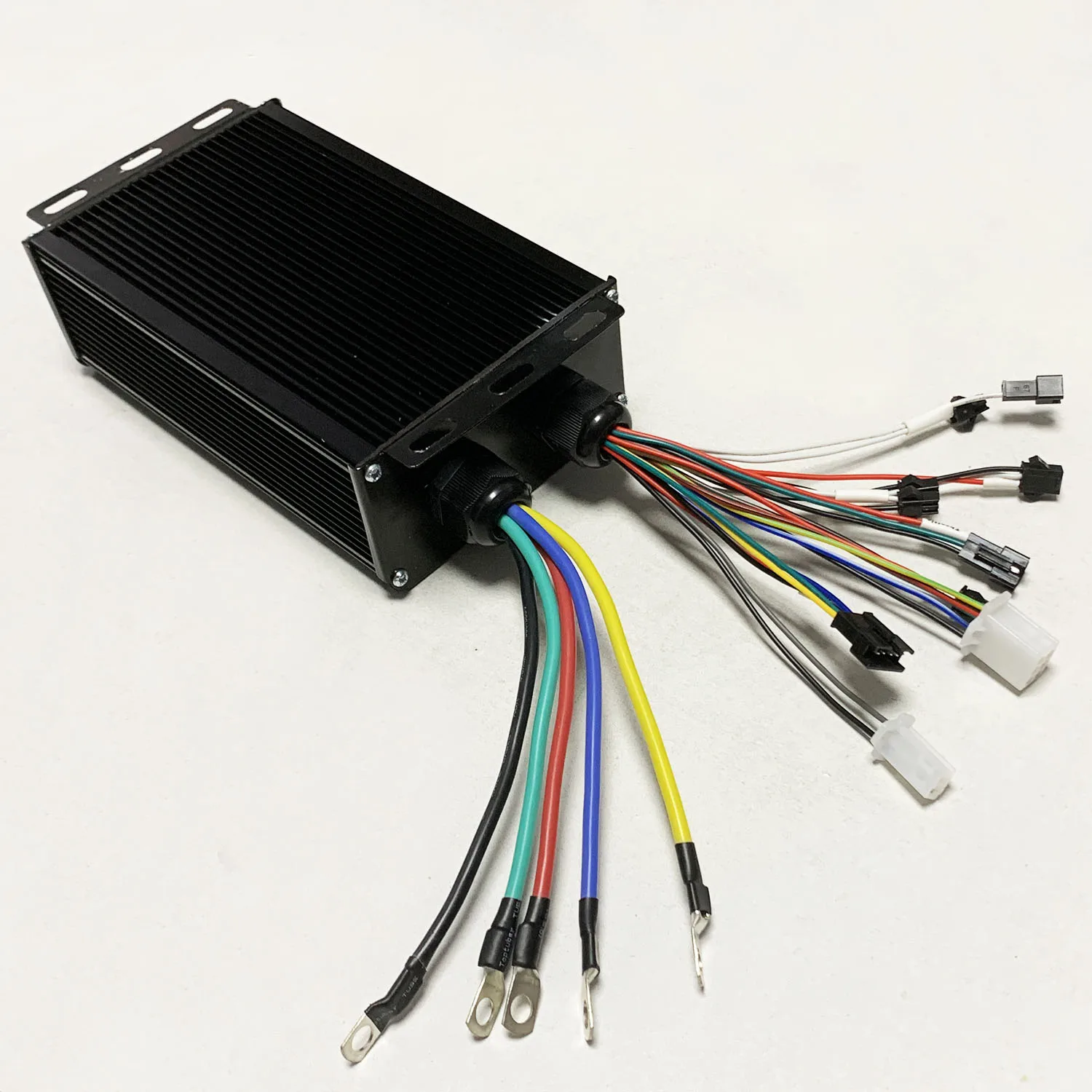

60A 3-Mode Sine Wave BLDC Controller 2000W-3000W 36V-64V ，For UART 2 Protocol S8

Product Description

36V48V52V64V 3-mode sine wave controller, 3000W60A brushless motor controller for S866, V889, S966 with protocol 2 communication LCD instrument , throttle, P.A.S (Power Assist System), E-brake, lithium battery electric and mountain bike accessories.

36v48v64v 2000W-3000W 60A New Thinking No. 2 Protocol Controller is suitable for lithium-ion electric bicycles, lithium-ion scooters, modified off-road electric motorcycles, tricycles (with reverse), dual-drive four-wheelers, etc.

Specifications: 2000W-3000W 36v-64V 60A

Material: Aluminum Alloy Black Gold

Operating Voltage: 36V-64V

Undervoltage: 32V

Compatible Motors: 1000W 1500W 2000W 3000W

Current: 60A

Case Dimensions: 21cm x 10.5x 6cm

MOS Tube: SKD503T 120A 100V

Functions: Headlight Power Supply, Throttle, New Thinking No. 2 Protocol Instrument Display, Hall Effect Sensor, E-Brake 2P, Power Assist (PAS), Self-study, Reverse1.battery-

2.motor line

3.battery+

4.motor line

5.motor line

6.self-stduy

7.P.A.S

8.Astern

9.Hall

10.E-brake

11.Display

12.Light

13.ThrattleHow to connect the controller?

1. Connect the motor phase wires (colors correspond to the corresponding colors).

2. Connect the battery wires (red: positive, black: negative).

3. Connect the Hall effect wires (not necessary if the motor does not have a Hall effect wire).

4. Connect the two smart identification wires to move the wheels forward or backward.

(1. If the wheels move forward, disconnect the smart identification wires.

2. If the wheels move backward, disconnect the smart identification wires. Connect the smart identification wires again.

If the wheels move forward, disconnect the smart identification wires.)

5. Connect other functions as needed.
