Product Description

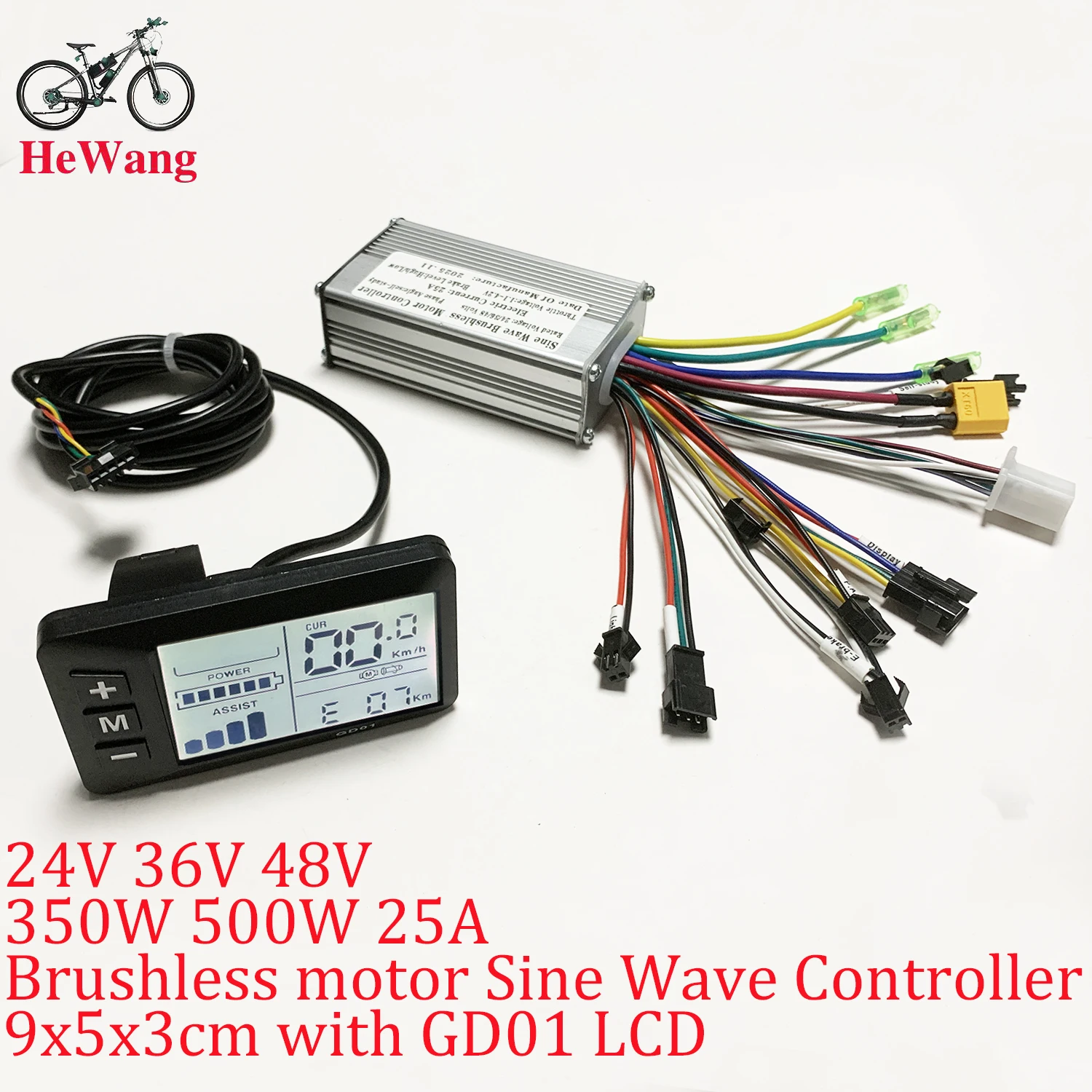

25A/30A E-bike Brushless Motor Controller 24V 36V 48V 350W 500W with GD01 LCD Display PAS Throttle Kit for E-Fold Bike Scooter
25A/30A E-bike Brushless Motor Controller 24V 36V 48V 350W 500W with GD01 LCD Display PAS Throttle Kit for E-Fold Bike Scooter25A
24V, 36V, and 48V sine-wave brushless motor controller, 250W/350W-500W. Suitable for electric bicycles, lithium-ion scooters, mountain bikes, power-assisted scooters, and more.
Specifications: 350W-500W, 24V/36V/48V
Material: Aluminum Alloy
Operating Voltage: 24V/36V/48V
Rated Power: 350W-500W
Current: 25A
Case Dimensions: 9*5*3cm
MOSFET: HY3208
Functions: Headlight Power, Throttle, 2-Protocol Display, 6-pin Hall Effect Sensor, Dual Low-Break (E-Brake), Power Assist (PAS), Self-Study
Specifications: Features:
This monitor is made of high-quality materials, lightweight, rainproof, strong and durable.

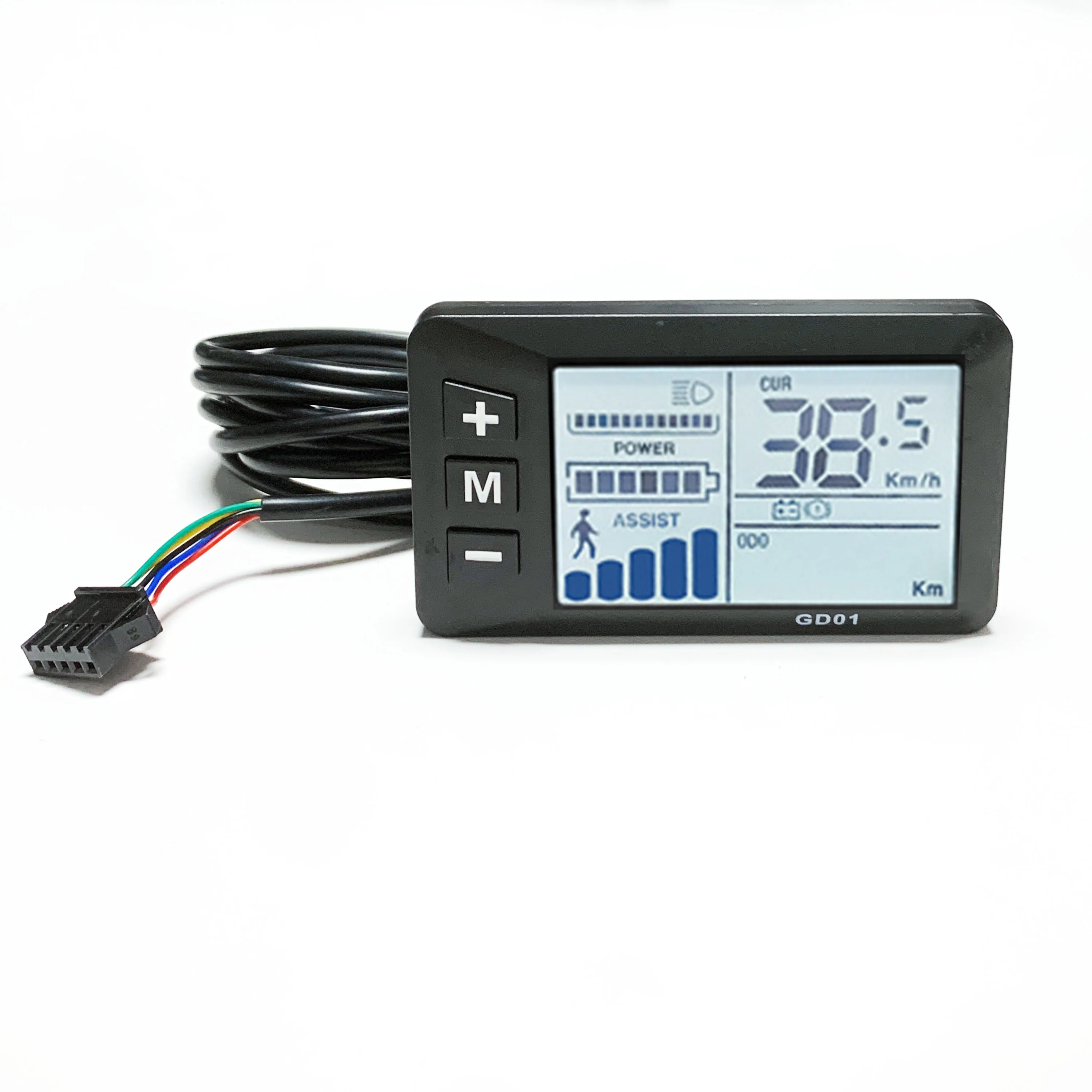

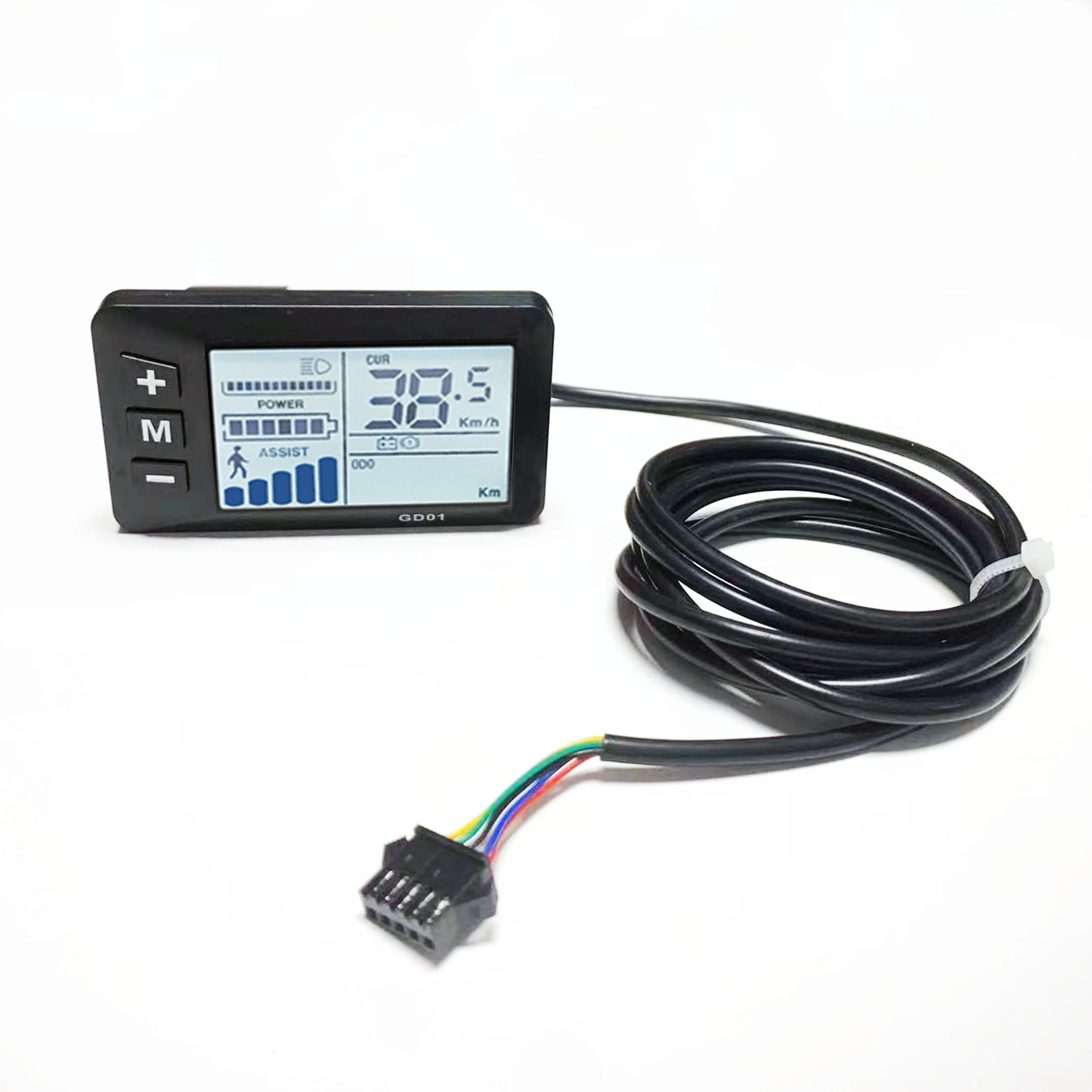

The LCD display can clearly display status and data, the backlight allows you to view the screen clearly in a dim environment, and the key operation is quick and easy to use.
The controller is a brushless controller, which works quietly and reacts sensitively to the status of the e-bike.
Easy to install and use, equipped with an LCD display bracket, suitable for 22.5mm handlebars.
You can set the power-on password, control the lights, and assist. The speed is divided into 3/5/9 gears, and the number of gears is optional. You can choose to divide or not divide the gears by turning the handle.
Suitable for electric bicycles and scooters.
Specifications:
Material: Plastic + LCD + Metal
Color: As shown in the picture
Power: 250W/350W
Waterproof: Rainproof
Controller size: Approx. 9x 5x 3 cm
Display size: Approx. 8 x 5 cm/3.15 x 1.97 inches
Weight: Approx. 332 grams
24V/36V/48V sine wave Brushless motor controller 350W 500W 20A
For S866 V889 No. 2 protocol LCD instrument electric bicycle scooter
24V, 36V, and 48V sine-wave brushless motor controller, 250W/
350W-500W controller, suitable for 6-pin SM connector,
protocol 2 instrumentation, e-bikes, lithium-ion scooters, mountain bikes, power-assisted scooters, etc.
Specifications: 350W-500W, 24V/36V/48V
Material: Aluminum Alloy
Operating Voltage: 24V/36V/48V
Rated Power: 350W-500W
Current: 25A
Case Dimensions: 9*5*3cm
MOSFET: HY3208
Functions: Headlight Power Supply, Throttle, protocol 2 instrumentation (display), 6-pin Hall Effect sensor, dual low-pressure brake (E-brake), power assist (PAS), self-study
30A
Material: Aluminum Alloy
Operating Voltage: 24V/36V/48V
Rated Power: 500W-1000W
Current: 30A
Case Dimensions: 12.5*5*3cm
MOSFET: HY3410
Functions: Headlight Power Supply, Throttle, protocol 2 instrumentation (display), 6-pin Hall Effect sensor, dual low-pressure brake (E-brake), power assist (PAS), self-studyNote: the product has only one controller
ote:

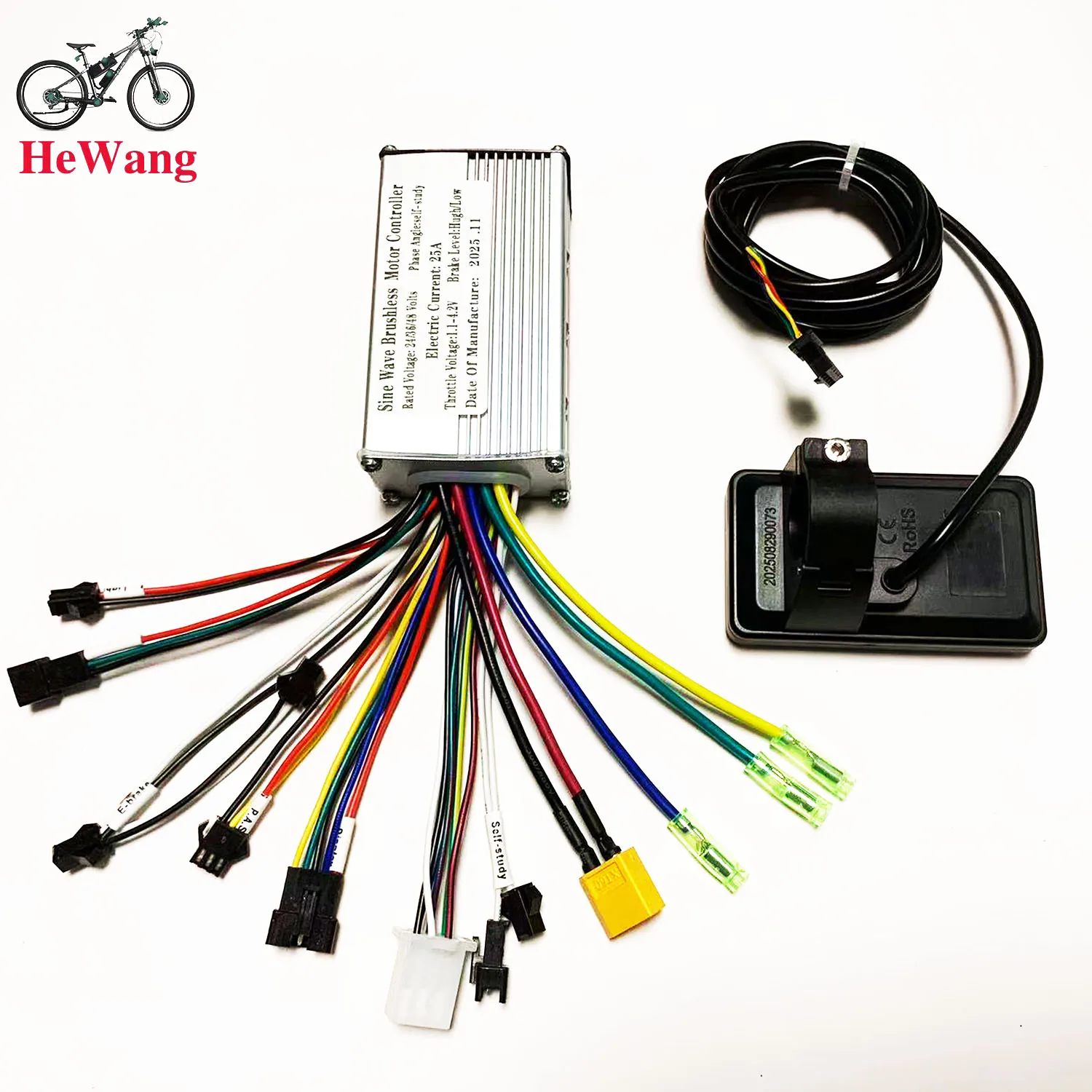

Each cable is marked with different colors for different purposes.
Package List:

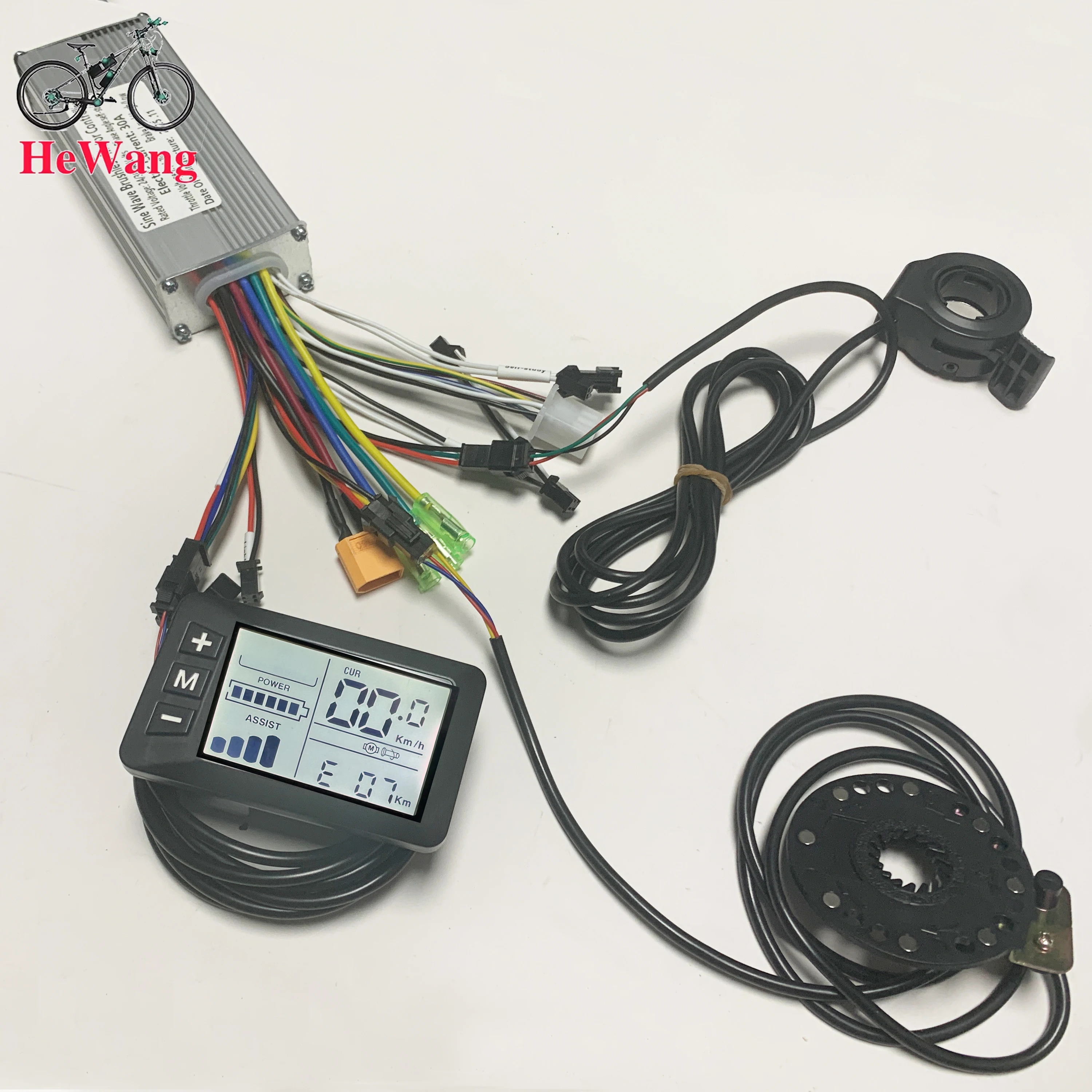

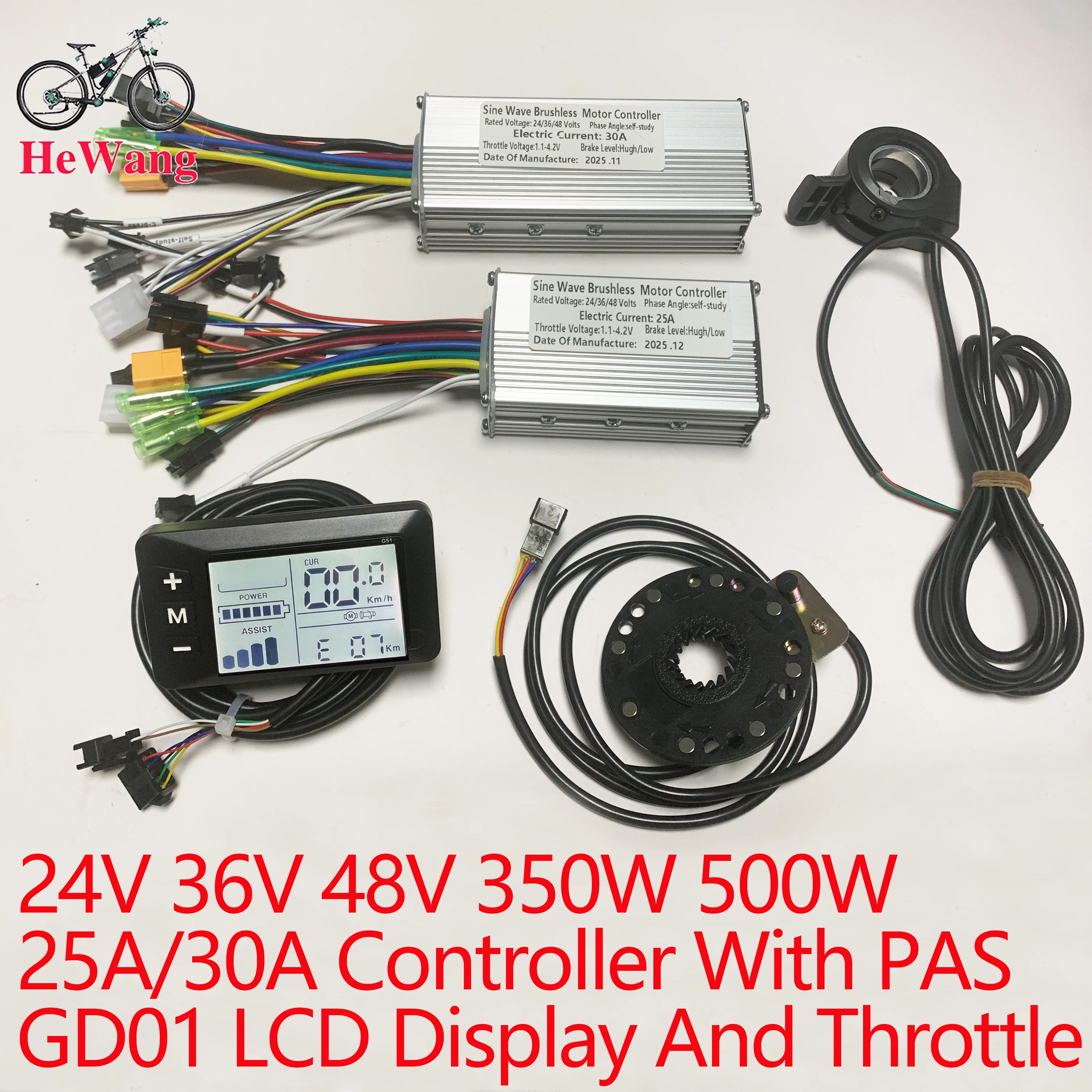

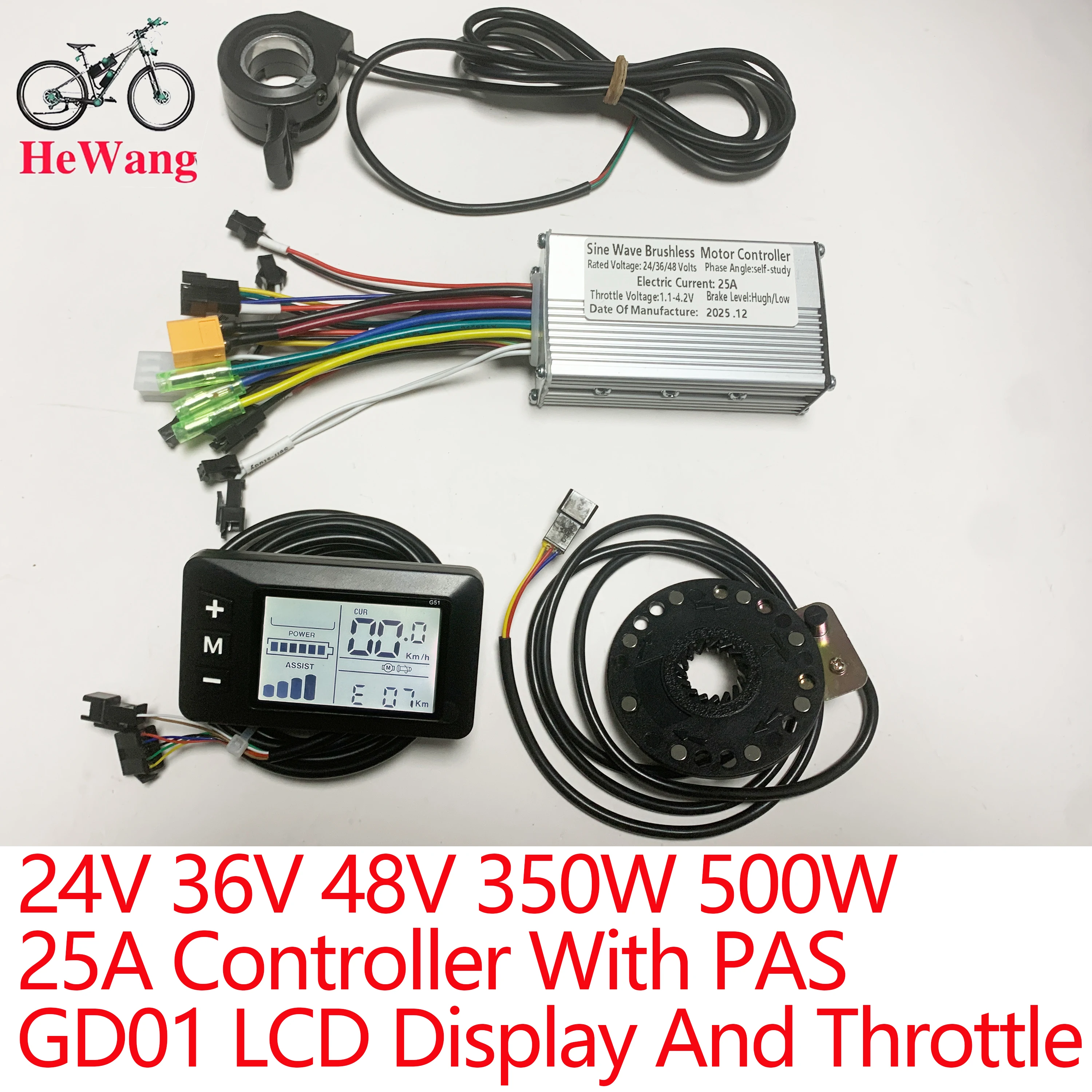

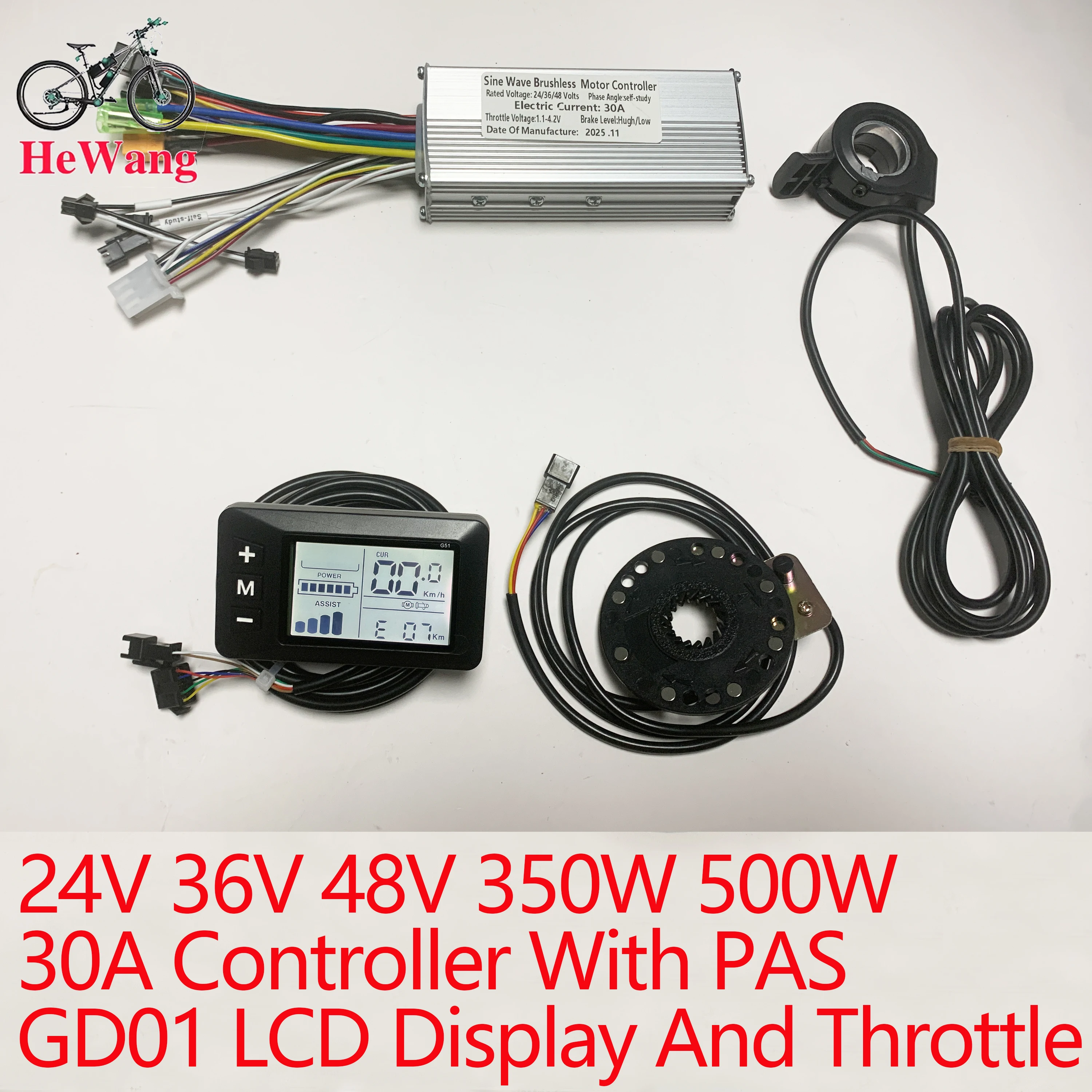

1 x LCD Display1 x 25A/30A Controller1 x PAS1 X ThrottleNote: The product kit contains only one 25A/30A controller, one LCD display, one PAS, and one Throttle.
Working voltage and wiring method
1. Working voltage: DC24V, 36V, 48V compatible with other voltages can be customized,
2. Wiring method:
Note: The leads of some products use waterproof connectors, and users cannot see the lead color in the harness. Function description:
Feature:1. LCD Screen: The electric bike panel adopts LCD screen, which provides you with a variety of bike control and status digital display functions.2. Multi Data Display: When riding a bike, the product will display many useful data on your bike, such as remaining power, speed, mileage and other parameters.3. Easy to Read: The display on the LCD meter enables you to view the data on the panel more easily, with clear display and easy reading.4. Waterproof: 5pin waterproof interface, equipped with 1.5m SM 5pin instrument adapter cable, and the waterproof controller and ordinary controller can be used together.5. Shell: The modified panel shell is made of premium material, which is sturdy, wear proof and has a long service life.Specification:Item Type: Electric Bike LCD GD01 PanelGross Weight: 194g / 6.8ozPanel Size: Approx.82 x 48mm / 3.2 x 1.9in(allowable error of manual measurement)Applicable Handlebar Installation: 22.2mm diameter handlebarVoltage: 24V 36V 48V (the voltage on the instrument is set by itself)Interface: 5 pinMaterial: ABScolour: blackPackage Contents:1 x E-bike DisplayOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

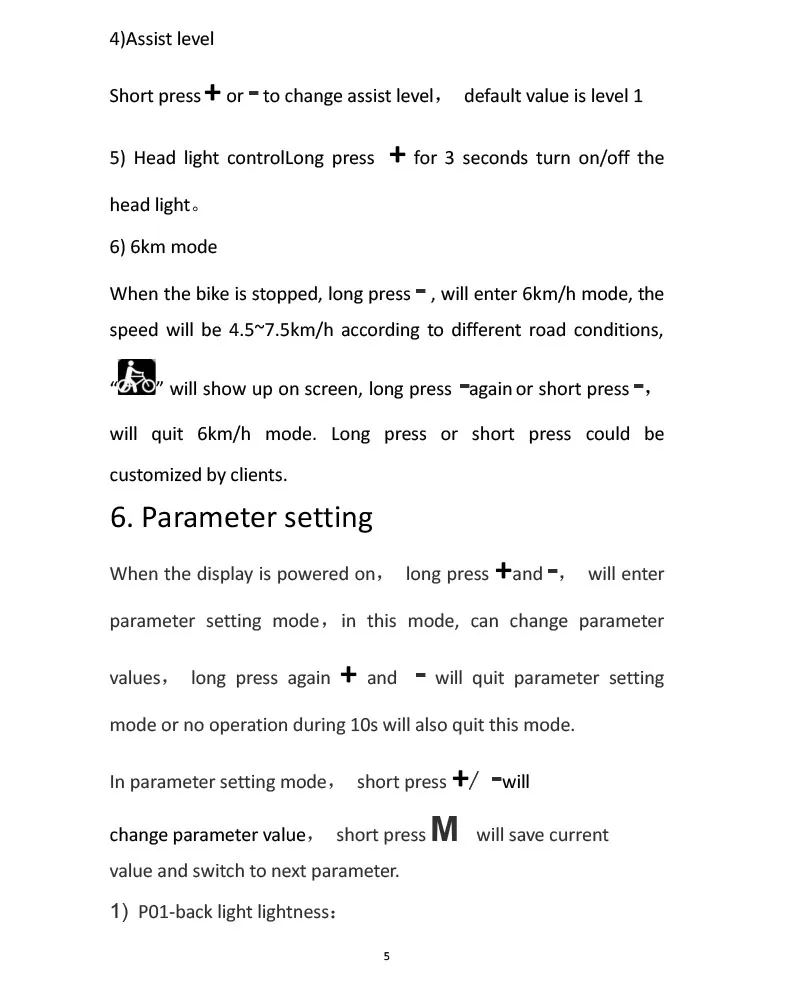

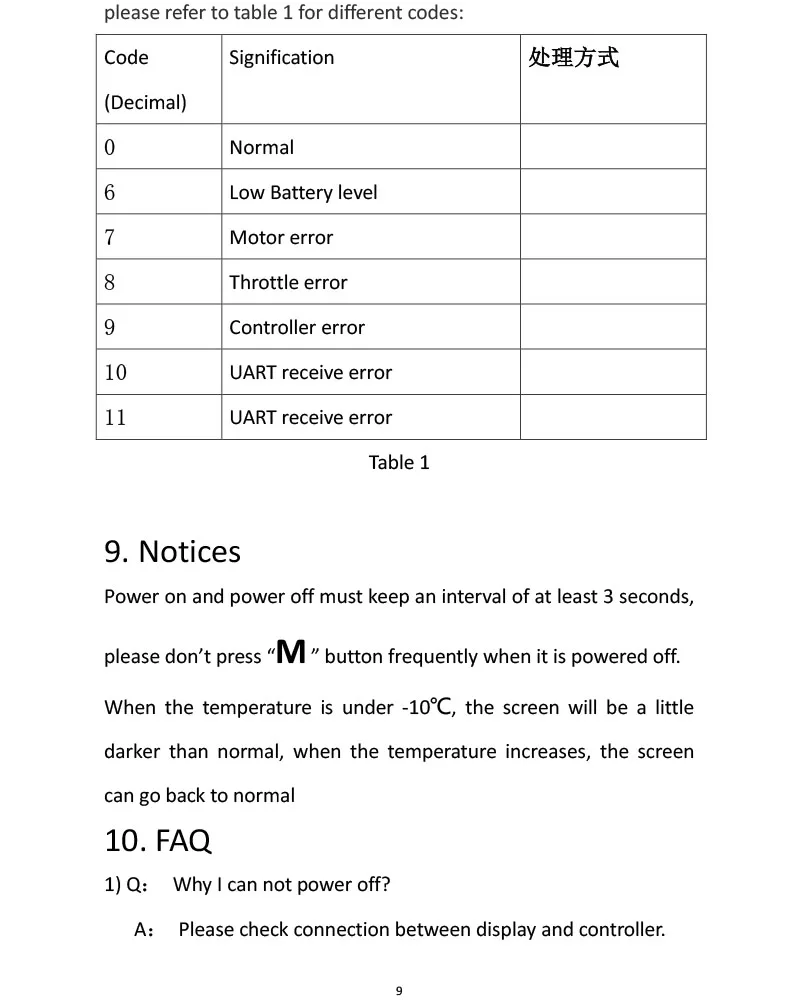

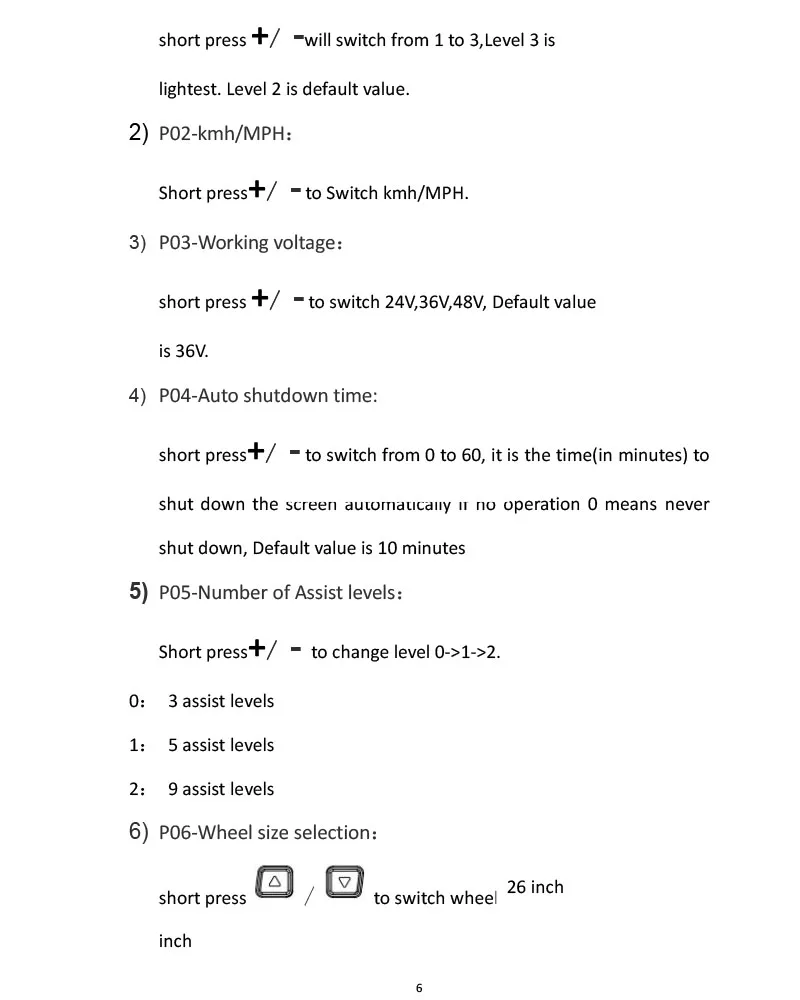

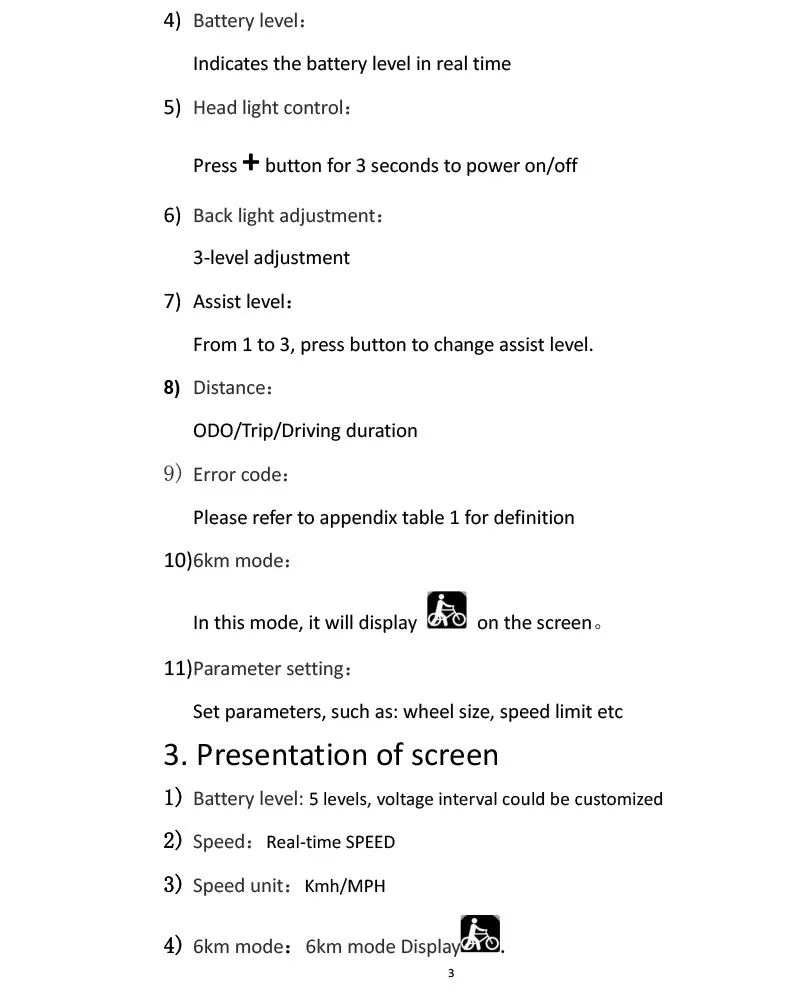

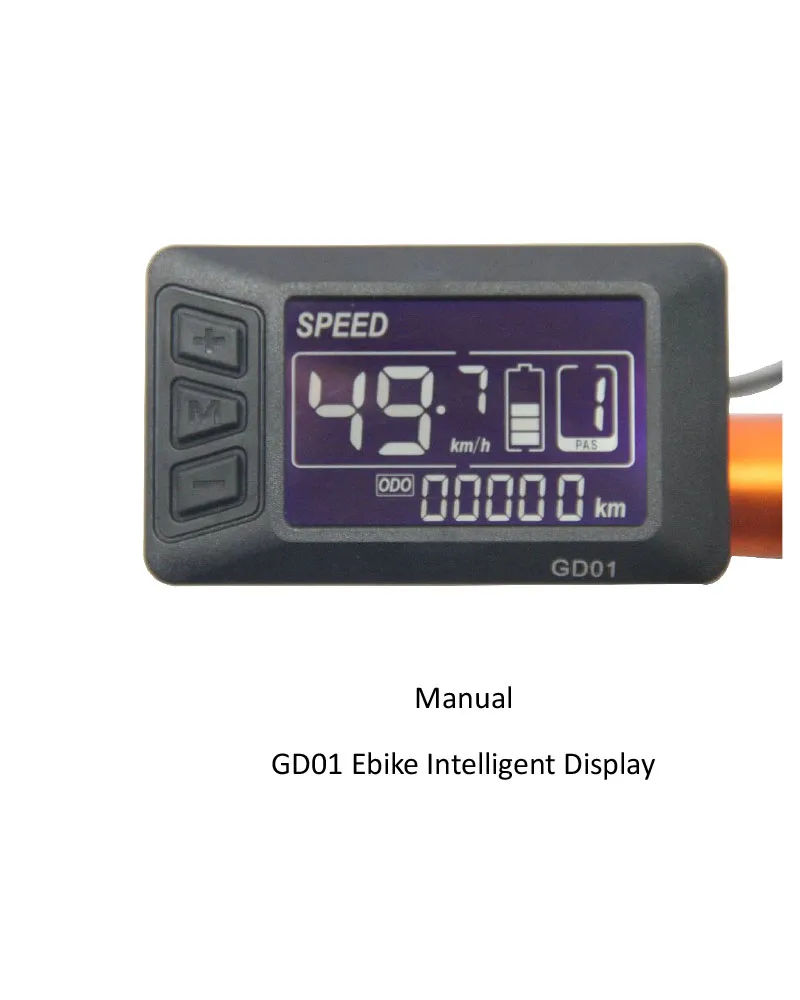

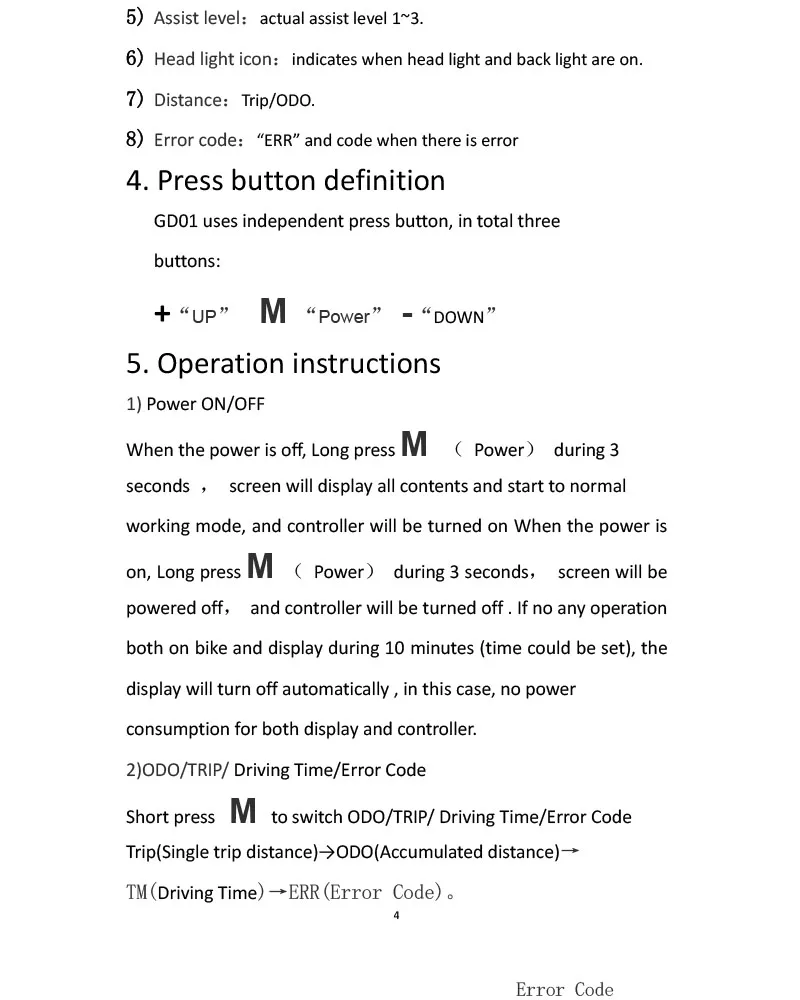

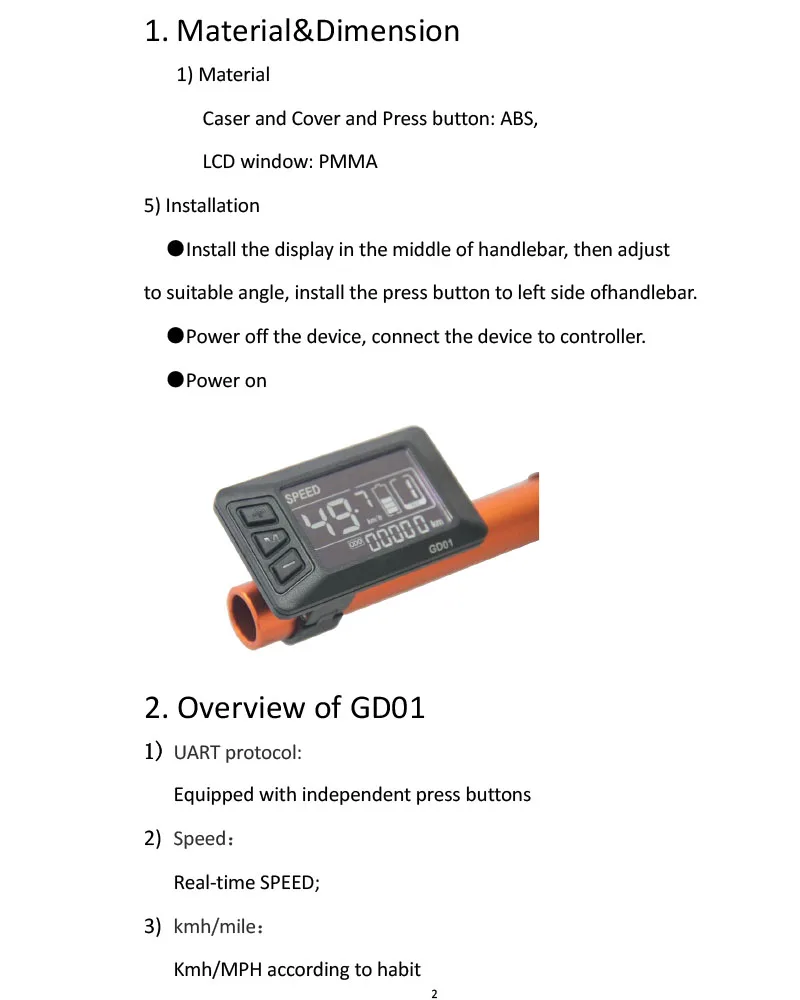

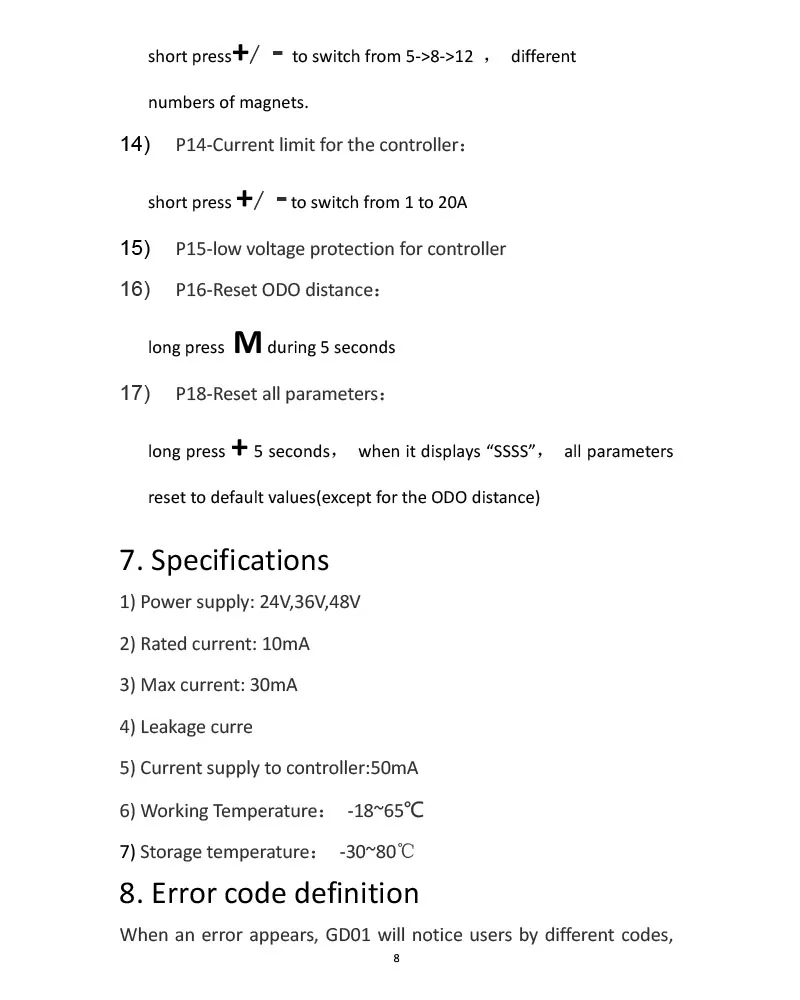

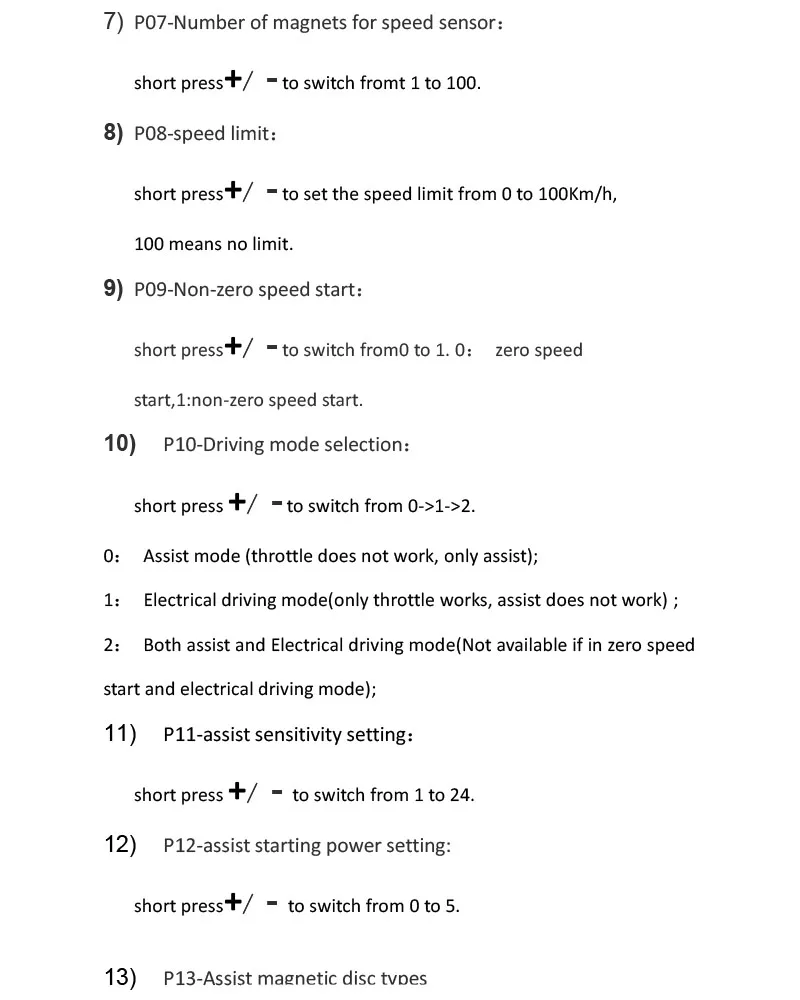

GD01 Ebike Intelligent Display1. Material&Dimension1) MaterialCaser and Cover and Press button: ABS,LCD window: PMMA5) Installation●Install the display in the middle of handlebar, then adjustto suitable angle, install the press button to left side ofhandlebar.●Power off the device, connect the device to controller.●Power on2. Overview of GD011) UART protocol:Equipped with independent press buttons2) Speed：Real-time SPEED;3) kmh/mile：Kmh/MPH according to habit34) Battery level：Indicates the battery level in real time5) Head light control：Press +button for 3 seconds to power on/off6) Back light adjustment：3-level adjustment7) Assist level：From 1 to 3, press button to change assist level.8) Distance：ODO/Trip/Driving duration9) Error code：Please refer to appendix table 1 for definition10)6km mode：In this mode, it will display on the screen。11)Parameter setting：Set parameters, such as: wheel size, speed limit etc3. Presentation of screen1) Battery level: 5 levels, voltage interval could be customized2) Speed：Real-time SPEED3) Speed unit：Kmh/MPH4) 6km mode：6km mode Display 5) Assist level：actual assist level 1~3.6) Head light icon：indicates when head light and back light are on.7) Distance：Trip/ODO.8) Error code：“ERR” and code when there is error4. Press button definitionGD01 uses independent press button, in total threebuttons:+“UP”M “Power” -“DOWN”5. Operation instructions1) Power ON/OFFWhen the power is off, Long press M （ Power） during 3seconds ， screen will display all contents and start to normalworking mode, and controller will be turned on When the power ison, Long press M （ Power） during 3 seconds， screen will bepowered off， and controller will be turned off . If no any operationboth on bike and display during 10 minutes (time could be set), thedisplay will turn off automatically , in this case, no powerconsumption for both display and controller.2)ODO/TRIP/ Driving Time/Error CodeShort pressM to switch ODO/TRIP/ Driving Time/Error CodeTrip(Single trip distance)→ODO(Accumulated distance)→TM(Driving Time)→ERR(Error Code)。Error Code54)Assist levelShort press+ or- to change assist level， default value is level 15) Head light controlLong press+ for 3 seconds turn on/off thehead light。6) 6km modeWhen the bike is stopped, long press-, will enter 6km/h mode, thespeed will be 4.5~7.5km/h according to different road conditions,“ ” will show up on screen, long press -again or short press-，will quit 6km/h mode. Long press or short press could becustomized by clients.6. Parameter settingWhen the display is powered on， long press +and -， will enterparameter setting mode，in this mode, can change parametervalues， long press again + and - will quit parameter settingmode or no operation during 10s will also quit this mode.In parameter setting mode， short press +/-willchange parameter value， short press M will save currentvalue and switch to next parameter.1) P01-back light lightness：6short press +/ -will switch from 1 to 3,Level 3 islightest. Level 2 is default value.2) P02-kmh/MPH：Short press+/ - to Switch kmh/MPH.3) P03-Working voltage：short press +/ - to switch 24V,36V,48V, Default valueis 36V.4) P04-Auto shutdown time:short press+/ - to switch from 0 to 60, it is the time(in minutes) toshut down the screen automatically if no operation 0 means nevershut down, Default value is 10 minutes5) P05-Number of Assist levels：Short press+/ - to change level 0->1->2.0： 3 assist levels1： 5 assist levels2： 9 assist levels6) P06-Wheel size selection：short press / to switch wheel size，in inch，step：0.1inch26 inch77) P07-Number of magnets for speed sensor：short press+/ - to switch fromt 1 to 100.8) P08-speed limit：short press+/ - to set the speed limit from 0 to 100Km/h,100 means no limit.9) P09-Non-zero speed start：short press+/ - to switch from0 to 1. 0： zero speedstart,1:non-zero speed start.10) P10-Driving mode selection：short press +/ - to switch from 0->1->2.0： Assist mode (throttle does not work, only assist);1： Electrical driving mode(only throttle works, assist does not work) ;2： Both assist and Electrical driving mode(Not available if in zero speedstart and electrical driving mode);11) P11-assist sensitivity setting：short press +/ - to switch from 1 to 24.12) P12-assist starting power setting:short press+/ - to switch from 0 to 5.13) P13-Assist magnetic disc types8short press+/ - to switch from 5->8->12 ， differentnumbers of magnets.14) P14-Current limit for the controller：short press +/ - to switch from 1 to 20A15) P15-low voltage protection for controller16) P16-Reset ODO distance：long press Mduring 5 seconds17) P18-Reset all parameters：long press + 5 seconds， when it displays “SSSS”， all parametersreset to default values(except for the ODO distance)7. Specifications1) Power supply: 24V,36V,48V2) Rated current: 10mA3) Max current: 30mA4) Leakage current after power off: <1uA5) Current supply to controller:50mA6) Working Temperature： -18~65℃7) Storage temperature： -30~80℃8. Error code definitionWhen an error appears, GD01 will notice users by different codes, 9please refer to table 1 for different codes:Code(Decimal)Signification处理方式0 Normal6 Low Battery level7 Motor error8 Throttle error9 Controller error10 UART receive error11 UART receive errorTable 19. NoticesPower on and power off must keep an interval of at least 3 seconds,please don’t press “M” button frequently when it is powered off.When the temperature is under -10℃, the screen will be a littledarker than normal, when the temperature increases, the screencan go back to normal10. FAQ1) Q： Why I can not power off?A： Please check connection between display and controller.102) Q： What can I do if an error code displays?A： Find a nearest shop to get repair11. Warranty1 year of warranty for quality issue except frame is broken.12. VersionThis is a universal manual for GD01.It could be customized by eachclient. Please confirm all details before purchasing.
