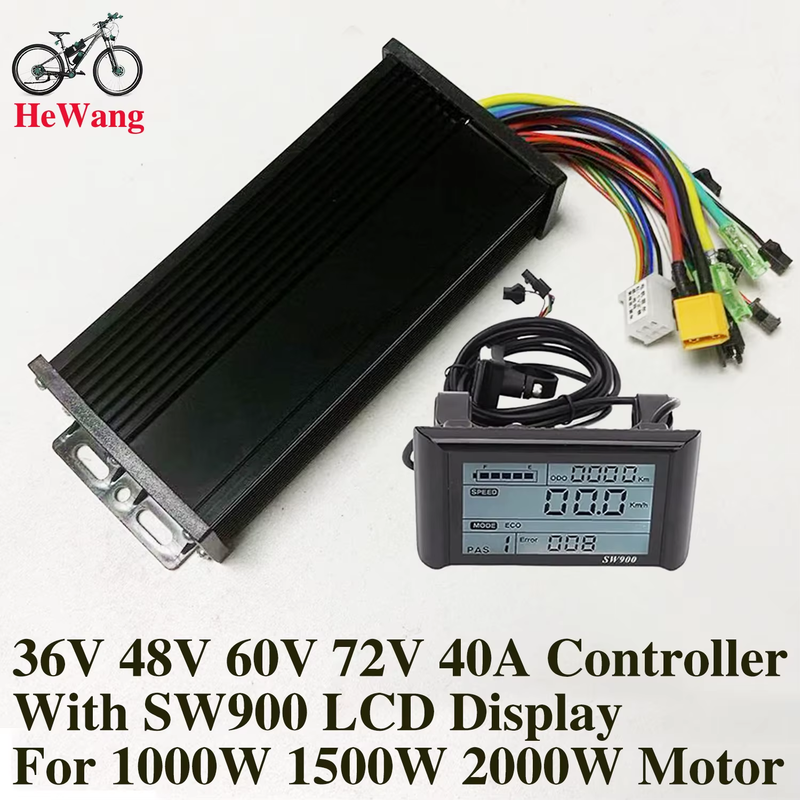

36V 48V 52V 60V 40A E-bike Brushless Motor 3-mode sine wave Controller 1000W 150

Product Description

Mountain bike lithium power conversion accessories 40A three-mode 15-tube sine wave S900 LCD instrument set

The controller is a sine wave three-mode controller, matched with Hall or non-Hall brushless motor with self-learning function

Applicable to 36V1500W 36V 2000W

48V1500W 48V2000W

52V1500W 52V2000W with Hall or non-Hall brushless motor

36V48V52V60/40A three-mode sine wave 15-tube controller + S900 LCD

36V 48V 52V 64V Black Gold Sine Wave Brushless Motor Controller 40A 1500W 2000W Controller Suitable for 6Pin SM Connector No. 2 Protocol Instrument Electric Bicycle

Specifications: 1000w 1500 W 2000W 36v/48v/52v/64v

Material: Aluminum Alloy Black Gold

Working Voltage: 36v/48v/52v/64v

Undervoltage: 32v

Rated Power: 1000W 1500W 2000W

Current: 40A

Shell Size: 18.5*8.3*4.5cm

MOS Tube: HY3410

Function: Headlight Power Supply (Light), Throttle, No. 2 Protocol Instrument (Display), Hall, E-brake, Anti-theft Power Supply

1.Motor cable 2.Motor cable 3.Motor cable

4.Power cable

5.Self-learning

6.hall

7.for No.2 protocol LCD display

8.Electronic brake

9.Throttle

10.P.A.S

11.Light

36V/48V/52V/64V Black Gold Sine Wave Brushless Motor Controller, 40A, 1500W/2000W, Suitable for Electric Bicycles with 6-Pin Single-Mode Interface and Protocol II Instrument

Specifications: 1000W/1500W/2000W, 36V/48V/52V/64V

Material: Black Gold Aluminum Alloy

Operating Voltage: 36V/48V/52V/64V

Undervoltage Protection: 32V

Rated Power: 1000W/1500W/2000W

Current: 40A

Case Dimensions: 18.5*8.3*4.5cm

MOSFET: HY3410

Functions: Headlight Power (Lighting), Accelerator, Protocol II Instrument (Display), Hall Effect, Electronic Brake, Anti-theft Power

Electric bicycle modification accessories LCD-SW900 LCD instrument data display 36V 48V 52V 64V SM connector

Must match communication protocol No. 2

Type LCD SW900 Display

Voltage 24V,36V,48V

Compatible withcontroller

Plug : 5pin +2pi

Material;Plastic

Weight：242

Waterproof : IP56

LCD-SW900 LCD instrument data display 5+2 pin SM connector L=168cm 36/48/52/64/72V for No. 2 protocol SM output controller electric bicycle1.Material&Dimension

1)Material

Caser and Cover and Press button: ABS

LCD window: PMMA

2)Outside and mounting dimensions(mm)

3)Press button outside and mounting dimensions(mm)

4)Connection diagram:

Wire definition:

Red: Power supply-VCC

Blue: Electronic lock-DS

Black:GND

Green: Data RXD

Yellow: Data TXD

BROWN:Head light(+)-DD

White: Head light(-)-GND

Remark: Connectors and Wire colors could be customized

5)Installation

Install the display in the middle of handlebar, thenadjust to suitable angle, install the press button to leftside of handlebar.

Power off the device, connect the device to controller.

Power on

6)Back light adjustment:

3-level adjustment

7)Assist level:

From 0 to5,press button to change assist level, 0-no assist,

5-default value

8)Distance:

ODO/Trip/Driving duration

9)Error code:

Please refer to appendix table 1 for definition

10) 6km mode:

in this mode, it will display "WALk" on the screen

11)Parameter setting:

Set parameters, such as: wheel size, speed limit etc

Description:

*Brand new and high quality

*Made of high quality material, durable and practical to use

*SW900 LCD Display Meter Control Panel 24/36/48V E-Bike Electric Bicycle Scooter

*Can be automatically identified and compatible 24V ,36V and 48V Voltage.

*It will show the true reflection of the battery charge, real time recording of the power consumption to ensure riding mileage.

*The individual joints are clearly set up to help with cost-effective installation.

*When connected to a bicycle, this product will display a lot of useful data on your bike, such as riding speed, time, power and temperature.

*The color display on the meter makes it easier for you to see the data on the panel.

*The SW900 LCD Display has multiple functions serving as a trip computer as well as controlling the whole ebike system after the conversion.

*Wheel size can be changed for different applications.

*Applicable to E-Bike Electric Bicycle Scooter

Specification:

*Material: LCD, Plastic

*Color: Black

*Size: 110*61mm(As Pictures Show)

*Type:LCD SW900 Display

Voltage: 36V,48V，52V，64

*Compatible with :JN controller

*Plug:5pin+2pin

*Plug Type:SM Plug/ Waterproof Plug

*Wire length: about 167cm/19cm

*Weight: about 240.2g /202.6g

*Waterproof:IP56

Package Includes:

1 x LCD Display

Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

2. Please allow slight manual measurement deviation for the data.Thank you!
