48V 60V 72V 50A 3000W Brushless Motor Controller with Speed ​​Display LCD meter

Product Description

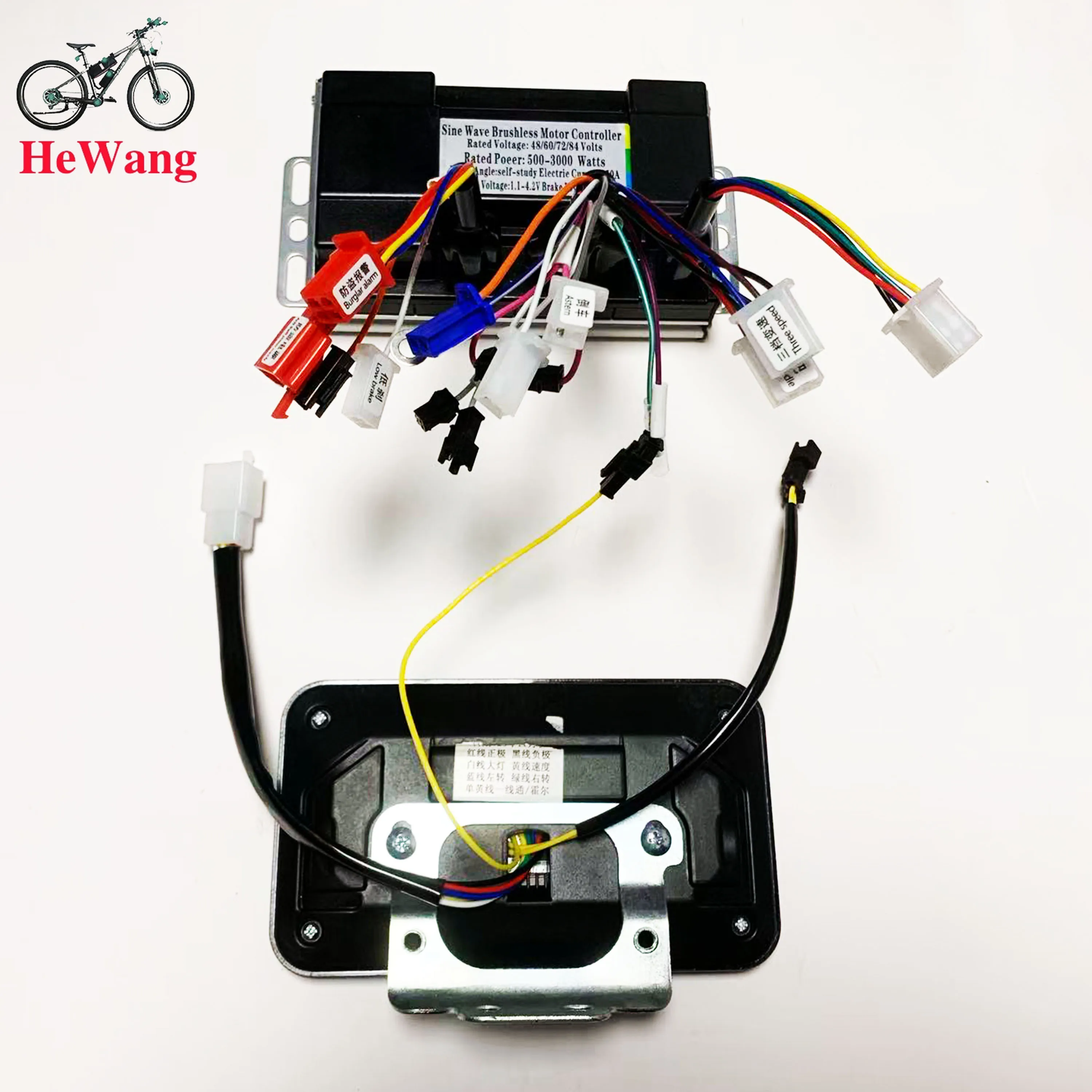

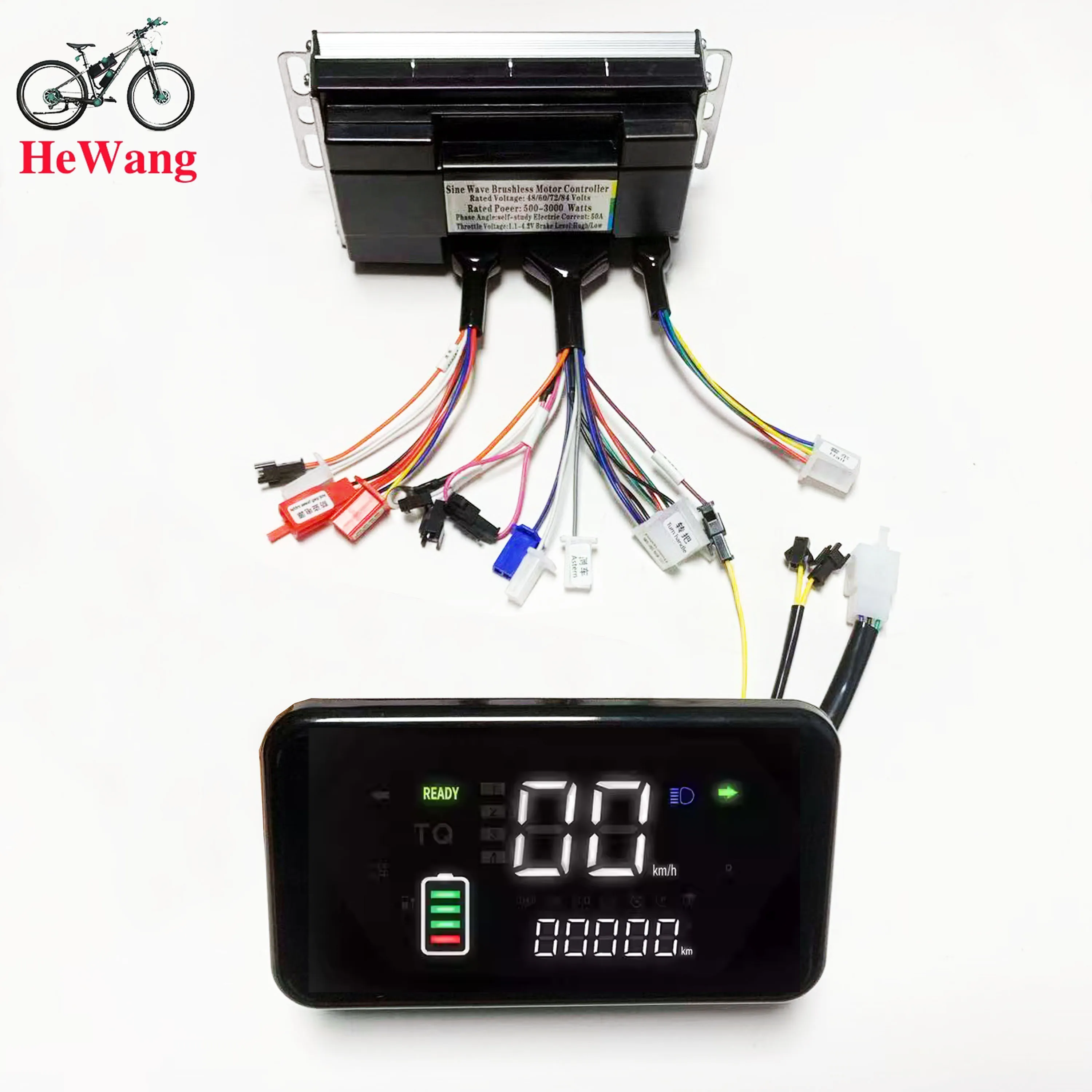

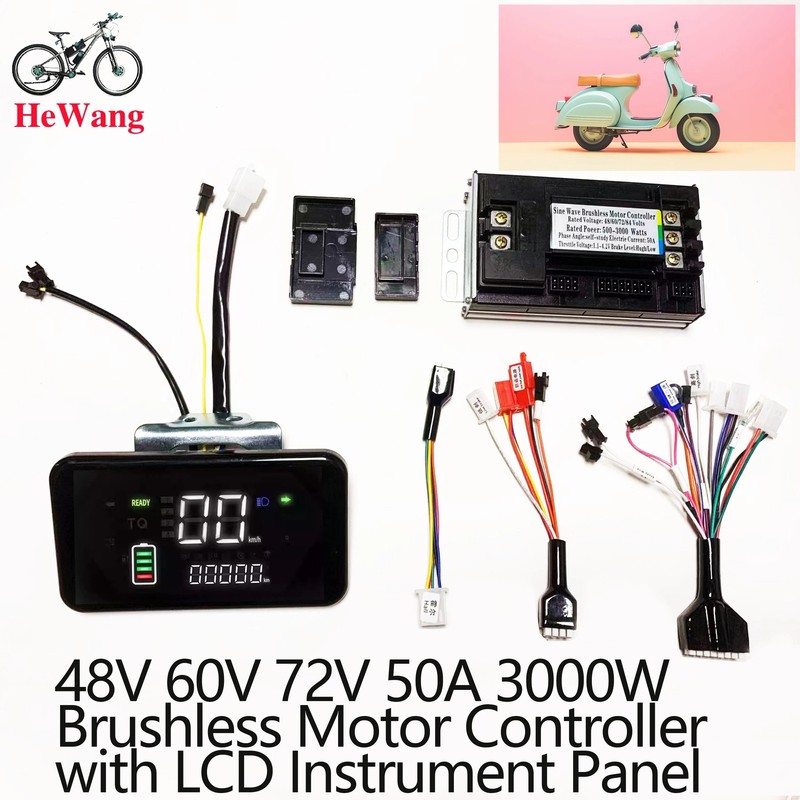

48V 60V 72V 50A 3000W Brushless Motor Controller with LCD Instrument Set

Product List: One controller + one instrument1) Instrument Panel Connector

1: Negative Wire

2: Positive Wire

3: Headlight Wire

4: One-Way Connector

5: Left Turn Wire

6: Right Turn Wire

2) Voltage Wire

1: Connector for 60V vehicles

Disconnect the connector for 48V and 72V vehicles

3) Phase Wire Speed

Connect to the purple LCD instrument panel controller wire

Material: aluminum alloy

Working voltage: 48V 60V 72V

Current: 50A

Size: 18CM*9.5CM*5CM

MOS tube: SKST049N08

Function: three-speed shift, three-speed button, anti-theft alarm, smart cruise, LCD instrument, pointer instrument, high battery brake, low battery brake, P gear selection

The SHB0768F has a debug cable: DV (debug cable learning, throttle learning); 48V/60V/72V intelligent recognition (learning status recognition voltage 60V/72V); undervoltage (40V/50V/60V), 72V power-on self-recognition: Normal undervoltage: low-level alarm A3: low brake L; three-speed shifter (K1-low, K2-high) / three-speed pushbutton ZL: low gear 80%, medium gear 100% (default), high gear 110% (129% with wheel hub Hall effect); high gear Electric anti-skid, no running anti-skid: LCD [F3, default Yadi general protocol, maximum throttle, brake on and turn the throttle three times to switch to New Thinking/Yadi Guanneng/Emma/Tailing instrument protocol, with memory]: ABS (wheel hub secondary adjustable, default no, differential no): square wave peak [reserved 5] adjustable, current peak [+8] (it is recommended to use a higher specification MOS); sine wave peak [phase current] adjustable: no Hall can overspeed: RXD suspended wheel motor mode Hall state switching instructions

[1 Sine wave to single Hall effect (one Hall effect is broken): The switch can be switched twice. The third time the switch fails, the system is forced into single Hall effect mode.

2 Sine wave to no Hall effect (Hall effect ground wire failure): The switch can be switched twice. The third time the switch fails, the system is forced into no Hall effect mode.

3 Single Hall effect to no Hall effect (one Hall effect is broken first, then the other Hall effect is broken / one Hall effect is broken first, then the ground wire is broken): If one Hall effect is broken first, the system is forced into no Hall effect mode, regardless of whether the second Hall effect or the Hall effect ground wire is broken.

4 In all of the above situations, powering on will recheck the Hall effect status and return to the corresponding operating mode.] Current limit 40A; Soft start +13: No temperature protection; Customized for customer motors (others are not available); Push-button P position [TXD defaults to P position upon power-on. The motor is released from standstill, but only released, not forward. The brake can also be released.]

低刹 L Low brake L

防盗信号 A3 nti-theft signal A3

TP/NC

GND

电门锁VCC Electric door lock VCC

液晶仪表F3； LCD meter F3

高刹 ； High brake

DC

RXD

转把信号SD； Turbo signal SD

5v

HC

HA

HB

电门锁vcc: Power door lock VCC

电源+: Power supply +

轮动信号c: Wheel movement signal C

仪表 YB : Instrument YB

GND : GND

Q : Q

学习线 DV : Learning cable DV

按键三速 ZL : Three-speed push button ZL

拨档低速K1 : Low speed shifter K1

拨档高速K2 : High speed shifter K2

GND : GND

转把4.3V : Turbo 4.3V

5V : 5V

外部烧写CLK : External programming CLK

GND: GND
