Product Description

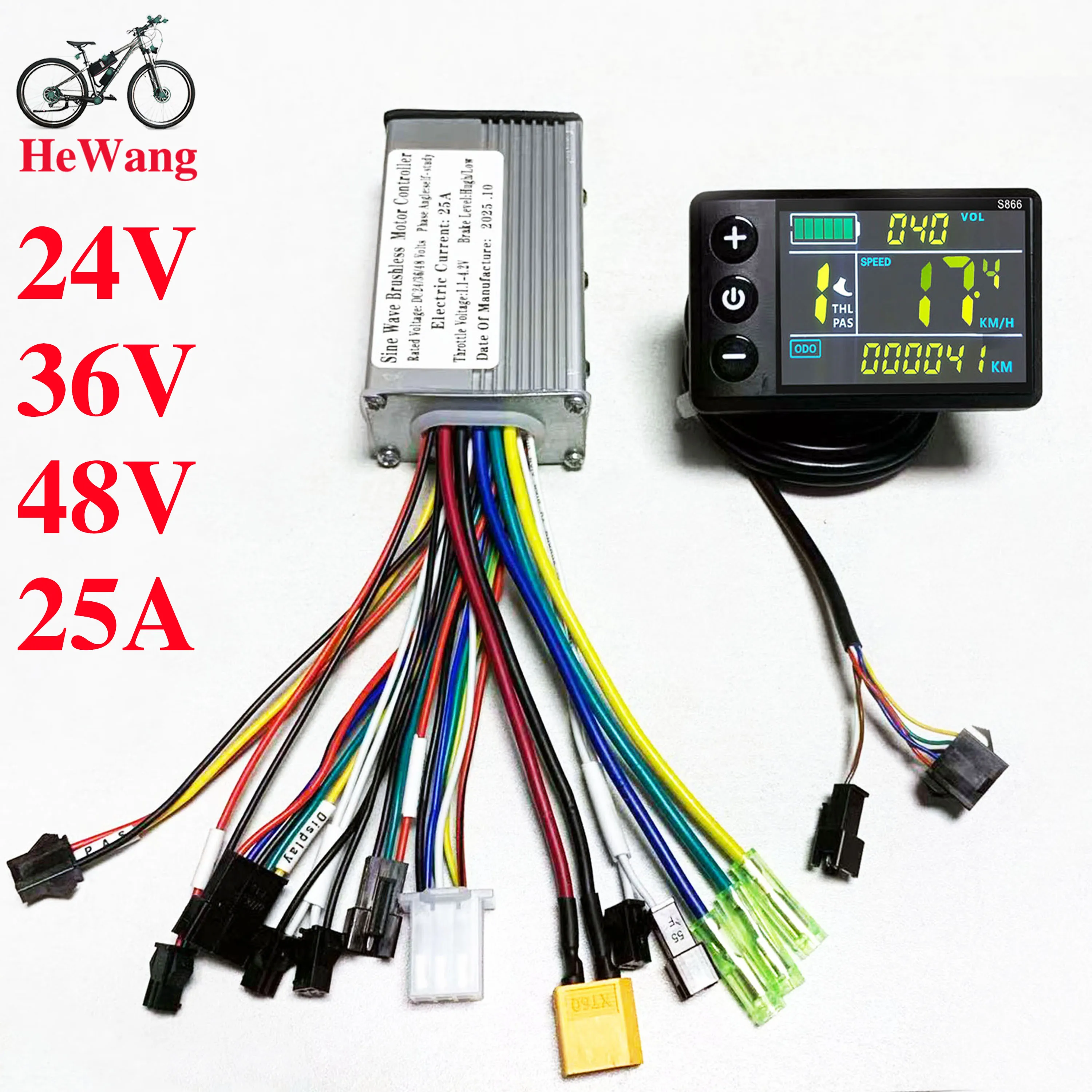

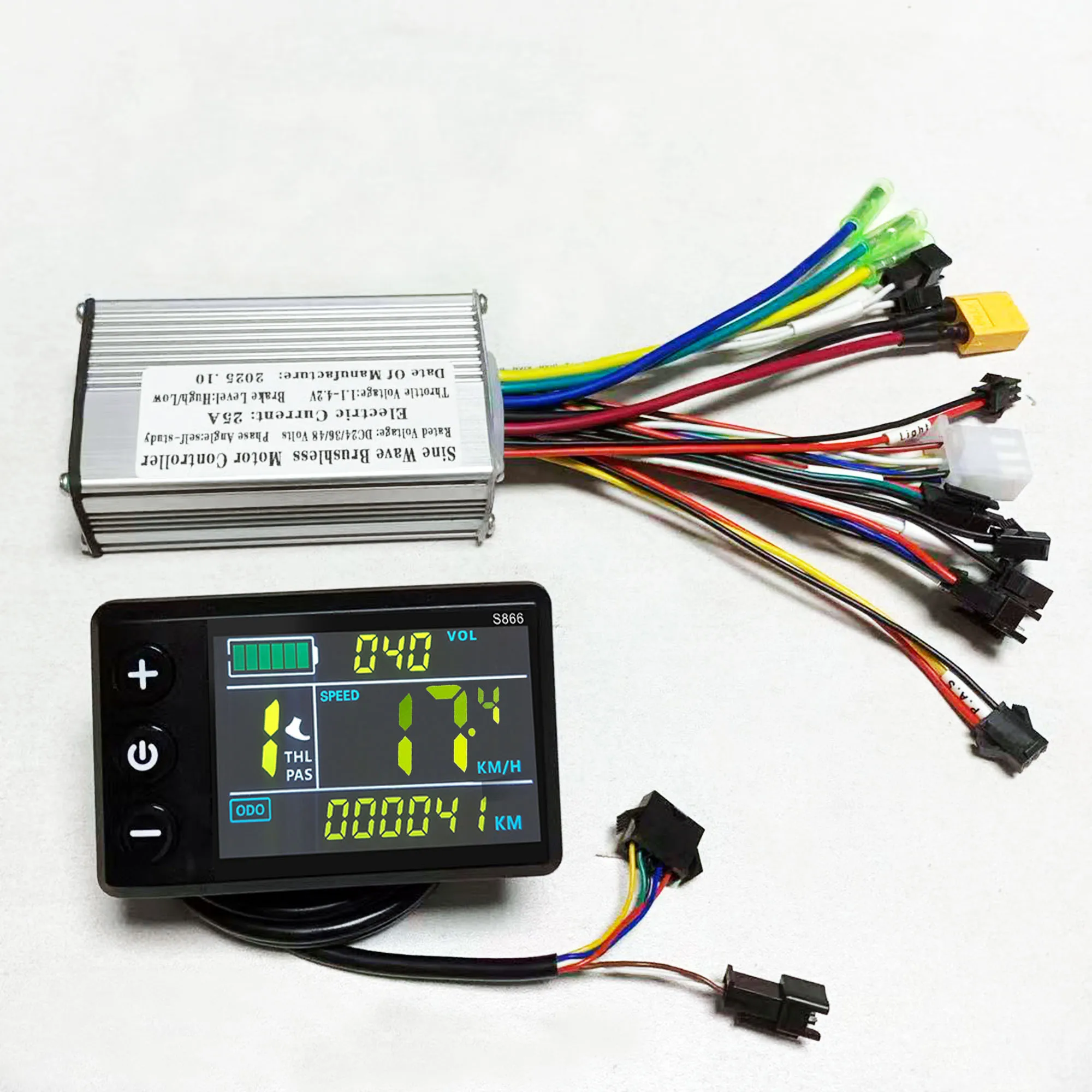

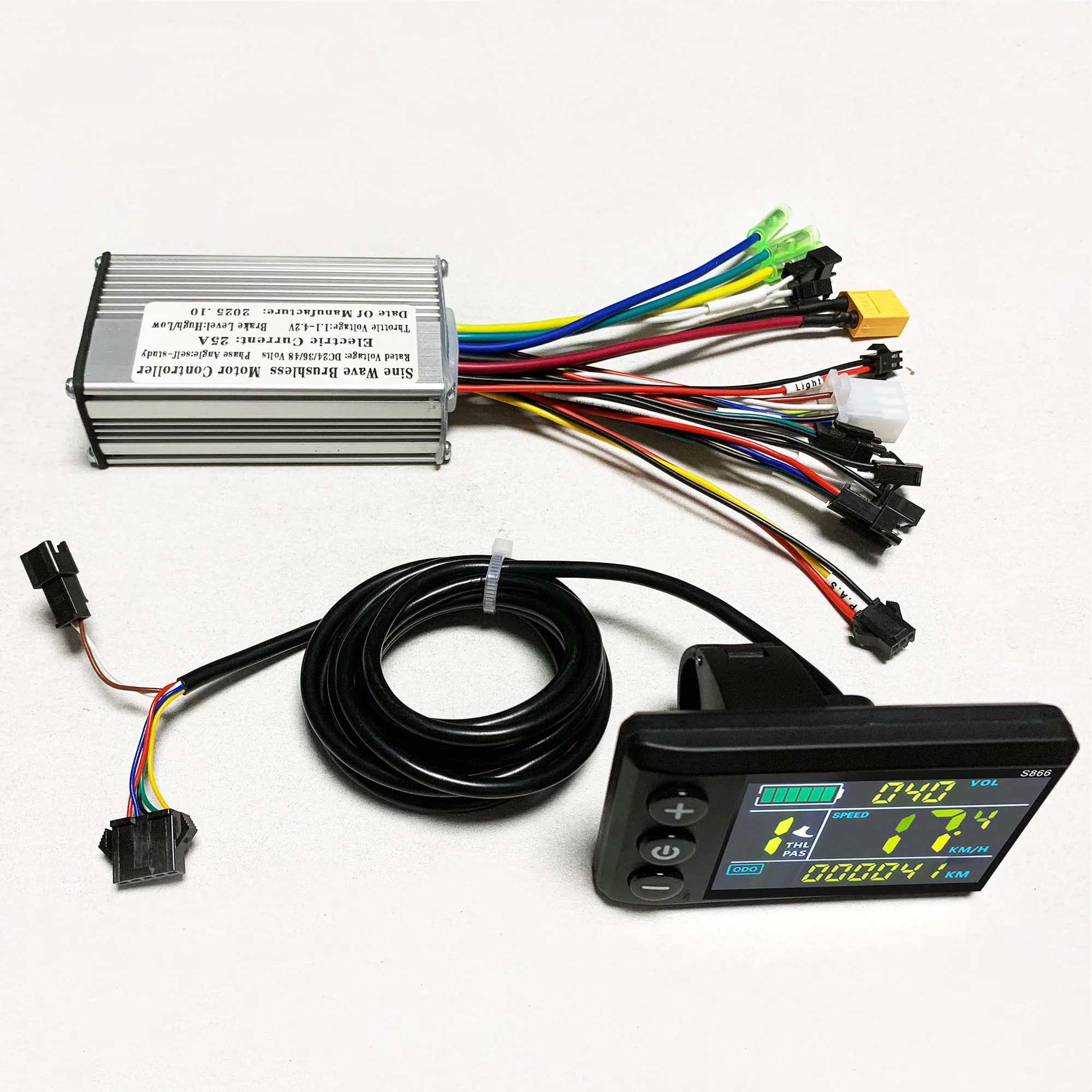

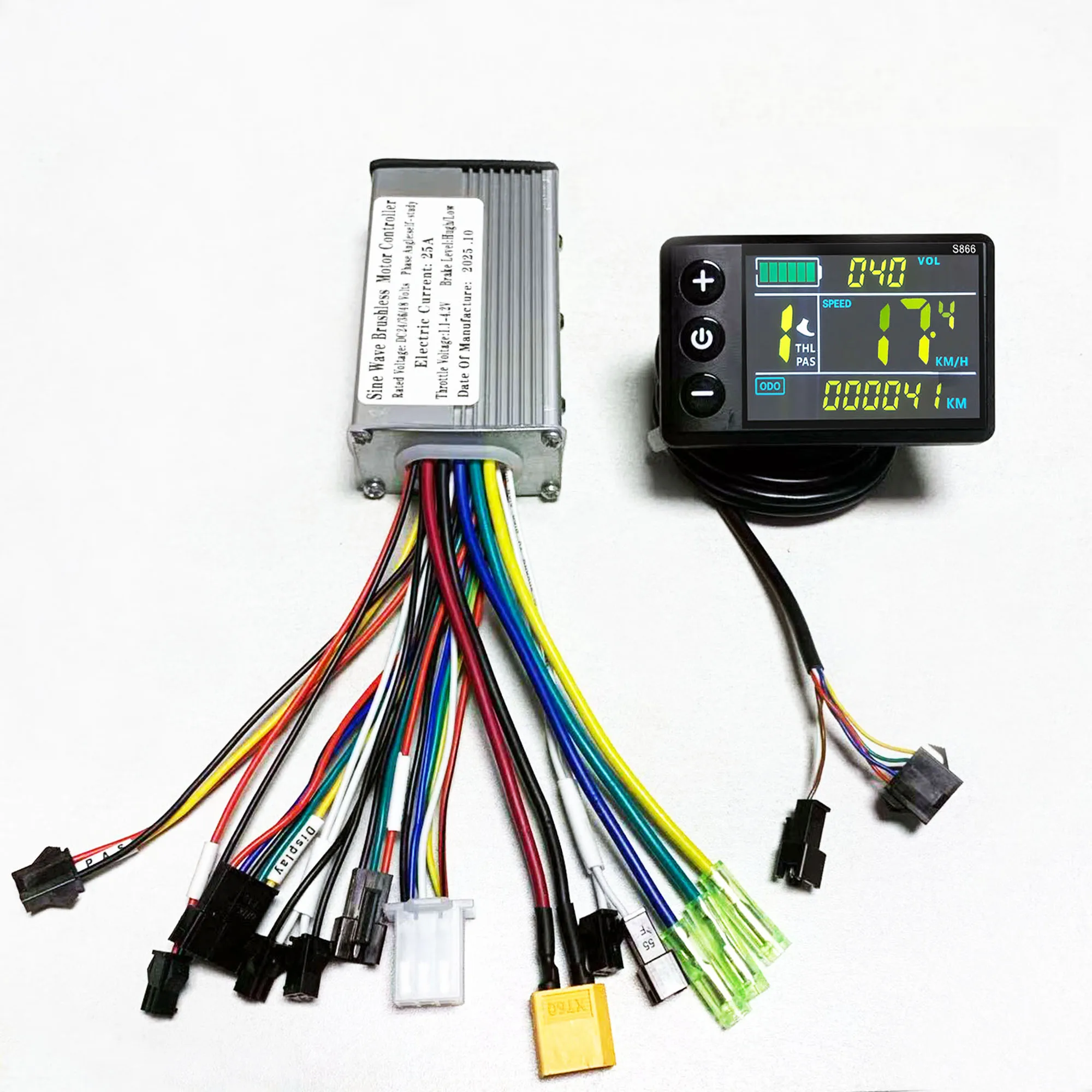

24V36V48V sine wave brushless motor controller 250W 350W-500W with S866 color LCD instrument for No. 2 protocol e-Bike e-scooter
24V36V48V sine wave brushless motor controller 250W 350W-500W with S866 color LCD instrument for No. 2 protocol e-Bike e-scooter24V, 36V, and 48V sine-wave brushless motor controller, 250W/350W-500W. Suitable for electric bicycles, lithium-ion scooters, mountain bikes, power-assisted scooters, and more.
Specifications: 350W-500W, 24V/36V/48V
Material: Aluminum Alloy
Operating Voltage: 24V/36V/48V
Rated Power: 350W-500W
Current: 25A
Case Dimensions: 9*5*3cm
MOSFET: HY3208
Functions: Headlight Power, Throttle, 2-Protocol Display, 6-pin Hall Effect Sensor, Dual Low-Break (E-Brake), Power Assist (PAS), Self-Study
The LCD display can clearly display status and data, the backlight allows you to view the screen clearly in a dim environment, and the key operation is quick and easy to use.
The controller is a brushless controller, which works quietly and reacts sensitively to the status of the e-bike.

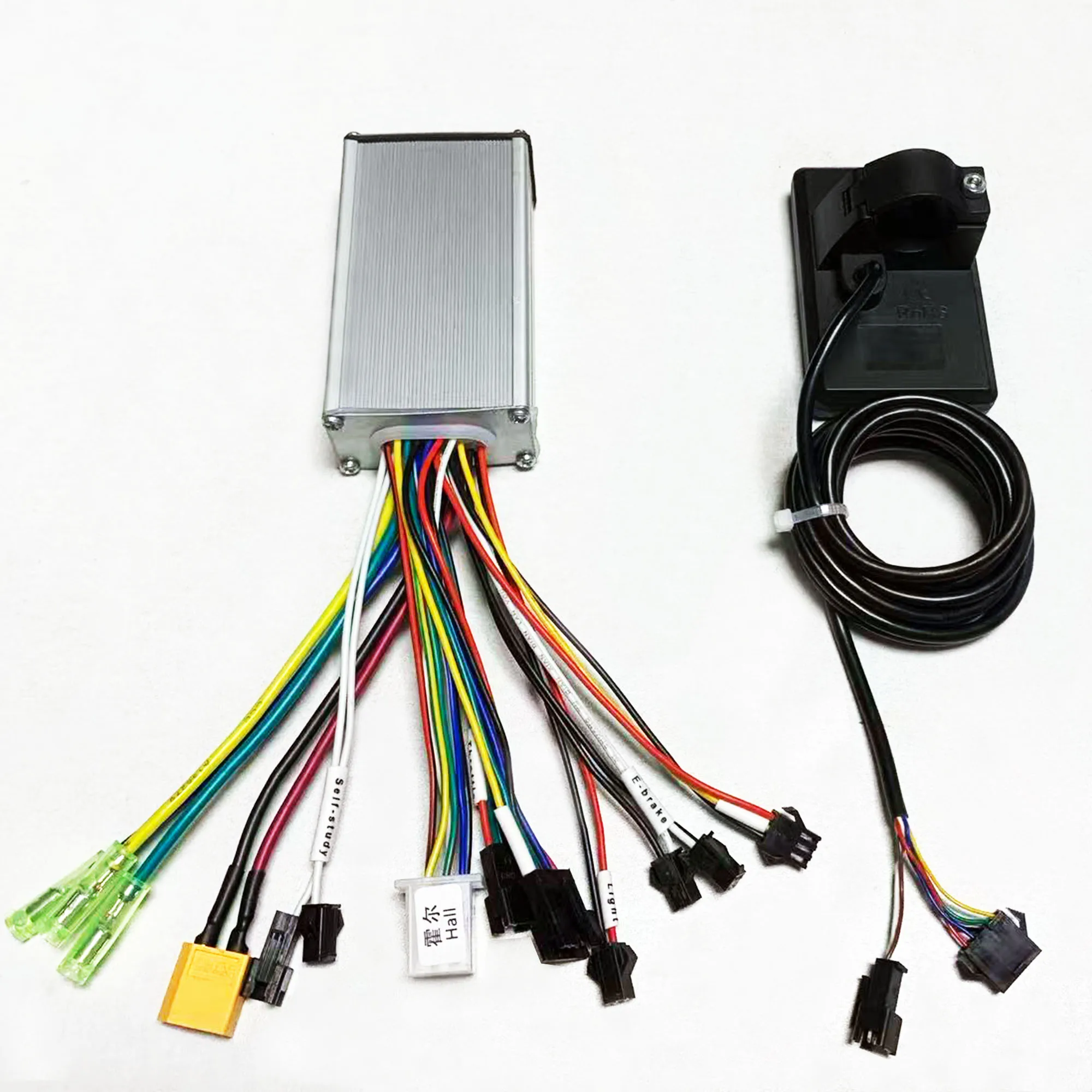

Easy to install and use, equipped with an LCD display bracket, suitable for 22.5mm handlebars.
You can set the power-on password, control the lights, and assist. The speed is divided into 3/5/9 gears, and the number of gears is optional. You can choose to divide or not divide the gears by turning the handle.
Suitable for electric bicycles and scooters.
Specifications:
Material: Plastic + LCD + Metal
Color: As shown in the picture
Power: 250W/350W
Waterproof: Rainproof
Controller size: Approx. 9X5X3cm
Display size: Approx. 8 x 5 cm/3.15 x 1.97 inches
Weight: Approx. 332 grams
Packing list:
1 x LCD display
1 x controller
Note:
Each cable is marked with different colors for different purposes.
Red (VCC) instrument power line
Blue (K) controller power control line
Black (GND) instrument ground line
Green (RX) instrument data receiving line
Yellow (TX) instrument data sending line
Note:
1. The product power is set to 8 at the factory, which basically corresponds to most split superchargers on the market. If the customer uses an integrated supercharger, please set it to 12.
2. P13 in the manual is the power setting of the product. If the supercharger is incompatible, the customer needs to adjust it to 8 or 12.
3. Please note that the controller model is sent randomly. Please confirm whether you are satisfied before placing an order.
How to use: After getting the product, please be sure to align the phase first: plug in the smart identification line and identify the motor. The identification line is two green lines. After plugging in, pay attention to suspend the car, and the motor will run automatically. At this time, if the direction of rotation of the motor is correct, run for 10 to 15 seconds, disconnect the identification line, if the direction is opposite, disconnect the identification line and plug it back, the motor direction will change to forward, run for another 10 to 15 seconds, disconnect the identification line, and the motor direction will change to forward. Run for another 10-15 seconds, disconnect the identification line, and the motor direction will change to forward. Run for another 10-15 seconds, disconnect the identification line, and it's done. After the identification is completed, the identification line remains disconnected, do not plug it back
Package List:
1 x LCD Display1 x ControllerWorking voltage and wiring method
1. Working voltage: DC24V, 36V, 48V compatible with other voltages can be customized,
2. Wiring method:
Note: The leads of some products use waterproof connectors, and users cannot see the lead color in the harness. Function description:
Function:
1. Display function
Speed display, power indication, fault prompt, total mileage, single mileage2. Control and setting function
Power switch control, wheel diameter setting, idle automatic sleep time setting, backlight brightness setting, startup mode setting, drive mode setting, voltage level setting, controller current limit value setting, 3. Communication protocol: UART All contents of the display screen (full display within 1S after power on)
Display content introduction
3.1 Battery power and BMS remaining power display
3.2 Multi-function display area
Total mileage 0D0, single mileage TRIP (unit: mile, km), single power-on time TIME, battery voltage VOL, DST: endurance mileage
3.3 Speed display area
AVG: average speed, MAX: maximum speed, SPEED: current speed; unit Mp/h, km/h speed signal is taken from the Hall signal in the motor and sent to the instrument through the controller, (time of a single Hall cycle, unit: 1MS) The instrument will calculate the actual speed based on the wheel diameter and signal data (the motor Hall also needs to set the number of magnetic steels),
3.4 Vehicle power gear adjustment, 0-9 gear digital display and gear bar display;
3.5 Vehicle status display area
Motor fault;: Fault;: Brake prompt;: Headlight on prompt:
3.6 Vehicle status code table:
Fault code (decimal) Fault status Remarks
0 Normal state
1 Reserved
2 Brake
3 Power sensor fault (riding sign) Not implemented here
4 6KM/H cruise
Settings
P01: Backlight brightness, level 1 is the darkest, level 3 is the brightest;
P02: Mileage unit, 0: KM; 1: MILE; P02:
P03: Voltage level: 24V, 36V, 48V;
P04: Sleep time: 0, no sleep; other numbers are sleep time, range: 1-60; unit: minutes
P05: Power gear: 0, 3 gear mode:
1, 5 gear mode:
P06: Wheel diameter: unit, inch; accuracy: 0.1;
This parameter is related to the speed displayed by the instrument and needs to be entered correctly;
P07: Number of speed magnets: range: 1-100:
This parameter is related to the speed displayed by the instrument and needs to be entered correctly;
If it is an ordinary hub motor, enter the number of magnets directly;
If it is a high-speed motor, you also need to calculate the reduction ratio, input data = number of magnets x reduction ratio;
For example: the number of motor magnets is 20, the reduction ratio is 4.3: the input data is: 86=20x4.3
P08: speed limit: range 0-100km/h, 100 means no speed limit
The input data here indicates the maximum operating speed of the vehicle: for example, input 25, which means that the maximum operating speed of the vehicle will not exceed 25km/h; the driving speed is maintained at the set value,
Error: 1km/h; (both the power assist and the handlebar are limited)
Note: The value here is based on kilometers. When the unit setting is converted from kilometers to miles, the speed value on the display interface will automatically be converted to the correct mile value, but the speed limit value set in this menu under the mile interface will not be converted, and it is inconsistent with the actual displayed mile speed limit value;
Working voltage and wiring method
1. Working voltage: DC24V, 36V, 48V compatible with other voltages can be customized,
2. Wiring method:
Note: The leads of some products use waterproof connectors, and users cannot see the lead color in the harness. Function description:
Function:
1. Display function
Speed display, power indication, fault prompt, total mileage, single mileage2. Control and setting function
Power switch control, wheel diameter setting, idle automatic sleep time setting, backlight brightness setting, startup mode setting, drive mode setting, voltage level setting, controller current limit value setting, 3. Communication protocol: UART All contents of the display screen (full display within 1S after power on)
Display content introduction
3.1 Battery power and BMS remaining power display
3.2 Multi-function display area
Total mileage 0D0, single mileage TRIP (unit: mile, km), single power-on time TIME, battery voltage VOL, DST: endurance mileage
3.3 Speed display area
AVG: average speed, MAX: maximum speed, SPEED: current speed; unit Mp/h, km/h speed signal is taken from the Hall signal in the motor and sent to the instrument through the controller, (time of a single Hall cycle, unit: 1MS) The instrument will calculate the actual speed based on the wheel diameter and signal data (the motor Hall also needs to set the number of magnetic steels),
3.4 Vehicle power gear adjustment, 0-9 gear digital display and gear bar display;
3.5 Vehicle status display area
Motor fault;: Fault;: Brake prompt;: Headlight on prompt:
3.6 Vehicle status code table:
Fault code (decimal) Fault status Remarks
0 Normal state
1 Reserved
2 Brake
3 Power sensor fault (riding sign) Not implemented here
4 6KM/H cruise
Settings
P01: Backlight brightness, level 1 is the darkest, level 3 is the brightest;
P02: Mileage unit, 0: KM; 1: MILE; P02:
P03: Voltage level: 24V, 36V, 48V;
P04: Sleep time: 0, no sleep; other numbers are sleep time, range: 1-60; unit: minutes
P05: Power gear: 0, 3 gear mode:
1, 5 gear mode:
P06: Wheel diameter: unit, inch; accuracy: 0.1;
This parameter is related to the speed displayed by the instrument and needs to be entered correctly;
P07: Number of speed magnets: range: 1-100:
This parameter is related to the speed displayed by the instrument and needs to be entered correctly;
If it is an ordinary hub motor, enter the number of magnets directly;
If it is a high-speed motor, you also need to calculate the reduction ratio, input data = number of magnets x reduction ratio;
For example: the number of motor magnets is 20, the reduction ratio is 4.3: the input data is: 86=20x4.3
P08: speed limit: range 0-100km/h, 100 means no speed limit
The input data here indicates the maximum operating speed of the vehicle: for example, input 25, which means that the maximum operating speed of the vehicle will not exceed 25km/h; the driving speed is maintained at the set value,
Error: 1km/h; (both the power assist and the handlebar are limited)
Note: The value here is based on kilometers. When the unit setting is converted from kilometers to miles, the speed value on the display interface will automatically be converted to the correct mile value, but the speed limit value set in this menu under the mile interface will not be converted, and it is inconsistent with the actual displayed mile speed limit value;
Model LCD-S866
Front View Side View2. Operating Voltage and Connectionsa. Operating Voltage: DC24V / 36V / 48V (set by the display menu). Otheroperating voltage can be customized.b. Connectors:Standard Connector Type
Controller Connector Display Output Connector Coupling Input ConnectorStandard Connector Arrangement Sequence No. Wire Colour Functions1 Red（VCC） Display Power Cable2 Blue（K） Controller Power On/Off Cable3 Black（GND） Display Ground Cable4 Green（RX） Display Data Receiving Wire5 Yellow（TX） Display Data Sending WireExtended FunctionsLight: Brown (DD): The positive electrode of the lightWhite (GND): The negative electrode of the light.The wire color definitions of the PWM Voltage Motor Power Controller and theindependent speed sensor will be defined otherwise.*Note: Some products use waterproof connectors, whose internal wirearrangements cannot be identified from the exterior.3. Functionsa. DisplaySpeed Display PAS Level Display Battery Level DisplayError Indication Total Mileage Single MileageLight Indication Single Trip Timeb. Control and SettingsPower Switch Front Light Control 6km/h Cruise ControlReal-time Cruise Control Wheel Diameter Setting Top Speed SettingSleep Interval Setting Backlight Brightness Setting Voltage Level Settingc. Communications Protocol: UARTDisplay Interface(Displayed for 1sec at start)
Display Interface3.1 Light
3.2 Battery·
3.3 Speed Display
Measuring Unit: MPH or KM/HThe display will calculate the actual travelling speed based on the wheeldiameter and signal data (number of magnetic steel is needed for Hall motors).3.4 Multi-Function DisplayTotal Mileage: ODOSingle Mileage: TRIPError Code: ERRORPower: WATTStart Time: TIBattery Voltage: VOL
3.5 PAS Level
3.6 Cruise Indicator
3.7 Error Code and IndicationsError Code(decimal)Indications Note0 Normal1 Reserved2 Brake3 PAS Sensor Failure (riding mark) Not Realized4 6km/h Cruise5 Real-Time Cruise6 Low Battery7 Motor Failure8 Throttle Failure9 Controller Failure10 Communications Receiving Failure11 Communications Sending Failure12 BMS Communications Failure13 Light Failure3.8 SettingsP01: Backlight Brightness (1: darkest; 3: brightest)P02: Mileage Unit (0: KM; 1: MILE)P03: Voltage Class 24V / 36V / 48VP04: Sleep Interval(0: never, other value means display sleep interval) Unit: minuteP05: Power Assist Gear0/3 Gear Mode: Gear 1: 2V Gear 2: 3V Gear 3: 4V1/5 Gear Mode: Gear 1: 2V Gear 2: 2.5V Gear 3: 4V Gear 4: 3.5V Gear 5:4VP06: Wheel Diameter Unit: inch Precision: 0.1P07: Magnet Steel Number (for Speed Test) Range: 1-100P08: Speed LimitRange: 0-50km/h, parameter 50 indicates no speed limit.1. Non-communications status (panel-controlled)When the current speed exceeds the speed limit, the PWM output will be shutdown; when the current speed falls to lower than the speed limit, the PWMoutput will be activated and the driving speed will be set as the current speed ±1km/h (only applies to assist power speed, not applicable to the handlebarspeed).2. Communications status (controller-controlled)The driving speed will be kept constant as the limited value.Error Value: ±1km/h (applicable to both the assist power/handlebar speed)Note: The above-mentioned values are measured by metric unit (kilometers).When the measuring unit is switched to imperial unit (mile), the speed value displayed on the panel will be automatically switched to corresponding imperialunit, however the speed limit value in the imperial unit interface won’t changeaccordingly.P09: Direct Start / Kick-to-Start Setting0: Direct Start1: Kick-to-StartP10: Drive Mode Setting0: Power Assist – The specific gear of the assist drive decides the assistpower value. In this status the handlebar does not work.1: Electric Drive – The vehicle is driven by the handlebar. In this status thepower gear does not work.2: Power Assist + Electric Drive – Electric drive does not work in zero-startstatus.P11: Power Assist Sensitivity Range: 1-24P12: Power Assist Starting Intensity Range: 0-5P13: Power Magnet Steel Number 5 / 8 / 12pcsP14: Current Limit Value: 12A by default; Range: 1-20AP15: UnspecifiedP16: ODO Zero-OutLong press the up key for 5 seconds and ODO value will be erased.Note: Due to product upgrade, the product you purchased may beslightly different from the descriptions in this user manual, and thiswon’t affect normal usage.About Prime Living
