Product Description

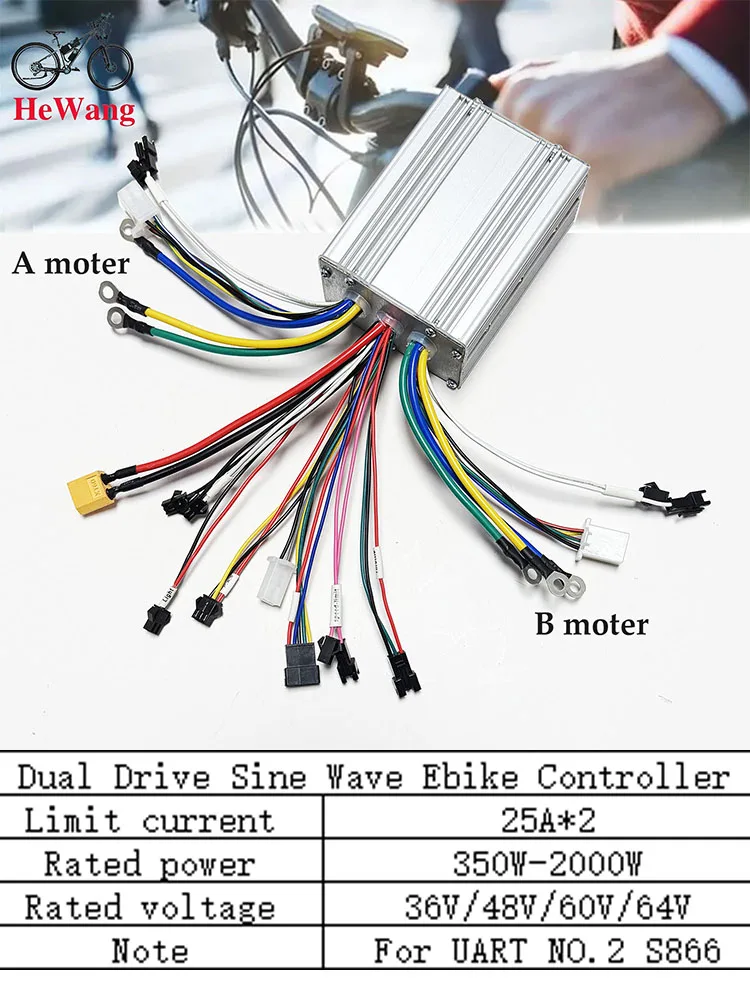

BLDC Controller 36V 48V 52V 60V 64V Sine Wave Dual Drive E-Bike Controller 350W-2000W Three Mode for UART No.2 E-Scooter repair
BLDC Controller 36V 48V 52V 60V 64V Sine Wave Dual Drive E-Bike Controller 350W-2000W Three Mode for UART No.2 E-Scooter repair36V/48V/60V/64V sine wave dual drive controller No. 2 communication protocol, suitable for go-karts, four-wheel drive vehicles, electric wheelchairs, electric bicycles, modified vehicles, etc. Dual drive 6 tubes 25A*2*1000W=2000W
When using for the first time, please let each motor learn on its own. The learning direction of the two motors should be the same.
Rated voltage: 36V/48V/60V/64V Low voltage cut-off: 32/40/50V+0.5V
Rated power: 2000W (1000W*2)
Limit current: 25A*2+-1A
Low noise when starting Pink is the dual drive switching line: Switch between single drive and dual drive. Plug in the dual drive and unplug the single drive. With No. 2 communication instrument connection line, it can match SW900, S866, SW966, V889, TF-100(5), M5, etc. No. 2 protocol model.
Size: 105 x80 x45mm
Weight: 510g
Main Functions: Low brake x2, learning cable, reverse cable, power steering cable, IEC 2 instrument panel cable, headlight power supply, dual Hall effect sensors, single/dual drive switching cable, throttle
1. Self-study (1) 2. Hal1 (1) 5pin
3.4.5.Motor abc
6. Power cord 2pin
7.E-brake 8. Light 9.P.A. S
10. Dual/single drive switching cable 11.Astern 2pin 12.Display 5pin 13.Throttle 3pin
14. Hall (2) 5pin 15.16. 17.Motor def 18.Self-study (2)
The instrument panel has 5 wires. Shorting the red and blue wires will start the engine. Red is the positive power terminal, and blue is the ignition lock wire.
