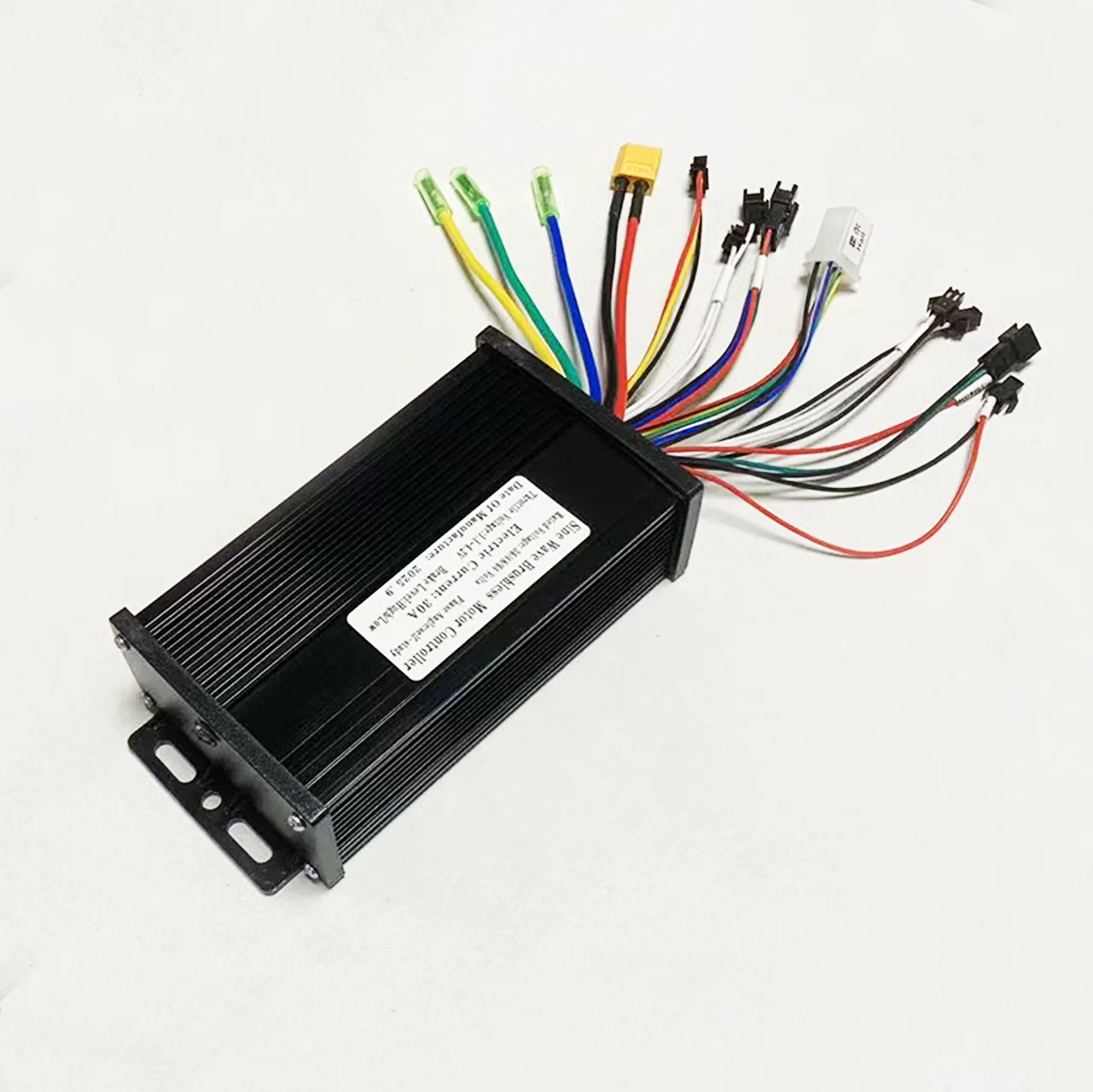

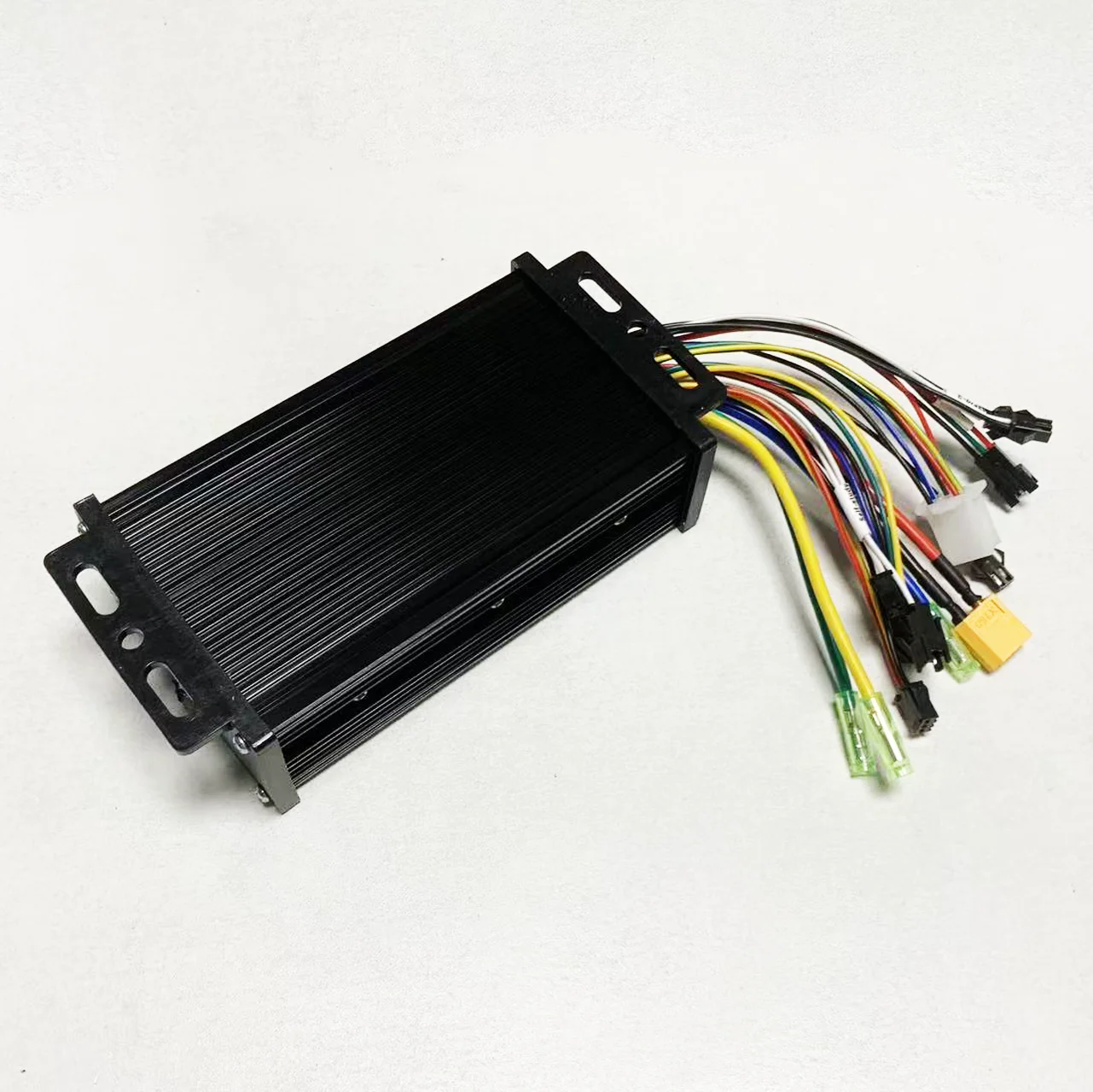

30A sine wave 3-mode 1500W 36V 48V 52V 64V controller with S966 color LCD meter,

Product Description

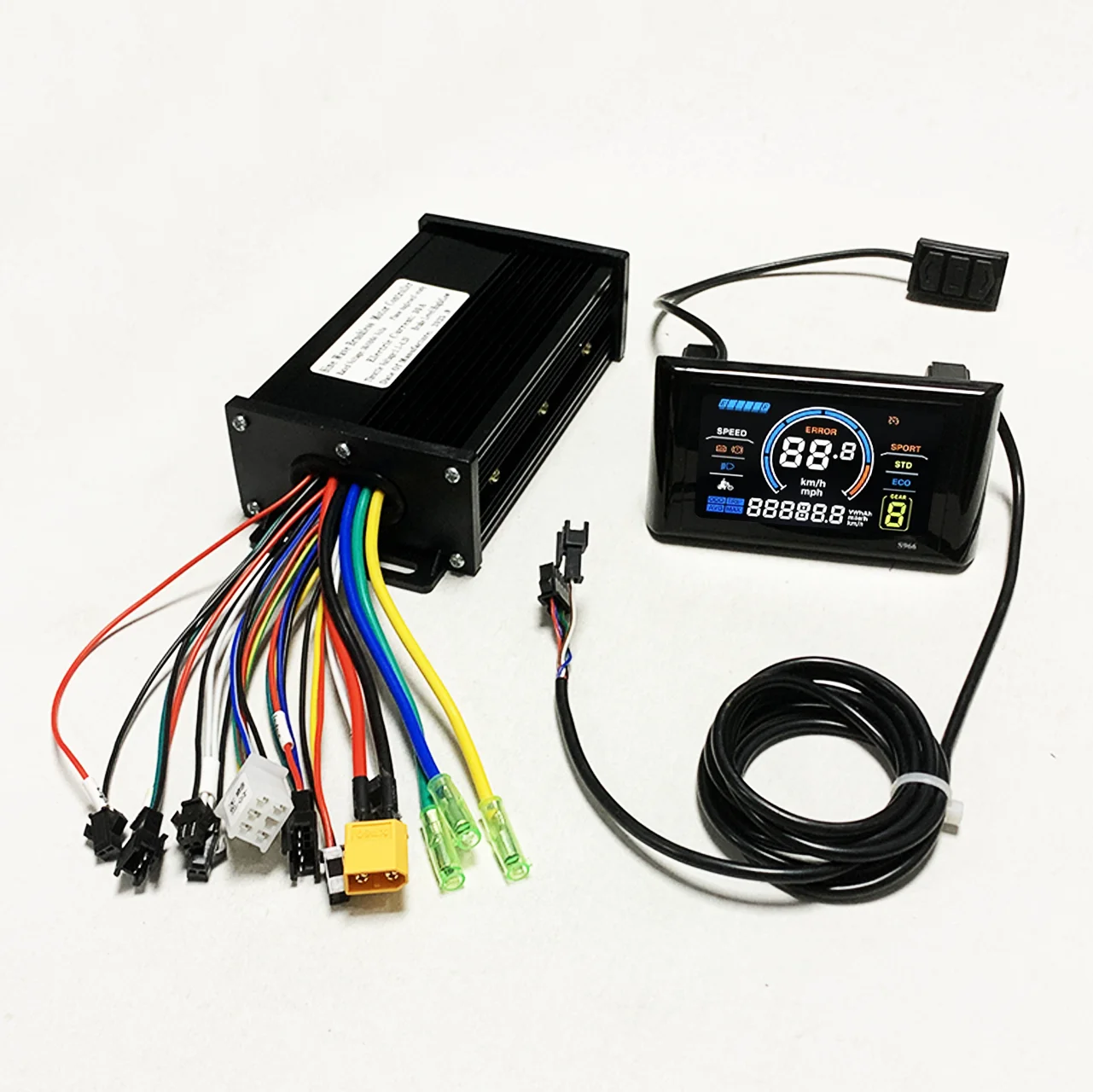

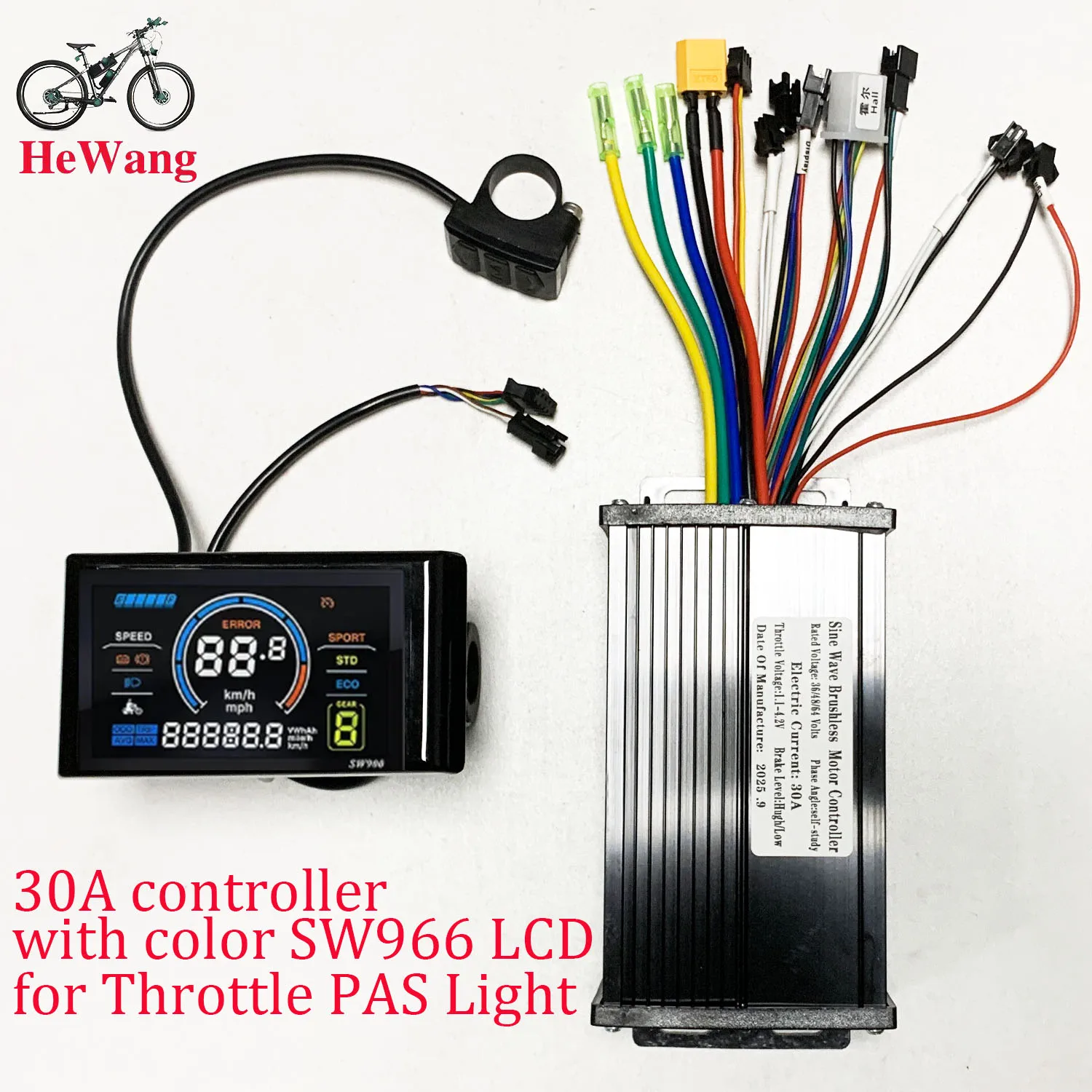

FOC Sine Wave Controller & S966 LCD Display Kit1.Motor cable 2.Motor cable 3.Motor cable

4.Power cable

5.Self-learning

6.hall

7.No.2 protocol LCD display

8.Electronic brake

9.Throttle

10.P.A.S

11.Light36V 48V 52V 64V Black Gold Sine Wave Brushless Motor Controller 30A 1000W Controller Suitable for 6Pin SM Connector No. 2 Protocol Instrument Electric Bicycle

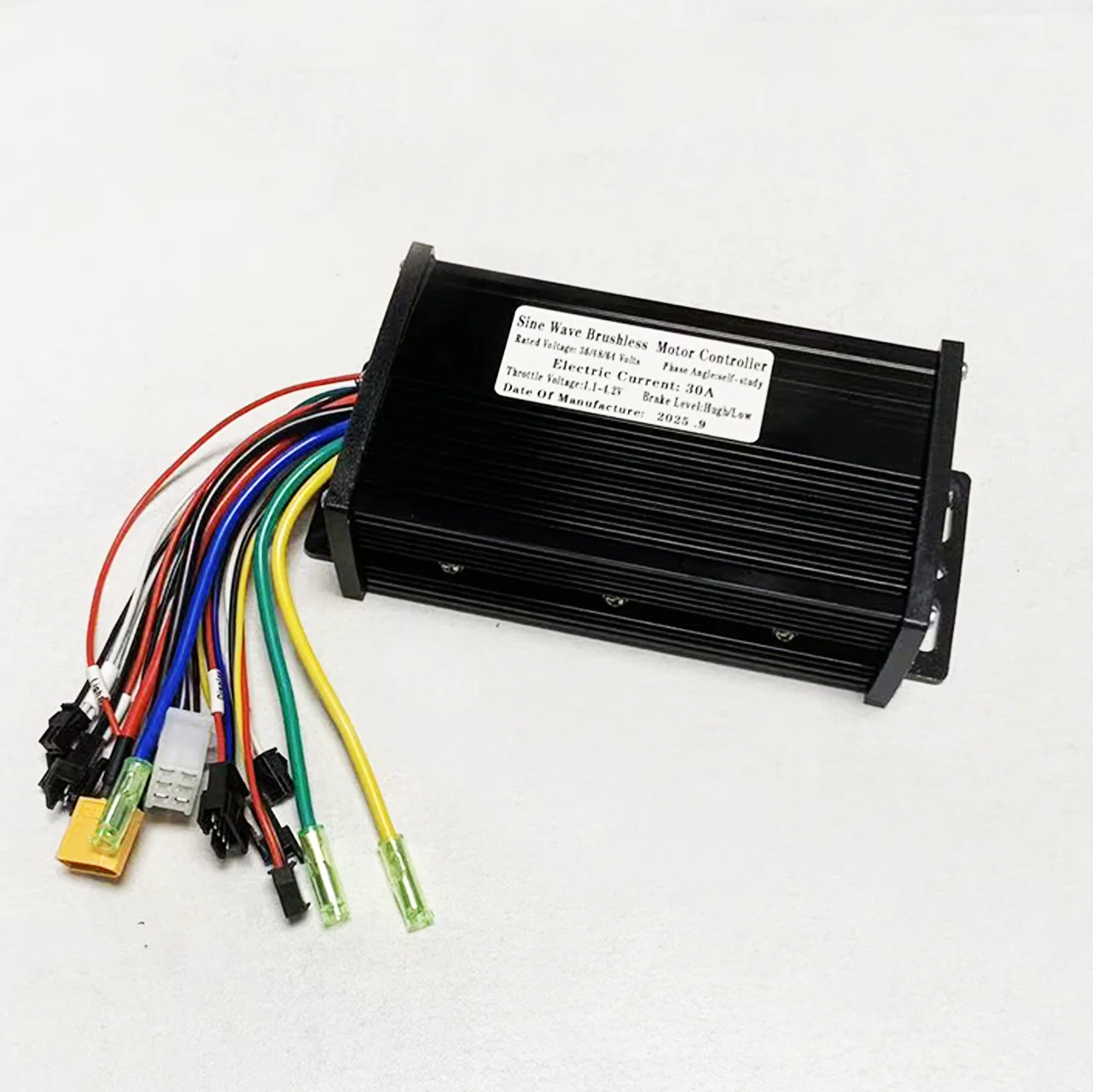

Specifications: 1000w 1500 W 36v/48v/52v/64v

Material: Aluminum Alloy Black Gold

Working Voltage: 36v/48v/52v/64v

Undervoltage: 32v

Rated Power: 1000W 1500W

Current: 30A

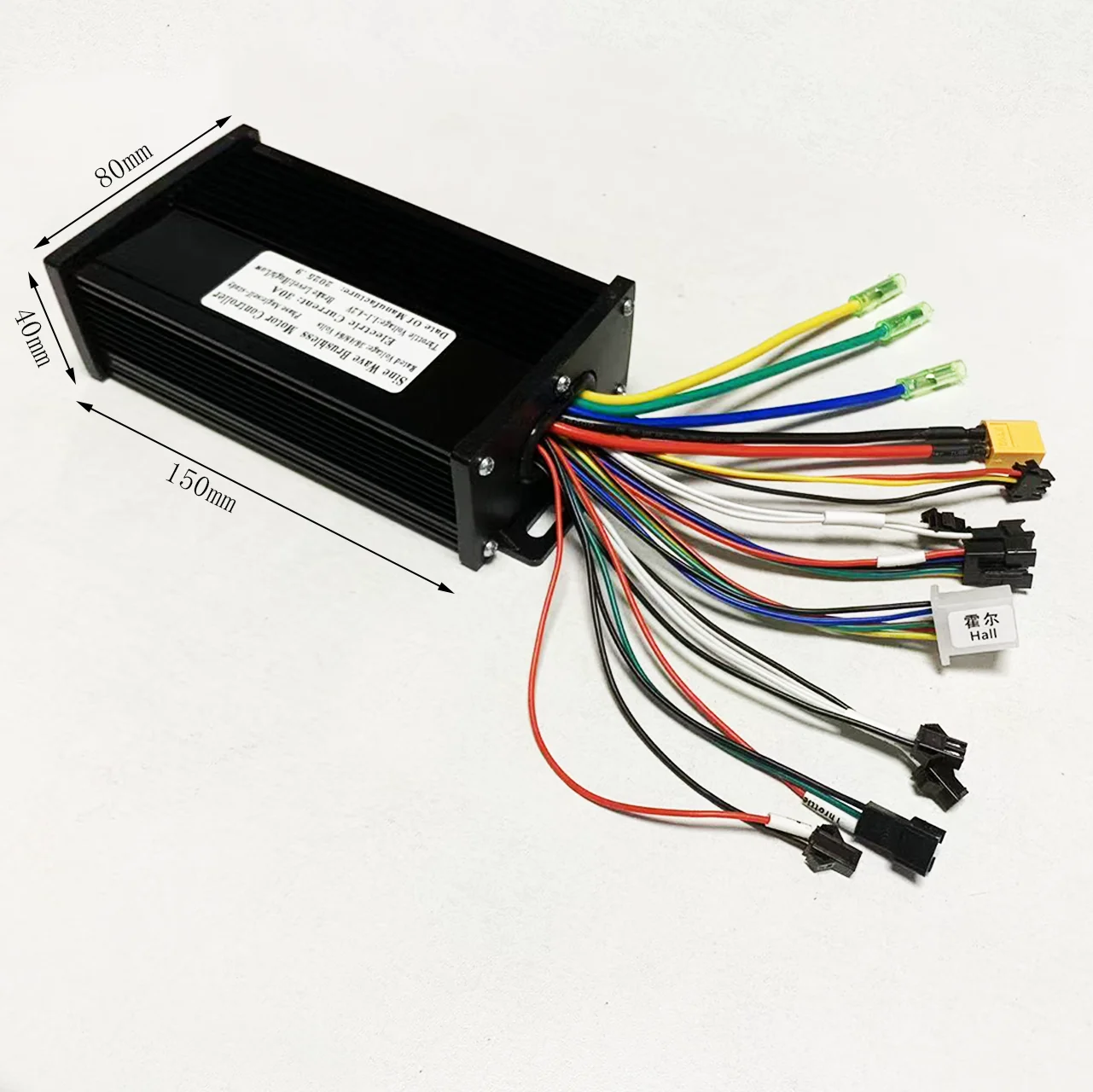

Shell Size: 15*8.5*4cm

MOS Tube: HY3410

Controller Introduction

This controller is FCO sine wave design for brushless motor with hall sensor.

Brushless Hall motors are 3+5 wire or 3+6 wire, these two types of motors are best suited for Forever FOC controllers.

This controller is suitable for electric scooters as well as electric bikes, it is very compatible and designed for modification users and repair shops.

This controller has self-learning design, when you install it for the first time, there may be motor jitter, this is normal because the controller doesn't detect your motor parameter, you can short the self-learning wire for 5 seconds, the controller will automatically check your motor parameter and auto-compatible.

The advantage of this design is that the controller is compatible with almost all brushless motors. Many single mode sine wave controllers on the market do not have self-learning wires, and this controller is designed with self-learning motors to perfectly solve this problem that bothers users.

Please don't need to worry if your motor drives in reverse direction after initial installation, this is normal, you can short connect the self-learning wire to change the initial direction of the motor.

If you want accurate LCD speed display, you can enter LCD setting mode and set your motor wheel diameter in P06 in inch.

Set the speed magnet in P07, normally you can set it to 23,.

After setting P06 and P07, you can test the real time speed with map navigation APP, if the LCD display speed is bigger than the navigation display speed, then you can reduce the parameter of P07 to lower the speed display ratio.

If the LCD display speed is less than the navigation display speed, you can increase the parameter in P07 to increase the speed display ratio. After finding the exact speed that suits you in this way, you will see the LCD displaying the exact speed.

LCD BS900 Manual Control Panel

User Manual

The Latest Version 2022

1.1. Exterior Parameters

Casing Material: ABS

Display Material: High Hardness Acrylic (the same hardness value as tempered glass).

2. Operating Voltage and Connections

a. Operating Voltage: DC24V / 36V Compatible, 36/48V Compatible (set by the control panel). Other operating voltage can be customized.

b. Connections:

Standard connector sequence

Standard Connector Sequence Table

Extended Functions

Light: Brown (DD): The positive electrode of the light

White (GND): The negative electrode of the light.

The wire colours of the PWM Voltage Motor Power Controller and the independent speed sensor will be defined otherwise.

Note: Some products are equipped with waterproof connectors, whose internal wire colors cannot be determined from outside.

3. Functions

a. Display

Speed Display, Motor Power Ratio Display, Battery Level Display,

Error Indication, Total Mileage, Single Mileage, Cruise Control, Single

Running Time, Light Signal

b. Control and Settings

Power Switch, Front Light Control, 6km/h Inching Control, Wheel Diameter Setting, Top Speed Setting, Idleness Time Setting for Auto-Off, Backlight Brightness Setting, Voltage Level Setting,

c. Communications Protocol: UART

Display Readings (display at start for 1 second)

3. 1 Light

3.2 Battery Level:

3.3 Multi-Functions Display

Total Mileage: ODO

Single Mileage: TRIP

3.4 Vehicle Mode

ECO: Economical Mode

STD: Standard Mode

POWER: Intensified Mode

SPEEDHANDLE: Throttle-Controlled Speed Mode

WALK: Walk Assist Mode

3.5 Speed Display

The panel will calculate the actual travelling speed based on the wheel diameter and signal data (number of magnet steel is needed for Hall motors).

3.6 Assist Status

Power Assist Status

3.7 Error Code：

Code for Procotol SWC No2

Code for Procotol K5S

Code for Procotol 8F

3.8 Menu Settings

P00: Factory Settings: set the value to 10 and switch to the next item, the interface will show full content and reset all values to original factory settings.

P01: Backlight Brightness (1: darkest; 3: brightest)

P02: Mileage Unit (0: KM; 1: MILE)

P03: Voltage Level: 24V /36V (default) / 48V

P04: Auto-Off Time (0~60, 0: never, other values mean Auto-Off interval) Unit: minute

P05: Assist Level

1. Normally 3 types available: 3/5/9 Levels (requires controller support, subject to actual situation)

2. Some previous products may show 0/1/2 to represent assist level 3/5/9. The latest products will show directly 3/5/9 for 3 types.

3. Some display supports start level setting, by changing the extra first value 0/1.

For example: “0 3” means 0 assist level at start, and 3 assist levels in total.

“1 3” means level 1 at start, and 3 assist levels in total.

1. Some protocols (e.g. Lishui 5S, Protocol 2B as extended Protocol 2) supports manually setting PWM value for each assist level, which allows users enter a secondary menu by long pressing the down key in Assist Level settings (the interface will show from “3” to “31 55” and blinking indication). Then users can set PWM value for each assist level (incl. PWM for 6km/h walk assist mode).

4.1 Forexample: “31 55” means in 3-level mode, the PWM value

for level 1 is 55.

4.2 If the cursor blinks at “31”, press the Power/Mode key, and “55” will blink, then press the up key the value will turn to “31 56”, and the PWM value for level 1 has been set to 56.

4.3 Switch the cursor back blinking at “31”, press the up key the value will turn to “32 110”, now may set PWM value for level 2.

4.4 Long press the down key again, exit the secondary menu to the home menu, the new values will be automatically saved.

Note: The first digit blinking “P” indicates setting PWM value for 6km/h walk assist mode.

For example, “P35” means PWM value for 6km/h walk assist mode is 35, increase the value to speed up, decrease to slow down.

4.5 Some displays use analog voltage output for each level (no protocols), the output voltage for each level:

3-Level Mode: Level 1: 2V, Level 2: 3V, Level 3: 4V;

5-Level Mode: Level 1: 2V, Level 2: 2.5V, Level 3: 3V, Level 4: 3.5V, Level 5: 4V.

P06: Wheel Size. Unit: inch Precision: 0.1

P07: Magnetic Steel Number for Speed Test. Range: 1-100

P08: Speed Limit

Range: 0-50km/h, parameter 50 indicates no speed limit.

1. Non-communications status (panel-controlled)

When the current speed exceeds the speed limit, the PWM output will be shut down; when the current speed falls to lower than the speed limit, the PWM output will be activated and the driving speed will be set as the current speed ±1km/h (only applies to assist power speed, not applicable to the throttle speed).

2. Communications status (controller-controlled)

The driving speed will be kept constant as the limited value.

Error Value: ±1km/h (applicable to both the assist power/throttle speed)

Note: The above-mentioned values are measured by metric unit (kilometers). When the measuring unit is switched to imperial unit (mile), the speed value displayed on the panel will be automatically switched to corresponding imperial unit, however the speed limit value in the imperial unit interface won’t change accordingly.

P09: Zero / Non-zero Start Setting:

0: Zero Start (direct start when throttle turns)

1: Non-zero Start (kick to start)

P10: Drive Mode Setting

0: Pedal Assist Only – The specific gear of the assist drive decides the assist power value. In this status the throttle does not work.

1: Throttle Only – The vehicle is driven by the throttle. In this status the power gear does not work.

2: Pedal Assist+Throttle – Electric drive does not work in zero-start status.

P12: Assist Power Intensity Range: 0-5

P13: PAS Sensor Magnet Steel Number: 5 / 8 / 12pcs

P14: Current Limit Value: 12A by default; Range: 1-20A

P15: Unspecified

P16: ODO Zero-Out: Long press the upper key for 5 seconds and ODO value will be cleared.

P17: (required by customer) Auto Cruise Option.

0: No Auto-cruise

1: Auto-Cruise On. Trigger time of auto-cruise is decided by the controller.

P18: (K5S, APT Protocol Bound) Forward / Backward PAS Option.

0: Forward PAS.1: Backward PAS.

P19: (K5S Protocol Bound) Throttle Level Option.

0: No throttle level. 1: Has throttle levels.

P19: (K5S Protocol Bound) 6km/h Cruise Throttle Definition.

0: Throttle without 6km/h cruise definition.

1: Throttle with 6km/h cruise definition.

4. Keys

Arrangement of Keys:

1.M key, works as Mode Switch key and Power key.

If the has NFC function, for security concerns, password is required when turning onthe display by M key.

2. Up key, also known as Plus key (common operation: press it and the value will add 1 “Plus”).

3. Down key, also known as Minus key (common operation: press it and the value will deduct 1 “Minus”).

:

1. Press (press and release a single key)

Press is used for frequent operations:

1.1 During ride, press Up or Down key to switch assist levels.

In settings, press Up or Down key to change the value for certain item.

1.2 Press the M key to switch items displayed in the multifunction

area. To avoid false triggering, normally press is not used in two-key operation, but some displays support double press (similar to “double click”on the mouse) or multiple press.

2. Long Press (long press a single key for over 1s before release);

Long press on a single key is used in non-frequent On/Off, e.g.

Turn on/off the front light.

3. Multiple-Key Operation (long press 2 or more keys together for over

1s before release)

Compared to long press of a single key, multiple-key operation

Is used in rarercases.

Detailed Introduction of Key Operations

1. Switch Assist Level

On the home interface, press the Plus key or Minus key.

2. Switch Displayed Items in Multi-Function Area

On the home interface, press M key to switch among total range (ODO), single trip range (TRIP), working time (TIME), battery voltage, working current, error code, etc. (not every model supports all the above items).

3. Turn On the Front Light (Backlight Brightness)

Long press the Plus key to turn on/off the front light.

In most cases, the backlight of displays is on by default. However, in some cases, the backlight status is subject to (synchronized with) the front light.

4. Turn On 6km/h Walk Assist Mode or Cruise

When the vehicle is parked, long press Minus key to enter 6km/h walk assist mode. To exit, normally release the key, yet in some rare cases subject to the controller, to exit, long press the Minus key again instead of simple

release.

Moreover, in some cases, the controller decides the speed of walk assist/cruise mode by the engaging motor speed, e.g. if the engaging speed is 0, enter 6km/h walk assist mode; if the engaging speed reaches a certain preset value (like 15km/h), the controller will turn on cruise mode, in this case, to exit 6km/h walk assist mode or cruise mode, long press the Minus key again.

5. Turn On/Off the Display

Long press the M key to turn on/off the display

6. Display 3 Types of Speed

Real-time speed (CUR), maximum speed (MAX), average speed (AVG)

Long press M key and Plus key to switch among 3 types of displayed speed. If there’s only one speed type displayed, the M key is invalid.

7. Setting Menu

Long press Plus and Minus key together to enter the setting interface, available setting items as follows:

Backlight brightness, system unit, voltage class, auto-off time, assist levels, wheel size, magnetic steel number, speed limit, zero start and non-zero start, assist sensitivity, start power, type of PAS sensor disc, controller current and ODO clearance.

The setting area composes of two sectors: one is the numbering of parameters, normally displayed as PXX (XX is the number of parameter, e.g. P01 is the first parameter, often defined as backlight brightness).

Another sector is the value of the parameter.

In Setting interface, press M key, the display will save the new parameter and switch to next item, e.g. P01->P02 press Plus or Minus key to adjust the value +1 or -1.

Some parameters have a wide range, e.g. wheel size, and press operation would be inefficient. In this case, long press Plus key to enter auto-plus mode to boost efficiency.

To clear total distance (P16 in most cases), long press Plus key for 5s, when the ODO sector shows 0, the total distance value is cleared.

Long press Plus and Minus to exit setting menu. In the setting menu without any operation for 10s, the system will automatically exit the setting mode to avoid false operation.

NFC Display Function Introduction:

When the device with NFC functionality is being produced, after the program is loaded, upon startup, a prompt "C1" will be displayed, indicating that it's now necessary to record Master Card 1. Place an appropriate card near the screen. When the display detects the card, it will automatically read the ID of the card and write it into the display's memory. Then, "C2" will be displayed to indicate the need to record the second Master Card. By replacing the card with another and recording it again, the "C2" display will disappear. Once the recording of two Master Cards is complete, the display will automatically enter its normal swipe card power on/off mode. (Generally, the recording of Master Cards is carried out by the display manufacturer.)

The NFC display can also opt for recording Sub Cards. When the display is turned off, place any Master Card on the display (without covering the mileage position). If the display detects the Master Card, it will power on. If the Master Card remains stationary for more than 10 seconds, the display will prompt "SC1," indicating the entry into Sub Card recording mode. Remove the Master Card and place the Sub Card near the display; it will automatically record the Sub Card. If the display is set to record multiple Sub Cards, it will sequentially display "SC2," "SC3," "SC4," etc. Typically, support is provided for recording 2 Sub Cards, but based on customer requirements, it can be configured to support up to 4 Sub Cards. Once Sub Card recording is complete, the Master Card can be kept aside and only the Sub Card used for operations. If a Sub Card is lost, it can be re-recorded using the Master Card. (All Sub Cards need to be re-recorded. Sub Card recording is generally carried out by the display distributor or the user themselves.)

It's also possible to clone and simulate NFC Master Cards (the same applies to Sub Cards) using a smartphone. If you're not familiar with the specific process, you can search online for various brands' methods of duplicating NFC cards. This method is independent of the display, so it won't be elaborated further here.

For displays with NFC functionality, when the display is in motion, it's not possible to swipe the card to power it off; it can only be done when the speed is 0, i.e., when the vehicle is stopped. After powering off, the NFC card reading function continues to work, so the display also has a certain power consumption.

Note: Due to product upgrade, the product you purchased may be slightly different from the descriptions in this user manual, and this won’t affect normal usage.
