36V-64V 1500W Sine wave Brushless motor controller with Lock LED display battery throttle handle for e-bicycle E-bike E-scooter
36V-64V 1500W Sine wave Brushless motor controller with Lock LED display battery throttle handle for e-bicycle E-bike E-scooter36V/48V/60V/64V 1000W-1500W brushless electric bicycle motor controller, suitable for electric motorcycles, electric bicycles, lithium-ion scooters, scooters, balance scooters, etc. Specifications: 12 tubes, 1000W-1500W, 36V/48V/60V/64V
Material: Aluminum alloy
Operating voltage: 36V-64V, universal
Rated power: 1000W-1500W
Current: 28-33A
Dimensions: 15*8.5*4cm
MOSFET: HY3208
Functions: Three-speed transmission, anti-theft alarm, reverse, smart cruise control, analog meter, LCD meter, high-battery brake, low-battery brake, Hall effect start, learning cable, throttle lock cable, dedicated
Package Content:

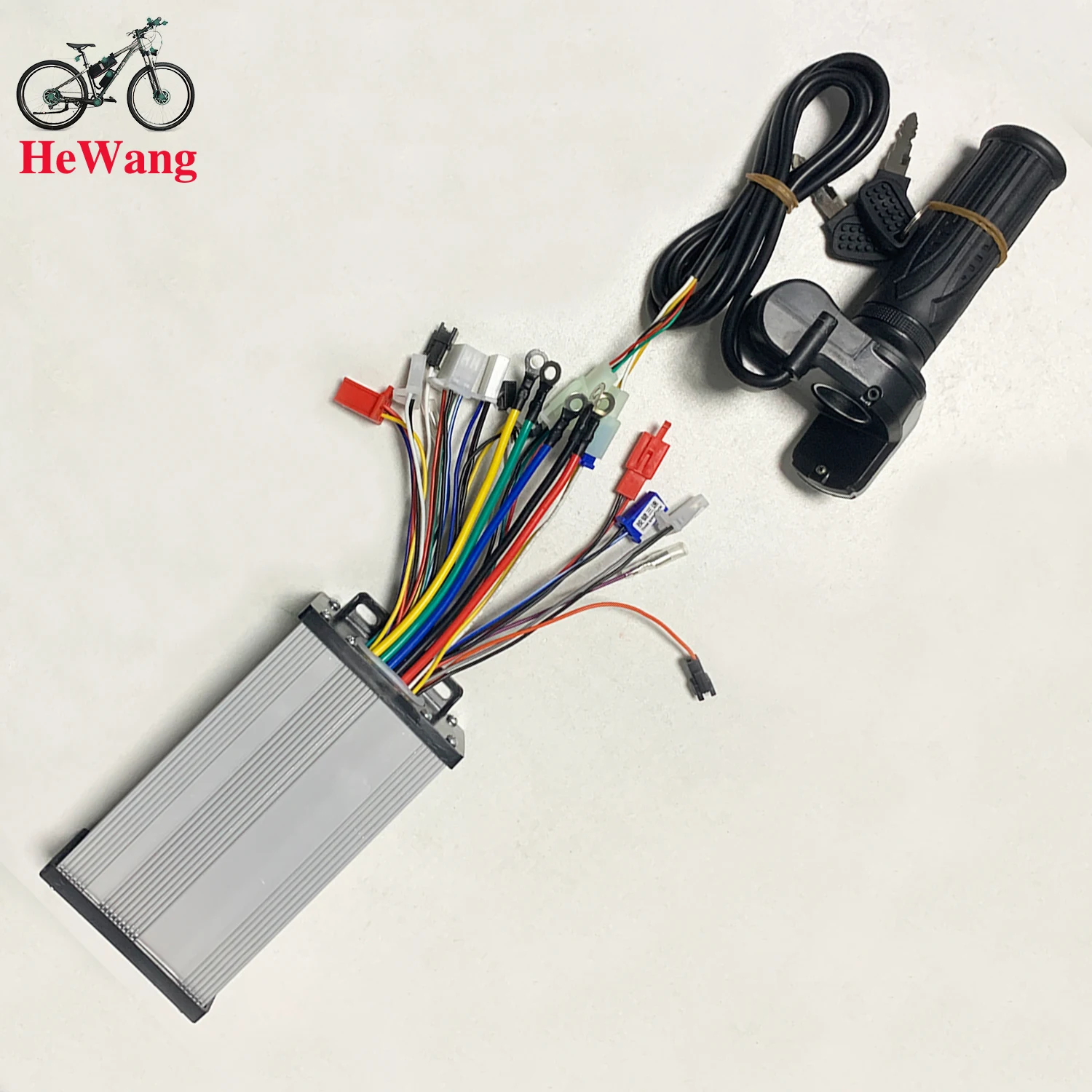

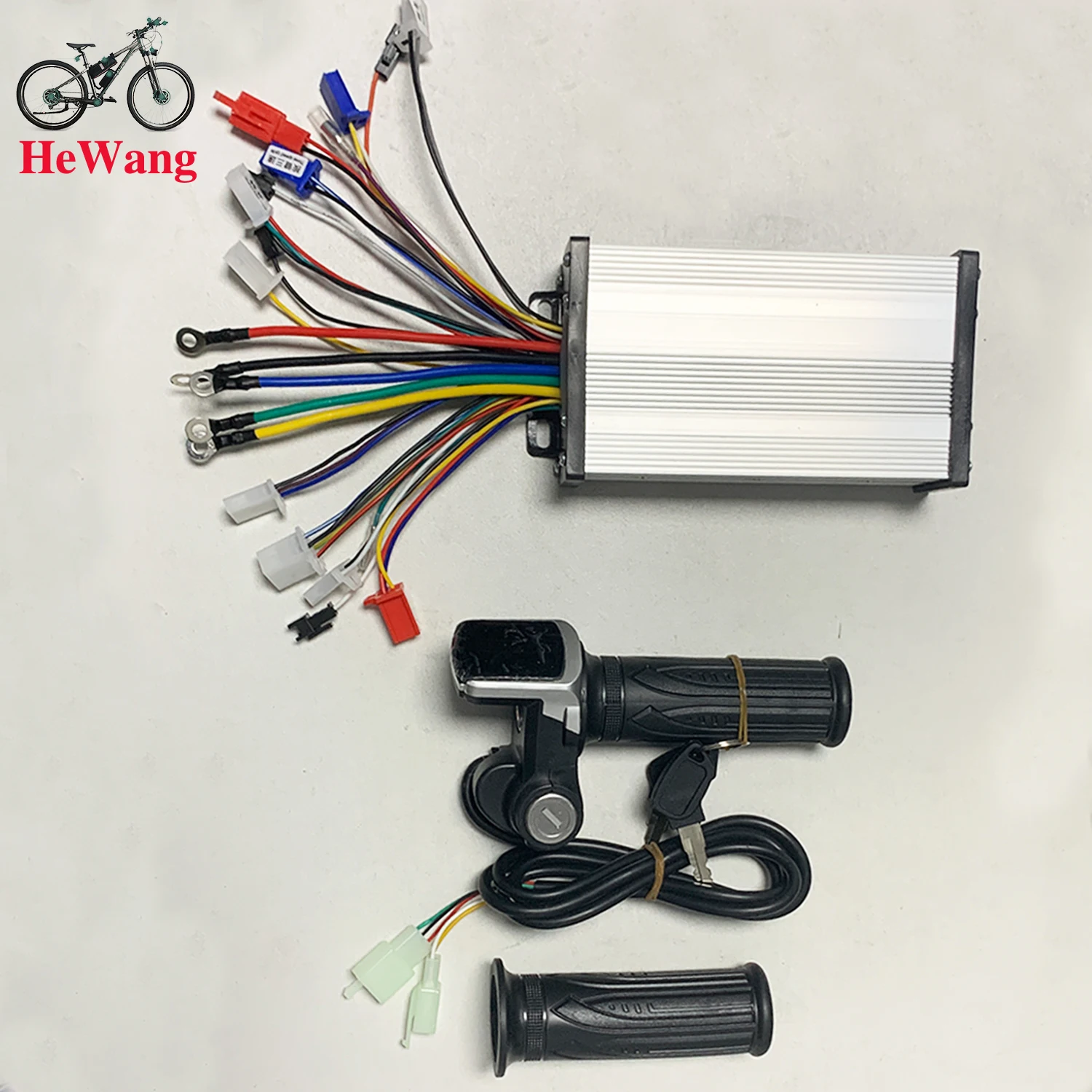

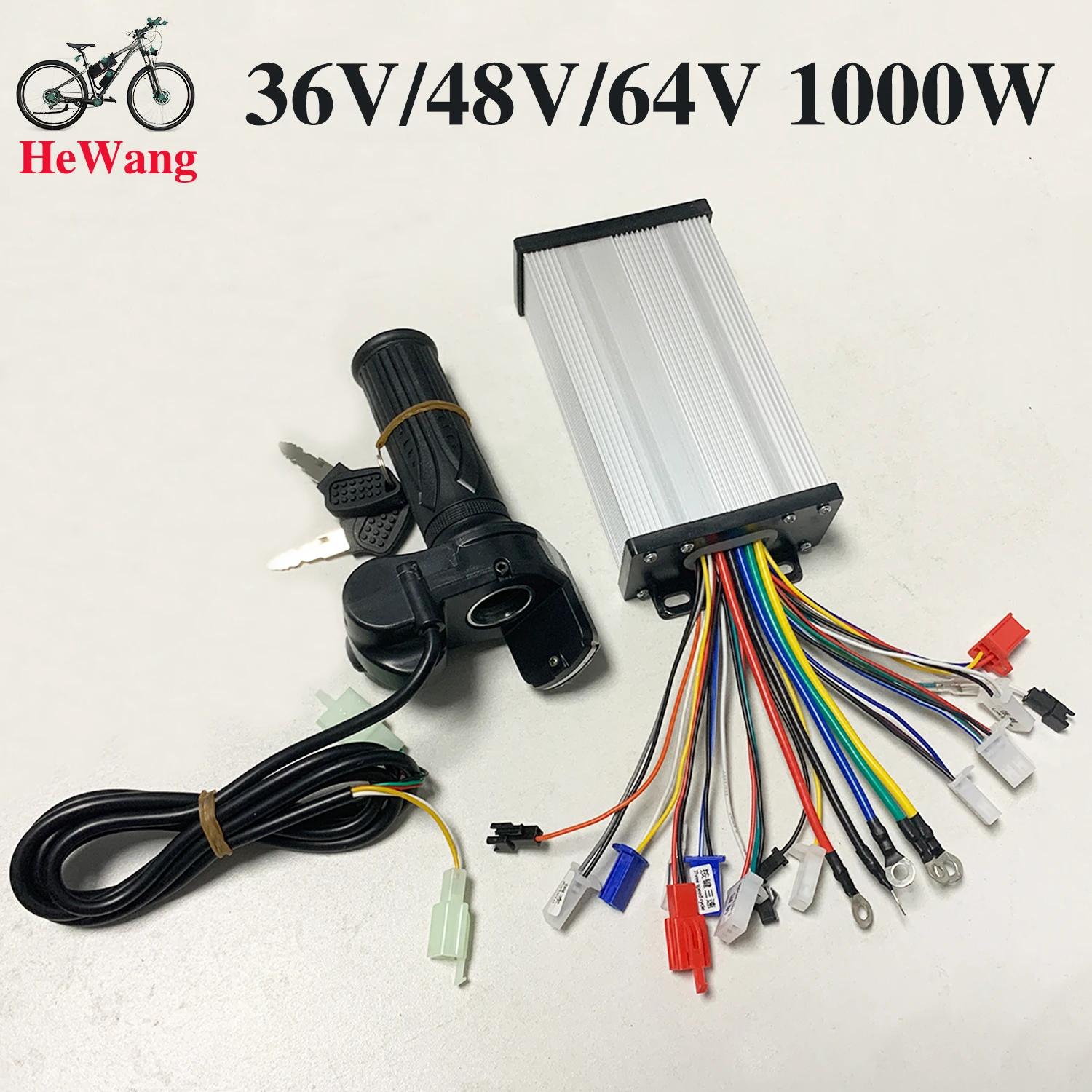

1 x Brushless Controller, 1 pair of throttle handlebar

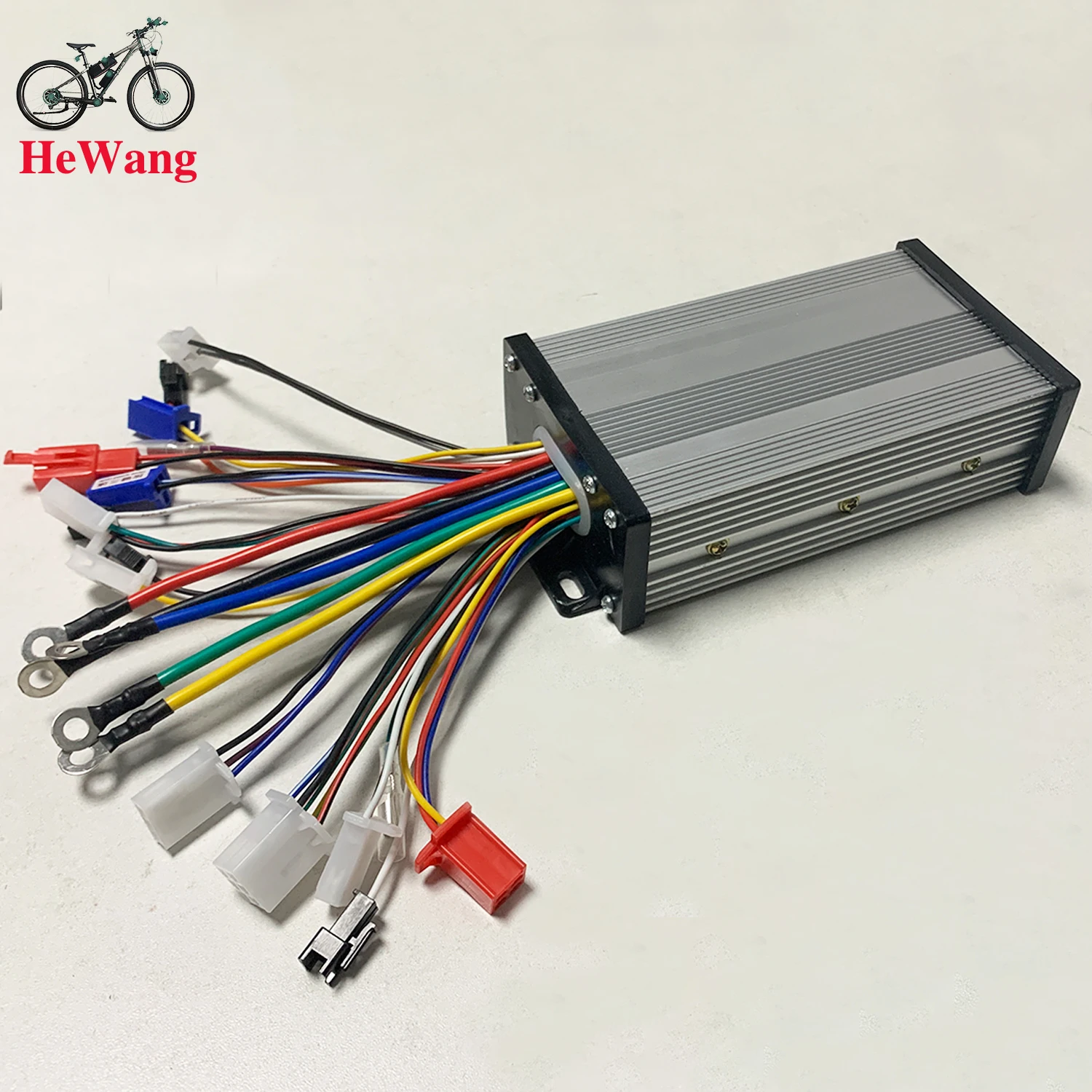

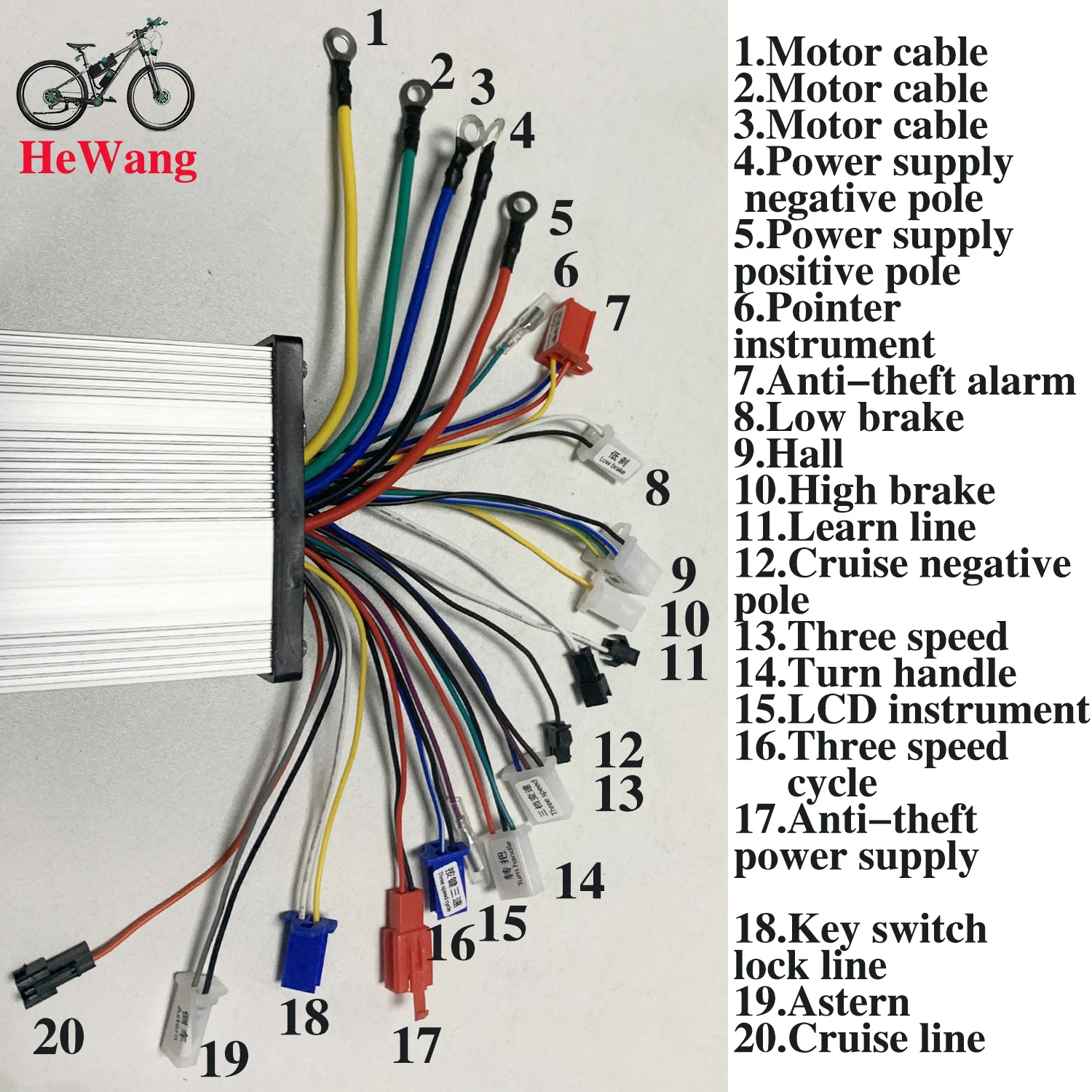

1.Motor cable
2.Motor cable
3.Motor cable
4.Power supply negative pole
5.Power supply positive pole
6.Pointer instrument
7.Anti-theft alarm
8.Low brake
9.Hall
10.High brake
11.Learn line
12.Cruise negative pole
13.Three speed
14.Turn handle
15.LCD instrument
16.Three speed cycle
17.Anti-theft power supply
18.Key switch lock line
19.Astern
20.Cruise line

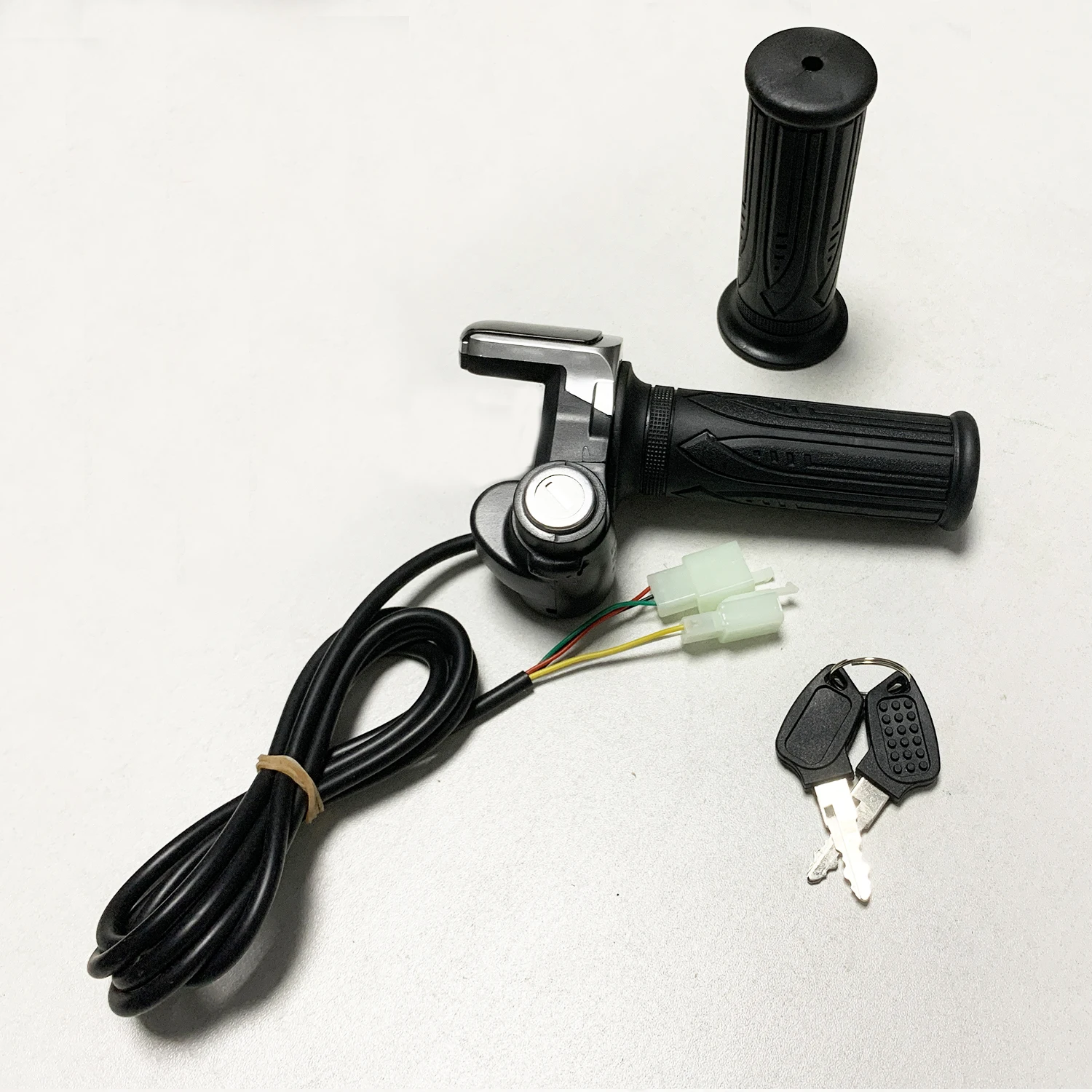

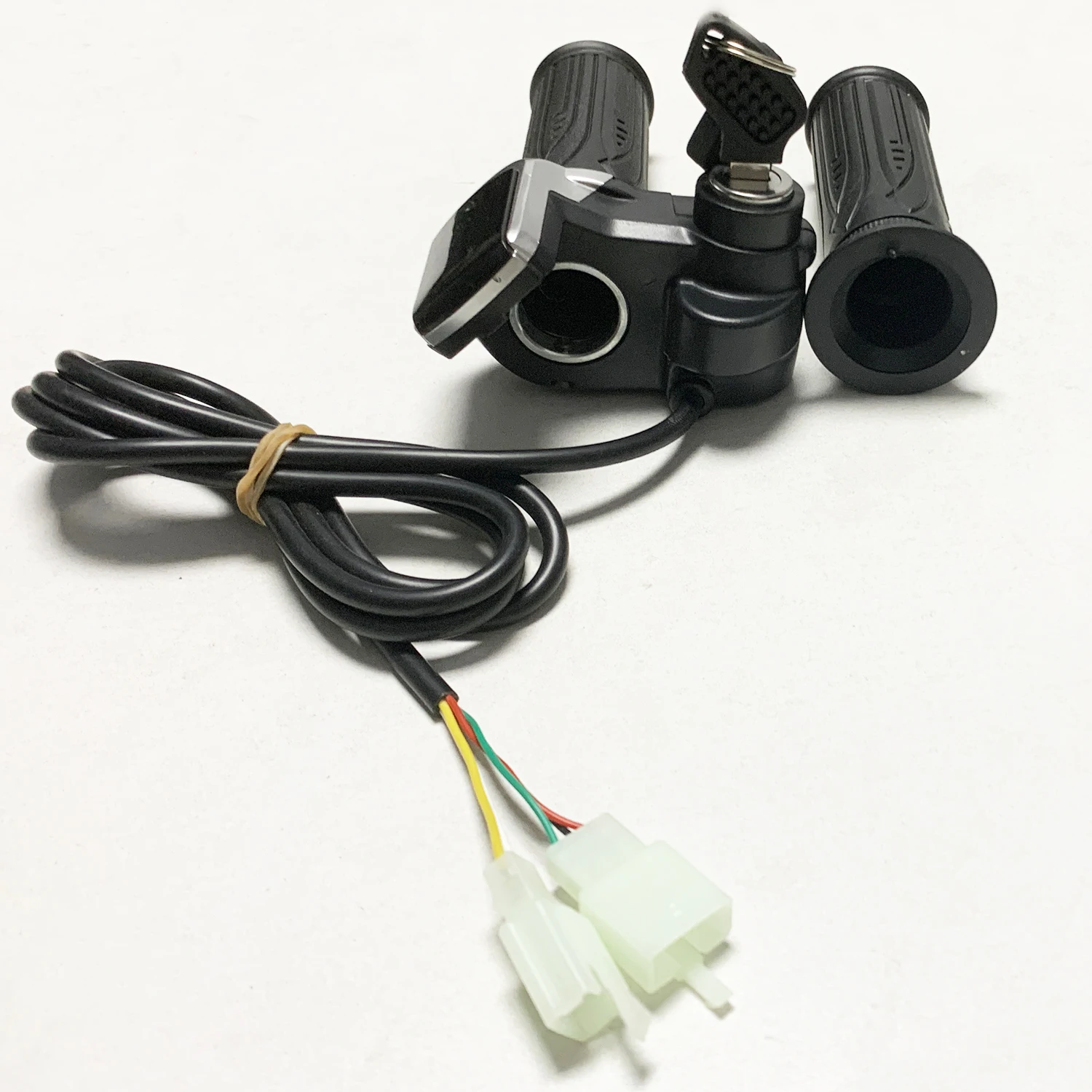

Wiring instructions for lockable throttle:

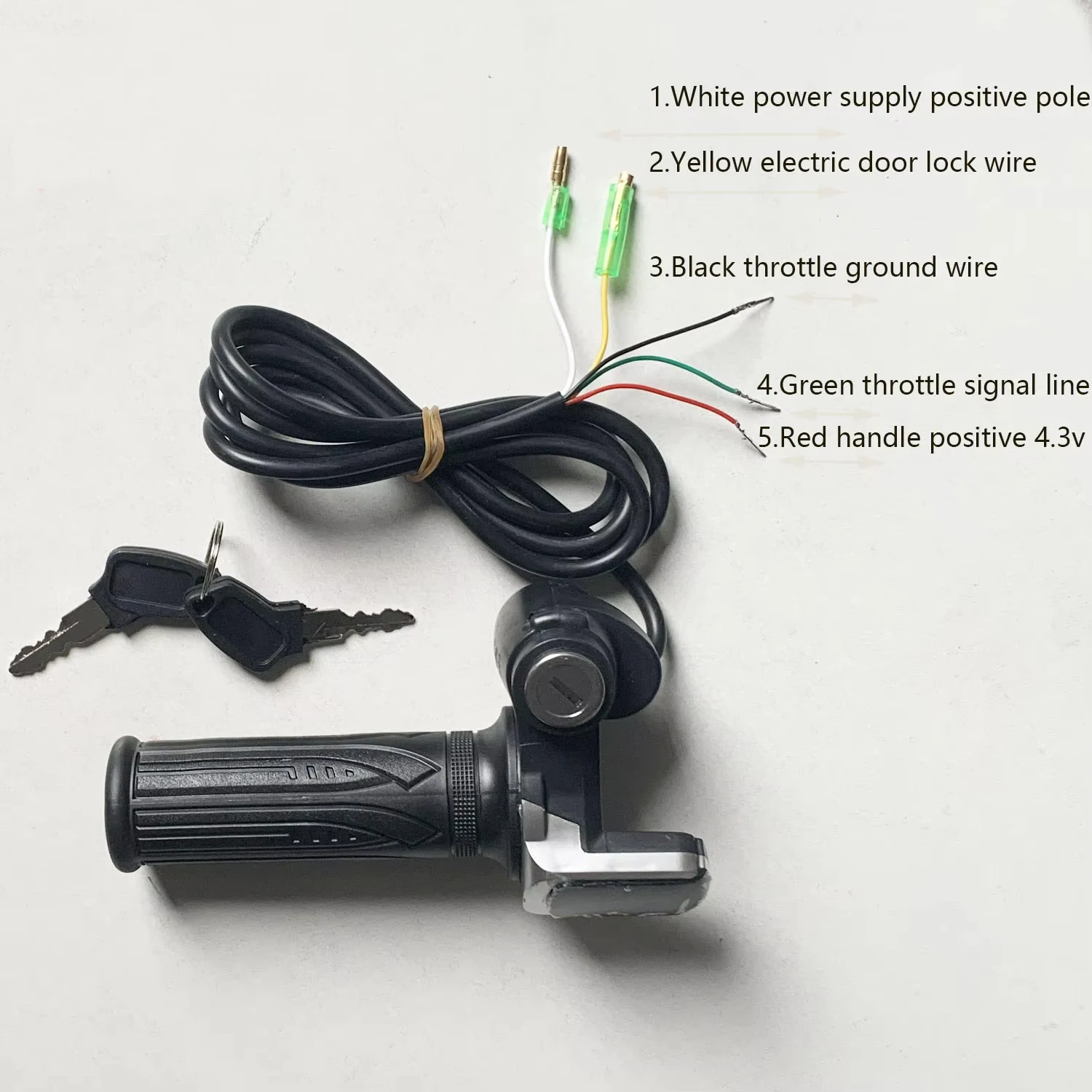

The throttle is divided into 5 wires, namely red, green and black (throttle
wires), yellow (electric door lock output wire), white (power input wire),
corresponding to the throttle wire (red, green and black) on the controller, and the power door lock
wire (white, yellow),
Voltage: 36v/48v/64v optional
Throttle function: power display, LD screen, non-slip grip
Wire length: 1.6 meters
Material: ABS rubber metal

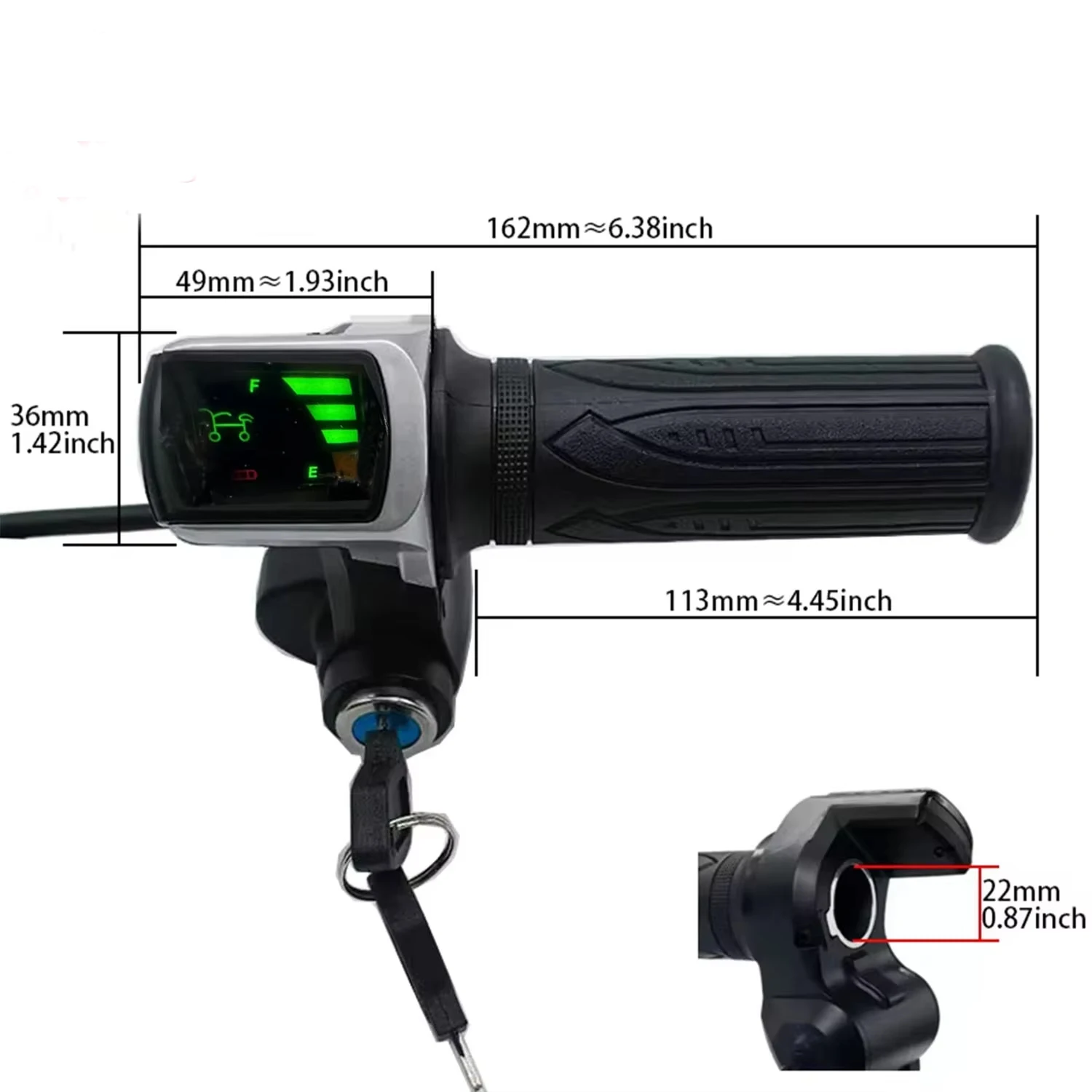

Size: 10.5cm for the secondary handle, 15.5cm for the main handle, inner diameter of the grip
22mm
NO.1
Connect three motor wires.(the motor wires have no positive or negative poles and can be connected arbitrarily).Connect the three wires of the controller to the three wires of the electric vehicle motor,
NO.2
The positive and negative poles of the power supply and the lock wire of the switch Please connect the power cord (thick red line for positive pole, thick black line for negative pole) and the switch lock wire (thin red line) of the controller to the positive and negative poles of the electric vehicle power supply and the switch lock wire respectively.
NO.3
Learning Line Firstly, please insert a pair of white learning wires of the controller together, then plug in the power key and turn on the power to observe whether the motor rotates:1. if the motor rotates forward, it indicates that learning has been completed, please unplug the learning wires,2. if the motor rotates in reverse, unplug the learning wire and reinsert it. Wait for the motor to rotate forward before unplugging the learning wire.
NO.4
Hall line This product has 5 connecting wires and one connector for the Hall wire.
If there is a shaking sensation when connected to Hall, it indicates that this product can start without Hall;If the motor Hall (sensor)is damaged, it is recommended not to connect the Hall.
NO.5
Twist the thread Please connect the handle wire of this controller (red wire is the positive pole, black wire is the negative pole, and green wire is the signal wire) and the handle wire on the electric vehicle accordingly.
After completing the above five steps, the electric vehicle can operate normally.
Please install other required functions yourself.
NO.6
Fine purple high and low level brakes The controller has both a separate yellow line for high-level braking and a black and white line for low-level braking. High level braking and low-eve braking are distinguished by braking voltage. if the braking voltage exceeds 5v high-level braking is used. if the braking voltage is lower than 5v. use low-level braking. Both high and low levels have the effect of braking power failure.
NO.7
Instrument line The instrument cable is a separate thin green wire, suitable for pointer type instruments. if it is a LCD instrument. please choose carefully, as there may be mismatches.
NO.8
Patrol routes Cruise control is divided into automatic cruise control (cruise line insertion is sufficient) and button cruise controller (two buttons come out and are connected to the cruise line)
NO.9
Connected to three speed line The three speed line is blue brown black, with blue and black short circuits indicating high speed brown and black short circuits indicating low speed, and electric vehicles default to medium speed.
NO.10
Connected to anti-theft alarm function The anti-theft function line consists of two sets of wires: the anti-theft power supply and the anti-theft siqnal . Among them, the red and black line of the anti-theft power supply represent the positive ananegative poles of the battery, while the red line of the anti-the fsignal represents the lock wire of the switch, the yellow liner represents the wheel signal wire, and the blue line represents the anti-theft signal wire.
NO.11
Reverse function The reverse function is a closed circuit that can be replaced according to one's own needs. Short the r Windows black and gray lines of the reverse line to reverse
NO.12
LCD instrument
