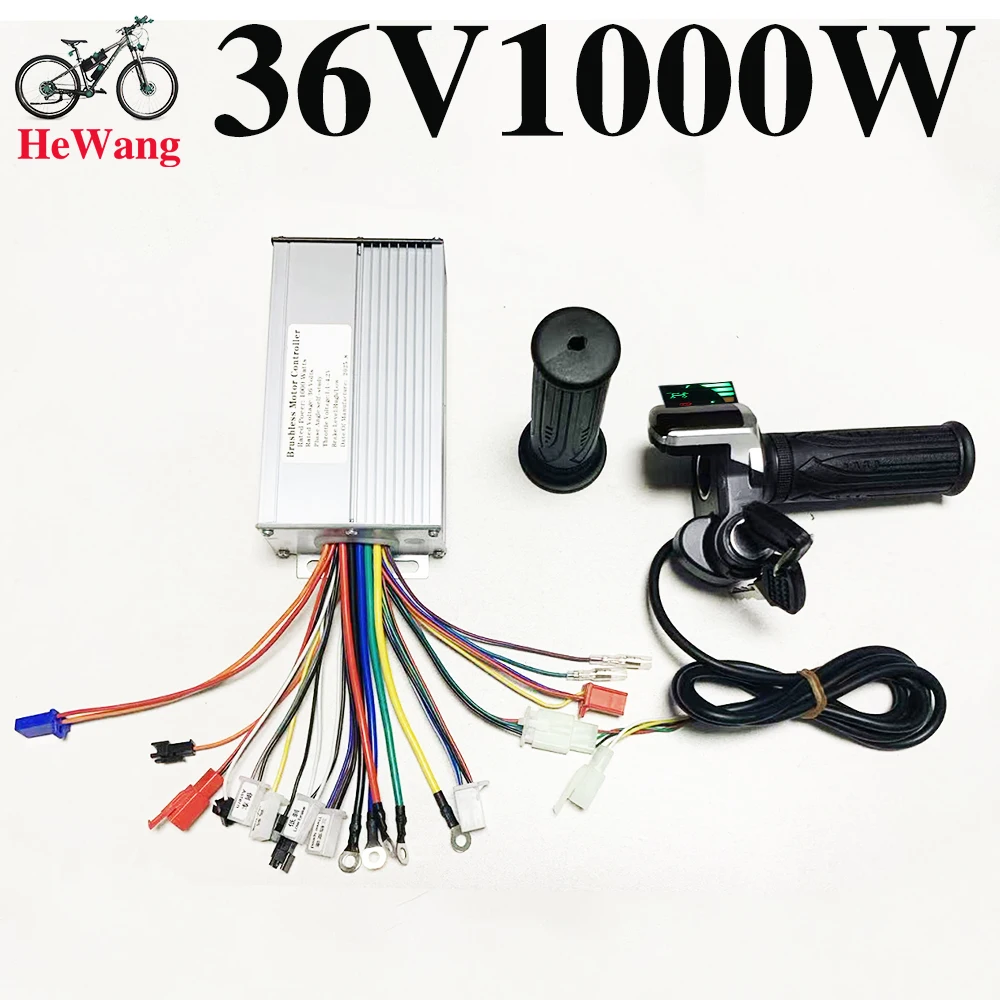

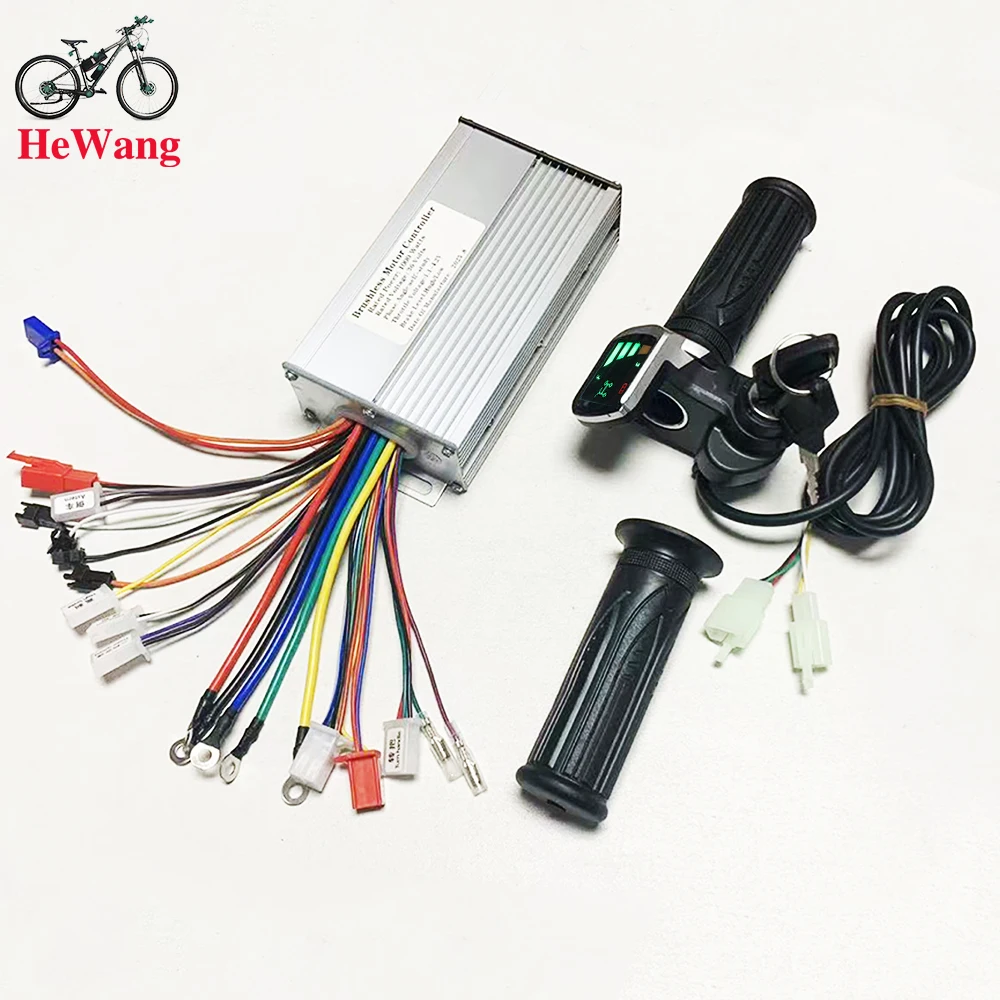

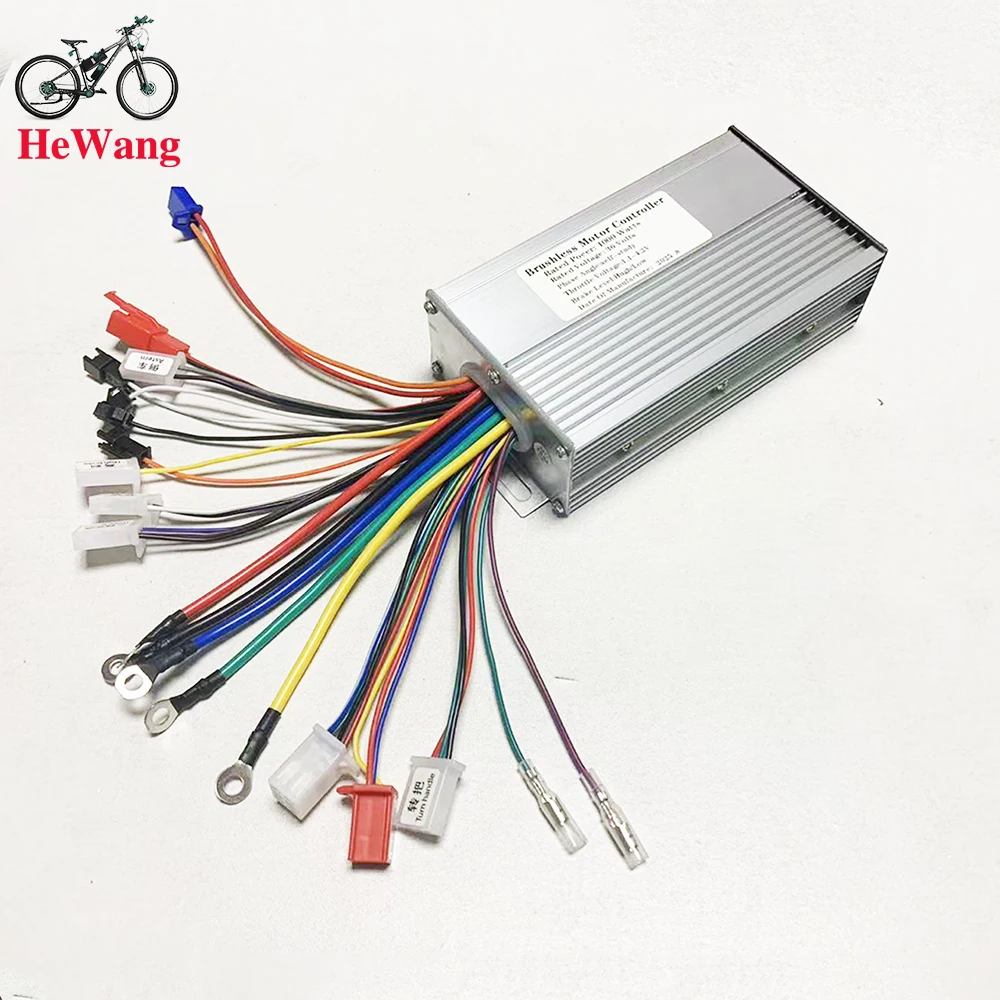

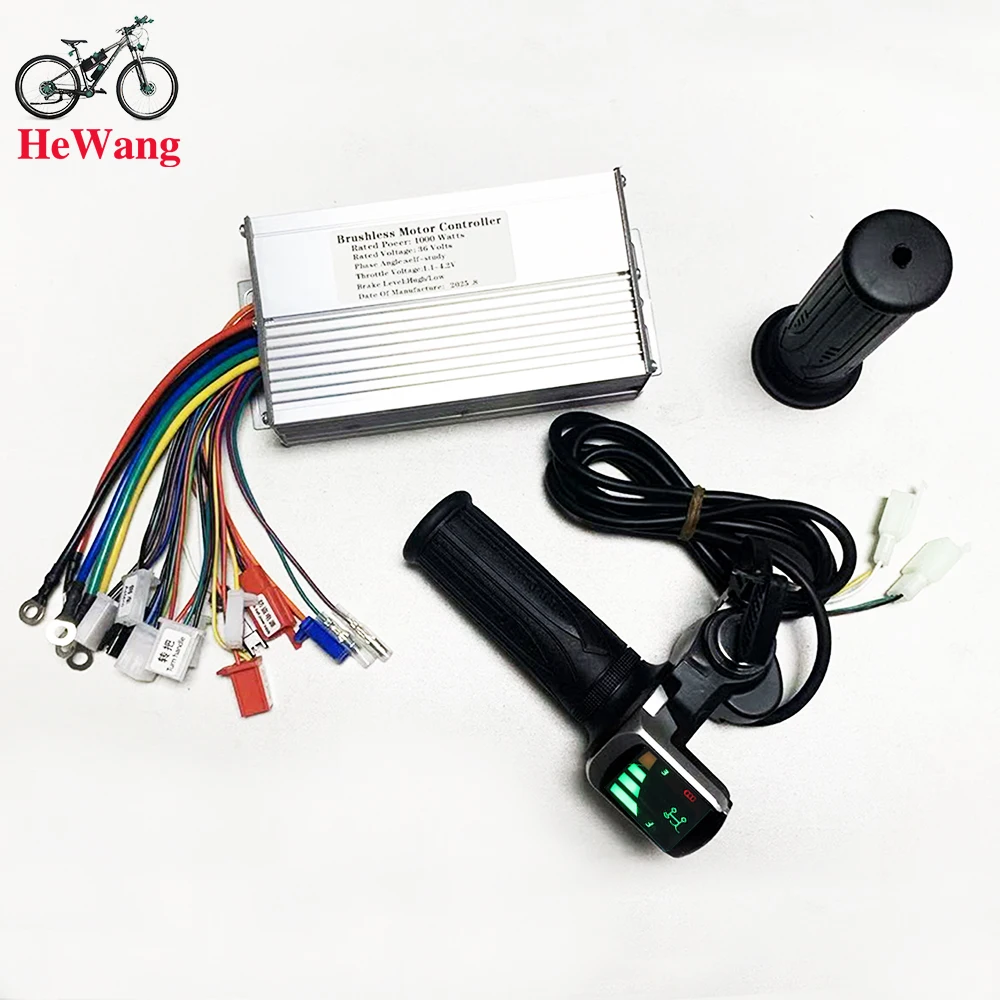

36V 1000W 30A Electric Bicycle Brushless Motor Controller with Lock LED Displa

Product Description

36V 1000W controller can work with hall connect sensor or not connect hall sensor

Rated Voltage: 36V

Low Voltage : 31V/42V/52V±0.5V/

Rated Power: 1000W

Limit Current:30A

1.self-learning

2. cruise line

3. reverse line

4. high brake

5. low brake

6.3-speed (low/middle/high)

7.throttle

8. electric lock

9. hall line

10. LCD instrument line

11. Anti-theft power supply

12. Anti-theft signal

13. battery (red battery+, black battery-)

14.motor

15. pointer meter line

1. connect the motor line (color to color，if motor without hall line, don't need connect hall line）

2. connect the battery line(red:battery + , black:battery-)

3. connect the controller throttle line to throttle, controller electric lock connect to throttle electric lock

（if throttle not have electric lock,the electric lock 2 wires of the controller can be docked together）

4. docking the two self-learning lines, the wheel will forward or reverse.

(1. if wheel forward ,Separate the self-learning line.

2. if wheel reverse, Separate the self-learning line. Docking the self-learning line again，

if wheel forward ,Separate the self-learning line.) Self-learning is to adapt to the supply voltage

5. other functions can be connected as needed.Throttle:

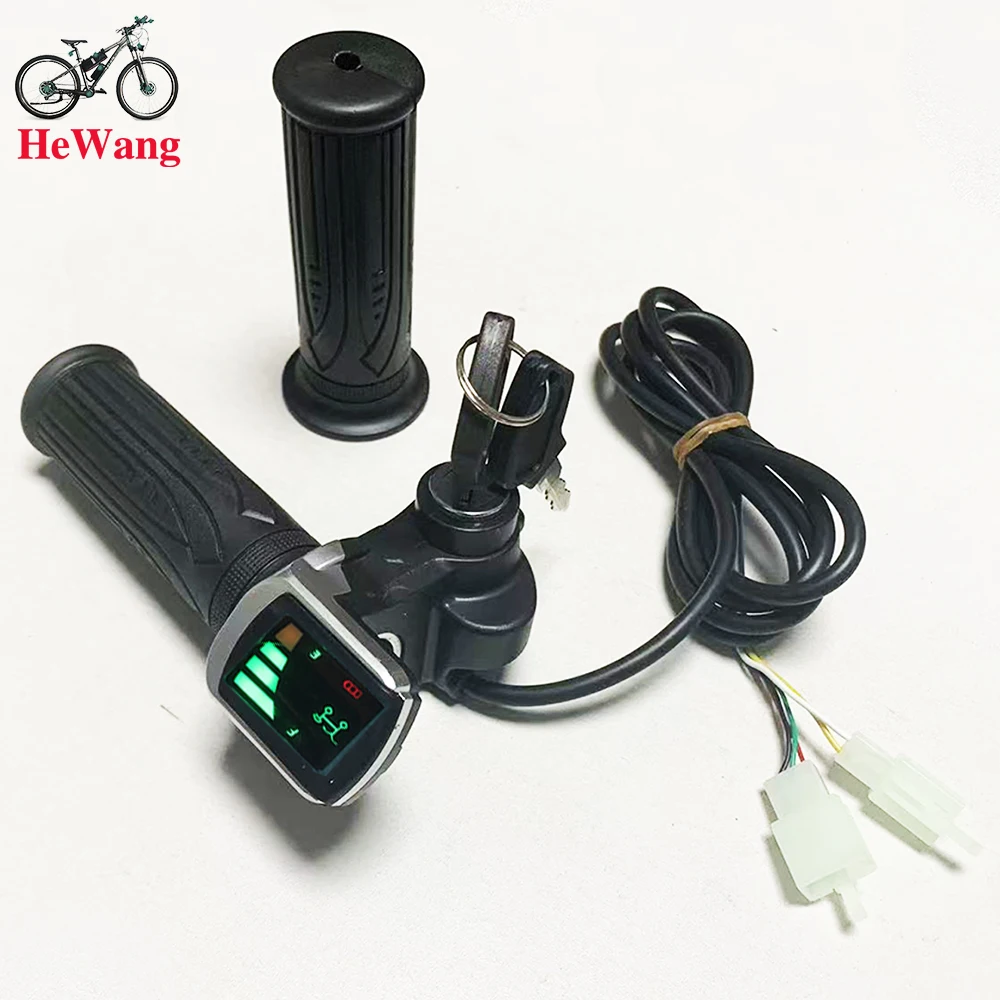

■ Size: (Lx D) 10 cm x 2 cm / 3.

■ Throttle Works Voltage: DC5V

■ Speed Adjusting Signal:0.8V～4.3V

■ Power display Voltage: DC 36V/1000W

■ Power display:

■ Normal: 23V above, 3 Led Green,

■ Half: 23V ~ 20V, Led Yellow,

■ Empty: 20V or less, Led Red

■ Rotation angle: 0 °~ 70 °

■ Working temperature: -20 ℃~ +50 ℃

■ Fits standard 7/8 inches(22.2mm) handle bars

■ Cable length is approximately 59 inches (1.5m)

■ Quantity: 2 pcs (1 Twist throttle grip and 1 normal grip (matching thumb grip) )
