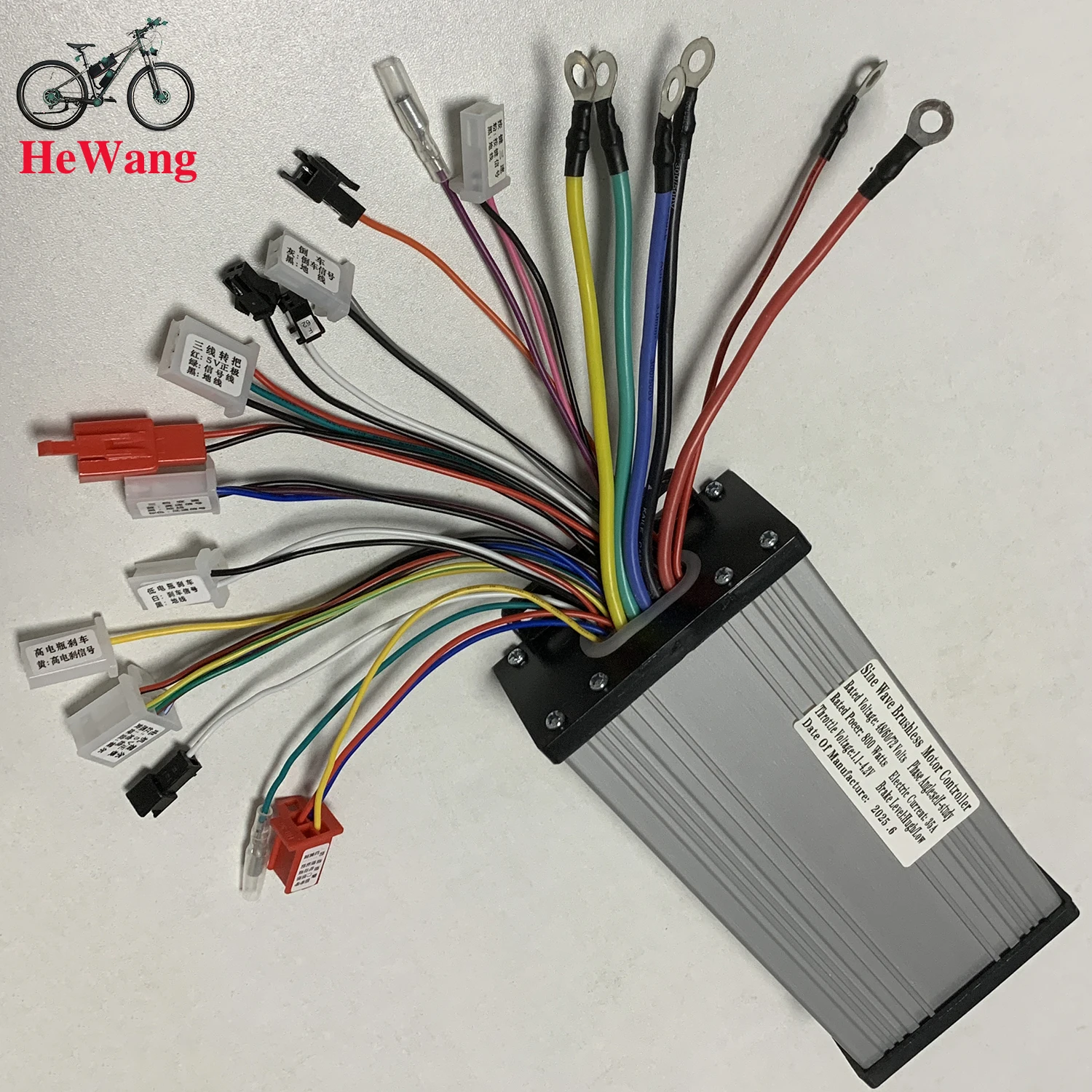

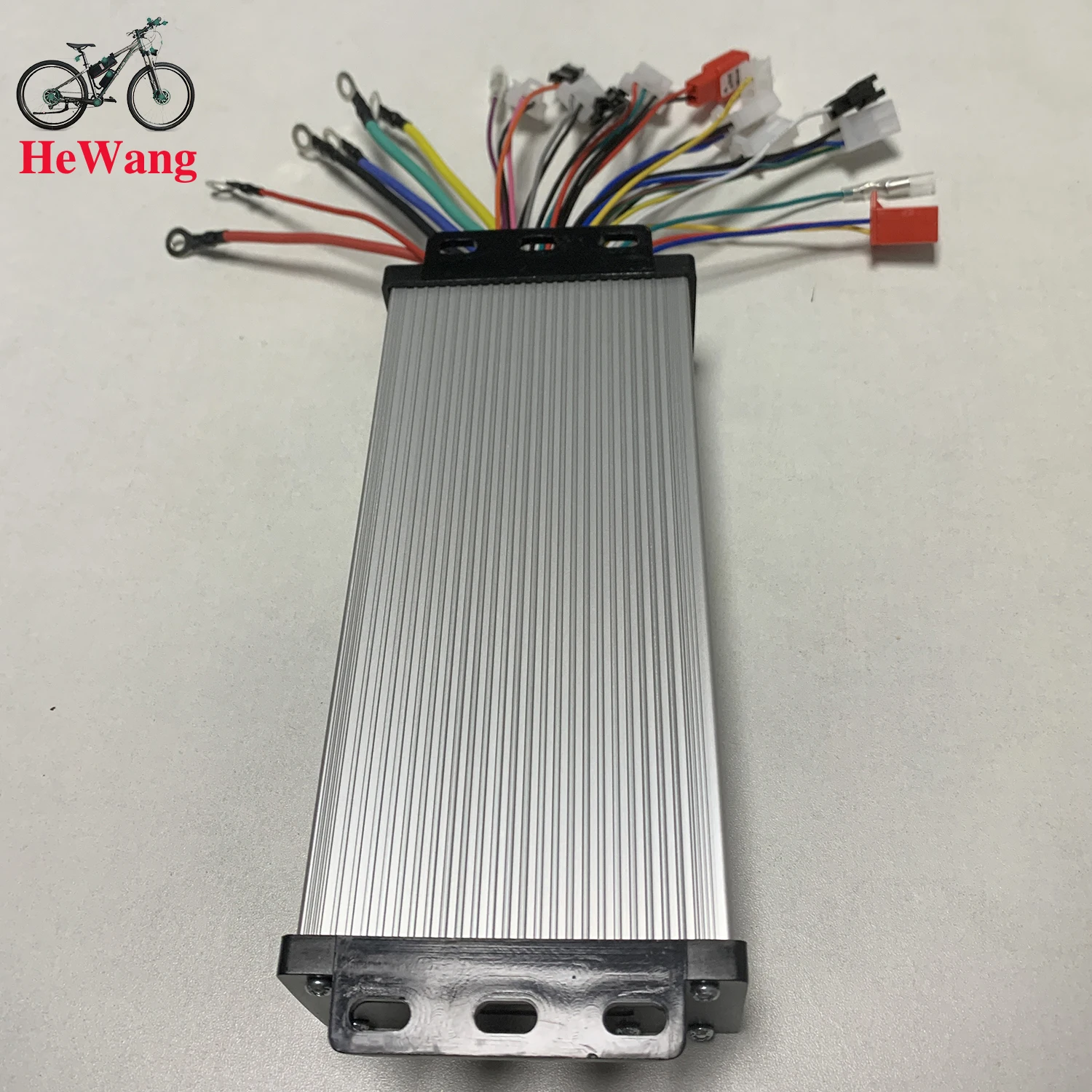

48V 52V 60V 72V 750W 800W E-bike Sine Wave Brushless Controller MAX 35A three-mo

Product Description

Sine wave 800w48v/72v three-mode silent electric bicycle brushless motor controller, suitable for electric bicycles, lithium scooters, skateboards, balance cars, modified cars, electric motorcycles, etc.

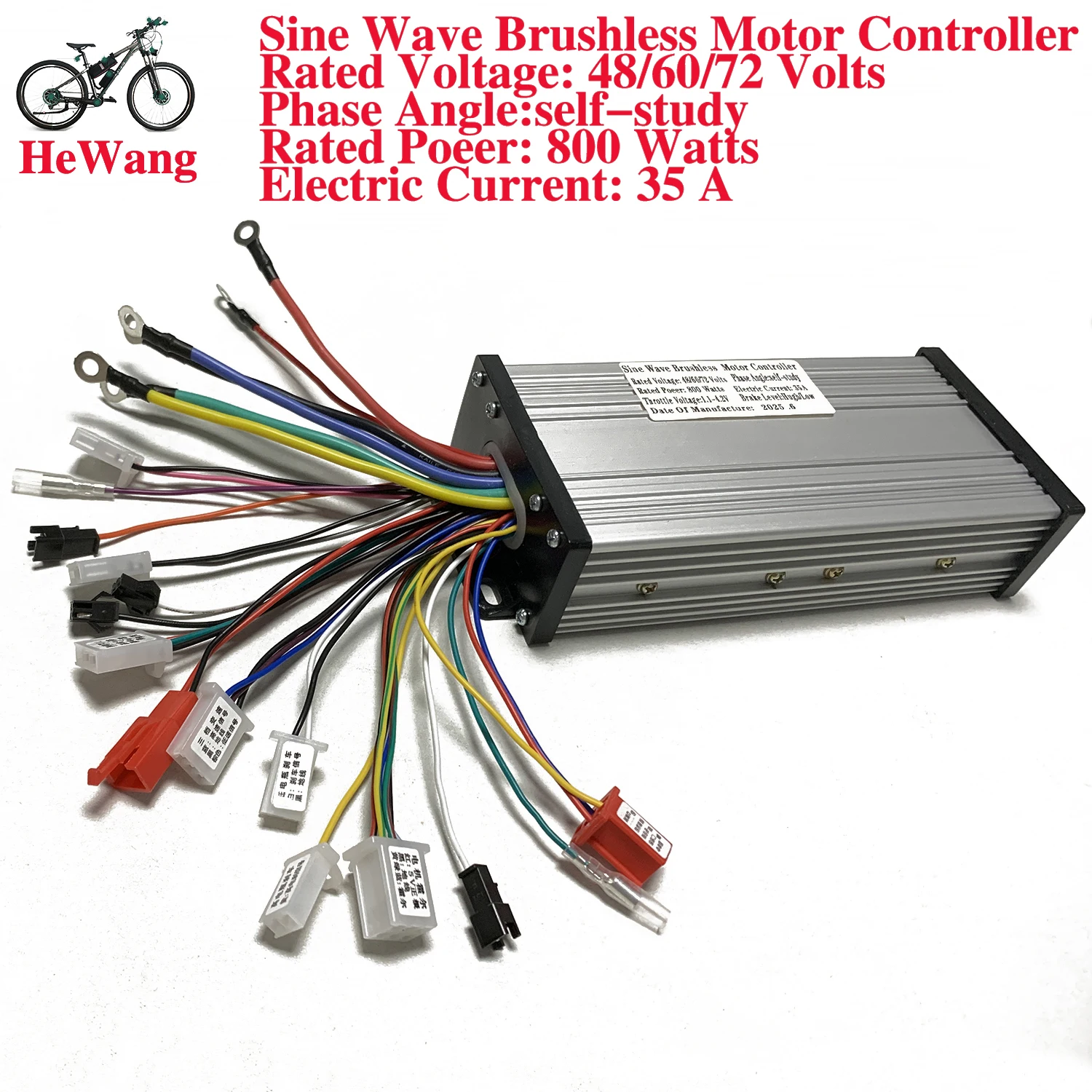

Specifications: 800w48v-72v wide voltage

Material: aluminum alloy

Working voltage: 48v-72v peak

Undervoltage: 42v

Rated power: 800w

Current: 35A

Shell size: 18.5*8.7*4CM

MOS tube: HY3410

Function: three-speed shift, three-speed inching, reverse, anti-theft alarm, smart cruise, pointer instrument, LCD instrument, high battery brake, low battery brake, no Hall start, learning line

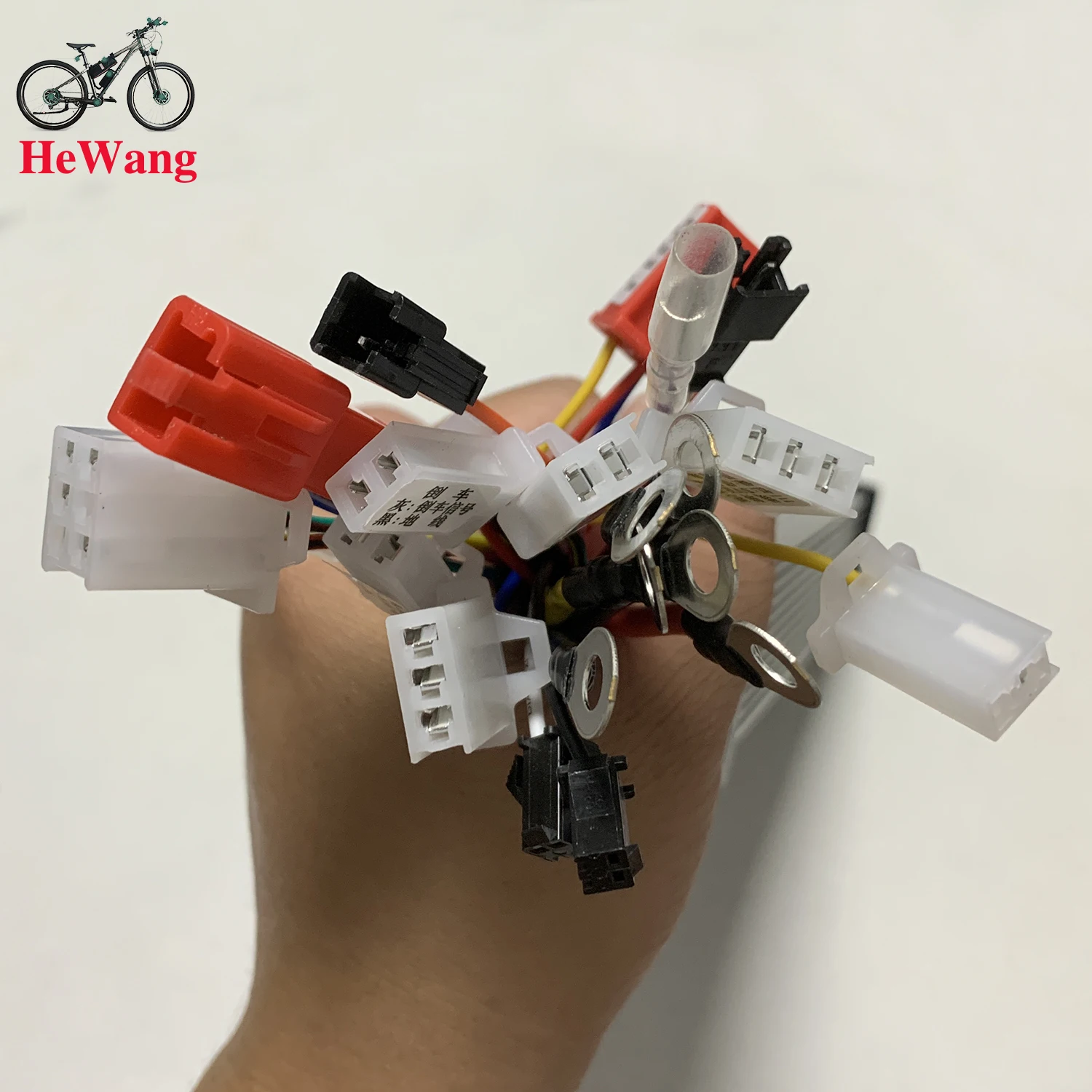

1. Electric door lock key line：thin red line

2. Power line positive line：thick red line

3. Power line negative line：thick black line

4. Reverse line：倒车.

灰色：倒车信号, 黑色：地线

Reverse.

Gray: Reverse signal, Black: Ground wire

5. LCD instrument line：thin purple line

6. Three-speed transmission line: 三档变速，

蓝色：高速信号，黑色：地线，

棕色低速信号

Three-speed gear shift, blue: high speed signal, black: ground wire,

brown: low speed signal

7. Cruise line：thin line orange

Cruise line：thin lineblack

8.Anti-theft power cord：防盗电源 红：正极 黑：地线

Anti-theft power supply Red: positive pole Black: ground wire

9. Three-speed line of inching button： 按键三速 ：

粉：按键信号，黑：接地线.

Three-speed key:

pink: key signal, black: ground wire.

10. Throttle line：三线转把：

红：5V正极，绿：信号线，黑：地线

Three-wire handle:

red: 5V positive pole, green: signal line,

black: ground line

11. Motor Hall line：电机霍尔：

红：5V正极，黑：地线，

黄绿蓝：霍尔

Motor Hall:

Red: 5V positive pole, black: ground wire,

yellow, green and blue: Hall

12. Anti-theft alarm line：防盗报警线：

红：接电门锁

黄：轮动信号

蓝：防盗信号

Anti-theft alarm line:

Red: connected to the electric door lock

Yellow: wheel signal

Blue: anti-theft signa

13. High battery brake line：高电瓶刹车

黄：高电刹信号

High battery brake

Yellow: High battery brake signal

14. Low battery brake line：低电瓶刹车

白：刹车信号

黑：地线

Low battery brake

White: brake signal

Black: ground wire

15. Learning line：white thin line

16. Learning line：white thin line

17. Hall pointer instrument line：green signal line

18. Motor line

19. Motor line

20. Motor line
