E-bike LCD S866 LCD color Display 24V/36V/48V , 5+2Pin , Bracket Diameter: 22.2mm , for Communication Protocol: UART E-Scooter
E-bike LCD S866 LCD color Display 24V/36V/48V , 5+2Pin , Bracket Diameter: 22.2mm , for Communication Protocol: UART E-ScooterModel LCD-S866
Wire Specifications: 5-pin + 2-pinVoltage: 24V-48V-60Features: LED-lit cableProduct Name: LCD Color ScreenColor: BlackConnector: SM StandardOperating Temperature: -20°C-60°CCompatible with Type II protocol controllersLCD Display 866User Manual V.2022
Front View Side View2. Operating Voltage and Connectionsa. Operating Voltage: DC24V / 36V / 48V (set by the display menu). Otheroperating voltage can be customized.b. Connectors:Standard Connector Type
Controller Connector Display Output Connector Coupling Input ConnectorStandard Connector Arrangement Sequence No. Wire Colour Functions1 Red（VCC） Display Power Cable2 Blue（K） Controller Power On/Off Cable3 Black（GND） Display Ground Cable4 Green（RX） Display Data Receiving Wire5 Yellow（TX） Display Data Sending WireExtended FunctionsLight: Brown (DD): The positive electrode of the lightWhite (GND): The negative electrode of the light.The wire color definitions of the PWM Voltage Motor Power Controller and theindependent speed sensor will be defined otherwise.*Note: Some products use waterproof connectors, whose internal wirearrangements cannot be identified from the exterior.3. Functionsa. DisplaySpeed Display PAS Level Display Battery Level DisplayError Indication Total Mileage Single MileageLight Indication Single Trip Timeb. Control and SettingsPower Switch Front Light Control 6km/h Cruise ControlReal-time Cruise Control Wheel Diameter Setting Top Speed SettingSleep Interval Setting Backlight Brightness Setting Voltage Level Settingc. Communications Protocol: UARTDisplay Interface(Displayed for 1sec at start)
Display Interface3.1 Light
3.2 Battery·
3.3 Speed Display
Measuring Unit: MPH or KM/HThe display will calculate the actual travelling speed based on the wheeldiameter and signal data (number of magnetic steel is needed for Hall motors).3.4 Multi-Function DisplayTotal Mileage: ODOSingle Mileage: TRIPError Code: ERRORPower: WATTStart Time: TIBattery Voltage: VOL
3.5 PAS Level
3.6 Cruise Indicator

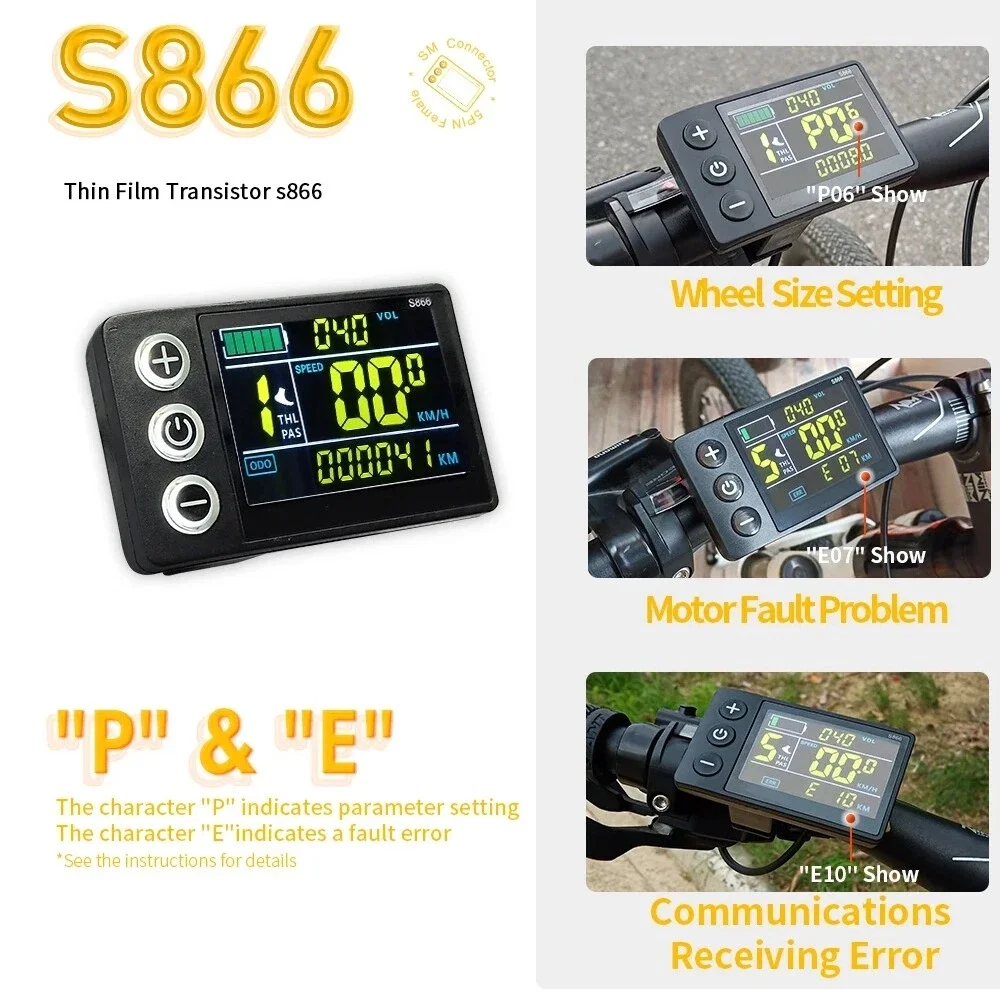

3.7 Error Code and IndicationsError Code(decimal)Indications Note0 Normal1 Reserved2 Brake3 PAS Sensor Failure (riding mark) Not Realized4 6km/h Cruise5 Real-Time Cruise6 Low Battery7 Motor Failure8 Throttle Failure9 Controller Failure10 Communications Receiving Failure11 Communications Sending Failure12 BMS Communications Failure13 Light Failure3.8 SettingsP01: Backlight Brightness (1: darkest; 3: brightest)P02: Mileage Unit (0: KM; 1: MILE)P03: Voltage Class 24V / 36V / 48VP04: Sleep Interval(0: never, other value means display sleep interval) Unit: minuteP05: Power Assist Gear0/3 Gear Mode: Gear 1: 2V Gear 2: 3V Gear 3: 4V1/5 Gear Mode: Gear 1: 2V Gear 2: 2.5V Gear 3: 4V Gear 4: 3.5V Gear 5:4VP06: Wheel Diameter Unit: inch Precision: 0.1P07: Magnet Steel Number (for Speed Test) Range: 1-100P08: Speed LimitRange: 0-50km/h, parameter 50 indicates no speed limit.1. Non-communications status (panel-controlled)When the current speed exceeds the speed limit, the PWM output will be shutdown; when the current speed falls to lower than the speed limit, the PWMoutput will be activated and the driving speed will be set as the current speed ±1km/h (only applies to assist power speed, not applicable to the handlebarspeed).2. Communications status (controller-controlled)The driving speed will be kept constant as the limited value.Error Value: ±1km/h (applicable to both the assist power/handlebar speed)Note: The above-mentioned values are measured by metric unit (kilometers).When the measuring unit is switched to imperial unit (mile), the speed value displayed on the panel will be automatically switched to corresponding imperialunit, however the speed limit value in the imperial unit interface won’t changeaccordingly.P09: Direct Start / Kick-to-Start Setting0: Direct Start1: Kick-to-StartP10: Drive Mode Setting0: Power Assist – The specific gear of the assist drive decides the assistpower value. In this status the handlebar does not work.1: Electric Drive – The vehicle is driven by the handlebar. In this status thepower gear does not work.2: Power Assist + Electric Drive – Electric drive does not work in zero-startstatus.P11: Power Assist Sensitivity Range: 1-24P12: Power Assist Starting Intensity Range: 0-5P13: Power Magnet Steel Number 5 / 8 / 12pcsP14: Current Limit Value: 12A by default; Range: 1-20AP15: UnspecifiedP16: ODO Zero-OutLong press the up key for 5 seconds and ODO value will be erased.Note: Due to product upgrade, the product you purchased may beslightly different from the descriptions in this user manual, and thiswon’t affect normal usage.
Instrument Line SequenceRed Line:Display Power Cable
Blue Line:Controller Power On/Off Cable
Black Line:Display Ground Cable
Green Line:Display Data Receiving Wire
Yellow Line:Display Data Sending Wire
White Line: GND
Brown Line:DD

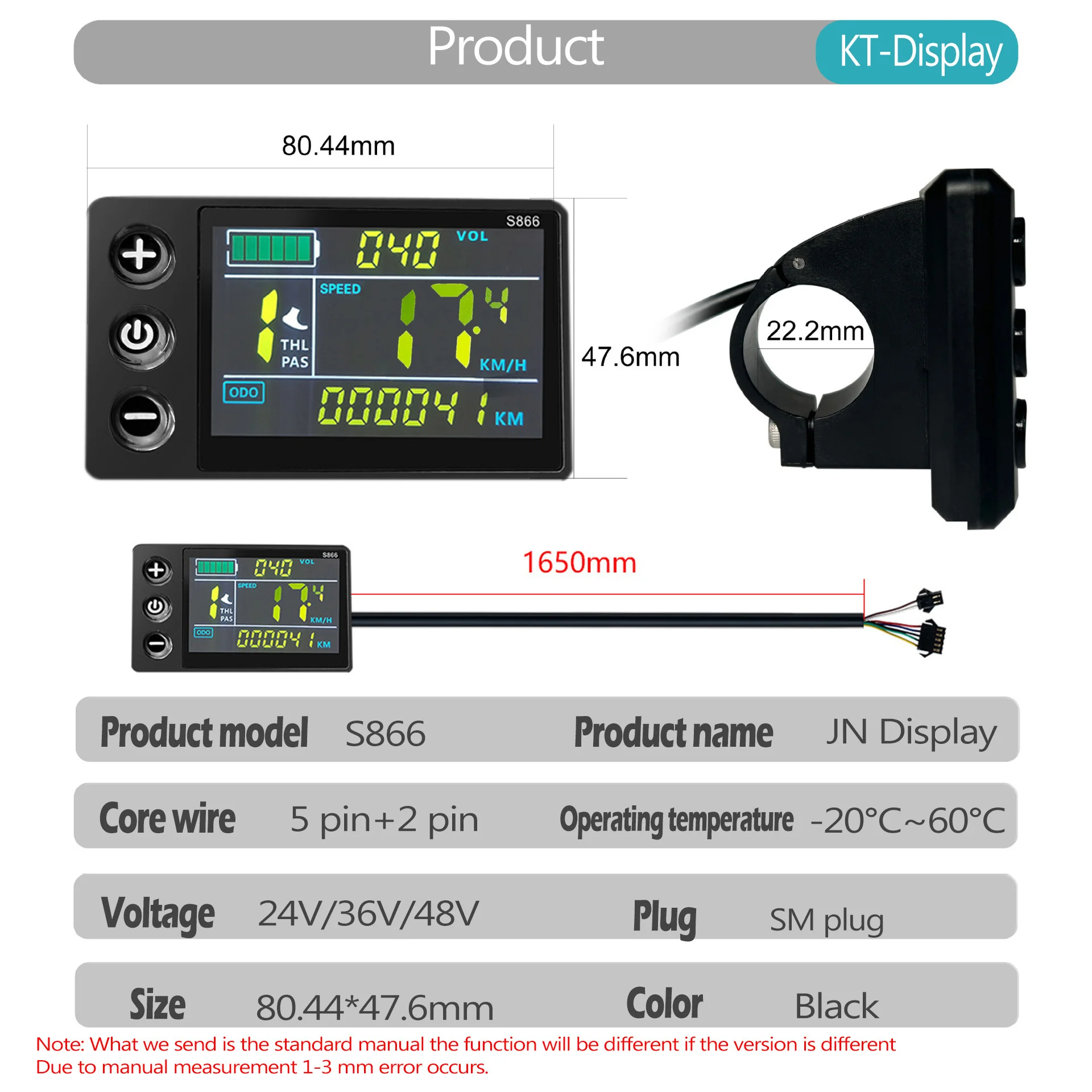

Product model
S866
Core wire
5 pin+2 pin
Voltage
24V/36V/48V
Size
80.44*47.6mm
