Product Description

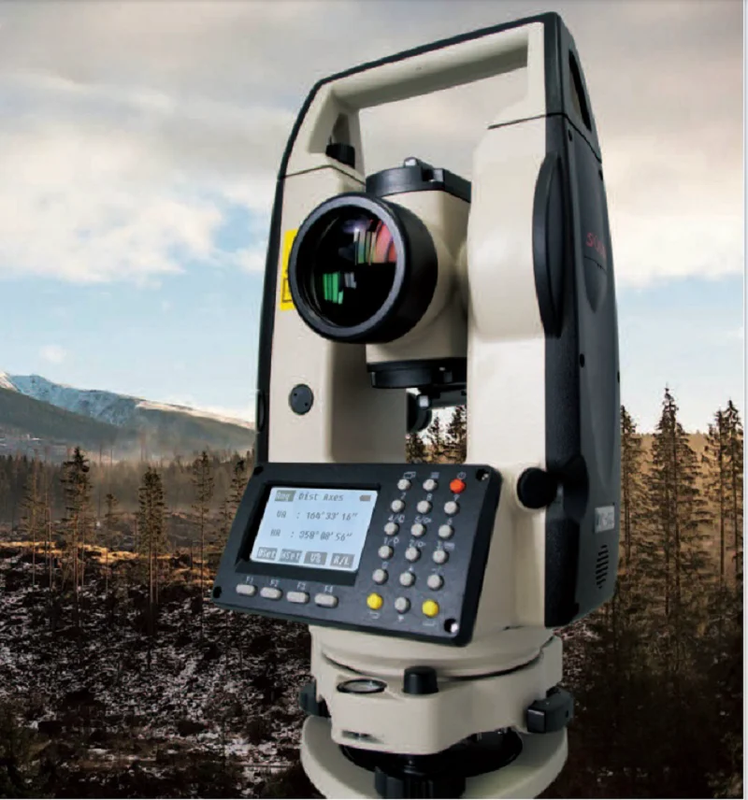

NT-023 Multi-functional Double Laser Red beam surveying instrument Electronic Theodolite
NT-023 Multi-functional Double Laser Red beam surveying instrument Electronic TheodoliteProduct introduction:
1. The axis stakeout function, the new working mode, makes stakeout faster and more convenient;

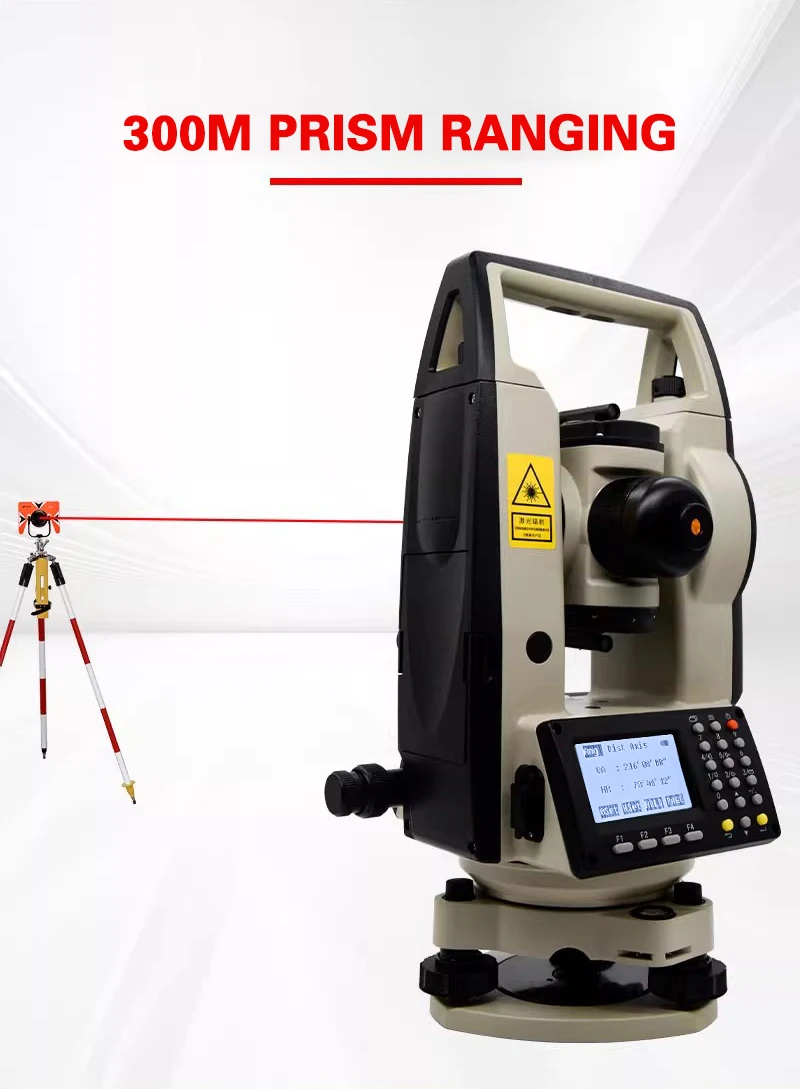

2, ranging up to 300m;
3. Large-capacity lithium battery, continuous measurement time up to 8 hours;
4. New design, the ranging component is built into the theodolite telescope tube;
5. Standard laser point alignment;
6. With laser indication function;
7. High-definition image quality;
8. Newly designed program operation.
feature of product:

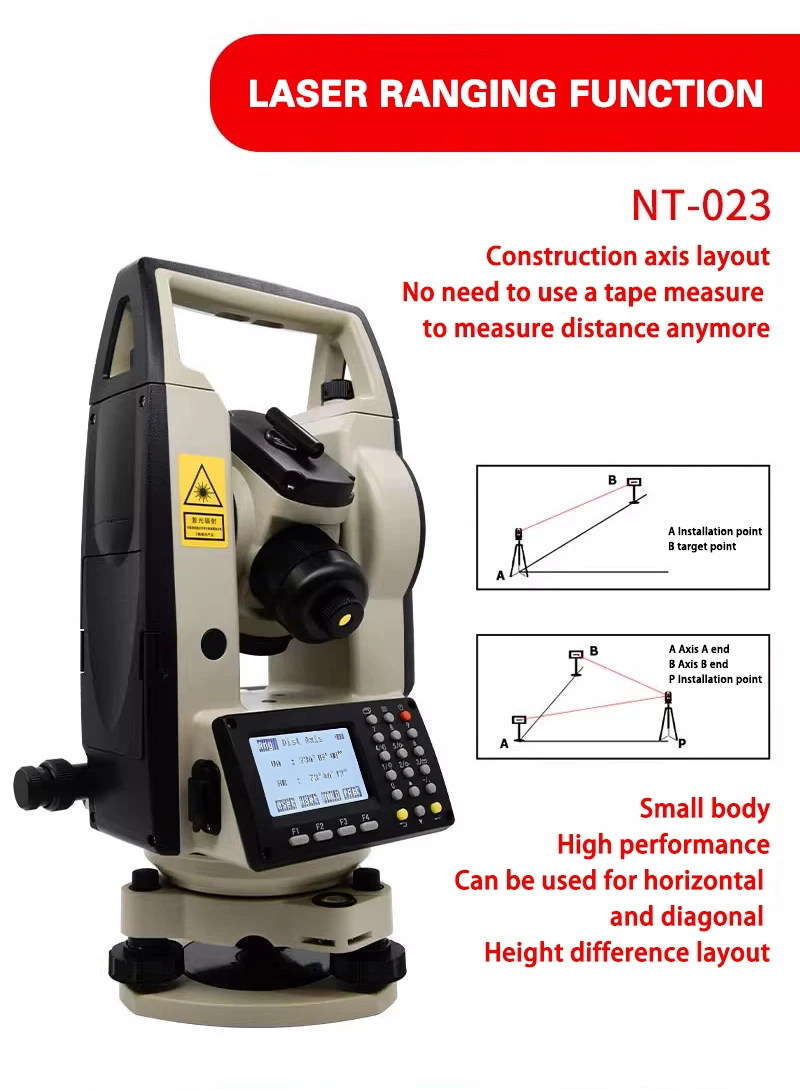

1: The building axis is the basis for the layout of the building site. The construction personnel can select the relative axis to set out according to the location of the construction site. During the stakeout process, the instrument can quickly prompt the construction personnel to move the prism to accurately find the stakeout point.
2: Laser collimation independent laser light path, higher stability. Concentrated light. No stray light. Higher precision.

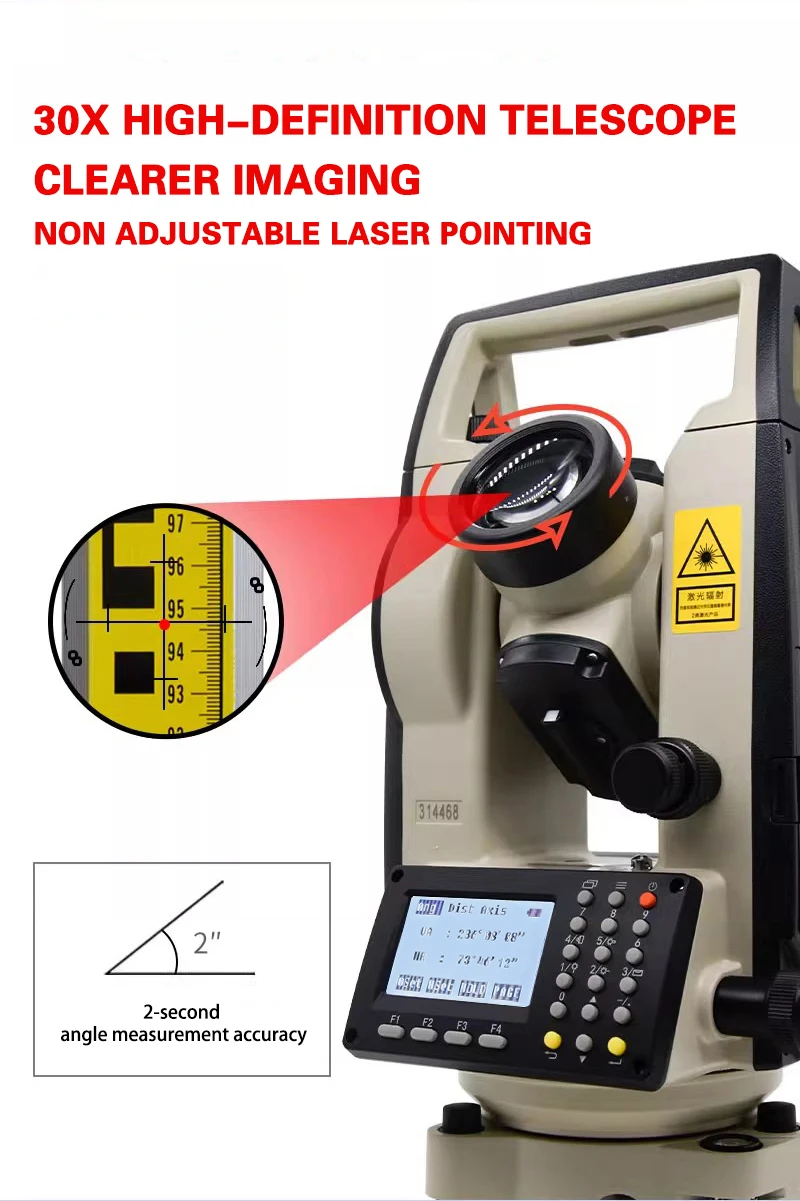

3: The reticle and the laser point are coincident, and the laser point and the target point are confocal and visible
Model | NT-023 |
Angle Measurement | |
Accuracy | 2" |
Method | Absolute reading |
Min. reading | 1"/5" (Selectable) |
Diameter circle | 79mm |
Horizontal angle | Dual |
Vertical angle | Dual |
Telescope | |
Image | Erect |
Magnification | 30X |
Effective aperture | 45mm |
Field of view | 1°30' |
Resolving power | 3" |
Minimum focus | 1.4 |
Stadia ratio | 100 |
Stadia constant | 0 |
Tube length | 157mm |
Laser Pointer | |
Laser range | be seen up to 100 meters away |
Display | |
(LCD)Display type | 2 sides |
Memory | |
Internal memory | Space for 256 pairs of H. & V. angle |
Auto Vertical Compensator | |
System | Liquid-electric detection |
Working range | ±3' |
Accuracy | 1" |
Optical Plummet Telescope | |
Image | Erect |
Magnification | 3X |
Field of view | 5° |
Focusing | 0.5m ~ ∞ |
Level Sensitivity | |
Plate level | 30"/2mm |
Circular level | 10'/2mm |
Physical Characteristics | |
Operating temperature | -20℃~+45℃ |
Internal power supply | Rechargeable Ni-H battery / AA battery |
Voltage | 6 VDC |
Operating time | 10 hours |
Dimension | L145mm * H318mm * W179mm |
Weight | 5.2kg |
