Product Description

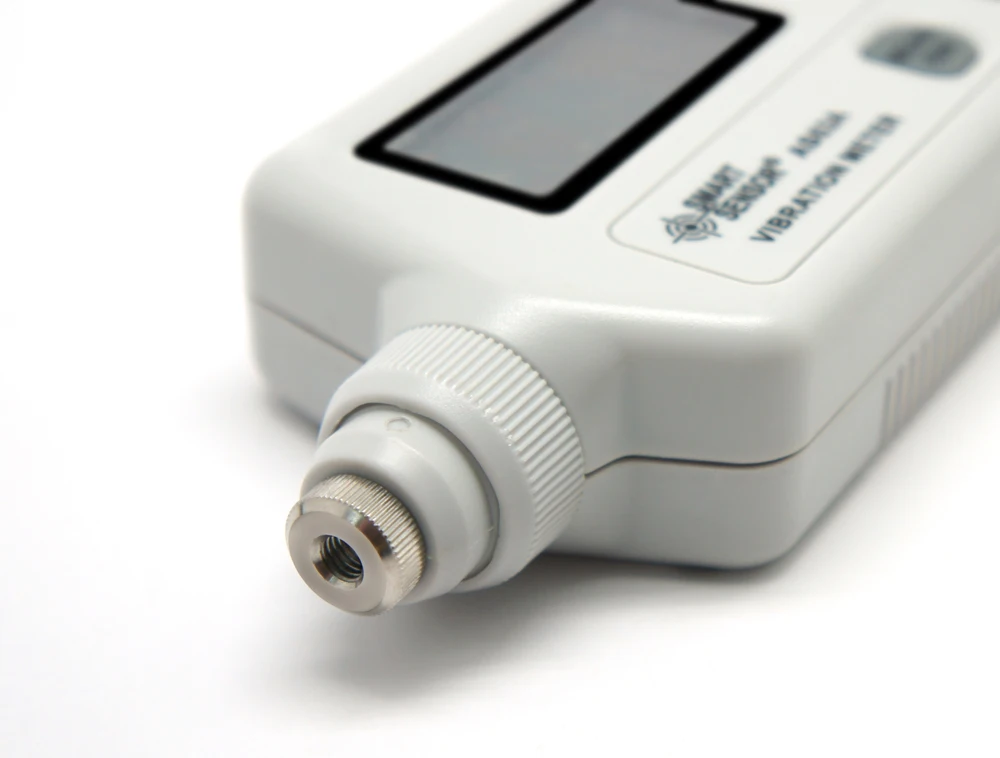

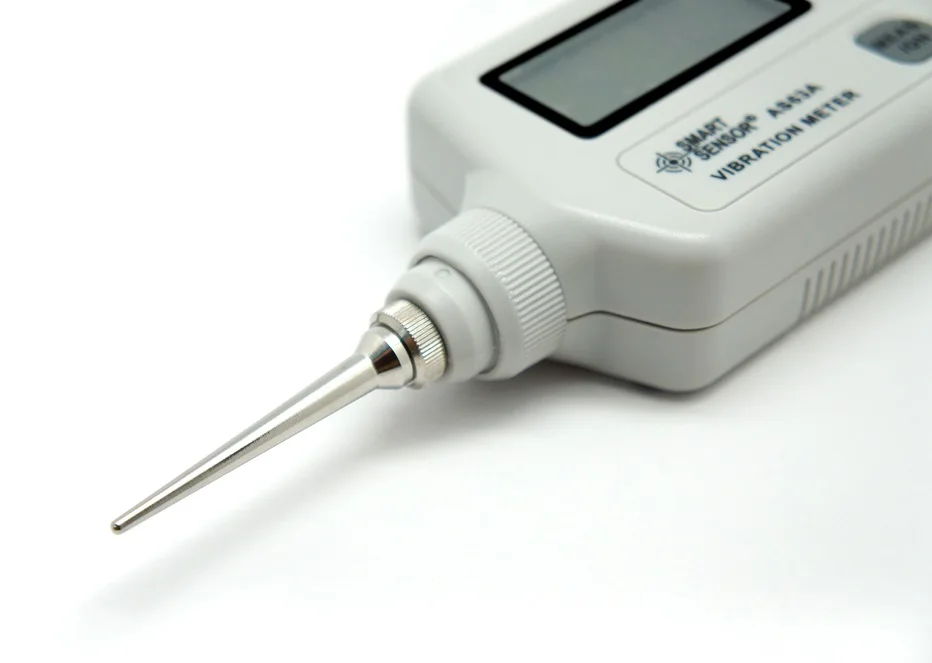

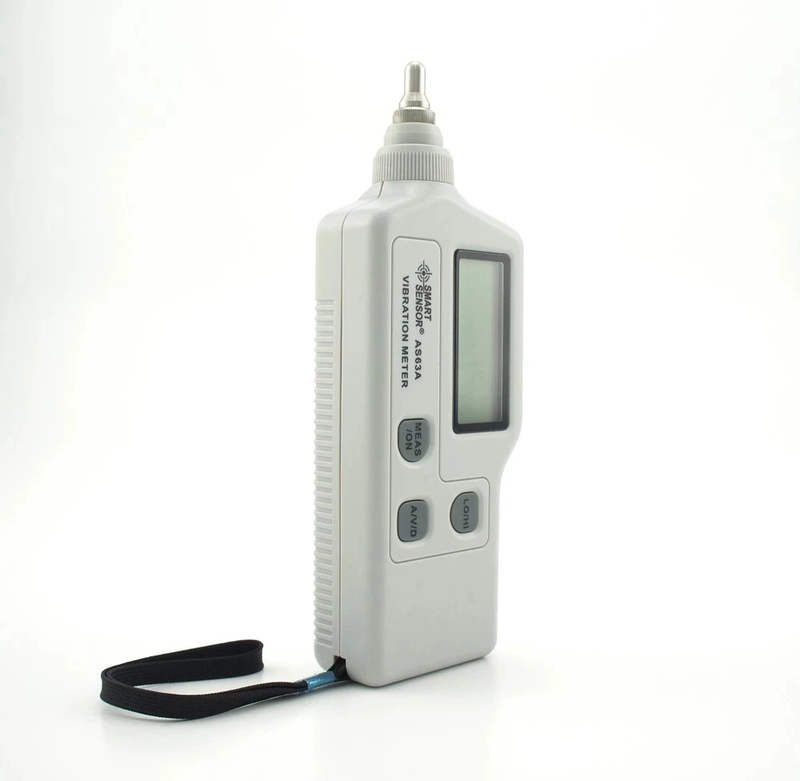

SmartSensor Portable High Precision Digital Vibration Meter AS63A Pen Handheld Integrated Vibration Meter with LCD
SmartSensor Portable High Precision Digital Vibration Meter AS63A Pen Handheld Integrated Vibration Meter with LCDVibration meter(also called vibration severity) uses Piezoelectric Acceleration Transducer transfer the vibration signal in to electrical signal, analyze the input signals, and show the Acceleration, speed, shift of the vibration. It is widely used in the lines of Power, petrochemical, machinery manufacturing, metallurgy, vehicles, etc.
| Technical parameter | Technical specification |
| Vibration pickup | Piezoelectric ceramic accelerometer (shear-type) |
| Measurement range of acceleration | 0.1~199.9m/s2 peak |
| Measurement range of velocity | 0.1~199.9mm/s rms |
| Measurement range of displacement | 0.001~1.999mm p-p (Velocity and displacement range is limited by acceleration199.9m/s2) |
| Measurement accuracy | ±10%+2digits |
| Measurement frequency range of acceleration | 10Hz~1KHz (LO) 1KHz~15KHz (HI) |
| Measurement frequency range of velocity | 10Hz~1KHz (LO) |
| Measurement frequency range of displacement | 10Hz~1KHz (LO) |
| Displays update cycle | 1 seconds |
| LCD display | 3 1/2 digits display |
| Single output | AC output 2 V peak (display full scale)Load impedance 10KΩor more earphones can be connected |
| Power supply | 9V battery (not include) |
| Static current | ≤20μA |
| Operating current | ≤25mA |
| Auto power-off function | Turns off automatically after 60 seconds |
| LCD backlight function | 7 seconds |
| Operating temperature range | 0~40℃ |
| Operating humidity range | 30~90%RH |
| Low battery indication | 6.9V±0.2V |
| Product Dimensions | 67x30x183mm |
| Product Weight | 147g (not including battery) |
| Packing Contents | 1pc Vibration meter 1pc English user's manual 1pc Long probe 1pc Aluminum packing b |
