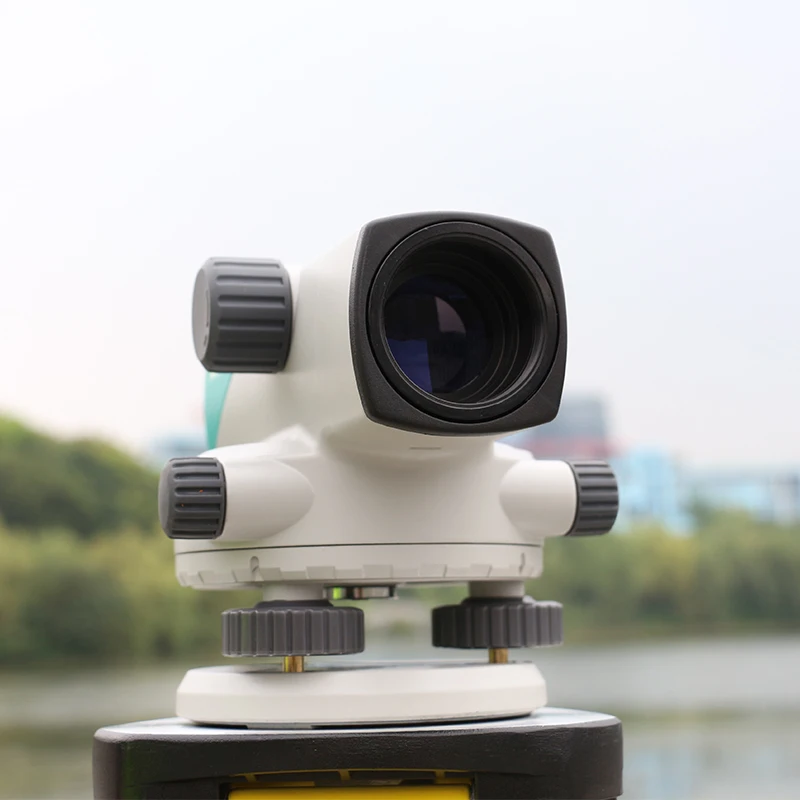

High precision B40 24X Optical measuring Instruments Self-leveling Auto Level
High precision B40 24X Optical measuring Instruments Self-leveling Auto LevelProduct Description
Specification| Model | B40 | B30 | B20 |
| Telescope | |||
| Length | 215mm(8.46 inch) | ||
| Objective aperture | 32mm | 36mm | 42mm |
| Magnification | 24X | 28X | 32X |
| Image | Erect | ||
| Resolving power | 4" | 3.5" | 3.0" |
| Field of view(at 100m) | 1° 25′ (2.5m) | 1° 20′ (2.3m) | |
| Minimum focussing distance | 0.2m (7.9in.) from end of telescope | ||
| 0.3m (1ft.) from instrument cener. | |||
| Reticle pattern | Cross hairs | wedge | |
| Stadia ratio | 100 | ||
| Stadia constant | 0 | ||
| sighting aid | Gun sight | Peep sight | |
| Focusing Knob | 1-speed | 2-speed | |
| Lense hood | - | Retractable | |
| Accuracy(standard deviation for 1km double run leveling) | |||
| Without micrometer | 2.0mm | 1.5mm | 0.7mm |
| (0.08in.) | (0.06in.) | (0.03in.) | |
| With micrometer | 0.5mm | ||
| (0.02in.) | |||
| Compensator | |||
| Type | pendulum compensator with magnetic damping system | ||
| Working range | ± 15′ | ||
| Setting accuracy | 0.5" | 0.3" | |
| Horizontal Circle | |||
| Diameter | 103mm (4.1in.) | ||
| Graduation | 1°/1gon | ||
| General | |||
| Sensitivity of circular level | 10′/2mm | ||
| Mirror for circular level | Plane mirror | pentaprism | |
| Horizontal motion drive | Clampless, endless, double-sided knobs | ||
| Water resistance | IPX6(IEC60529) | ||
| Operating temperature | -20-+50°C (-4 to +122°F) | ||
| Size | 122mm× 215mm× 135mm | 130mm× 215mm× 140mm | |
| Weight | 1.7kg (3.7 lb.) |
About Prime Living
Prime Living is a Canadian online store offering a carefully selected range of quality products for home, automotive, tools, outdoor living, electronics and more.
We are committed to fast order processing, secure packaging and reliable tracked shipping to provide an excellent shopping experience.
Shipping policy
We carefully handle each order to ensure your package arrives quickly and safely. Please note that factors such as weather, postal traffic, or carrier performance may occasionally cause delays beyond our control.
We provide free shipping and dispatch all orders within 2 business days of payment, often sooner. All shipments are sent via international express air shipping, with a tracking number provided so you can follow your order every step of the way.
. Please provide a physical address, as we do not ship to P.O. Boxes.
Returns
Your satisfaction is important to us. Hexlight offers a 14-day Free return policy: if you are not fully satisfied with your purchase, you may request either a full refund or an exchange. All return shipping costs are fully covered by us.
Condition
Brand New
Shipping
This item is shipped directly from our supplier in China with tracking.
