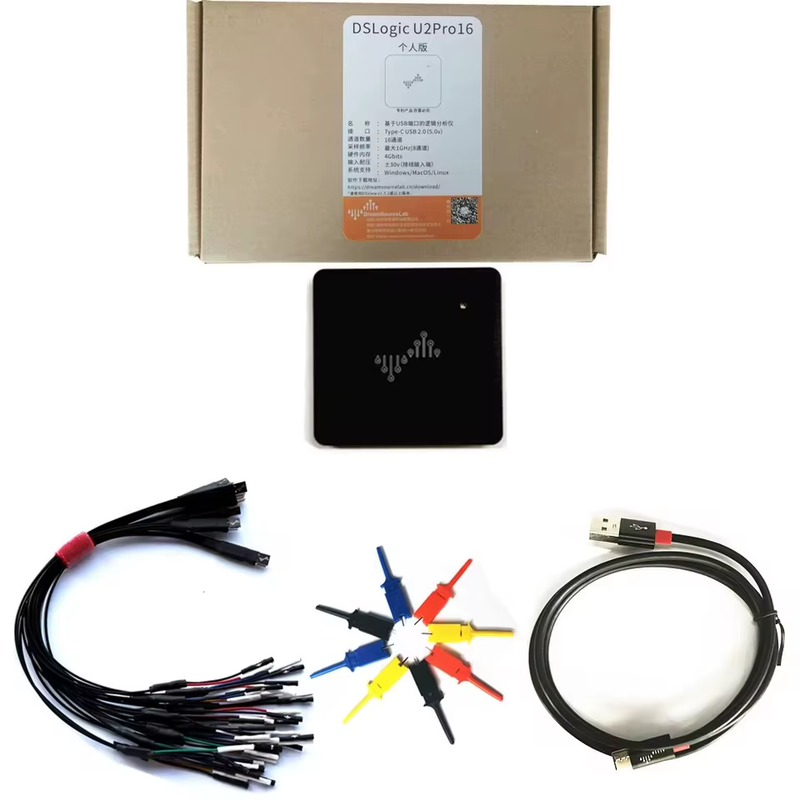

New DSlogic U2Pro16 Logic Analyzer 16CH 500MHz 8CH 1GHz

Product Description

Features of DSlogic Pro:

- Mode:stream+buffer
- Maximum sampling rate:
1. Buffer mode: 1GHz (8 channels) 500MHz (16 channels)
2.Stream mode: 1GHz (3 channels) 500MHz (6 channels) 250MHz (12 channels) 125MHz (16 channels)
- The max depth:16G@stream; 4G@buffer
- Hardware storage: 4Gbits
- Trigger:Simple trigger+ 16-level hardware trigger
- Sixteen level hardware trigger+
- Protocol trigger
- Threshold value:Fixed threshold:0-5v adjustable
- Voltage range:+-30V
- Input impedance:250K//~13pF

Parameters

Input Voltage and Thresholds
Operation voltage range: -0.9v ~ 6v
Threshold voltage: 0v ~ 5v (0.1v step)
Work with most of logic voltage level (such as: 5v, 3.3v, 2.5v, 1.8v, 1.5v, 1.2v, 1.0v, etc.)

Input Impedance
250KΩ // ~10pF
Max Sample Rates
Buffer mode: 400MHz when using 4 channels, 200MHz when using 8 channels, 100MHz when using 16 channels
Stream mode: 100MHz when using 3 channels, 50MHz when using 6 channels, 25MHz when using 12 channels, 20MHz when using 16 channels

Max Sample Depth
Buffer mode (without RLE compression): 256M
Buffer mode (with RLE compression): 16G
Stream mode: 16G
Error/Accuracy
Minimum acquisition pulse: 5ns
Acquisition Accuracy: ±sample interval (for example: ±10ns@100M sample rate, ±1us@1M sample rate)
Noise Immunity
Each channel provides independent shielding ground.

System Requirements
Windows XP, Vista, Win7, Win8 & Win10
Mac OS X 10.8 or above
Linux: recent Ubuntu, Fedora, Arch, etc.
USB 2.0 Host port

Package include:
