New L245 Electric Soldering Iron Smart Mini Adjustable Temperature PD65W Power S

Product Description

Description

This listing come with the PD65W charger, EU/US/UK/AU plug available

Update to L245P in May of 2023, add the DC power port, add the cap for the tip,easy to carry. Support PD3.0 or DC9-24V 5.5x2.5mm power supply.

Feature:

1.Fast Heating: It is compatible with QC, PD and other fast charging protocols, and supports DC power supply. If the default L245 heating element is used, the maximum power can reach 65W. The default L245 heating core is customized, with very good heating/temperature recovery efficiency and large heat capacity. Solder joints of all sizes are easy to melt.

2.OLED Screen Can Display Rich Contents: Temperature gear, set temperature, voltage, internal temperature, actual temperature of heating element, heating power and power percentage. Under the condition of ensuring the same power, the working mode of large voltage and small current is adopted to reduce the dependence on C-type line, without the support of emark chip.

3.Multi Functions: Automatic standby, vibration wake-up, automatic shutdown, time, temperature, parameter setting and calibration. Support Chinese and English switching. You can quickly set and adjust the temperature with only 3 keys. The decoy voltage can be set directly in the menu (it can be set automatically according to the parameters of the charging head).

4.Material and Application: This product is made of aluminum alloy by numerical control processing and sandblasting and anodizing processes. Customized L245 heating element, heating and temperature return speed is very fast! It is not only sturdy, but also feels very good. It is an indispensable good tool for electronic maintenance, electronic DIY, etc!

5.Satisfaction Guarantee: We strive to provide each customer with the highest standard of customer service to ensure you have a pleasant shopping experience. If you have any issues, inquiries or need assistance, please feel free to contact us directly.

Parameter:

Power: 65W (using the default L245 heating core)

Temperature control range: 0-480 degrees

Heating core: L245 (customized);
Compatible with JBC245 (DC mode is required, and the machine can only be started when the voltage is greater than 20V)

Power interface: TYPE-C

Fast charging protocol: QC/PD

Power supply range: 9-24V

Internal resistance of L245 heating core: 6.5 Ω

Length: About 150mm/5.90inch

PD 65W power adapter

Input: 110-240V, 1.5A

USB-C output(65W max): 5V-3A, 9V-3A, 12V-3A, 15V-3A, 20V-3.25A,

How to use

1. For fast temperature adjustment: press the middle key to select CH: ON to open step adjustment, press the left and right keys to quickly call the five component step pre stored temperature according to the preset step temperature

2. For normal temperature regulation: Press the middle key to select CH: OFF to turn off hierarchical regulation, press the left key to reduce the temperature according to the set temperature step, and press the right key to increase the temperature to adjust the temperature.

3. Press and hold the middle key for more than 3 seconds to enter the menu setting, and you can adjust each item according to the menu description. After entering the lower menu, long press for 3 seconds to return to the upper menu.

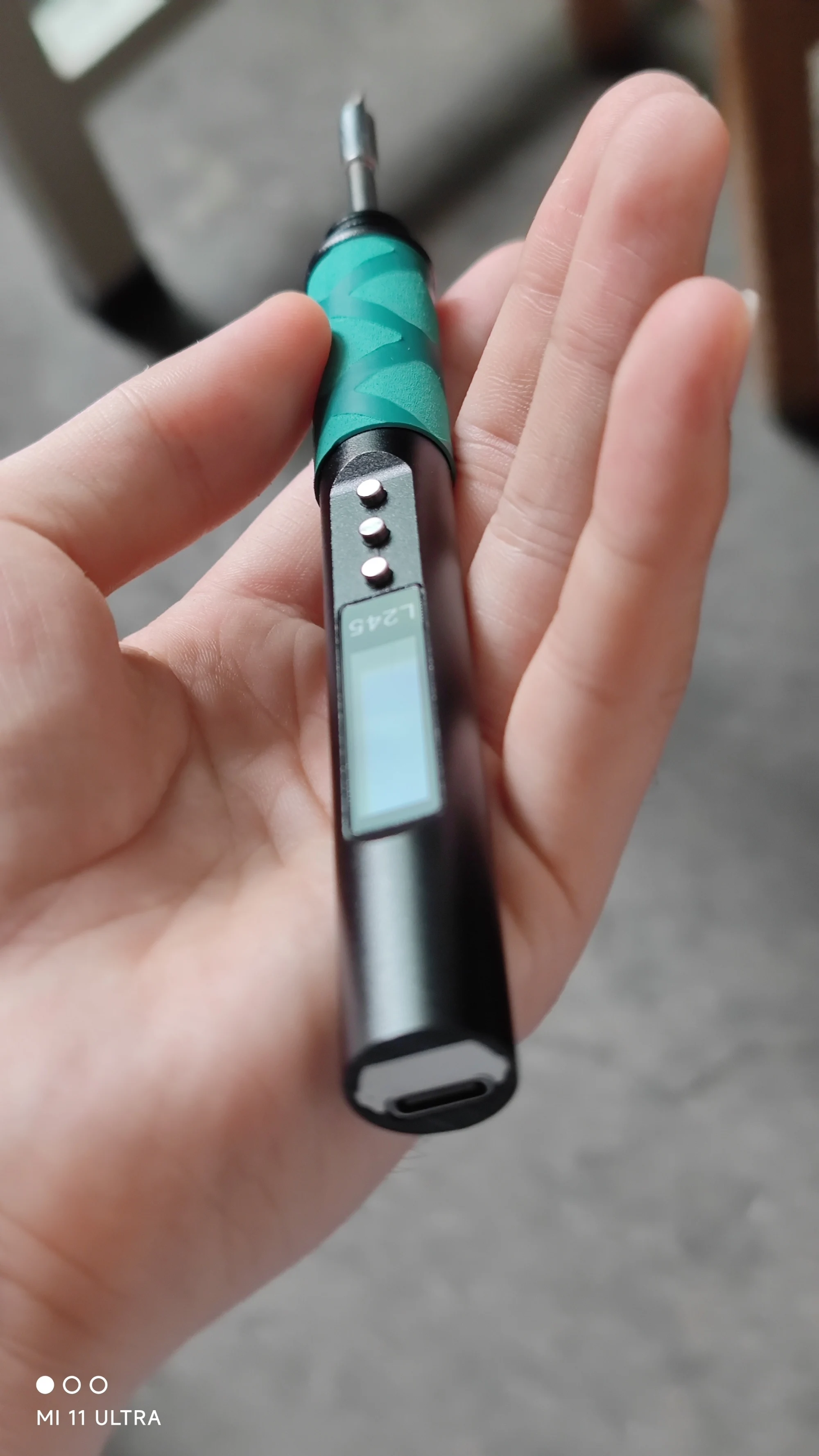

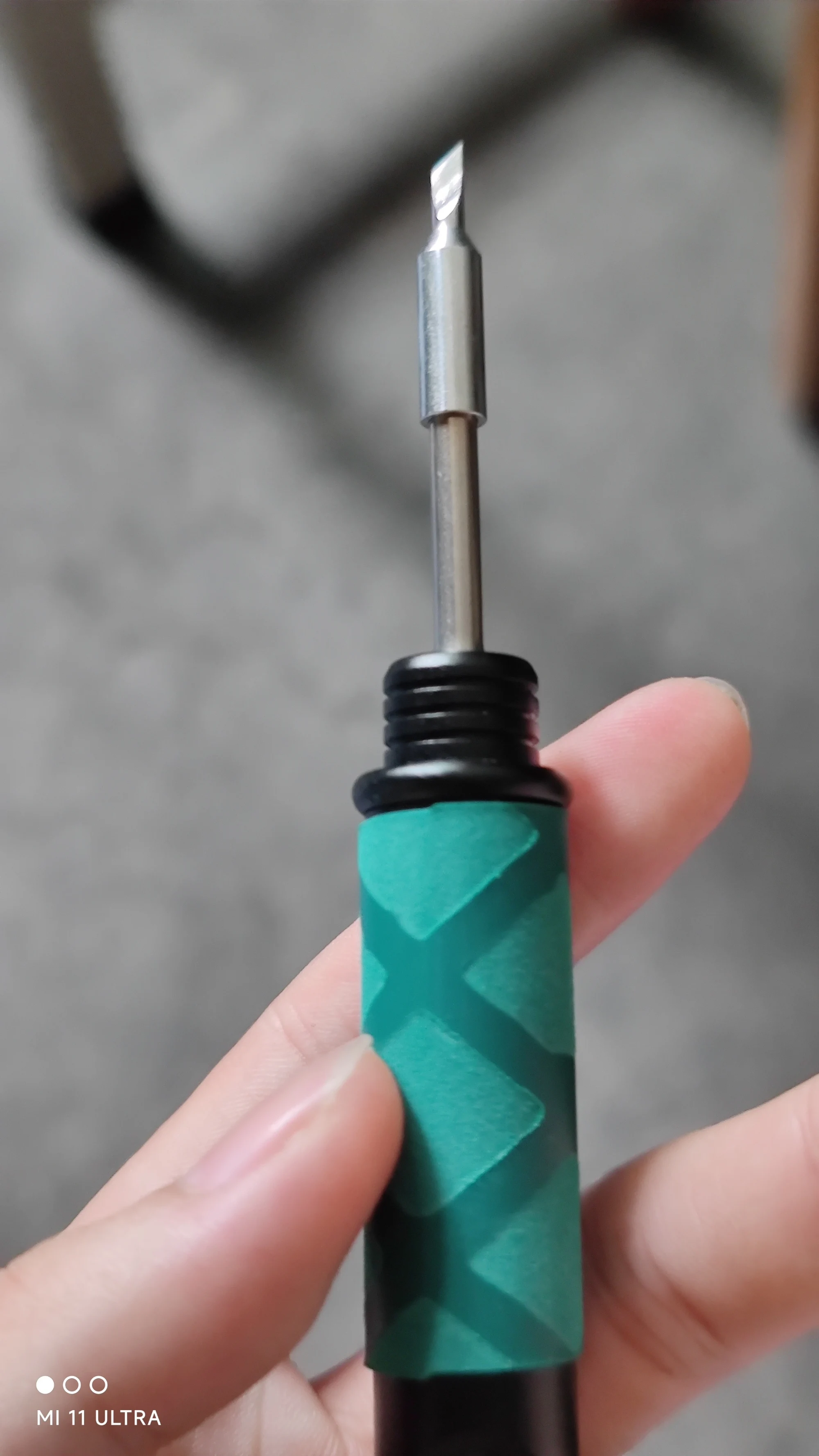

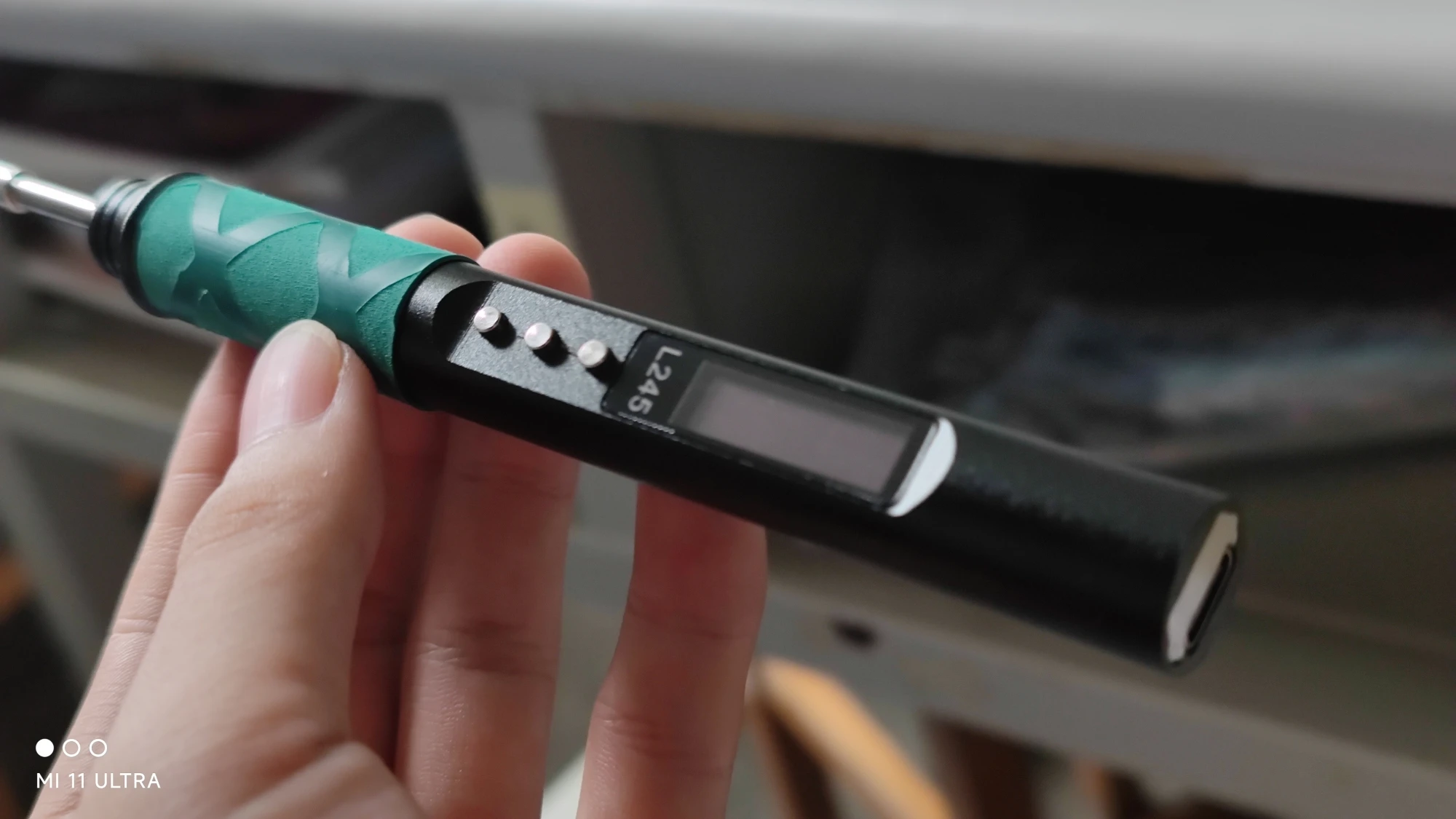

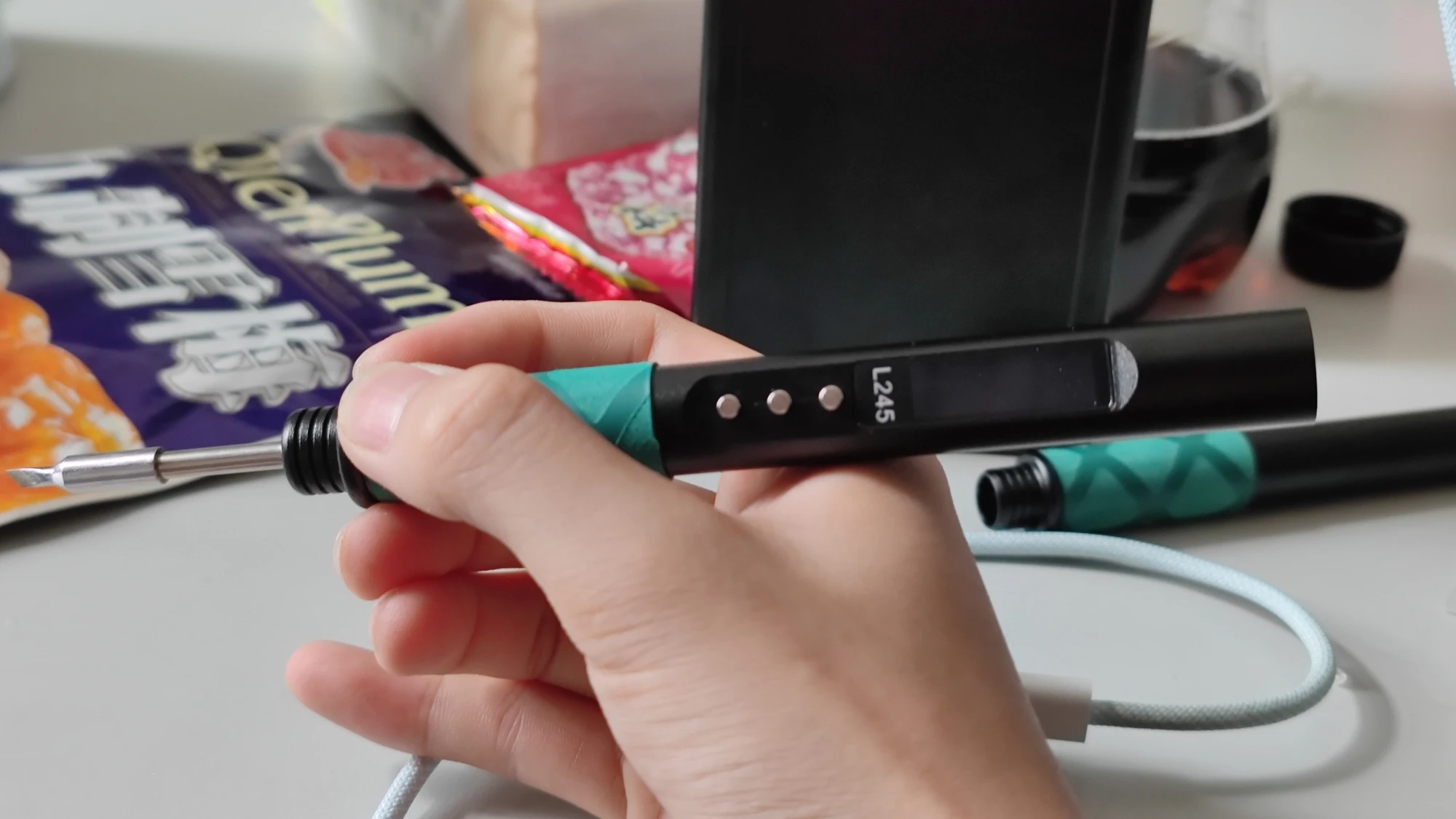

Pictures from buyers

Package include

1 x L245 soldering iron(Black or silver)
1 x Bracket
1 x Tip
1 x PD65W charger
1 x 2m USB cable
