New 30MHz Current Probe AC/DC High Frequency Magnetic Field Probe 5A/10A Magneti

Product Description

Description:

This probe is mainly suitable for motor and power debugging applications, and is not suitable for micro power consumption detection. After removing the magnetic head, this probe can also be used as a magnetic field probe.

Features:

Immediate deployment & Ready-to use: pre-assembled & calibrated for 5A sensing head.

Built-in rechargeable battery (only one single cable to scope will be enough for use)

Enhanced bandwidth performance (30MHz) vs original open-source design (10MHz)

Specification:

5A sensing head (factory-calibrated before shipping):

Green: 30MHz, ±5A max, 0.25V/A

Yellow: 1MHz, ±5A max, 0.25V/A

Blue: 10MHz, ±1A max, 1V/A

Teal: 1MHz, ±1A max, 1V/A

10A sensing head (factory-calibrated before shipping):

Green: 30MHz, ±5A max, 0.25V/A

Yellow: 1MHz, ±5A max, 0.25V/A

Blue: 10MHz, ±1A max, 1V/A

Teal: 1MHz, ±1A max, 1V/A

Notes:

Sensing head could be removed as a standalone field probe.

Ideal for: Motor controllers, inverters and SMPS debugging; Not suitable: Micro-power measurement applications.

If over-range surge current occurs, there will be a DC offset error. For this condition,no need to manually zero the probe,just short-click the deguass button and the status will be recovered.

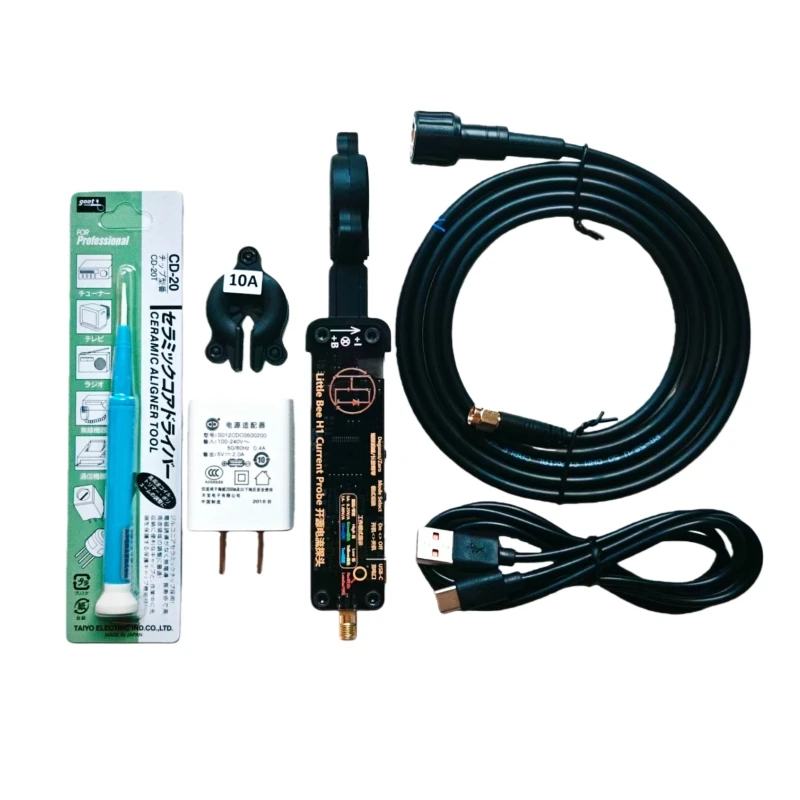

Package Included:

1 x Probe

1 x 5A Magnetic Sensing Head

1 x 10A Magnetic Sensing Head

1 x 5V USB Adapter

1 x SMA-BNC Coaxial Cable

1 x Type-C Charging Cable

1 x Screw Driver
