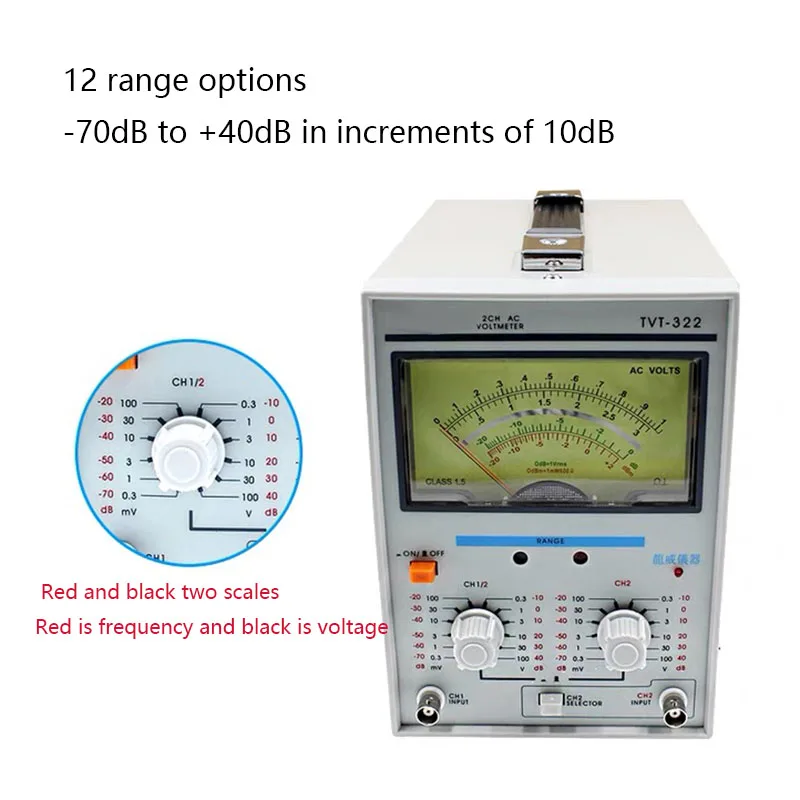

TVT-322 AC single-pointer double-pointer millivoltmeter high-precision dual-channel voltmeter 50/60HZTVT-322 AC single-pointer double-pointer millivoltmeter high-precision dual-channel voltmeter 50/60HZ
Product name: high-precision double-needle millivoltmeter
Status: brand new
Color: as shown in the figure
Model: TVT-322
Measuring range: voltage: 300pV-100V dB: - 70 dB to+40dB dBm: - 80 to 52 dBm (0dB=1Vrms, 0dBm=0.755V)
Error: full scale<3% 1KHz level
Frequency response: 5Hz~1MHz: ± 10% 10Hz~500KHz: ± 5%
20Hz~200KH2: ± 3% 30Hz~100KHz: ± 2% 1KHz level
Input impedance: 10M Ω ± 5%, 45pF
Maximum input voltage: 500V (DC+AC): 3V -- 100V range; 300V (DC+AC): 300microvolt -- 1V range
Stability: ± 5% of full scale
Residual voltage: less than 200 μ V 1mV level, short circuit output
Gain: 60dB
Output voltage: 0.1Vms ± 20% full scale (no-load)
Output resistance: 600 Ω+20% 1KHz level
Distortion: less than 1% of full scale
Signal-to-noise ratio: greater than 30dB within the range of 0.3mV
Frequency response: 5Hz~500KHz: ±<3%
Rated working temperature/humidity: 100C~400C/85% RH
Power supply: 220V/110V±10% 50H2/60Hz
Size: 239x140x200mm
