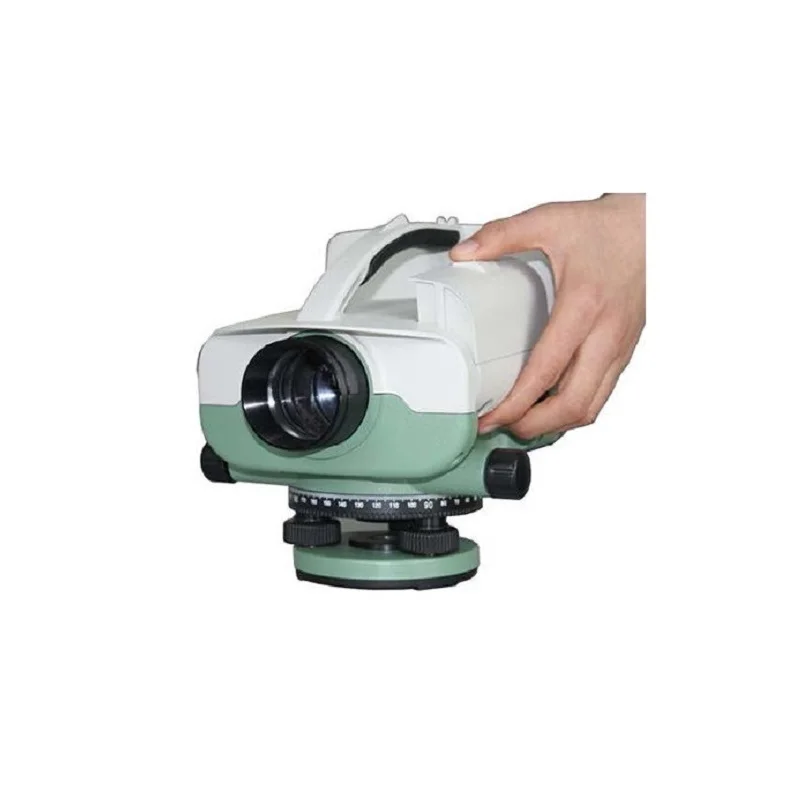

FOIF EL302A digital level 32X auto level 30000 sets of data, support SD card

Product Description

The EL302A digital level is a domestic model that truly realizes the digital transformation of measurement, and its excellent performance makes digital leveling easy, simple and efficient. The instrument adopts a new software design, optimizes the line measurement, and strictly follows the grade measurement specification process, which is suitable for the national second-class and below level measurement.

◎The round-trip horizontal observation accuracy per kilometer is 0.7mm, and the minimum reading shows 0.01mm;

◎After turning on the machine, the height difference and distance can be measured with one key;

◎ Full numeric keys, graphical window interface, can display the front and rear staff measurement data and difference at the same time;

◎ 6 lines of Chinese display, 24 number keys and function keys;

◎The measurement results are clear and intuitive, which can realize the switching of elevation and staff height, and support single-point measurement;

◎ A variety of line measurement, positive/reverse staff mode switching, intermediate point measurement, stakeout, continuous measurement line adjustment function;

◎Long range: the actual range can reach more than 110m;

◎Fast measurement speed: the single measurement time is about 1s;

◎Data storage: 3000 sets of data can be stored, and SD card expansion is supported;

◎ Electronic reading/manual reading;

Places of use:

※ Leveling net measurement

※ Deformation monitoring and land subsidence monitoring

※ Industrial measurement

※ Tunnel and mine surveys

※ Topographic survey, leveling line survey, area leveling survey, leveling net survey, contour line survey

※ Road and railway construction stakeout, longitudinal section measurement, cross-section measurement, elevation stakeout

Magnification: 32X

Imaging: Erect

Minimum sight distance: 1m

Range: 2~110m

Ranging accuracy: D≤10m<±10mm<50m±0.2%×D

Elevation Accuracy: Electronic readout ±0.7mm

Artificial ± 1.5mm

Minimum elevation display: 0.01mm

Compensation Range: ±14′

Compensation Type: Magnetically damped pendulum compensator

Compensation Accuracy: 0.3"/1′

Data storage: 30000 sets of data, support SD card
