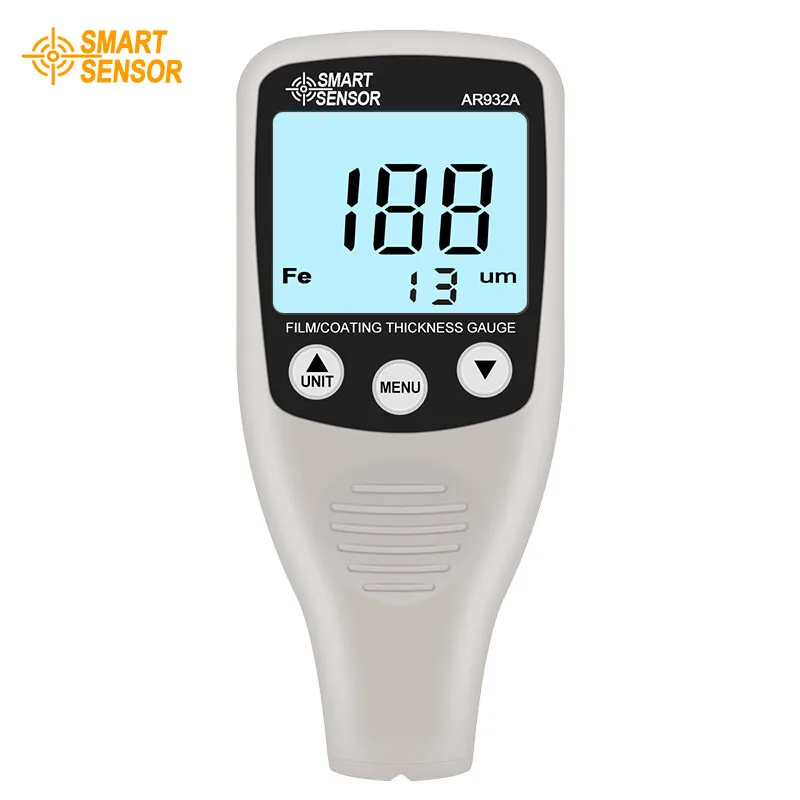

SmartSensor AR932A Coating Thickness Gauge Measuring Range 0~1500um Automotive P

Product Description

The layer thickness gauge can non-destructively measure the thickness of non-magnetic coatings (such as aluminum, chromium, copper, enamel, rubber, paint, etc.) on magnetic metal substrates (such as iron and hard magnetic steel, etc.) and the thickness of non-conductive coatings (such as enamel, rubber, paint, plastic, etc.) on non-magnetic metal substrates (such as copper, aluminum, zinc, tin, etc.). The coating thickness gauge is characterized by small measurement error, high reliability, good stability, and easy operation. It is an essential testing instrument for controlling and ensuring product quality, and is widely used in manufacturing, metal processing, industrialization, and commodity inspection.

modle:AR932A

measurement range:0um~1999um

accuracy+(1.8%um土2um)

Minimum measurement area:Magnetic: 25x25mm; Non-magnetic: 25x25mm

Minimum substrate thickness:(Magnetic: 0.2mm) (Non-magnetic: 0.05mm)

Storage temperature:-10~60°C

Operating temperature:-10~60°C

Measuring principle:Magnetic and eddy current thickness measurement

zero point calibration:yes

Basic calibration:yes

Single/continuous measurement:yes

data storage:20 groups

auto-calibration:Calibration is performed based on four different calibration substrates: 50/100/250/500

Maximum/minimum value function:yes

unit conversion:yes

working environment:0°C~50°C

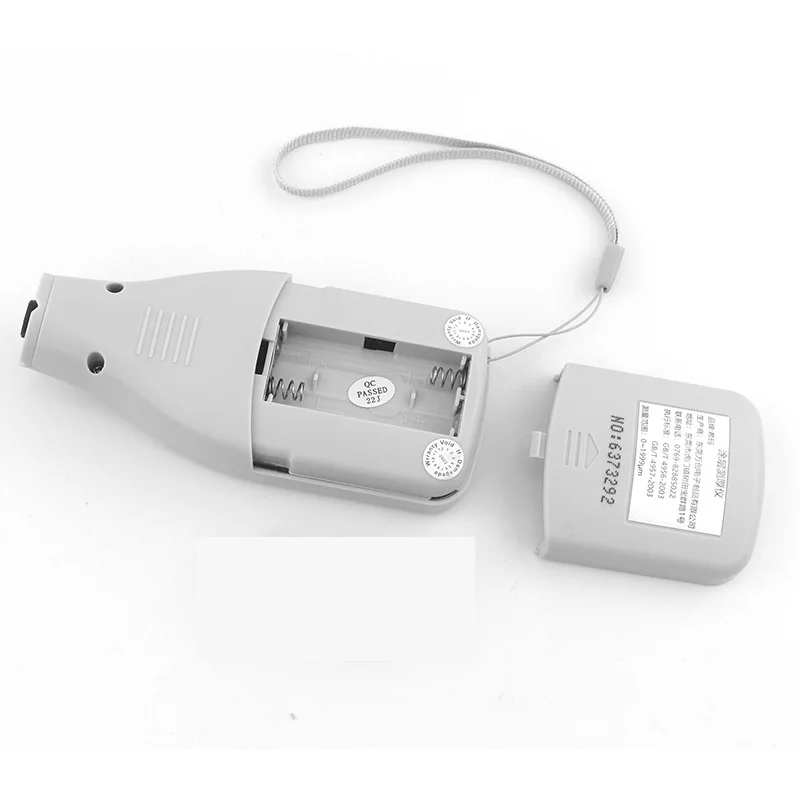

power supply:2x1.5V AAA battery

Product dimensions:120x50x25mm
