Product Description

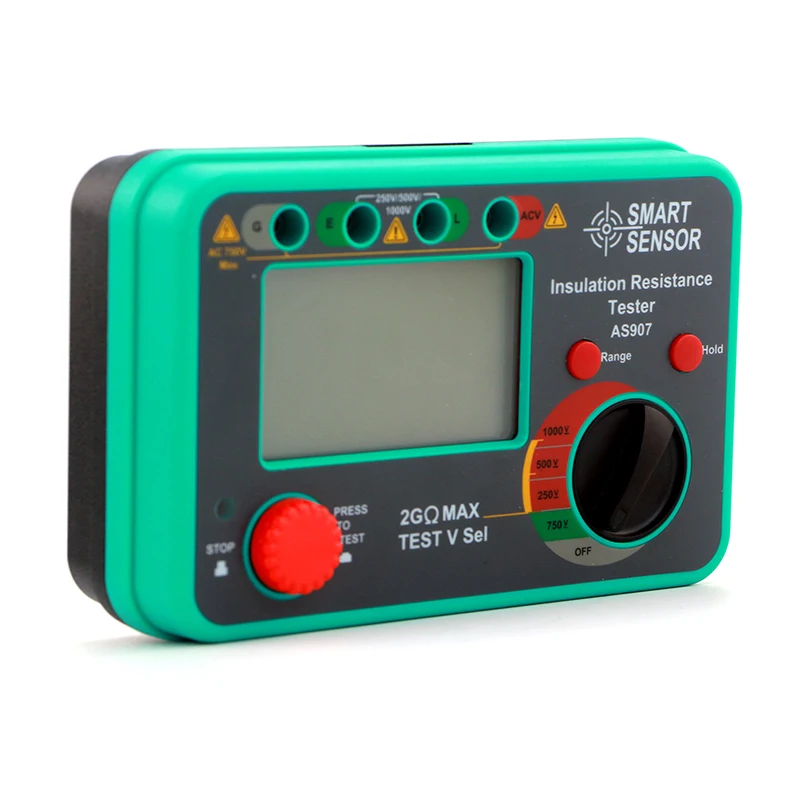

SMART SENSOR AS907 Resistance measuring instrument 0.1MΩ~2000MΩ Digital Megohmmeter Ohmmeters
SMART SENSOR AS907 Resistance measuring instrument 0.1MΩ~2000MΩ Digital Megohmmeter OhmmetersTechnical Parameter | AS907 |
Output voltage | 250V/500V/1000V |
voltage accuracy | ±10% |
Insulation resistance range | 0.1MΩ~2000MΩ |
Insulation resistance accuracy | ±(4%rdg±2dgt) |
Test Current | 250V(R=250kΩ)1mA500V(R=500kΩ)1mA1000V(R=1MΩ)1mA |
Test current accuracy | ±10% |
short-circuit current | <1.6mA |
voltage measurement | ASC750V |
Voltage measurement accuracy | ±(1%rdg+6dgt) |
Measurement method | Double integration A/D conversion approximately |
Sample Rate | About 3 times per second |
AC750V frequency response | (50~200)Hz |
Median resistance | 250V/500V:2MΩ1000V:5MΩ |
Backlight function | YES |
Data Hold | YES |
LED indicator light | YES |
Over limit indication | YES |
Working temperature and humidity | 0°C~40°C，30%RH~85%RH |
Execution standards | IEC1010 |
power supply | 6*1.5V(AA) BATTERY |
Net weight | 369g |
Product size | 119*67*171mm |
