OpenSourceSDRLab FPGA development board XC7K325T kintex 7 Base FPGA basic versio
✓ Paiement protégé✓ Livraison suivie✓ Canadian service

Maison · H-168129731183

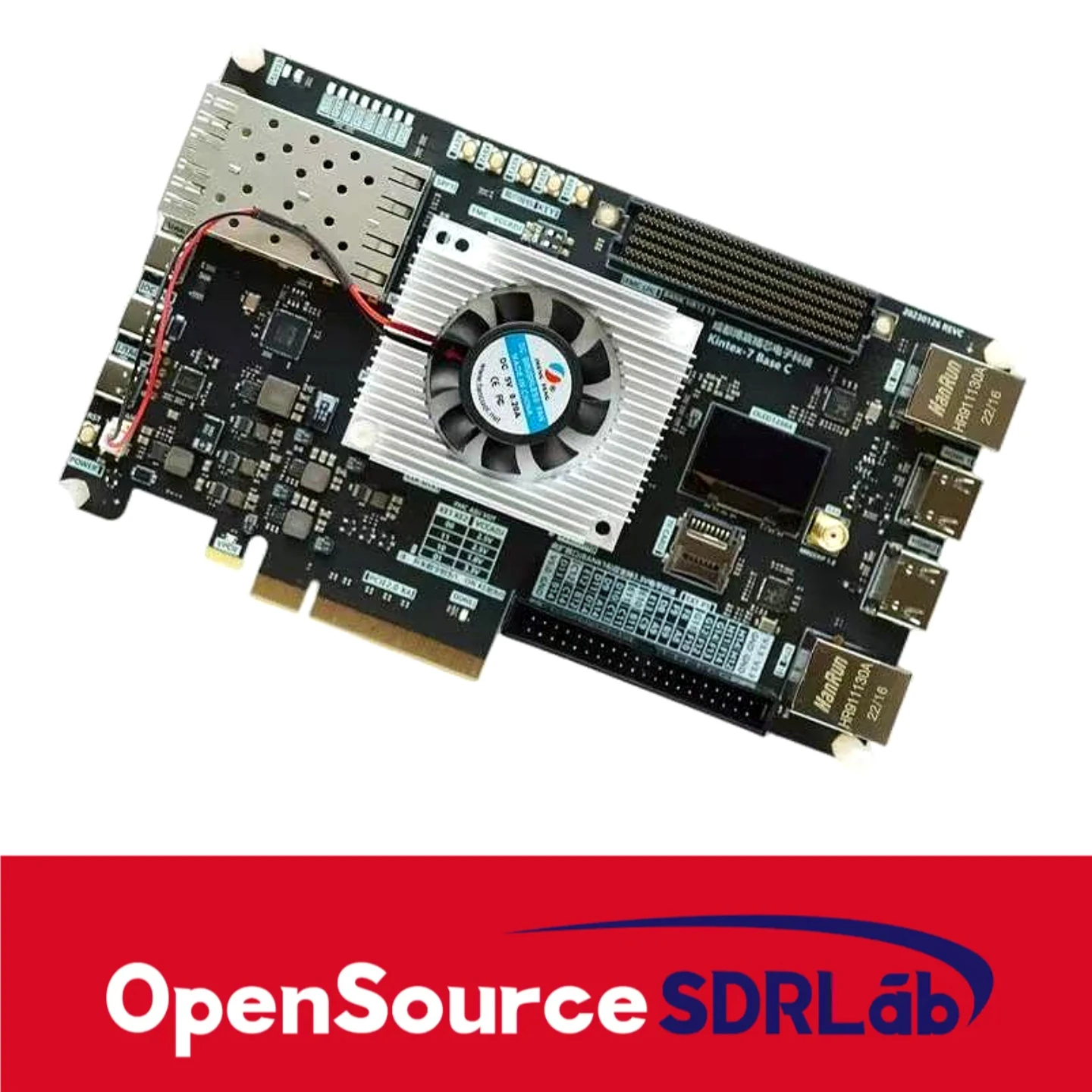

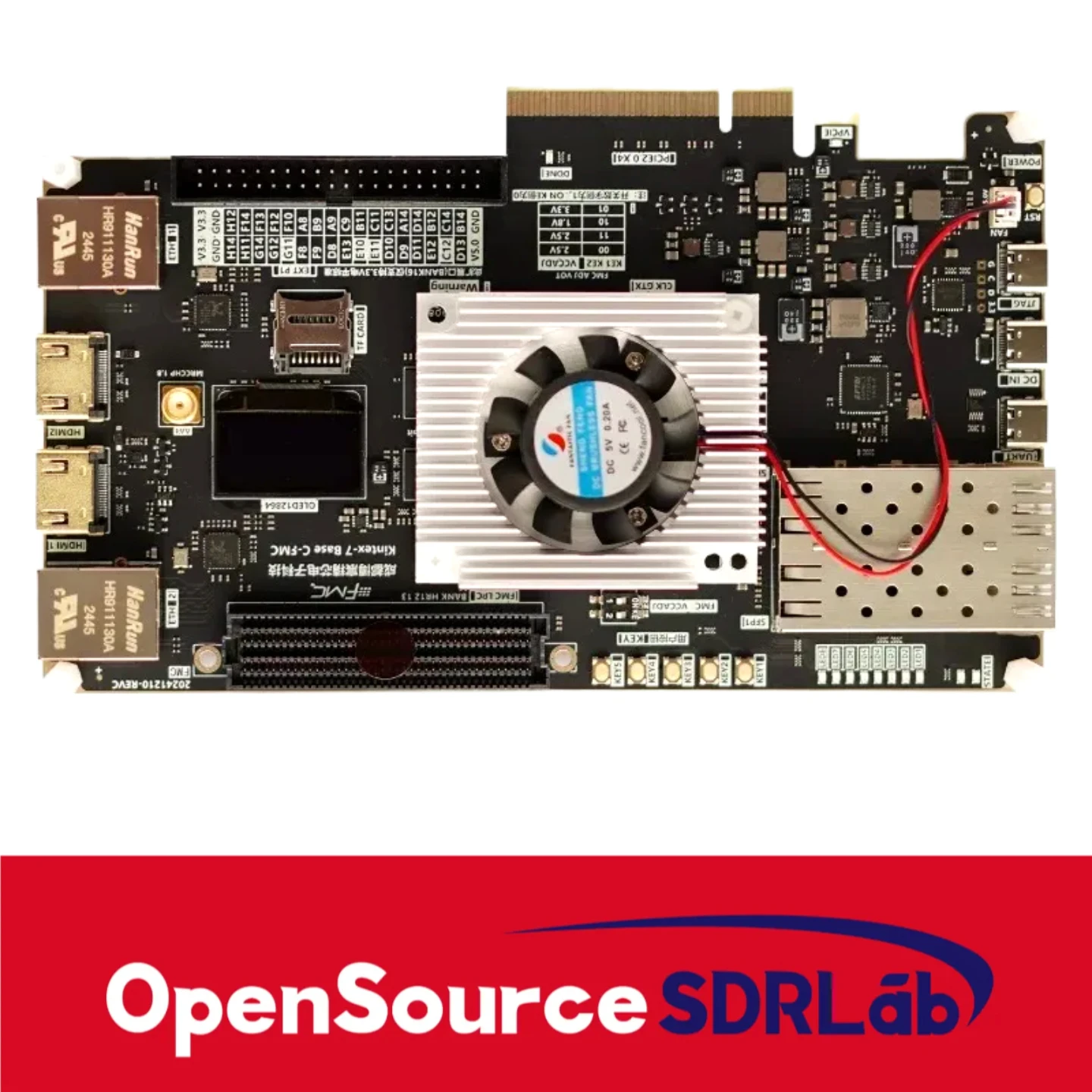

OpenSourceSDRLab FPGA development board XC7K325T kintex 7 Base FPGA basic versio

NouveauAvailable from Prime Living

Last unit available

853.99 CAD
Free worldwide shippingEstimated delivery to Canada: 4–10 business days
Product details
SKU
H-168129731183
Product code
H-168129731183
Condition
Neuf
Department
Maison
Brand
—
Shipping
Free worldwide shipping

COMPLETE INFORMATION

Product description

Product Description

OpenSourceSDRLab FPGA development board XC7K325T kintex 7 Base FPGA basic version kit parallel computing No FMCOpenSourceSDRLab FPGA development board XC7K325T kintex 7 Base FPGA basic version kit parallel computing No FMCOpenSourceSDRLab FPGA development board XC7K325T kintex 7 Base FPGA basic version kit parallel computing No FMC

1. Power Supply Method: Customized 9-12V/3A power supply with TYPE-C interface, powered by DC-IN

2. Heat sink interface: A heat sink interface with a GH1.25-3P connector onboard

3. Clock resources: 50M single ended crystal oscillator, 156.25M differential crystal oscillator, and one SMA clock interface

4. Ethernet: Two Gigabit RGMIIs, model RTL8211E-VL, and another RTL8211E-VB

5. User button: 5 user buttons, 1 power on/reset button, supporting global reset and reconfiguration of the chip

6. Debugger: On board TYPE-C interface with Xilinx download debugger, supporting online debugging and downloading

7. Serial Port: CH340 serial port with TYPE-C interface

8. SD card: a flip type TF card holder that supports SPI interface

9. HDMI interface: Two channels support maximum output 1080@60HZ

10. On board LED: 2 power status LEDs, 8 FPGA LEDs, DONE, PCIE power supply

11.Onboard FLASH: MX25L25645G granules, 32MByte of space

12.EEPROM: A 24C02 EEPROM storage chip

13. Optical communication interface: 2-channel SFP+, supporting 10G optical communication

14. PCIE interface: PCIE2.0X8, requiring X8 or X16 physical slots


OpenSourceSDRLab FPGA development board XC7K325T kintex 7 Base FPGA basic versioOpenSourceSDRLab FPGA development board XC7K325T kintex 7 Base FPGA basic versioOpenSourceSDRLab FPGA development board XC7K325T kintex 7 Base FPGA basic versio
