OpenSourceSDRLab EDA Development Board ZYNQ0 Multifunctional FPGA Expansion Module ACZ7015 702 ADC128102 TLV5618 Dedicated FPGA
OpenSourceSDRLab EDA Development Board ZYNQ0 Multifunctional FPGA Expansion Module ACZ7015 702 ADC128102 TLV5618 Dedicated FPGAHighlight 1: EDA Expansion Board DAC Resources
Onboard 12 bit 2-channel 1MSpS DAC.
Using TI's TLV5618 chip.
The analog output range is 0~4.096V.
Use SPI interface to communicate with the main control.
The analog signal output of the two channels of this DAC is output by the 2x2 pin interface of the EDA expansion board.
Highlight 2: Based on CH340USB to serial port interface
Onboard USB to serial port circuit based on CH340E.
The communication speed can exceed 1Mbps.
Highlight 3: Digital Tube Resources
Onboard 8-bit 8-segment common anode digital tube.
When docking with FPGA, only 3 signal lines that follow the SPI interface are required.
Use 2 cascaded 74HC595 chips to drive.
Reduce the occupation of valuable IO resources on FPGA.
Highlight 4: RTC clock based on PCF8563
Onboard based on NXP PCF8563 RTC clock chip.
Supports year, month, day, hour, minute, second week, and alarm functions.
The chip uses an IC interface to communicate with the main control RTC and EEPROM connected to the same IC bus.
When the EDA expansion board is not powered, the button battery supplies power to the chip to ensure the continuity of timing.
Highlight 5: EEPROM Memory
The onboard model is 24LC64 64Kbit EEPROM memory.
Highlight 6: Infrared Remote Control Receiver
The onboard HS0038 infrared remote control receiver is capable of receiving remote control signals sent by an infrared remote control.
Highlight 7: 8-digit dip switch
Highlight 8: 8-bit LED light
Onboard 8-bit LED lights, lit at high level. Convenient for later debugging.
Highlight 9:5 touch switch
Onboard 5-position tactile switch, press to low level, release to high level.
Highlight 10: Powerful Compatibility Expansion Interface

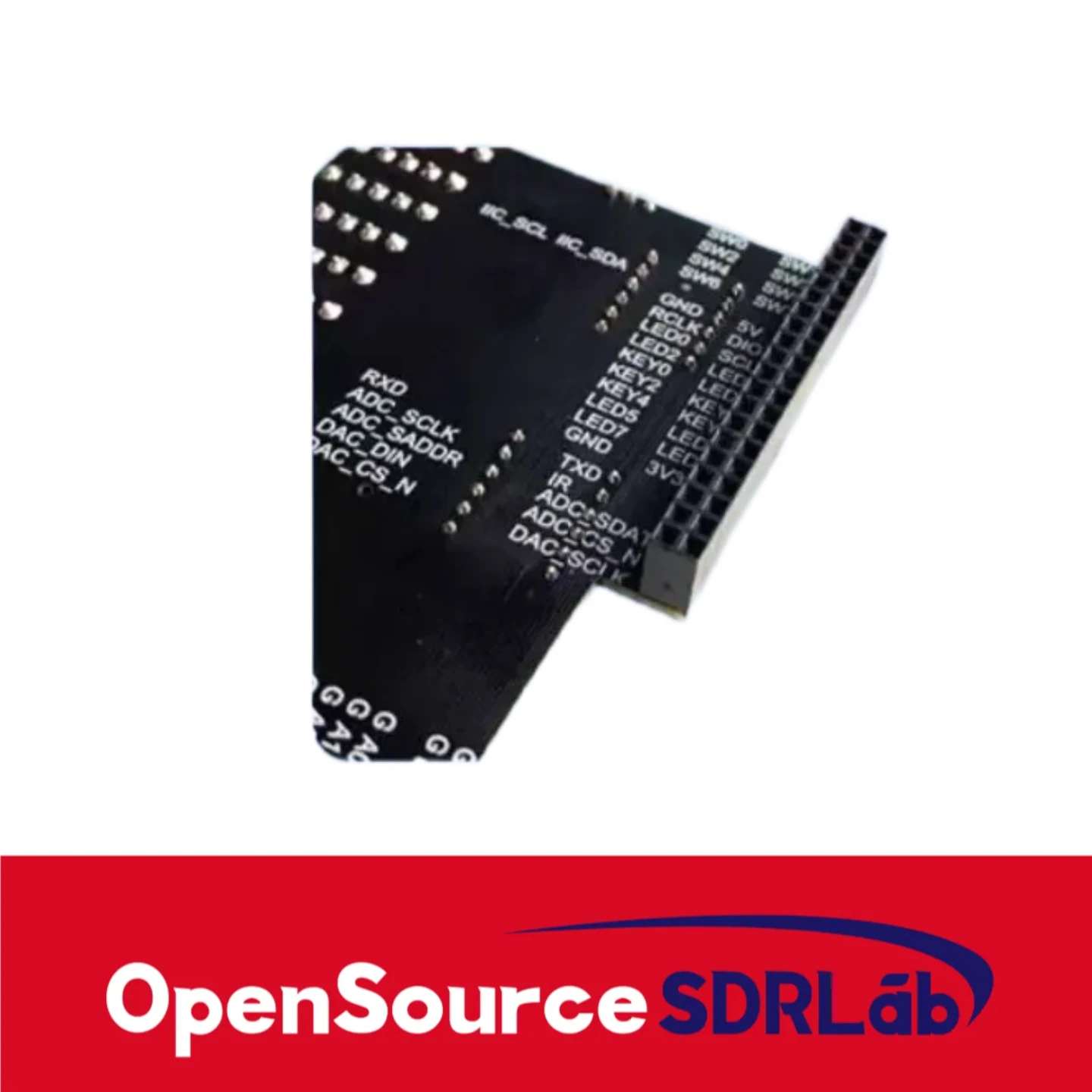

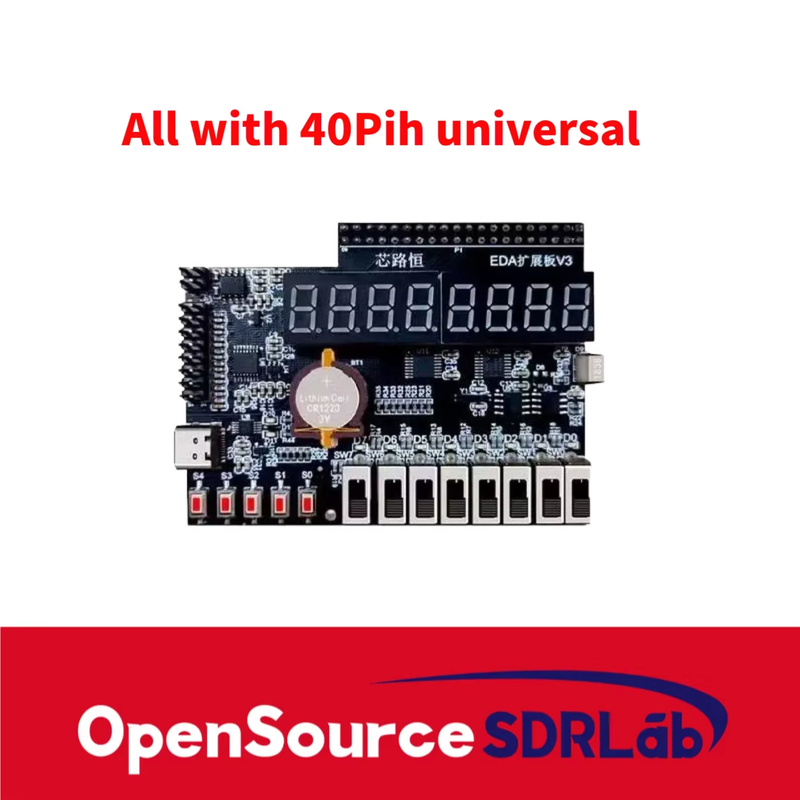

The standard 40 pin interface can directly plug in numerous FPGA development boards and core boards.
