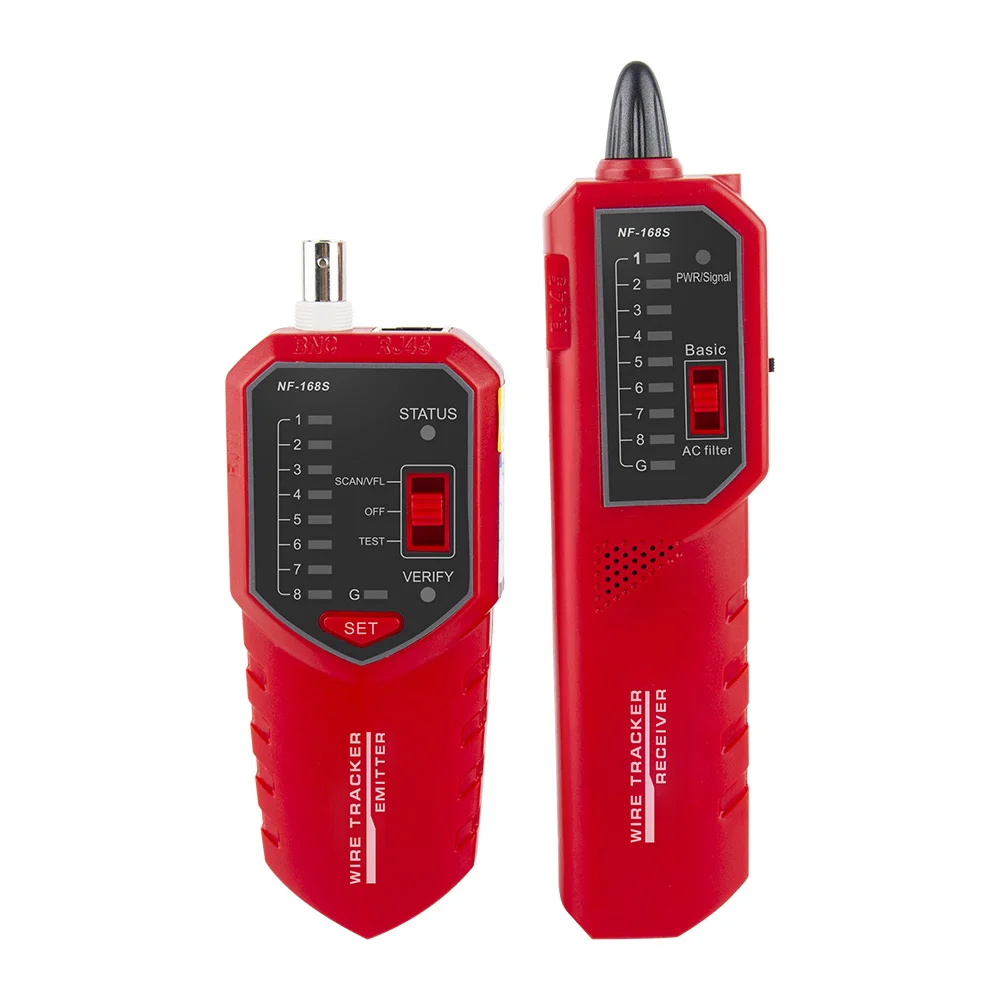

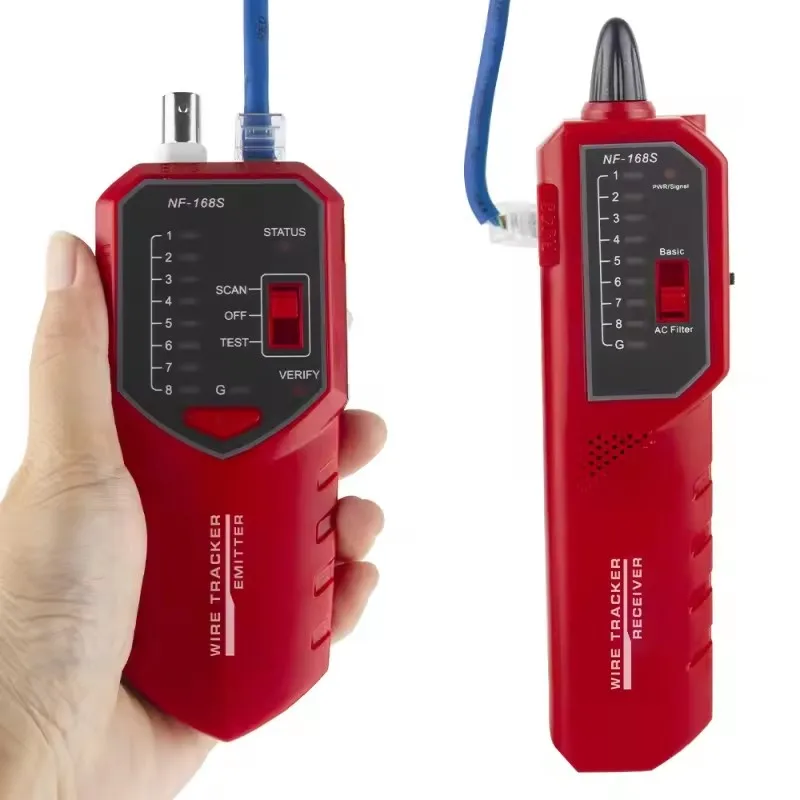

Name: NF-168S Wire Tracker Telephone Network Lan Coax Cable Tester POE Tracer With Ant
Brand: Prime Living
SKU: H-168281166536
Price: 192.99 CAD
Availability: InStock

Product Description

NF-168S Wire Tracker Telephone Network Lan Coax Cable Tester POE Tracer With Anti-Jamming Line Finder

Features:

1. New withstand voltage function, can withstand DC voltage of 60V.

2. When the cable is energized, the signal is complex, and there are many interference sources, it is completely noise-free and interference-free, and can accurately and clearly find the target line.

3. It can accurately find various network cables, telephone cables, monitoring cables and other metal cables (voltage <60V) with load (energized).

4. It can accurately find various energized indoor and outdoor shielded lines.

5. It can accurately find the location of the breakpoint or short-circuit point of two cables.

6. It has the function of network cable alignment, and the faults such as connection, disconnection, crossover, and short circuit of the network cable can be judged by alignment.

7. The transmitter of the instrument can be directly and remotely aligned with the switch with power.

8. The sensitivity of the instrument is adjustable (divided into 1-8 levels). When testing with power, levels 1-3 are recommended; when testing without power, levels 4-8 are recommended.

9. Red light pen function, with an output power of 5mW, can detect breakpoints and bends in kilometers of optical fiber (168V)

Technical indexes:

NF-168S Transmitter specifications:
Tone frequency		200Hz
Max. distance of transmission	More than 3 kilometers
Max. working current		Less than 10mA
Tone mode		2 Tones, adjustable
Compatible connectors		RJ11, RJ45,BNC
Max. signal voltage		8Vp-p
Function and faults light display	Light display(Wiremap, tone,tracing)
Voltage protection		DC 48V
Dimension(LxWxD)		13x4x2cm
NF-168S Receiver specifications:
Frequency		200kHz
The Max. working current		Less than 30mA
Earjack		1pcs
Dimension(LxWxD)		10 x 5 x 2.3cm

Package Include:1 X transmitter( battery is not include )1 X receiver
