Product Description
Foif DT402L Survey Equipment Optical Theodolite With Large screen LCD display& High stability electronic compensator

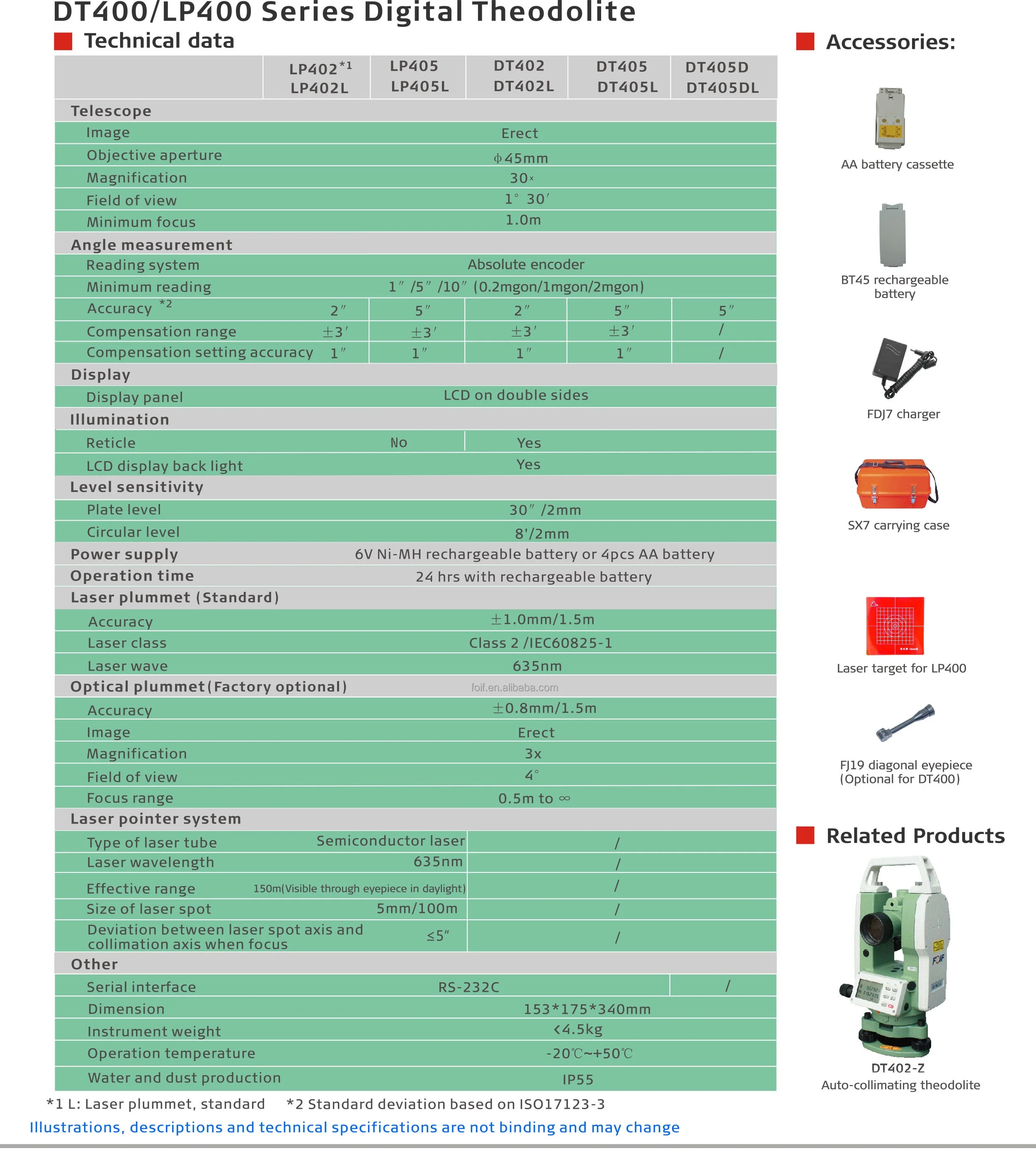

Foif DT402L Survey Equipment Optical Theodolite With Large screen LCD display& High stability electronic compensator| DT402L | |
| Telescope | |
| Magnification | 30X |
| Image | Erect |
| Minimum focus | 1.0m |
| Field of view | 1°30′ |
| objective aperture | 45mm |
| Angle measurement | |
| Accuracy | 2″ |
| Minimum display | 1”/5”/10”(0.2mgon/1mgon/2mgon) |
| Reading system | Absolute encoder |
| compensation range | ±3 |
| compensation setting accuracy | 1‘’ |
| Display | |

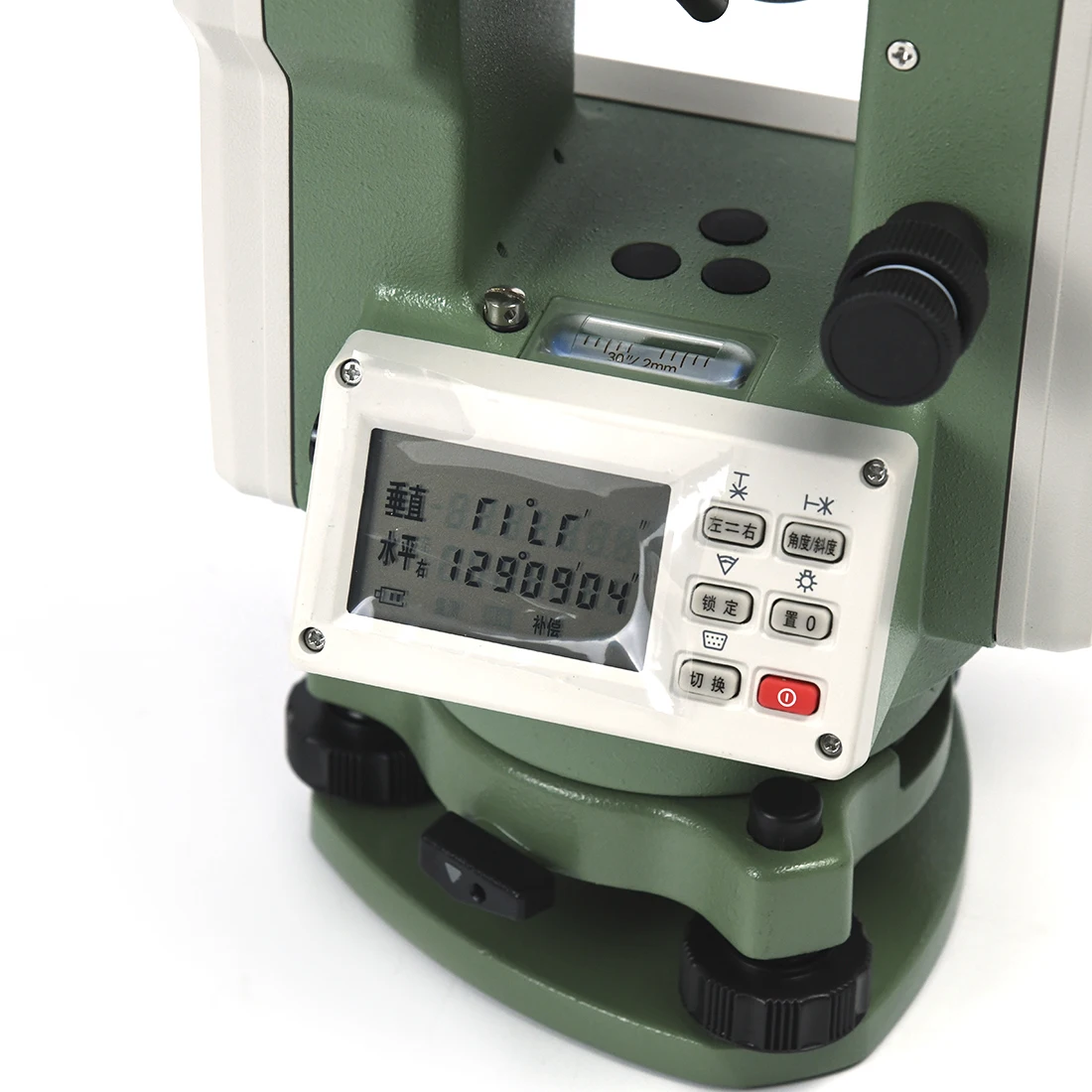

| Display panel | LCD on double sides |
| lllumination | |
| Reticle | Yes |
| LCD display back light | Yes |
| Level sensitivity | |

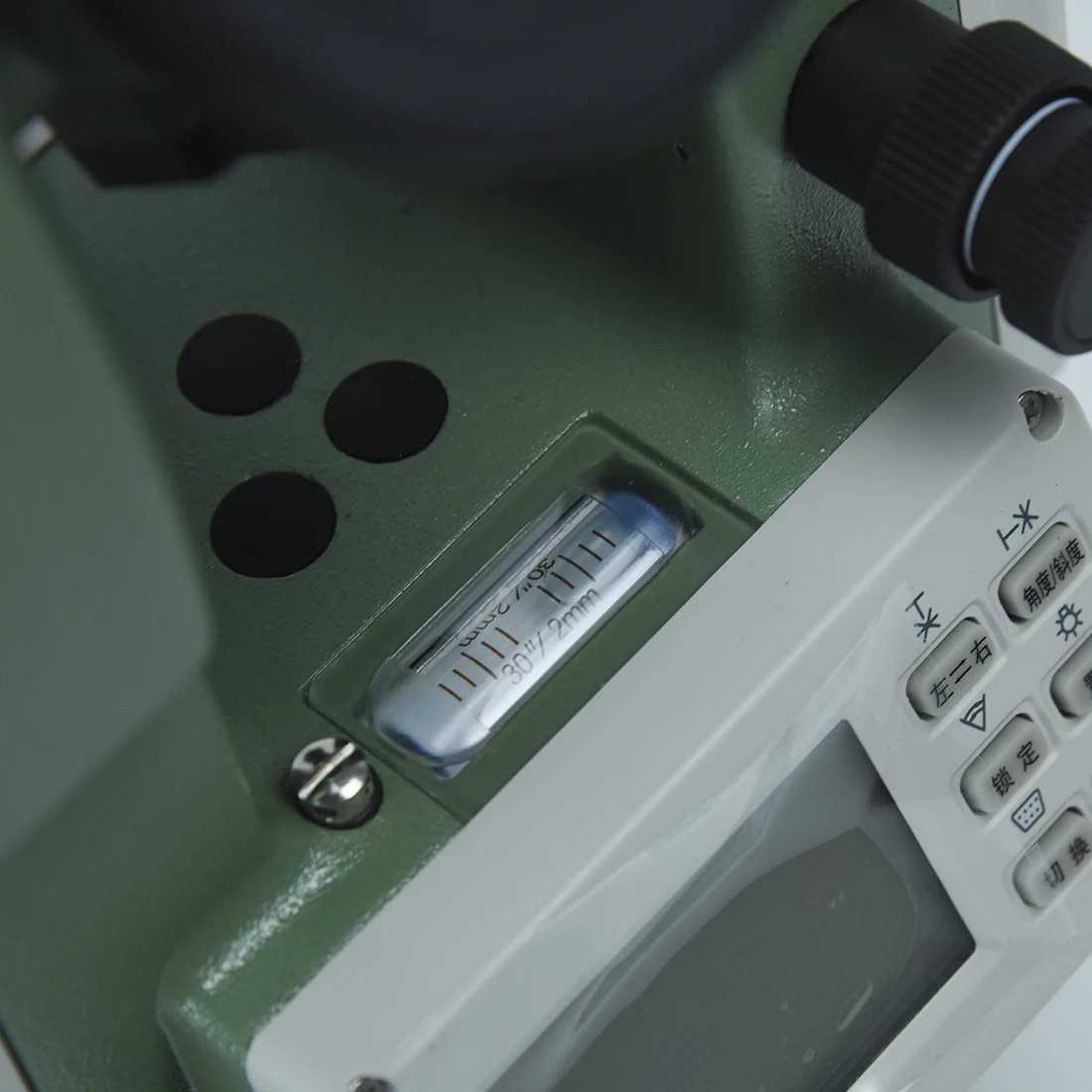

| Plate level | 30" /2mm |
| Circular level | 8' /2mm |
| Other | |
| Power supply | 6v Ni-MH rechargeable battery or 4pcs AA battery |
| operation time | 35hrs/Backlight ON,5Ohrs/Backlight OFF |
| Laser plummet (Standard) | |
| Accuracy | 士1.omm/1.5m |
| Laser class | Class 2 /IEC60825-1 |
| Laser wave | 635nm |
| optical plummet(Factory optional) | |
| Accuracy | 土0.8mm/1.5m |
| lmage | Erect |
| Magnification | 3x |
| Field of view | 4° |
| Focus range | 0.5m to ∞ |
| Other | |
| Serial interface | RS-232C |
| Dimension— | 153*175*340mm |
| lnstrument weight | <4.5kg |
| operation temperature | -20℃~+50℃ |
| Water and dust protection | IP55 |
