Product Description

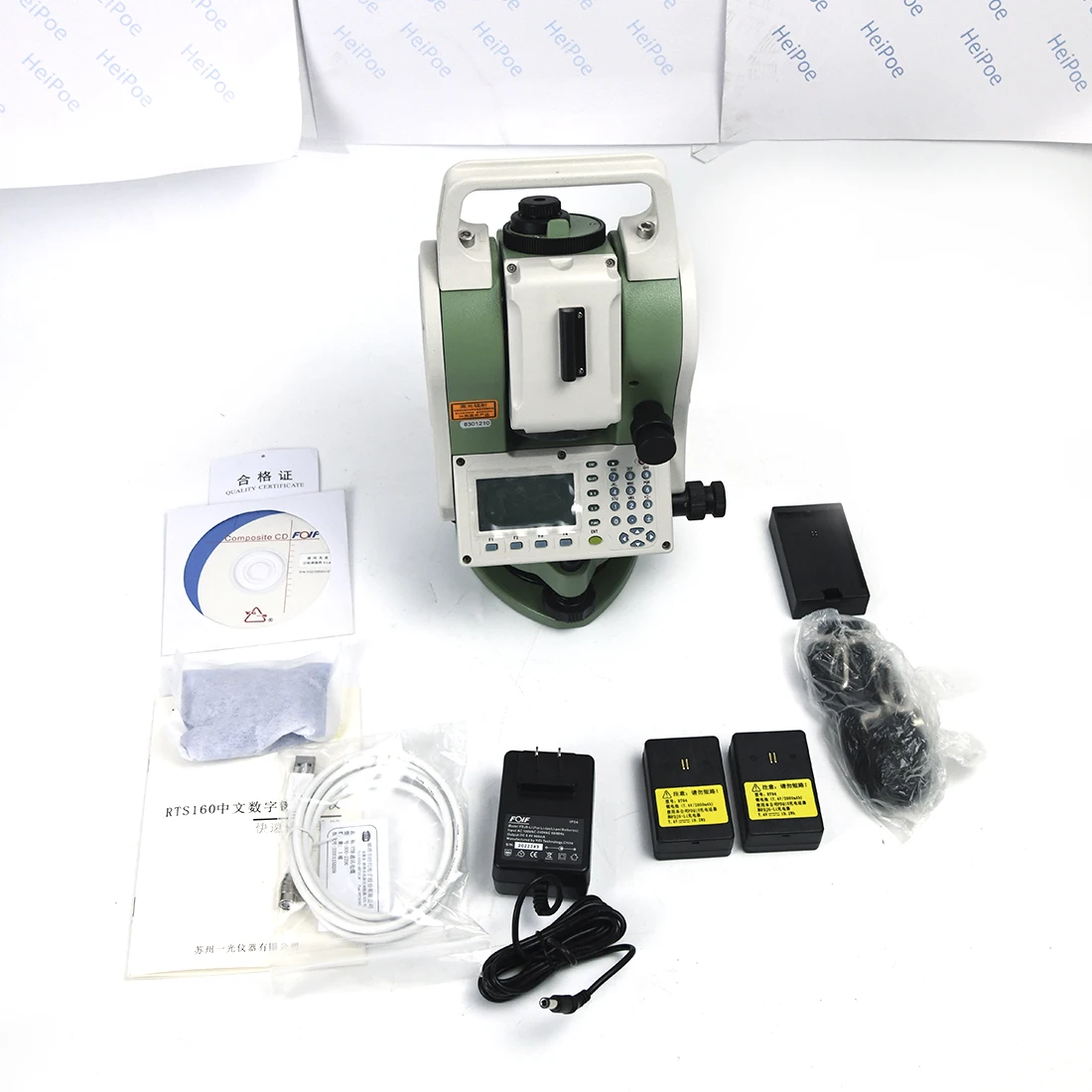

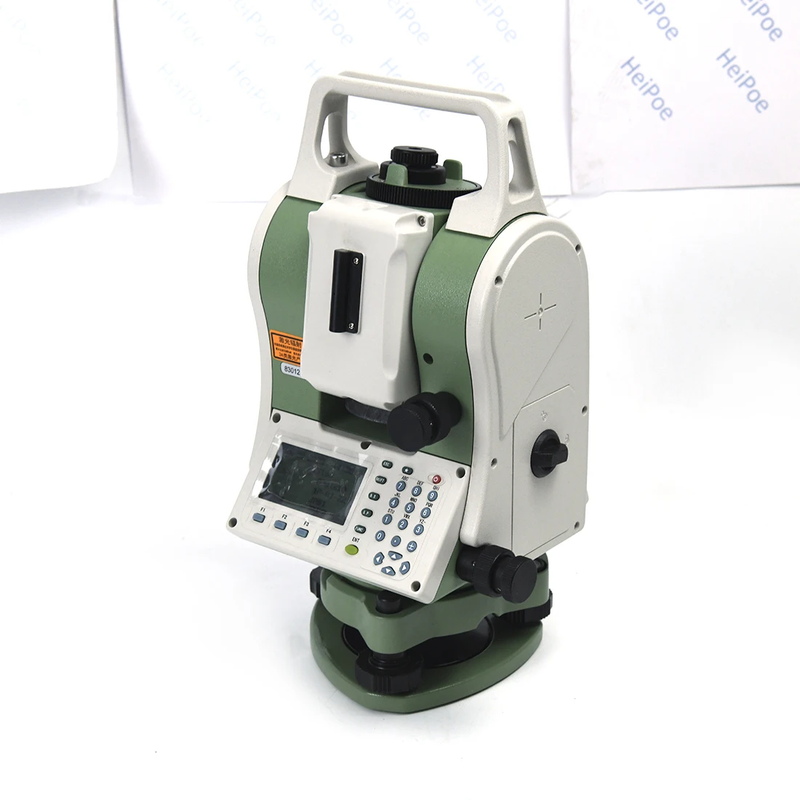

FOIF RTS162 500M Reflectorless 2'' Accuary Total Station with Laser plummet &Dual screen
FOIF RTS162 500M Reflectorless 2'' Accuary Total Station with Laser plummet &Dual screenSpecification| RTS162R | |||
| Instrument type | Parameter item | Parameter item | Parameter item |
| Telescope | Angle measurement | ||
| Length of mirror | 130mm | Reading system | Absolute coding system |
| Imaging | Positive | Minimum reading | 1"/5" |
| Objective effective diameter (EDM) | Φ50mm | accuracy | 2" |
| Magnification | 30x | Display unit | 360°/400gon/6400mil |
| Field of view | 1°30' | Laser point counter | |
| Resolution (JIS) | 3.5" | ||
| Minimum visual distance | 1.2m | Spot size/energy | adjustable |
| Ranging part | Laser class | Class2/IEC60825-1 | |
| Ranging light source | 650~690nm | wavelength | 635nm |
| Spot diameter | 12mm/50mmellipse | accuracy | ±0.8mm/1.5mm |
| Laser class | Class3 | Optical point counter (optional) | |
| Range measurement (good weather) | accuracy | ±0.8mm/1.5mm | |
| Prism-free (white) | 500M | ||
| Reflector RP60 | 0.2~800M | magnification | 3x |
| Single prism | 0.5~5000M | Field of view | 4° |
| Ranging accuracy | Prism: Sh (2+2X10 (-6) ·) mm Reflector, prism-free: (3+2X10 (-6).D) mm | Focusing range | 0.5~∞ |
| Measuring time | 0.6s(fine test) | display | |
| Distance minimum reading | Precision measurement mode :1mm; Tracking measurement mode :10mm | type | Two side lattice LCD display |
| Temperature setting range | -40°C~+60°C | lighting | Liquid crystal backlight |
| Temperature range | Step 1°C | Power supply | |
| Atmospheric pressure correction | 500hPa-1500hPa | battery | 4AH lithium battery |
| Atmospheric pressure | Step length 1hPa | Operating voltage | 7.4V 2.6AH LI-Battery |
| Correction of prism constant | -99.9 mm ~ +99.9 mm | Working time | More than 10 hours |
| leveller | charger | FDJ6-Li | |
| Tube bubble accuracy | 30”/12mm | Application program | Coordinate lofting/coordinate measurement/rear rendezvous/telemetry suspension height/opposite side measurement/Angle distance lofting area measurement/point projection/elevation rendezvous/azimuth Angle/single distance eccentricity/double distance eccentricity/Angle eccentricity/distance eccentricity/straight line lofting/coordinate forward and backward calculation |
| Round bubble accuracy | 8’/2mm | other | |
| Graphic electronic level | 30”12mm; Range :3 '; Accuracy: 1" | Memory point | 6000 points; |
| Compensator | Engine weight (with battery) | 4kg | |
| Compensation range | ±3 | volume | 160x150x335mm(WxDxH) |
| Operating temperature | -20°C~+50°C | ||
| I/0 Upload/download | With upload and download data function, communication port RS232C/USB | ||
| Waterproofing class | IP55( IEC60529) |
