Product Description

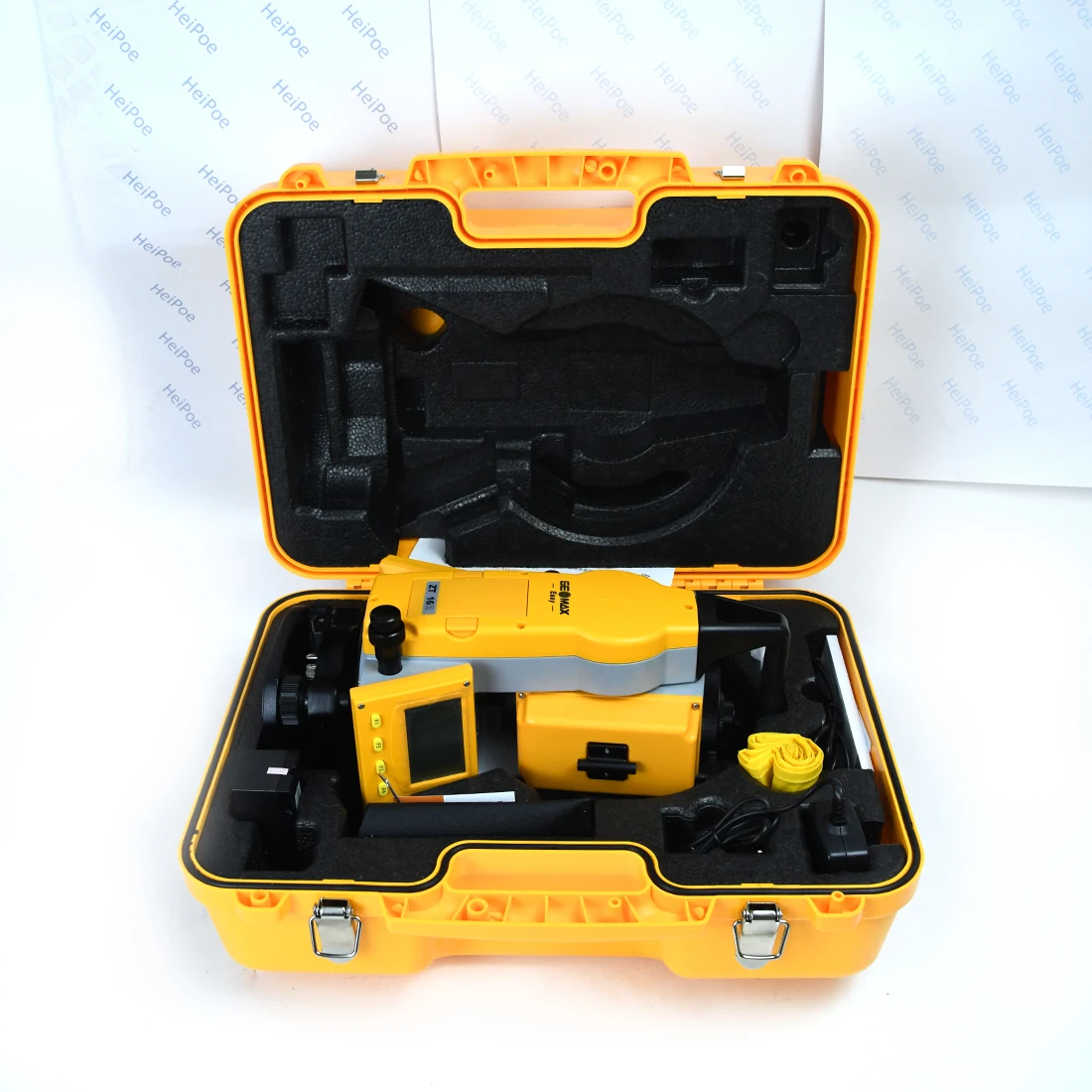

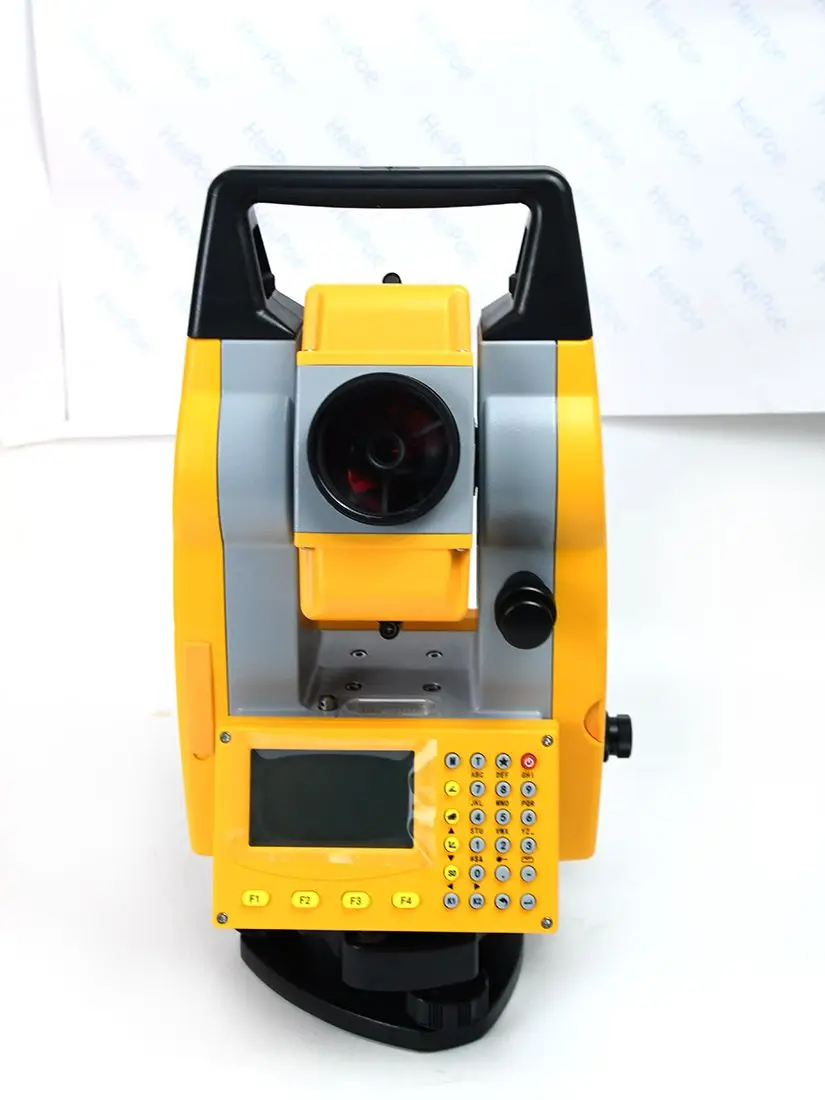

GeoMax Total Station ZT16R Surveying Optical Instrument Dual-axis liquid compensator Total Station with Powerful Road Software
GeoMax Total Station ZT16R Surveying Optical Instrument Dual-axis liquid compensator Total Station with Powerful Road Software*Extreme speed measurement, efficiency first
The measurement speed of ZT16R can reach 0.5 seconds/point. it is instant measurement points, no need to wait for,and there is no fear of urban pedestrian and traffic, and at the same time, the measurement stability is effectively guaranteed!
*Powerful Road Software
The APP platform with powerful functions and rich programs supports various applications such as road stakeout and power measurement, which is suitable for the needs of customers in different industries.
*Keyboard + mobile phone dual operation mode
ZT16R is equipped with double-sided keyboard and geomax Intelligent Measurement program. Users can use traditional numeric keyboard keys to measure, or use geomax Intelligent Measurement software to control the instrument measurement, making the measurement more intelligent and flexible.
*Vertical axis integrated laser plummet
The laser plummet is embedded in the vertical shaft to ensure accuracy and stability without adjustment.
* Easy to operate, one-button backlight
Measurement data support U disk storage and USB cable output Support U disk hot swap, plug and play, data transmission is convenient and fast.
| model | ZT16R |
| telescope | |
| Aperture | 40mm |
| gain | 28x |
| Field of view | 1°30''(26m/1km) |
| Shortest viewing distance | 1.5m |
| Measuring range | |
| Single prism | 3200m |
| Without prism | 500m |
| Precision | 2mm+2ppm (with prism) / 3mm+2ppm (without prism) |
| Laser type | coaxial visible red laser |
| Frequency | 100MHz |
| Angle measurement | |
| Angle measurement principle | Absolute coding |
| display | 1''/5''/10'' |
| Precision | 2'' |
| Compensator | |
| Compensation principle | dual-axis liquid compensator |
| The scope of work | ±3' |
| Level | |
| Tube level | 30''/2mm |
| Round blisters | 8'/2mm |
| Plummet | |
| the place | In the vertical axis of the instrument |
| the way | point under laser |
| Surroundings | |
| Operating temperature | -20℃~+50℃ |
| Dustproof and waterproof | IP54 |
| Power supply | |
| type of battery | polymer lithium-ion 7.4v/3000mAh |
| Operating time | 9 hours (continuous measurement) |
| Communication | |
| USB | Support |
| Wifi | Support |
| U disk | Support |
| Data capacity | 40000 data blocks |
| Operating system | |
| Types of | Free RT/OS |
