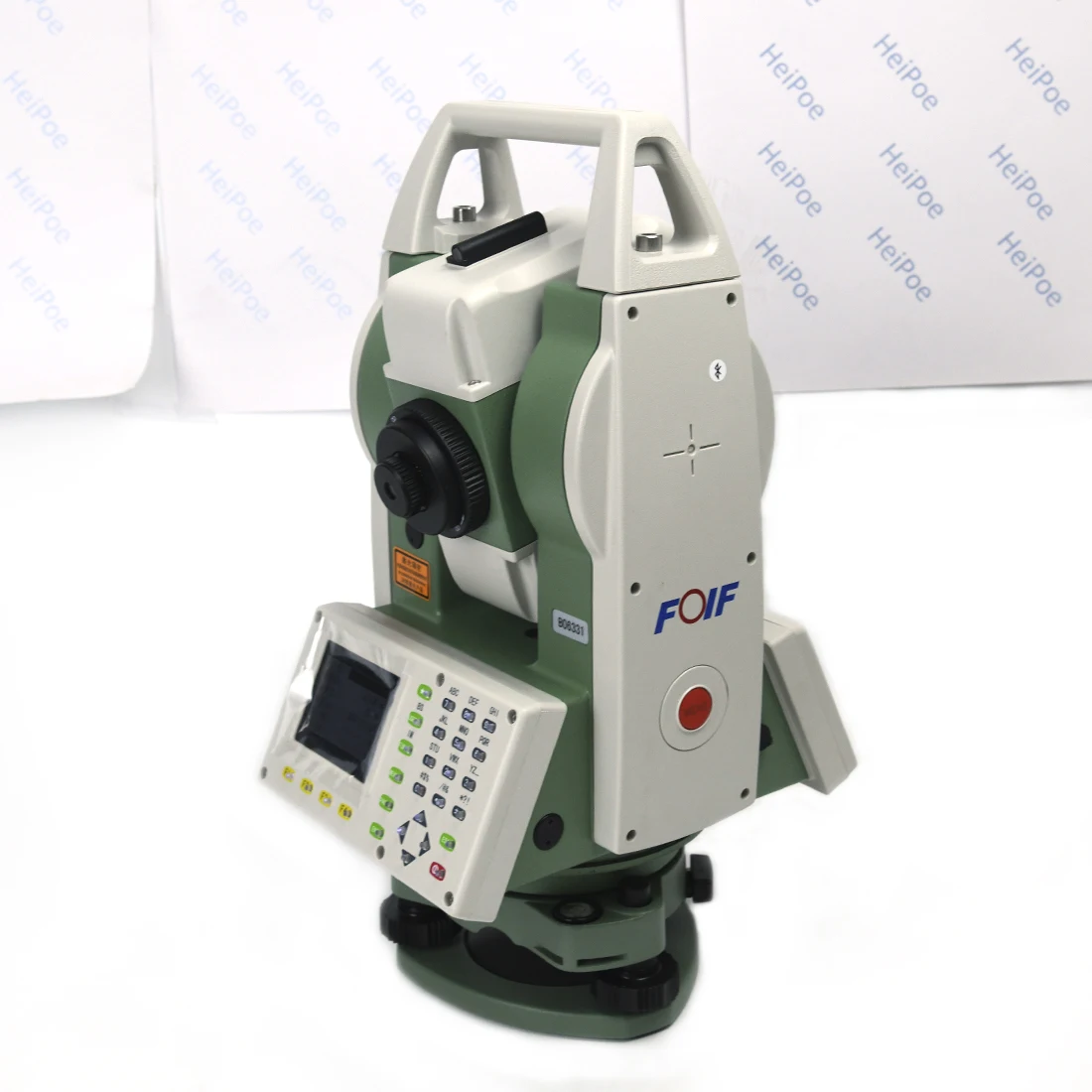

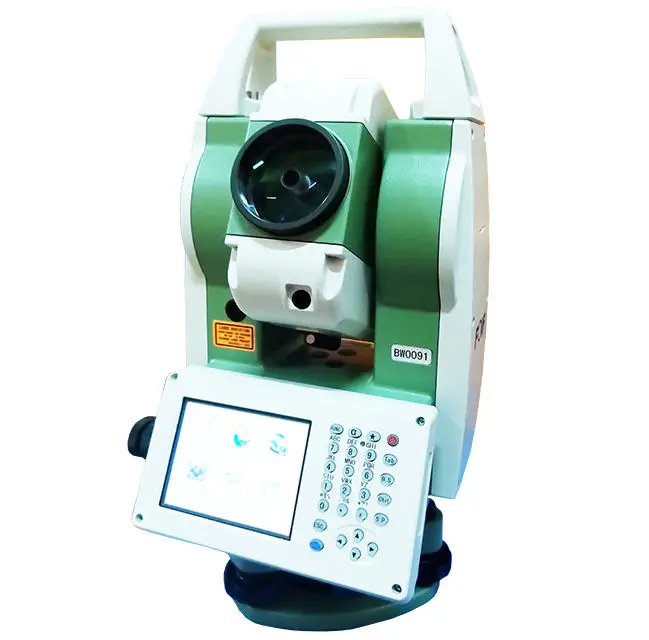

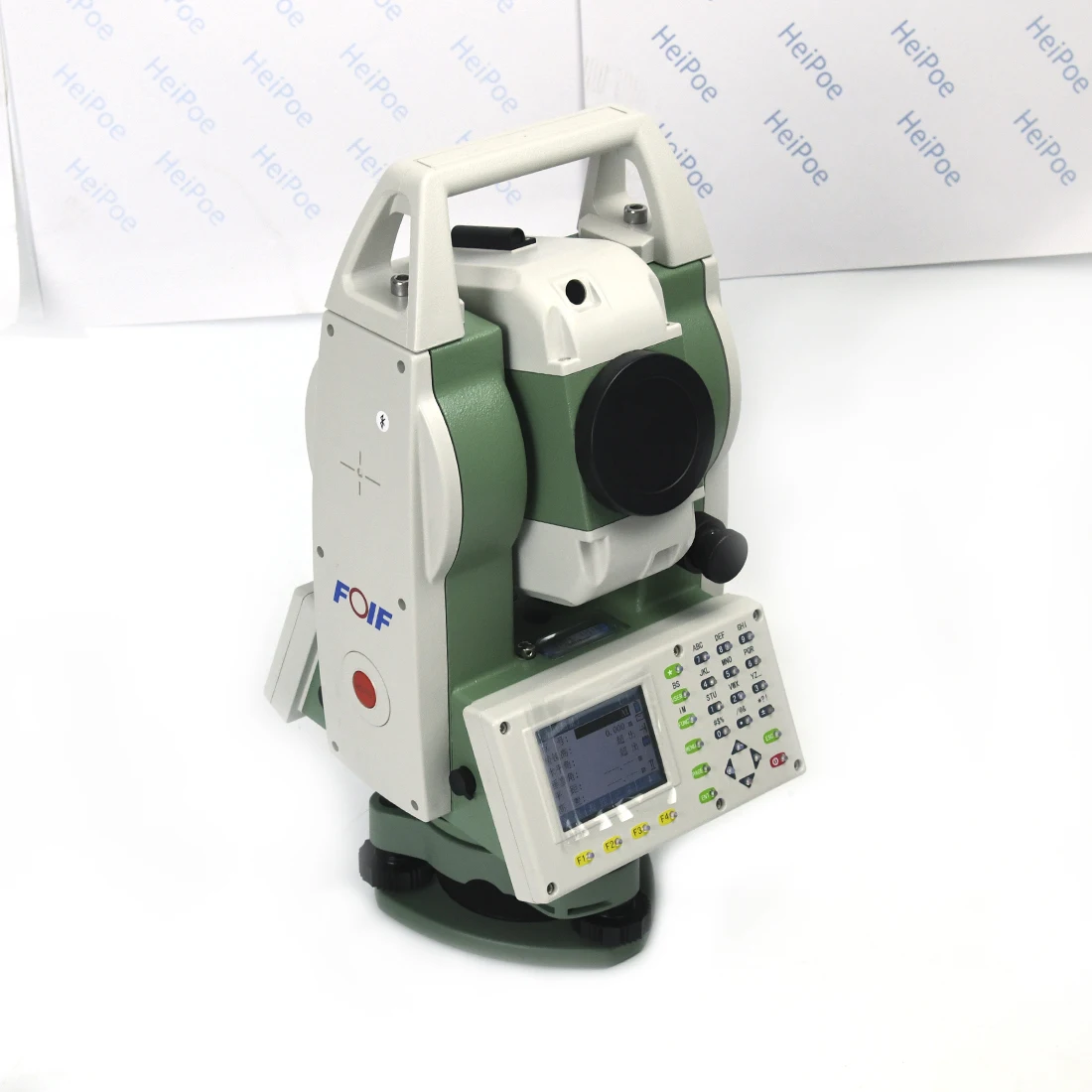

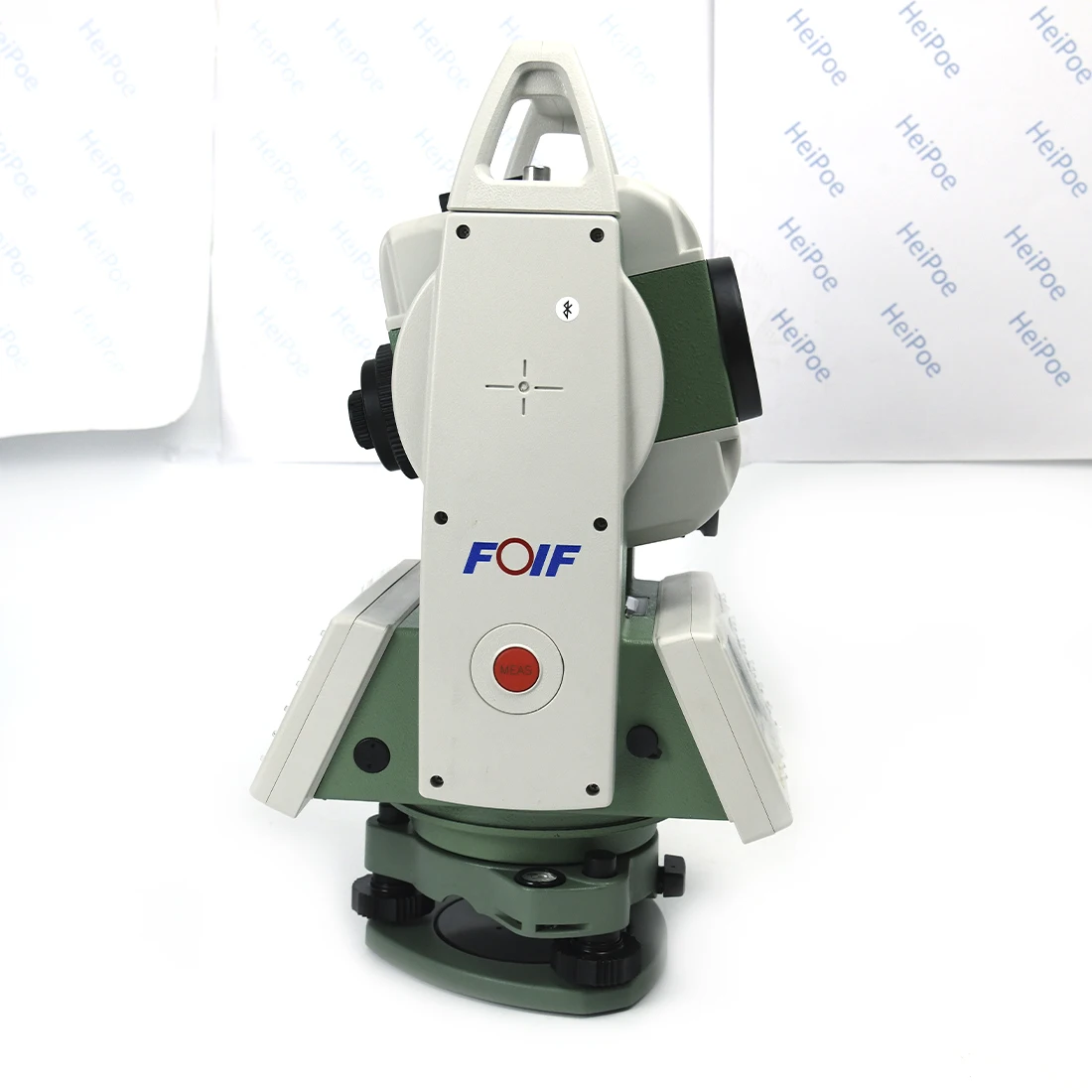

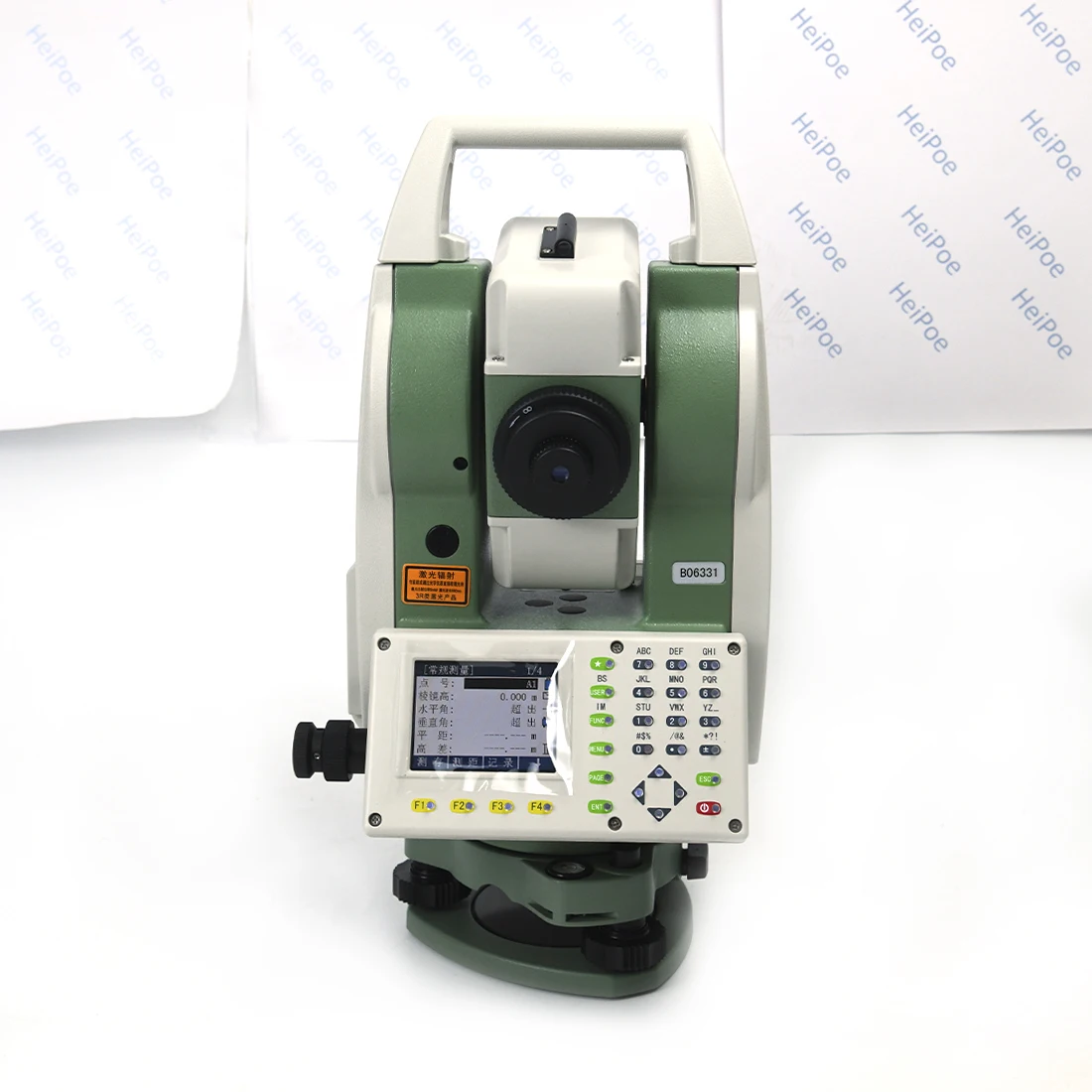

FOIF RTS342 English 600m reflectorless Windows CE Total Station with Color Screen &RS232C
FOIF RTS342 English 600m reflectorless Windows CE Total Station with Color Screen &RS232CProducts Description| RTS342 Wince Manual Total Station |
| RTS342 series total station is the company's latest launch of all Chinese digital key total station, built-in large capacity memory and a variety of application measurement program, powerful, stable performance, easy to use. With line calculation, the function is suitable for building lofting, road lofting, terrain cadastral survey and control point measurement work. |
Product characteristics
1.500~1000m prism-free range measurement; 2. Red and green guiding light to improve lofting measurement efficiency;3. laser pointing, not ranging automatically open, easy to look at the target in the dark environment;

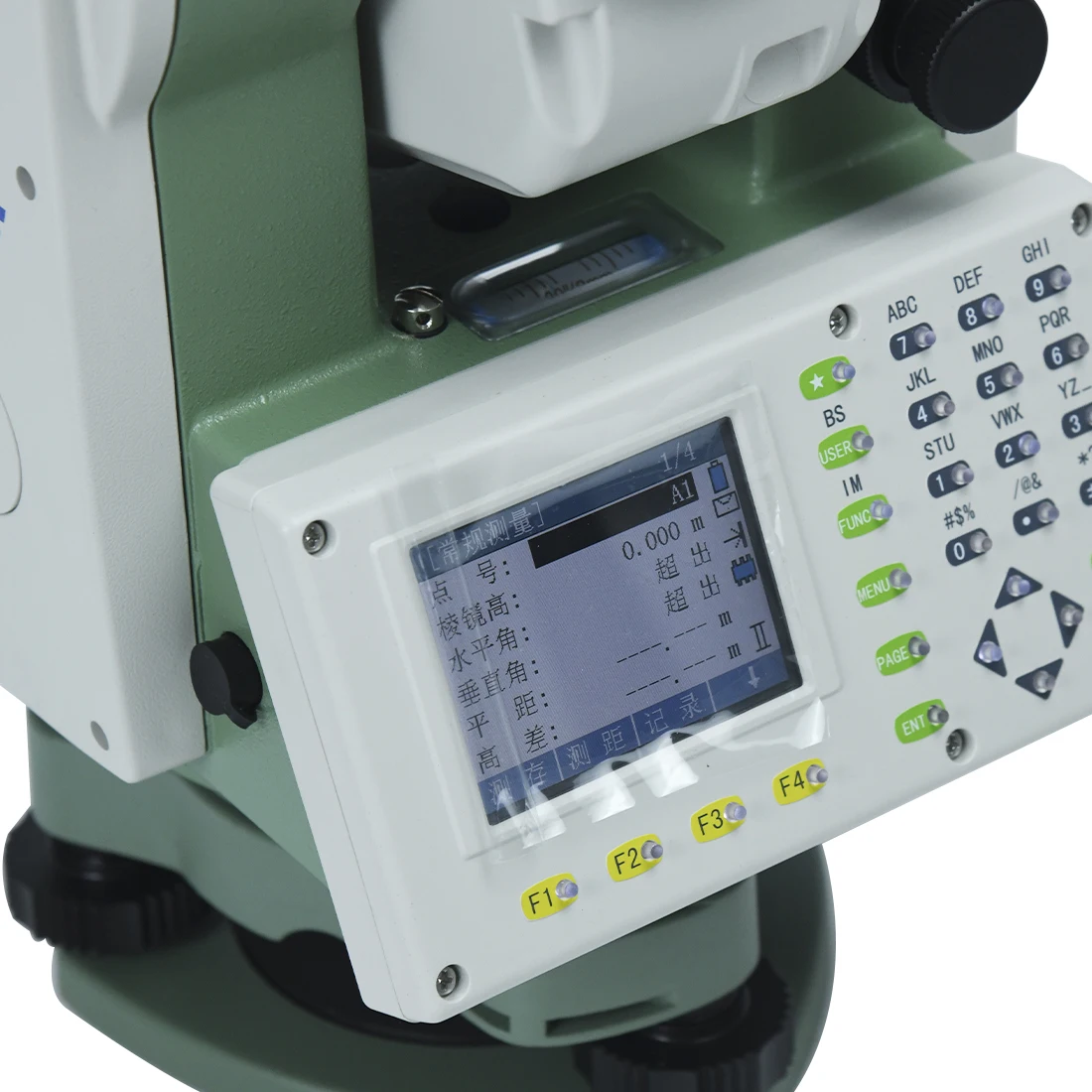

4. 2.7-inch high and true color screens on both sides with strong light;
5. Laser centering device, clearly visible in sunlight, adjustable brightness;
6. Large memory, with 4G; SD card expansion is supported.
Specification| Technical data | |
| Telescope | |
| Length/ Image | 156mm/ Erect |
| Objective aperture | 45mm |
| Magnification/ Resolution | 30x/ 3.75” |
| Field of view | 1°30’ |
| Shortest focus distance | 1.0m |
| Angle measurement | |
| Reading system | Absolute encoder (Diameter detecting) |
| Angle unit | 360°/400gon/6400mil, selectable |
| Display resolution | 1”/5”/10”(or 0.2/1/2mgon) |
| Accuracy* | 2” |
| Distance measurement (R800) | |
| Display resolution(m/inch selectable) | 0.1mm/1mm |
| Laser class Prism | Class 1 |
| Reflectorless/Reflective sheet | Class 3R |
| Measurement range (Good condition)* | |
| Reflectorless* | 1 to 800m |
| Reflective sheet/ RP60 | 1 to 800m |
| Single prism | 1 to 5000m |
| Accuracy | |
| Prism | 2mm+2ppm |
| Reflective sheet/ RP60 | 3mm+2ppm |
| Reflectorless | 1-200m: 3mm+2ppm/≥200m: 5mm+3ppm |
| Measuring time | Initial: 2s |
| Prism | typ.1.0-1.5s |
| Reflective sheet/ RP60 | typ.1.5s |
| Reflectorless | typ.1.5-5s, max.20s |
| Level vial sensitivity | |
| Plate level vial | 30"/2mm |
| Circular level vial | 8"/2mm |
| Compensator | Dual-axis compensator |
| Working range | ±3" |
| Setting accuracy | 1" |
| Laser plummet(Standard)* | |
| Accuracy | ±1mm/1.5m |
| Laser class | Class 2/IEC60825-1 |
| Laser brightness | Adjustable |
| Laser wave length | 635nm |
| H&V drive | Clamps for RTS340series |
| Display | Colour QVGA screen(240×320dots) |
| Power | |
| Battery | 3400mAh Li-ion Rechargeable |
| Output voltage | 7.4VDC |
| Continuous operation time | Over 8hours |
| (single distance measurement every 30 seconds) | |
| Charger | FDJ6-LI(100V-240V) |
| Chargering time (at+20) | Approx.4hours |

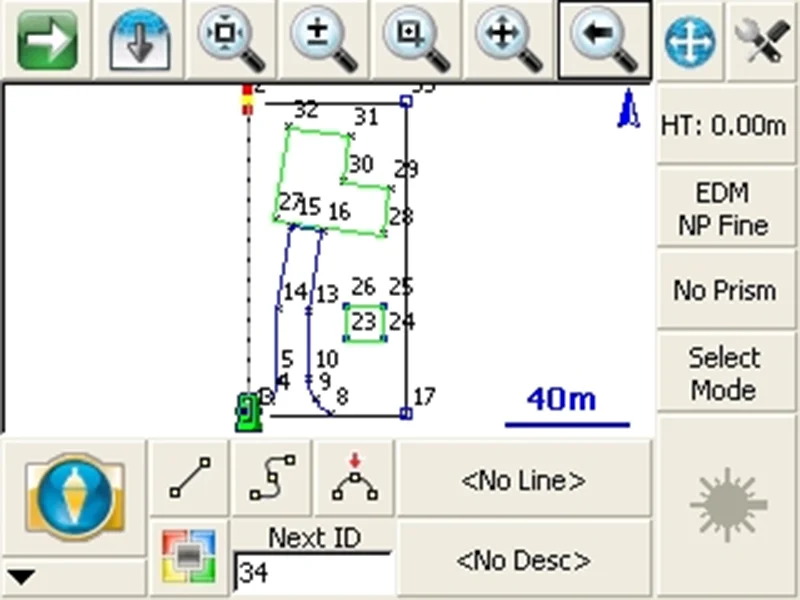

| Application progarms | |
| Data collection/Stake out/Resection/REM/MLM AREA/Point to line/Z coordinate/OFFset/ROAD/Tranverse | |
| Others | |
| CPU | 32Bit |
| Memory | 4G internal memory(SD extendable,hot-plug supported) |
| Sensors | Built-in temperature and pressure sensors |
| Keyboard | Alphanumerucal keyboard on both sides,LED backlight |
| Weight(including batteries) | 7.0kg |
| Operating temperature | -20℃to+50℃ |
| Storage temperature | -40℃to+70℃ |
| Interface | USB/RS-232C/Blue tooth(Optional) |
| Water and dust protection | IP55(IEC60529) |
| Data collector | F52G or PS236,fully rugged PDA (Optional) |
