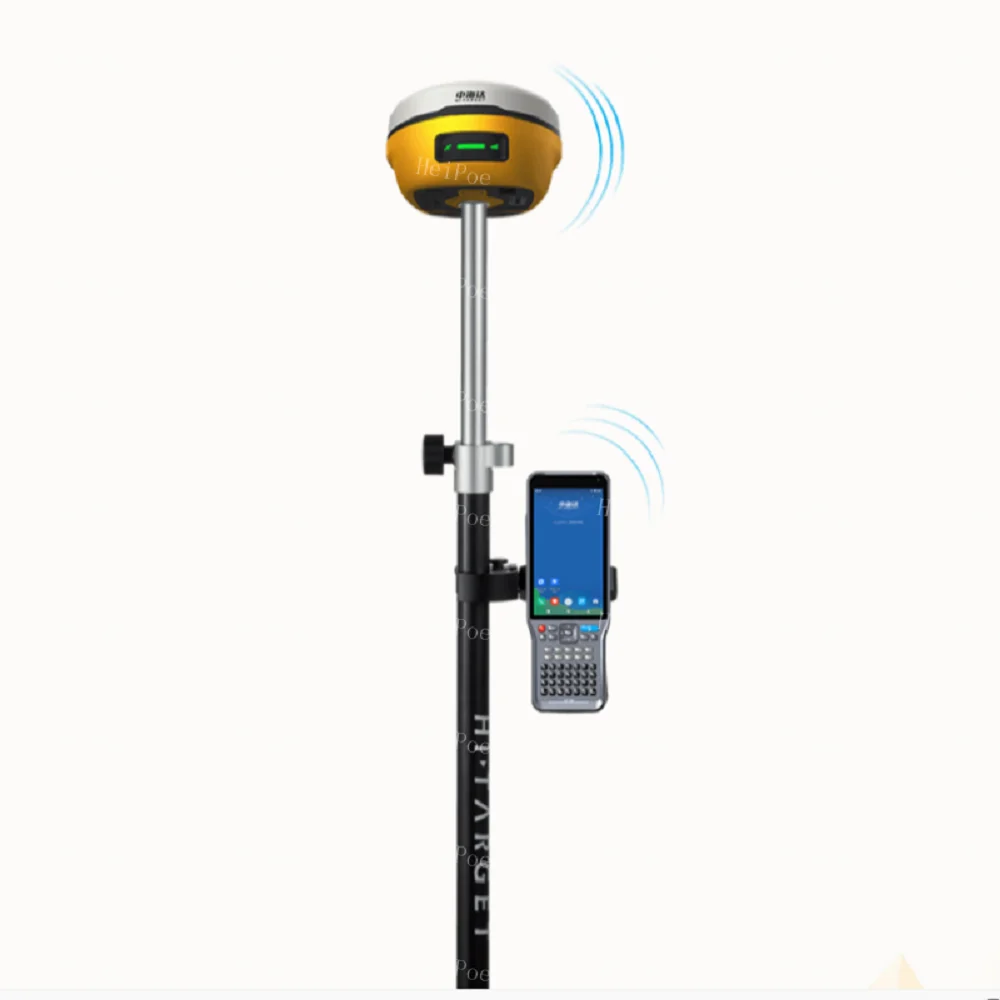

Hi target V5 1408 Channel RTK Survey Instrument Base and Rover GNSS Linux operat

Product Description

GNSS configuration

Number of channels：1408

BDS ： B1I，B2I，B3I，B1C，B2a，B2b*

GPS ： L1C/A，L1C，L2P(Y)，L2C，L5

GLONASS ： L1，L2

GALILEO ： E1，E5a，E5b，E6*

QZSS ： L1，L2，L5，L6*

IRNSS ： L5*

SBAS ： L1，L2，L5

Output format: ASCII: NMEA-0183, binary code

Positioning output frequency: 1Hz ~ 20Hz

Static data format: GNS, Rinex dual format static data

Differential format: RTCM2.X, RTCM3.x

Network mode: VRS, FKP, MAC; Support NTRIP protocol

System Configuration

Operating system: Linux operating system

Data storage: built -in 8GB ROM, support static data automatic circulation storage

Accuracy and reliability

RTK positioning accuracy: Plane: ± (8+1 × 10-6d) mm (D is the distance between the measured point)

High program: ± (15+1 × 10-6d) mm (D is the distance between the measurement point)

Static positioning accuracy: Plane: ± (2.5+0.5 × 10-6d) mm (D is the distance between the measurement point)

High program: ± (5+0.5 × 10-6d) mm (D is the distance between the measured point)

DGPS positioning accuracy: Plane accuracy: ± 0.25m+1ppm; high program accuracy: ± 0.50m+1ppm

SBAS positioning accuracy: 0.5M

Image sample accuracy: typical accuracy: 2cm

Image measurement accuracy: 2cm ~ 4cm

Initialization time: <10 seconds

Initialization reliability:> 99.99%

Break -point continuity: RTK measurement is still available during differential signal interruptions

Camera

Pixel: Professional dual high -definition camera, 2MP & 5MP

Function: Support real -world release, image measurement, operating distance of 2 ~ 15M

Communication unit

I/O port: USB Type C interface; SMA interface

Honeycomb movement: built -in ESIM card: containing 3 years of traffic, starting is high precision

Built-in 4G network communication: TDD-LTE, FDD-LTE, WCDMA, TD-SCDMA, EDGE, GPRS, GSM

WiFi Communication: 802.11 B/G access point and client mode, which can provide WiFi hotspot services

Bluetooth communication: Bluetooth® 4.0/2.1+EDR, 2.4GHz

Built -in full protocol radio station: Power: 0.5W/1W/2W adjustable

Frequency band: 410MHz ~ 470MHz

Agree： HI-TARGET，TRIMTALK450S，TRIMMARKⅢ，TRANSEOT，SOUTH，CHC，SATEL

Number of channels: 116 channels (16 of which can be configured)

HDL460A Radio: Power: 10W/30W adjustable, frequency band: 403 ~ 473MHz

Agree： HI-TARGET，TRIMTALK450S，TRIMMARKⅢ，TRANSEOT，SOUTH，CHC，SATEL

Number of channels: 116 channels(16 of which can be configured)

Transmission rate: 19.2kbps, 9.6kbps adjustable

Sensor

Electronic bubble: realize intelligent pairs

Siller measurement: built -in high -precision habit, automatic posture compensation

User Interface

Button: single button

LED reminder light: satellite light, signal light, power light

Functional application

Advanced function: NFC Flash Lian, webUI interaction, U disk firmware upgrade

Intelligent application: intelligent voice, function self -examination

Remote service: message push, online upgrade, remote control

Cloud service: equipment management, location service, cooperative operation, data analysis

Physical characteristics

Host battery: 7000mAh of high -capacity lithium batteries, working hours for 15 hours [4]

External power supply: USB 15W charging

Size: φ130mm × 80mm

Weight: ≤0.97kg

Power consumption: 2.6W

Material: The shell is made of magnesium alloy material

Environmental character

Dust -proof waterproof: IP68

Anti -drop: 2 meters high high test rod naturally falls naturally

Relative humidity: 100%not condensed

Work temperature: -45 ℃ ~+75 ℃

Storage temperature: -55 ℃ ~+85 ℃
