400W MPPT Solar Charger Controller Step-up/Step-down Real-time Monitoring 10~30V

Product Description

This MPPT step-down real-time tracking solar battery recharging controller with the LED display, and the output voltage can be adjusted, and suitable for le-ad-acid, lithium-ion and other batteries in line with 10~30V recharging voltage. Come on and try it, it will not let you down.

Features:

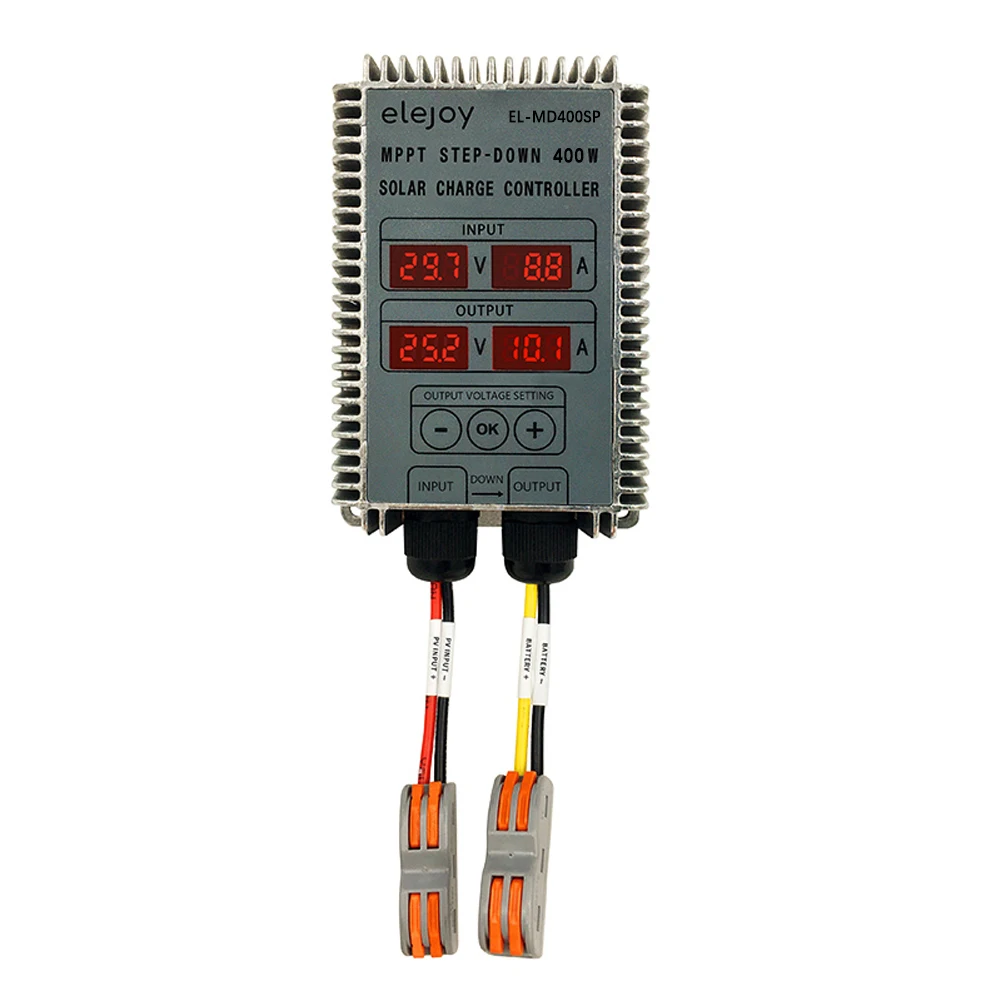

With the LED display to show the input and output current and voltage, you can see the data more clearly.
The output voltage can be adjust between 10~30V, you can choose the suitable for your needs.
Suitabe for the le-ad-acid, lithium-ion and other batteries in line with 10~30V recharging voltage.
Efficient MPPT real-time tracking function, give you a better using experience.
Overheat protecting function: When the internal ambient temperature of the MPPT controller exceeds 100℃, the output power of the MPPT controller will be reduced. If the internal ambient temperature continues to rise to 110℃, the output of the MPPT controller will be automatically turned off. When the internal ambient temperature of the MPPT controller falls below 85℃, the MPPT controller will automatically resume operation.
Short circuit protecting function: when the MPPT controller output comes unexpected short circuit, MPPT controller will automatically close the output, the short circuit will automatically return to normal after elimination.
Input under-voltage protecting: when the MPPT controller input direct current voltage is lower than 15V, MPPT will protective shutdown, the input voltage is normal automatically resume work.

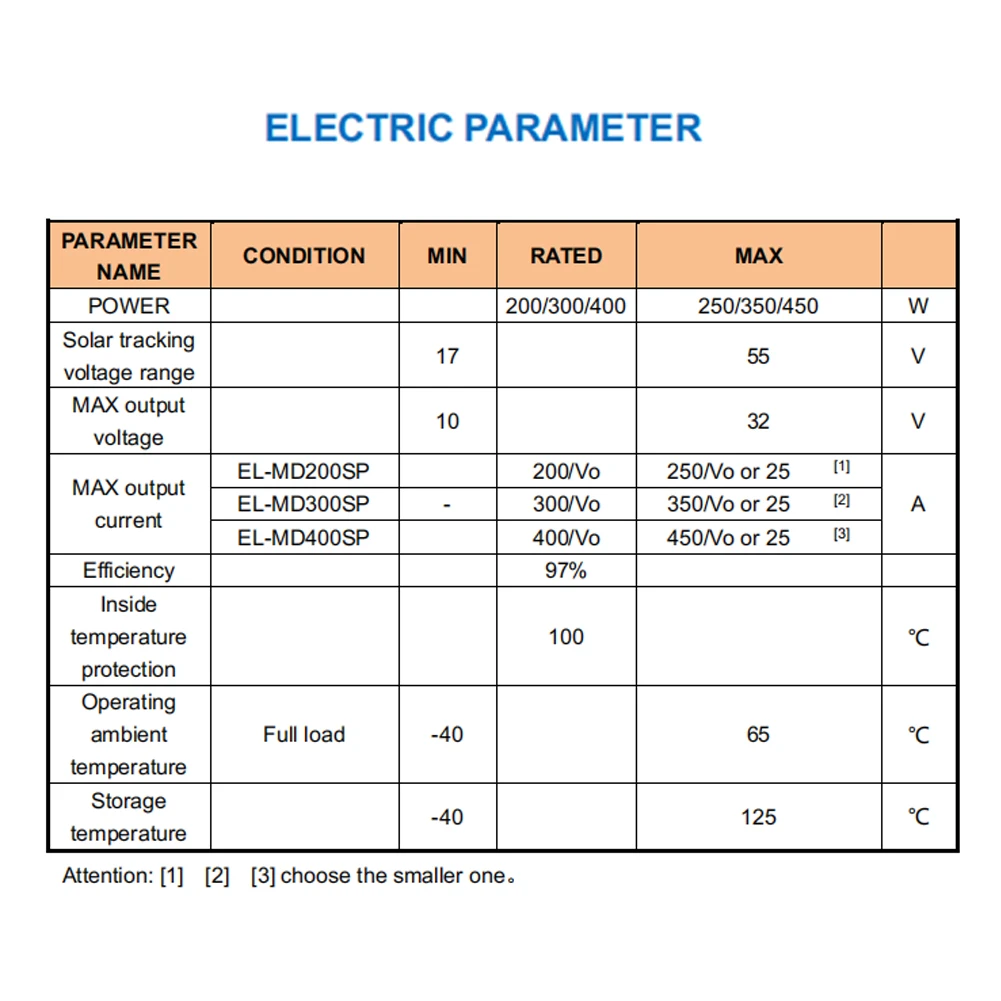

Specifications:
Material: aluminum
Suitable for: the battery of recharging voltage between 10~30V
Suitable solar panel:
The open circuit voltage: 18V~55V
Maximum power voltage: 17V~55V
Output power: 200W, 300W, 400W (optional)
Photovoltaic input starting voltage: 18V~55V
Photovoltaic input tracking voltage: 17V~55V
Output to the battery voltage: 10~30V (adjustable)
Output to the battery current: Max.25A
No-load loss: 0.35w

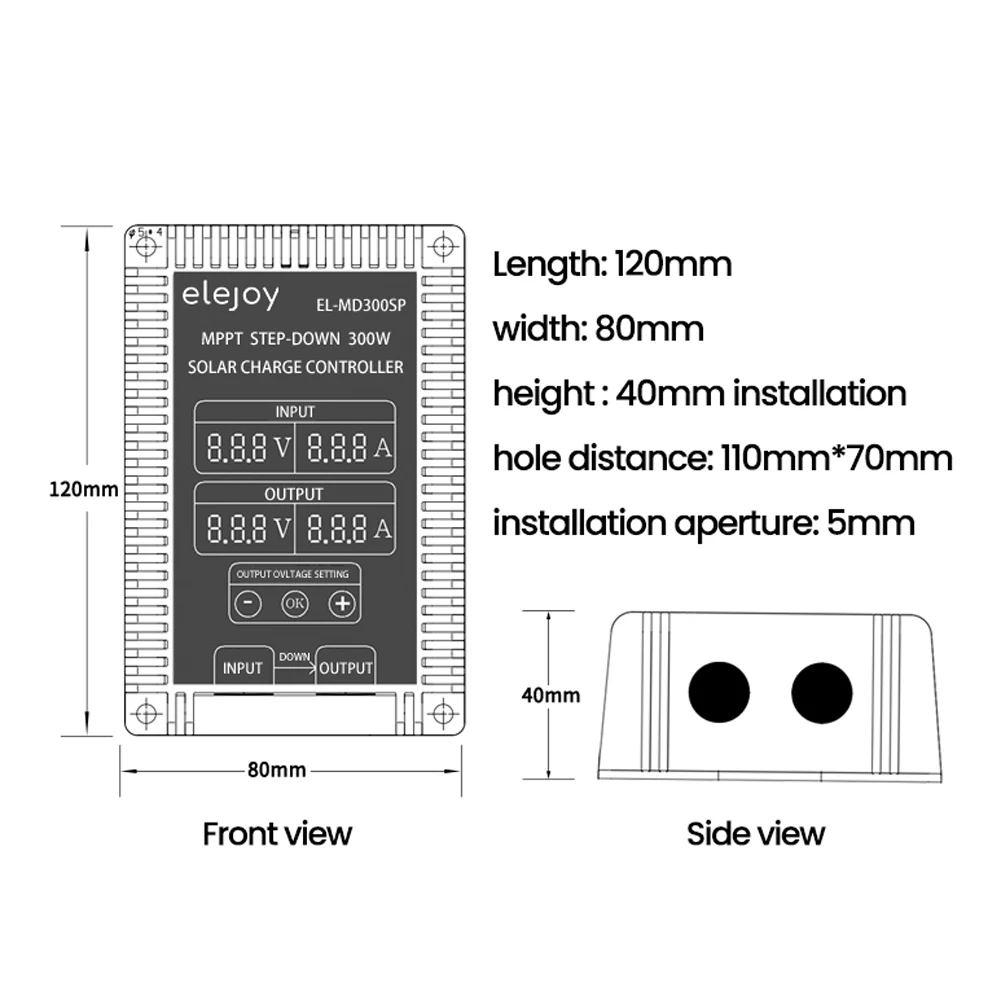

The pi-tch of the installation: 110mm * 70mm
Installation hole diameter: 5mm
Voltage adjustment rate: 1%
Load adjustment rate: 1%
PWM conversion efficiency: 97%
MPPT efficiency: 99%
Working temperature: -40℃~65℃
Install line length: 50mm
Item size: 130 * 80 * 40mm / 5.1 * 3.1 * 1.6in
Item weight: 450g / 1.0lb
Package size: 160 * 90 * 50mm / 6.3 * 3.5 * 2.0in
Package weight: 500g / 1.1lb

Packing list:
1 * Solar Recharge Controller (Optional)
