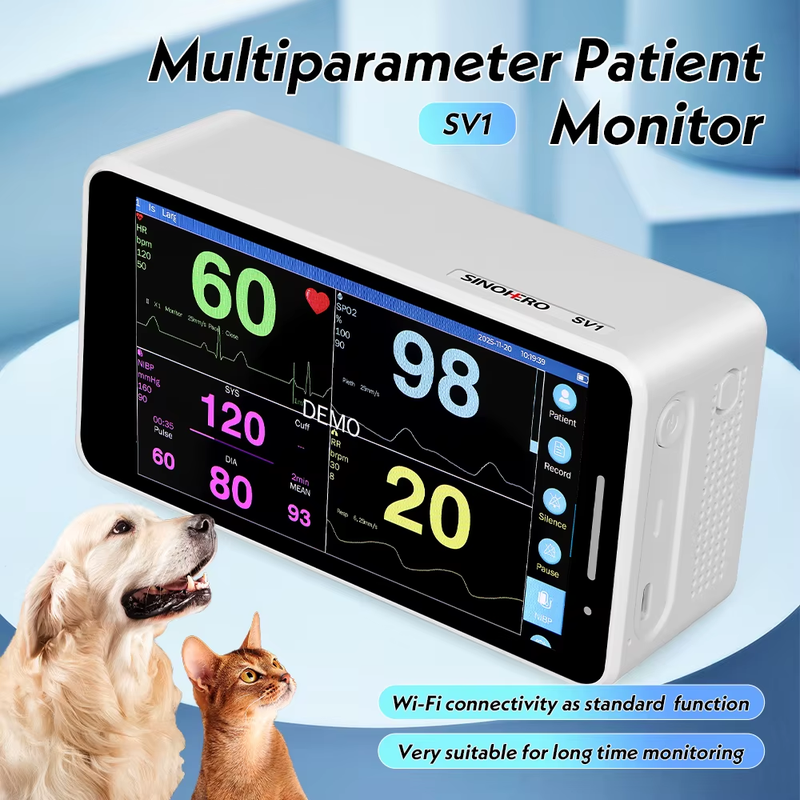

Veterinary Monitor Intelligent Portable 5.5inch Touch Screen Patient Monitor Vet

Product Description

Instructions：

SV1 is a Professional Veterinary Monitor,it engineered to be completely veterinarian specific system,used for monitoring of cat, dog and other big animals. It Unique develop SpO2, NIBP and ECG technology for the veterinary,ensure good reading and accurate during different situation from big to small animals.

Color 5.5 inch Full touch color screen allows for easy-to-view vital signs monitoring at a glance, for your convenience all operation by touch only, no other hard key. It can also support different sliding screen operation. In addition, it can be connected to the central monitoring system via wired/wireless network so as to form a network monitoring system.

Application：Use for Animals Clinic& Hospital,Suitable for felines, canines and other big animals,all veterinarians could use it.

Feature:

1)5.5" Touch Screen Color Display,Three display interfaces (standard interface, large font, special interface for blood oxygen and blood pressure)

2)Full capacitive screen operation, easy to use ,Remote monitoring, central monitoring.

5)Lithium battery power supply, long working hours

6)Professional:SV1 engineered to be completely veterinarian specific system, using only veterinary measurement accessories that are designed and tested only for animals.

7)Accurate:Unique develop SpO2, NIBP and ECG technology for the veterinary, ensure good reading and accurate during different situation from big to small animals.

8)Reliable:Constructed by sturdy materials case highly resist for critical environmental influence, also reduces electromagnetic

interference that disrupt measurements, very suitable for

long time monitoring.

9)Smart:Smart and user-friendly operation system, human voice reminder if alarm occur.

10)Simple:Color 5.5 inch Full touch color screen, for your convenience all operation by touch only, no other hard key. It can also support

different sliding screen operation.

11)Cost-effective:Caring for the companion animals,super pricing ratio and special policy support made it affordable for all the veterinarian..

12)Portable:Compact and ergonomic design,small in size but big in capacity,with long life rechargeable battery it can be easily put into the carry bag and take to anywhere in need.

13)Connectivity:Wi-Fi connectivity as standard function, patient vital signs data can be view by CMS or APP in phone. (Your Own APP open for SDK)

Performance:

Display

● 5.5" touch LCD

● Resolution:1280x720 pixels

Battery

● 5250mAh 3.7V rechargeable battery

● Operating time after full charge is more than 300 minutes

● 5V, 2A charger

● Maximum charging time is less than 2hours.

Environment

● Temperature

Working: 0 ~ 40 ℃

Storage: -20 ~ 50 ℃

● Humidity

Working: 15% ~ 90 %

Storage: 15% ~ 90 % (no coagulation)

ECG

● Lead mode

3 Leads: RA、LA、LL; lead mode: I, II, III

5 Leads: RA、LA、LL、RL、V; lead mode: I, II, III, AVR,

AVL, AVF, V

● Gain: 0.25mm/mV, 0.5mm/mV, 2.5mm/mV, 5.0mm/mV,

10mm/mV, 20mm/mV

● Heart rate

Measure range: 15~350bpm

Accuracy: ±1% or ±1bpm

Resolution: 1 bpm

● Sensitivity: > 200 μV P-P

● Differential Input Impedance: > 5 M ohm

● Bandwidth

Surgery: 1 ~ 20 Hz

Monitor: 0.5 ~ 40 Hz

Diagnostic: 0.05 ~ 130 Hz

● CMRR

Diagnostic Mode: >90 dB

Monitor Mode: >90 dB

Surgery Mode: >90 dB

● Electrode offset potential: ±300mV

Respiration

● Method: Impedance between RA-LL

● Respiration Impedance Range: 0.3~3Ω

● Base Impedance Range: 200Ω~4000Ω

● Bandwidth: 0.1 ~ 2.5 Hz

● Respiration Rate

Measurement Range: 0~150BrPM

● Resolution: 1 BrPM

● Accuracy: 2 BrPM

NIBP

● Method: Oscillometry

● Measure mode: Manual, Auto, Continuous

● Measuring range:

Large animals: 10~280mmHg

Small animals: 10~220mmHg

● Static pressure accuracy: 3mmHg

● Resolution: 1mmHg

● Accuracy

Maximum Mean error: 5mmHg

Maximum Standard deviation: 8mmHg

● Overpressure Protection:

Large animals: 300mmHg

Small animals: 240mmHg

SpO2

● Measurement Range: 0 ~ 100 %

● Resolution: 1 %

● Accuracy

70% ~ 100%: ±2 %

<69%: unspecified

Pulse Rate

● Measure and Alarm Range: 20~250bpm

● Resolution: 1bpm

● Accuracy: 3bpm

Temperature

● Channel: 2

● Measure and Alarm Range: 0 ~ 50℃

● Resolution: 0.1℃

● Accuracy(no sensor): ± 0.1℃(0~ 50℃)

Physical characteristic

● Product Size:153*83*59mm

● Product weight: 0.25Kg

● Packing size: 260*195*108mm

● Packing weight: 1.3kg

Package included:

1X SV1 Veterinary Monitor

1X Digital veterinary tongue-clip SpO2 probe (3 m)

1X Animal NIBP cuff (6~11 cm)

1X NIBP extension tube

1X ECG lead cable

1X ECG electrode

1X TEMP probe

1X Power cord

1X User Manual

Optional（if you need Optional Parameters,please contact us to chat about）

● EtCO2, APP, CMS
