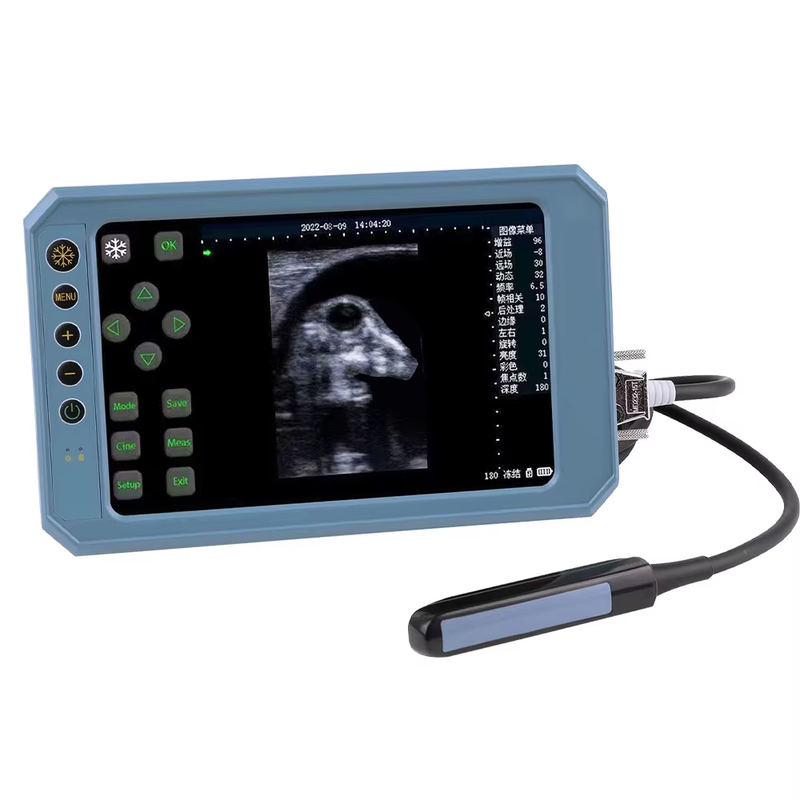

T6 Machine Veterinary Ultrasound Vet B-Ultra Pregnancy Machine Portable veterina

Product Description

Instructions:

T6 veterinary portable ultrasound Machine Palm pig sheep cow horse pregnancy Ultrasound system Test Pregnance, numbers of births, Uterine disease

T6 is a handheld ultrasound scanner with total waterproof design, is becoming the ideal ultrasound scanner for all veterinary ultrasound scanning(bovine, equine, swine, ovine and small ruminants), extremely suitable for fast and reliable livestock pregnancy diagnosis, meat quality, sexing, dairy farm reproduction and herd fertility and disease test.

Application:Animal Ultrasound Scanner USG Cattle Portable Sonar Machine Horse Pregnancy Test Cow Farm Heat Detection Rectal Probe Breeding. The extremely light weight and power efficiency makes it very helpful in Animals pregnancy diagnoses. For veterinary pregnancy test and disease test.

User: Veterinary, farmer, breeder, veterinary clinic. Use for Pigs, Sheeps, Dogs.

Features:

1. screen can be rotated 180°, convenient for left-handed or right-handed user

2. Veterinary rectal probe without conversion box for convenient operation

3. Keys + touch screen, multiple operation modes

4. Support probes: 3.5MHz abdominal convex array probe, 6.5MHz micro-convex small animal probe, 6.5MHz veterinary rectal probe, 7.5MHz high frequency line array probe, 3.5MHz back fat probe

5. 256-frame video playback, image measurement note and save function

6. Image processing: γ correction (0-7), frame correlation (0-3), line correlation (0-5), edge enhancement (0-3), left and right flip (0-1), sixteen kinds of pseudo-color processing.

7. Accessories: shades, straps, convenient for user to operate

Technical Specification:

1. Display: 7-inch large touch display, dual internal and external screens, the external screen is a tempered glass touch screen, which is strong and durable;

2. The screen can be rotated 180 degrees, the touch foot point and the display interface are all rotated, which is convenient for the operator to use with the left or right hand;

3. Supporting probes: 3.5MHz abdominal convex array probe, 6.5MHz microconvex small animal probe, 6.5MHz veterinary rectal probe, 7.5MHz high frequency linear array probe, 3.5MHz backfat probe;

4. The veterinary rectal probe does not have a conversion box, which is more convenient to operate

5. Operation interface: 6 languages can be customized, user-friendly operation interface, quick start;

6. Button + touch screen, multiple operation modes, simple and fast;

7. Display mode: B, B+B, 4B, B+M, M;

8. Electronic focusing: four-segment electronic focusing;

9. Body position markers: ≥18 kinds;

10. Frequency conversion: any probe has a five-segment frequency conversion function;

11. Image mirroring: rotate the mirror up, down, left and right, and the interface can be flipped in black and white;

12. With image rotation function, the image can be flipped up and down, left and right;

13. Body position markers: ≥ 18 types; in addition, there is an annotation function to facilitate text and body marker annotation;

14. Conventional measurement: distance, perimeter, area, volume, angle;

15. Specialist measurement: obstetric measurement and cardiac measurement of 8 animals;

16. It has the functions of grid ruler and point ruler, which can quickly read the size of the detection target

17. Character display: gain, frequency, dynamics, date, time;

18. With 256-frame movie playback function, frame-by-frame playback and video playback, and frame-by-frame playback can select any image measurement annotation and save functions;

19. Storage: Built-in 8G storage, external U disk storage, you can browse pictures locally, and transfer the built-in pictures to U disk;

20. Dynamic range: 0-135dB;

21. Image processing: gamma correction (0-7), frame correlation (0-3), line correlation (0-5), edge enhancement (0-3), left and right flip (0-1), sixteen kinds of pseudo-color deal with;

22. Blind zone: ≤4

23. Maximum display depth: 3.5MHz: 270mm 6.5MHz: 189mm 7.5MHz: 165mm;

24. Interface: USB interface, TF card interface, VIDEO;

25. Geometric accuracy: horizontal ≤ 5%, vertical ≤ 5%

26. Resolution: lateral ≤2mm, axial ≤1mm

27. Display magnification: 16 display modes;

28. Gain range: 0～100dB;

29. Near field adjustment range: -31~0;

30. Far-field adjustment range: 0~31;

31. It has settings such as time and date, video output, TV format, button tone switch, parameter mode, standby protection, multi-language selection, and custom pregnancy weeks;

32. Battery power indicator, U disk indicator, prompt information display;

33. Large-capacity lithium battery, imported 18650 standard battery, can work continuously for about 4 hours;

34. Host size: 236x148x42mm (length x width x height);

35. Host weight: 860g;

36. Accessories: hood, lanyard, convenient for the operator to use

Physical characteristic:

Product Weight:0.86kg

Product Size: 23.6*14.8*4.2CM

Package Weight: 6.9kg

Package Size:50*50*23CM

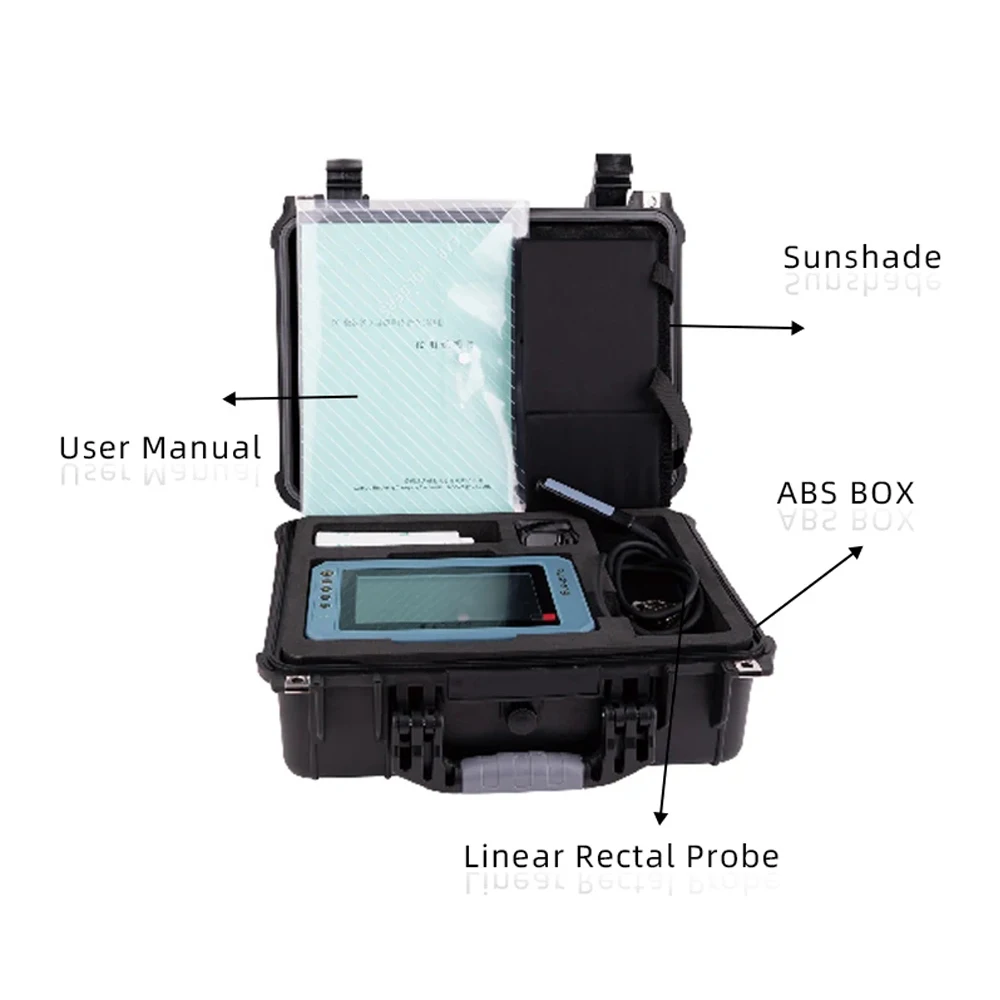

Package included:

1X T6 Veterinary Portable Ultrasound Machine

1X 7.5 MHz Rectal-Linear-Probe

1X Screwdriver

1X Lens Hood

1X Power cord

1X Power Adapter

1X Carry Belt

1X User manual

Optional configuration(If you want the Optinal items,please contact us by message):

a.7.5 MHz Rectal-Linear-Probe cattle, horse, camel and other large animals (in vivo detection)

b.4.0 MHz Rectum-Convex-Probe pig, sheep, cow, horse, camel, cat and dog (in vivo detection)

c.6.5 MHz micro-convex probe detection object-small animals such as cats and dogs basic abdominal ultrasound

d.Backfat Probe Measure the back fat probe

e.7.5 MHz linear probe detection object-pig, sheep, cat and dog (large size)

f.3.5 MHz convex probe detection object-pig, sheep, cat and dog (large size) basic abdominal ultrasound
