Product Description
Veterinary Monitor Multiparameter Patient Monitor NIBP SpO2 PR TEMP Monitoring Medical Equipment
Veterinary Monitor Multiparameter Patient Monitor NIBP SpO2 PR TEMP Monitoring Medical EquipmentInstructions：BTO-200A-VET Veterinary Monitor ,it is Professional Veterinary is capable of monitoring parameters: NIBP (non-invasive blood pressure), SpO2, PR(pulse rate), TEMP(body temperature)，PI（Perfusion Index）.
Application:It can be widely used in family pet health monitoring, pet medical institutions, veterinary clinics and small animal health examination and surgical monitoring.
Features:
1. BTO-200A for animals can be easily placed anywhere for cats, dogs, cow, horses, etc., veterinarians can measure
Blood oxygen(Spo2), pulse rate(PR), respiration(RR) and perfusion index parameters(PI) for animals by it. BTO-200A beside
oximeter support the measurement of ultra-wide heart rate range, and the measurement of ears and other parts. Ear perfusion is
often very low, the signal is very poor, software algorithm matching design can solve such
problems, it is easy to display the measurement value when wear the BTO-200A probe.

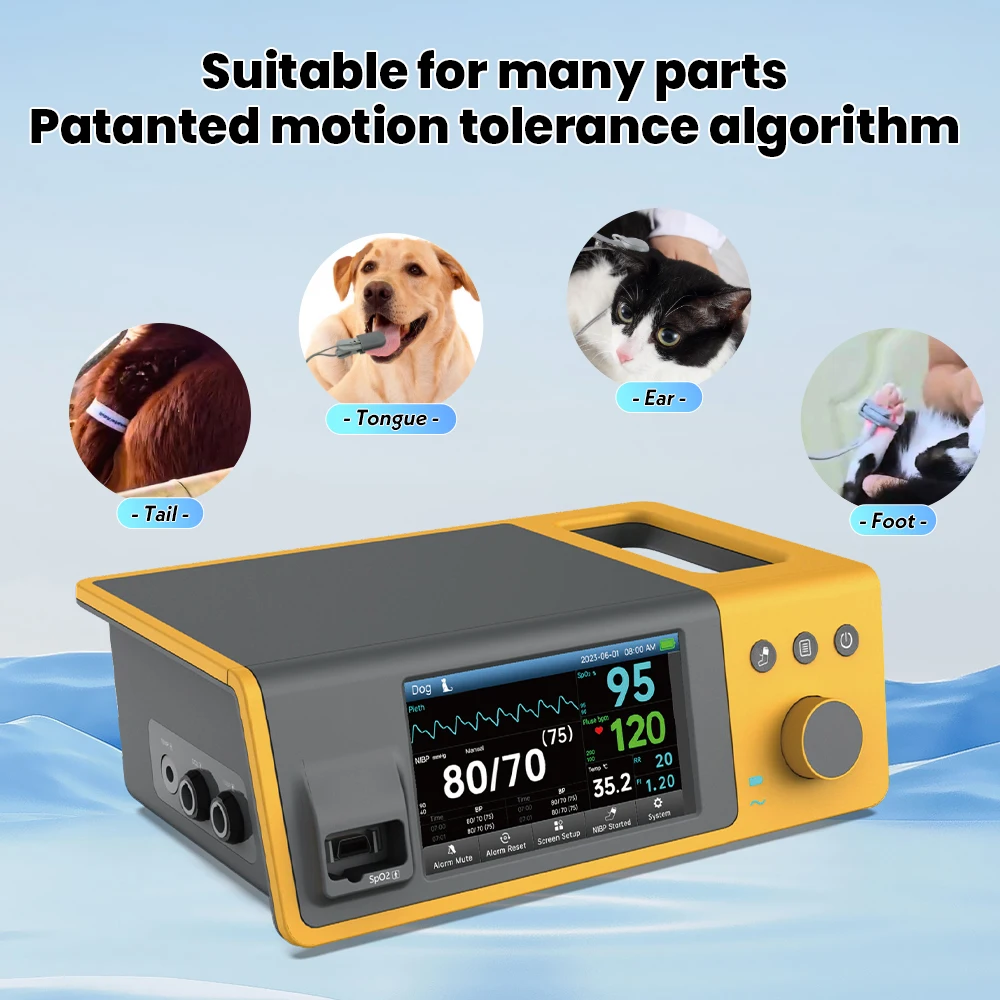

2. Suitable for a variety of animals, suitable for multiple parts measurement
Ear perfusion is often very low, the signal is very poor, BTO-200A through a special probe, software algorithm matching design can
solve such problems, it is easy to display the measurement value when wear the BTO-200A probe.
BTO-200A oximeter is also suitable for a variety of large animals, such as cow, horse and so on. Accurate blood oxygen(Spo2) and pulse rate(PR) signals can be collected by wearing probe on the tail of the cow.
The tongue of most animals is a good place to measure. BTO-200A can provide accurate data acquisition and measurement for veterinarians to determine physiological status.
Product Usage
There are many animals that cannot be worn on the tongue for measurement during detection, such as cats and rabbits. The tongues are too small, so smartly choose to wear them on the ears and other parts. However, the ears often have very low perfusion and very poor signals. Narigmed designs them through special probes and software algorithms. It can solve such problems and make it
easy to display the value when wear the probe.

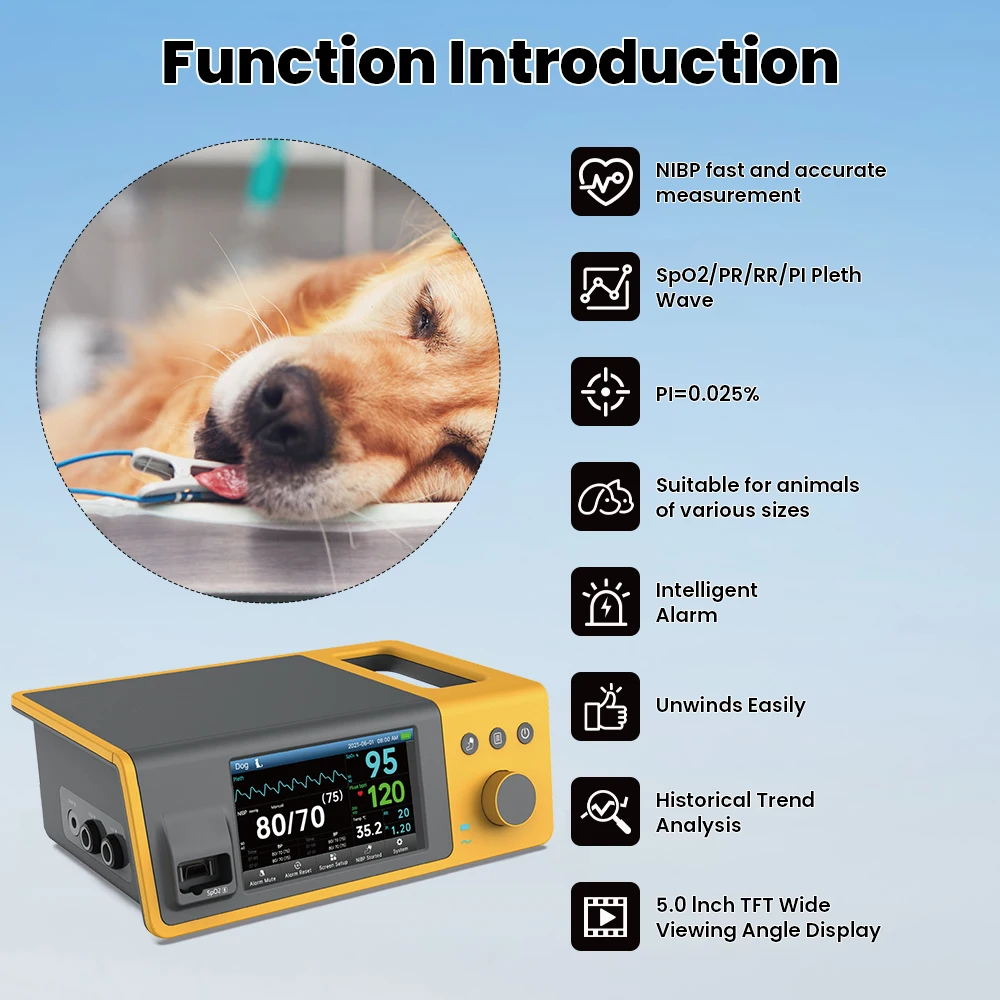

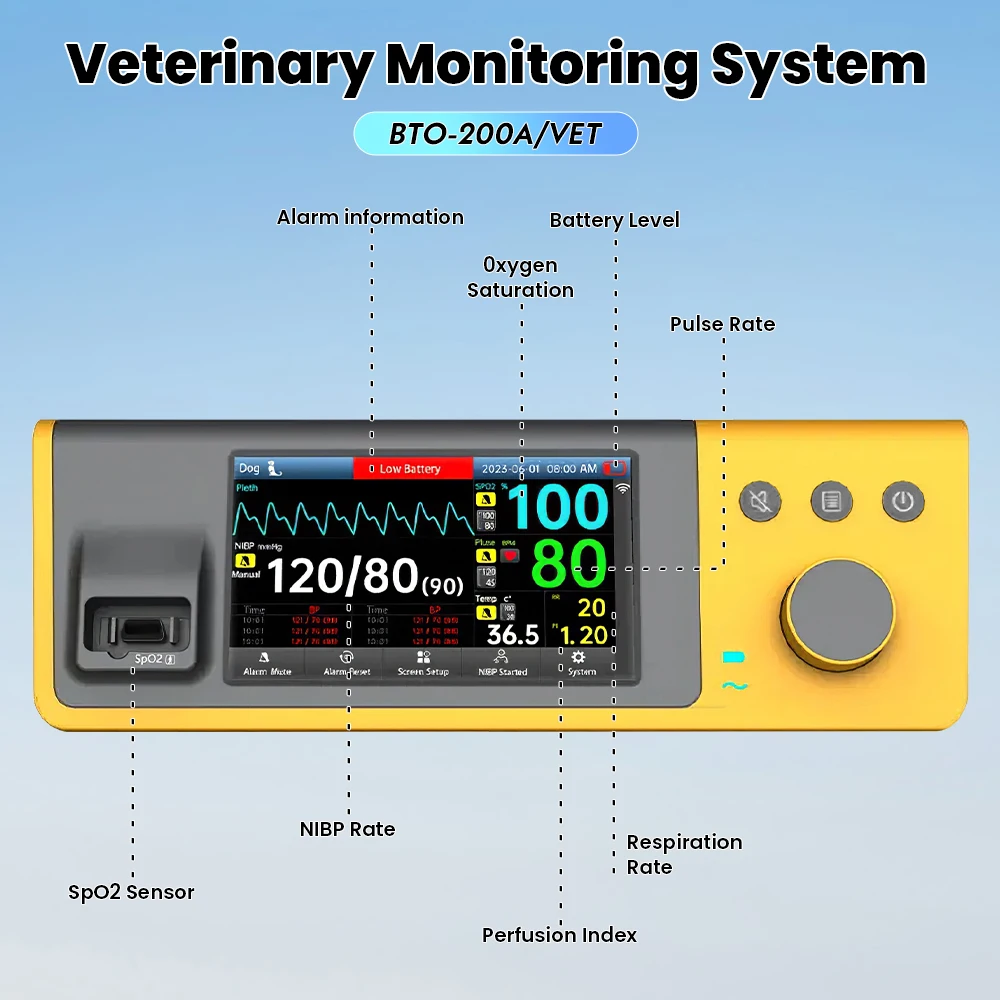

3. Four parameters (Spo2\PR\RR\PI) display, with historical trend display and alarm event query, the upgraded version also supports
blood pressure measurement.
Small size, easy to place, the product is stable and not easy to fall due to pulling, and the probe uses a SCSI interface with a
lock that is not easy to loosen.
Technical Specification:
1. Measurement Range
SpO2: 1% to 100%
Pulse rate: 25 to 300 beats per minute (bpm)
Pulse amplitude: 0.025% to 20%
Respiratory rate: 4 to70 times per minute(rpm)
Temp: 5°C to 50°C /41°F to 122°F
DBP 10mmHg to 250 mmHg/1.33kpa to 33.33kpa
SBP 25mmHg to 290 mmHg/3.33kpa to 38.66kpa
MBP 15mmHg to 260 mmHg/2.0kpa to 34.66kpa
2. Accuracy
SpO2 Saturation (%)
70% to 100% + 2 digits (no motion)
70% to 100% ± 3 digits (motion)
Low perfusion:PI>0.025% 70% to 100% ± 2 digits
Pulse Rate (bpm)
25 to 300 bpm ± 2 bpm (no motion,low perfusion)
25 to 300 bpm ± 4 bpm (motion,low perfusion)
NIBP (mmHg)
Maximum average error: ±5mmHg Maximum standard deviation: 8mmHg TEMP (C/F)
±0.1°C or ±0.2°F
Physical Identity:
Product Size:9*26*17cm
Product Weight:1.2kg
Package Size：35.5*17*22cm
Package Weight:2.1kg
Package included:
1X BTO-200A-VET Veterinary Monitor
5X Blood pressure cuff
1X NIBP extension tube
4X Oxygen sensor probe
1X Power adapter
1X User guider
