Product Description

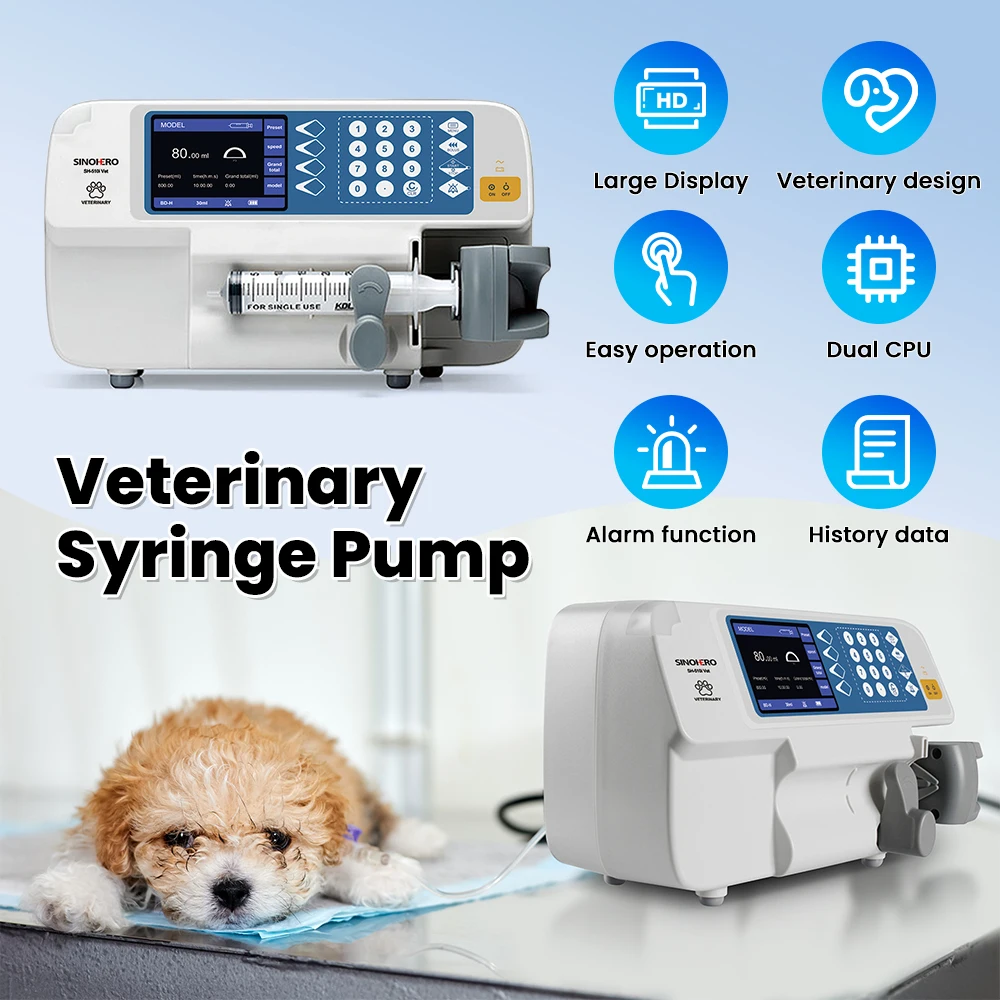

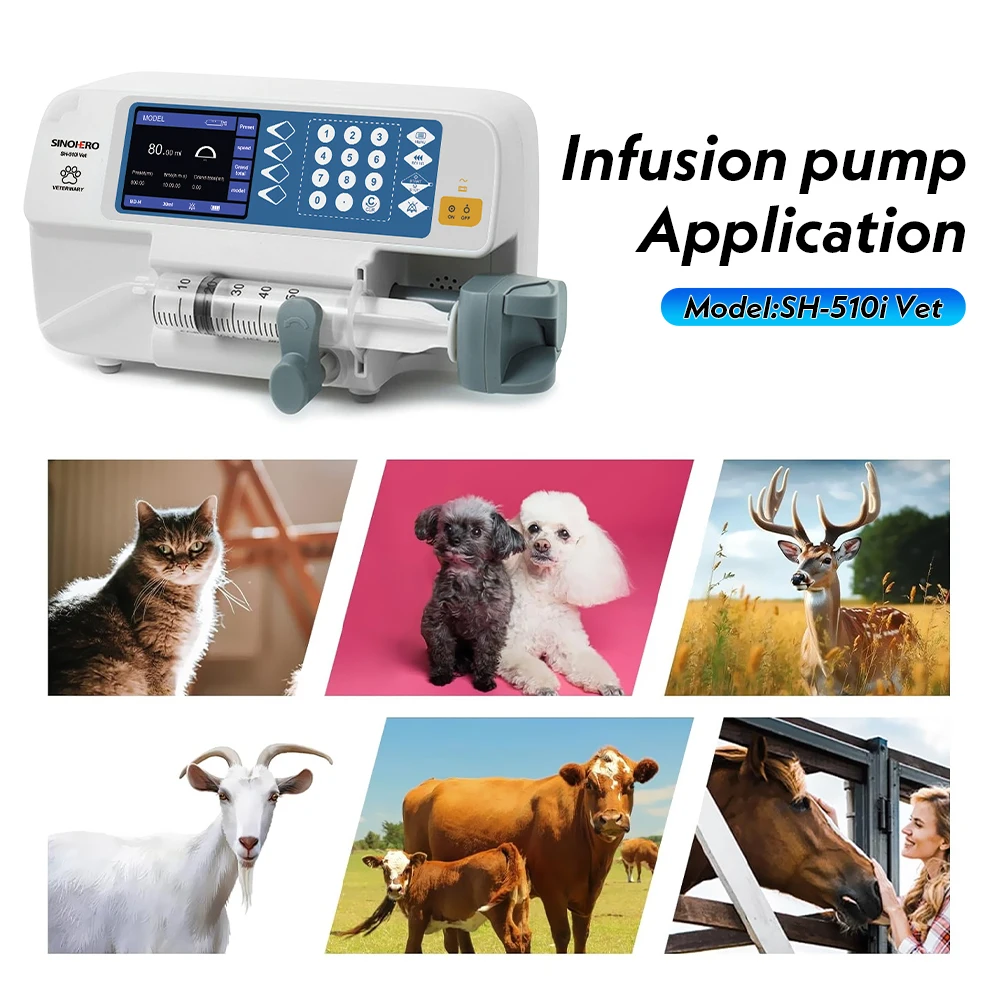

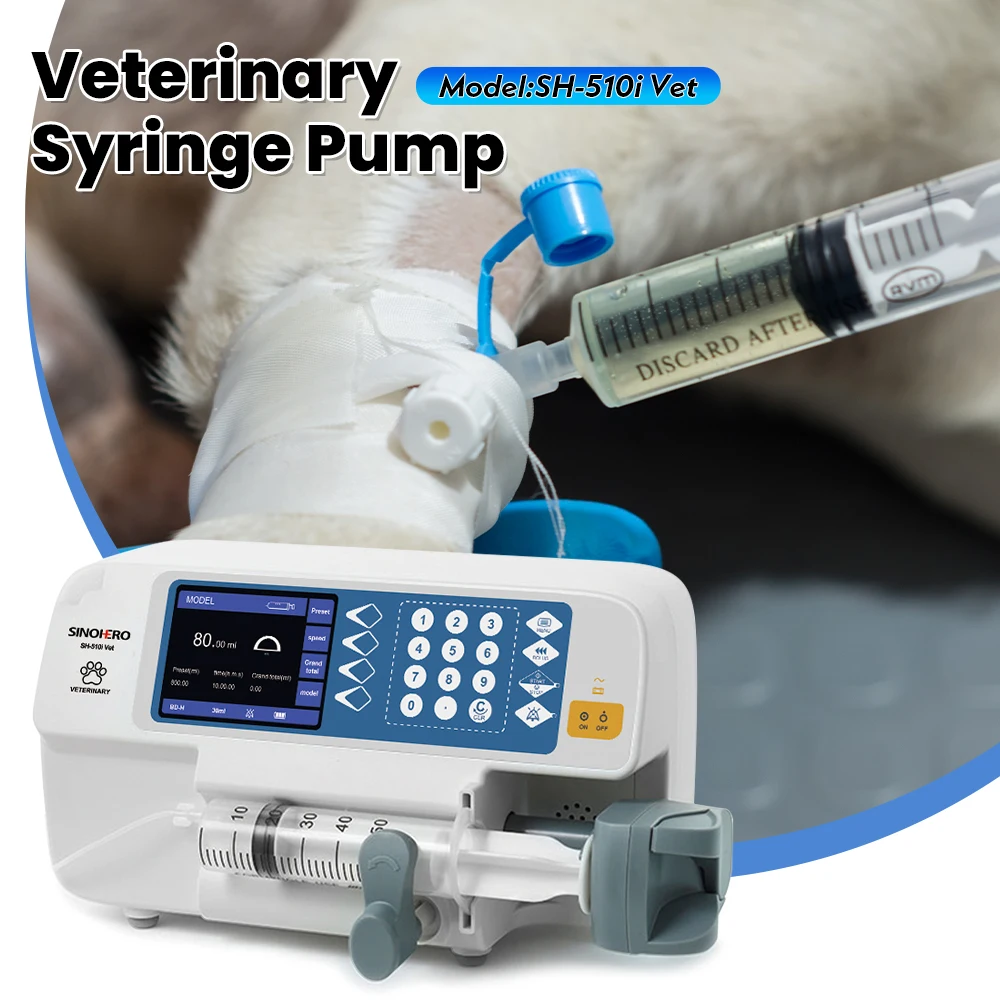

Veterinary Syringe Pump Infusion Pump 3.5 Inch LCD Auto-Recognition syringe pump Medical Machine
Veterinary Syringe Pump Infusion Pump 3.5 Inch LCD Auto-Recognition syringe pump Medical MachineIntroductionSH-510i Vet is a Veterinary syringe pump for medical use, and it adopts microcomputer system and microelectronic technology, features in high-intelligence and high-safety. LCD can display each parameter in real-time, with multi-function alarm, and alarm with visual, auditory and character prompt. It takes the advantages of easy operation, steady work, high accuracy and checking the syringe specification automatically. And now, it has been widely applied in each vein injection in hospitals for clinical nursing, such as ICU, CCU, Veterinary Hospital,Veterinary Clinic，surgery, operating room, emergency room.
Application:Intravenous injection
Features
3.5" Sharp and Large Display ensures clear view from distance
● Special veterinary design and optimization
● Users friendly interface for easy operation
● Dual CPU to ensure ultimate safety and reliability
● Various alarm function with volume adjustment lead peace of mind
● Large history data review and last configuration memory to easy review
● Upto 9 hours long battery life
Technical Specification
Injection Mode：Constant Rate 、Time mode 、 Drug Weight 、Micro、Sequential Mode
Syringe Size：5ml、10ml、20ml、30ml、50/60ml，auto-recognition
Flow Rate：
5ml：0.10ml/h-60.00ml/h
10ml：0.10ml/h-300.00ml/h
20ml：0.10ml/h-400.00ml/h
30ml：0.10ml/h-600.00ml/h
50/60ml：0.10ml/h-1200.00ml/h
Increment：0.01ml/h
Preset Time：1s-99hr59min59s
Parameter Changed during Injection：Support change of VTBI, flow rate during injection
Accuracy：≤±2%（±1% mechanical accuracy included）
Preset Volume(VTBI)：0.10-9999.99ml or empty
Accumulated Volume：0.00-9999.99ml
Purge Rate：
5ml：30.00-60.00ml/h
10ml：150.00-300.00ml/h
20ml：200.00-400.00ml/h
30ml：300.00-600.00ml/h
50ml：600.00-1200.00ml/h
Bolus Rate:
5ml：0.10ml/h-60.00ml/h
10ml：0.10ml/h-300.00ml/h
20ml：0.10ml/h-400.00ml/h
30ml：0.10ml/h-600.00ml/h
50/60ml：0.10ml/h-1200.00ml/h
KVO:0.10 -5.00ml/h adjustable
Occlusion Pressure:8 level adjustable，20Kpa-150Kpa，dynamically pressure value display.
Alarm:Finished, near finished, near empty, empty, occlusion, syringe disconnected, no operation, parameter error, syringe size error, low battery, battery lost, battery ran out,AC power lost, abnormal injection, communication error
Syringe Management:Preset 20 syringe brands, can add or edit the brand, accept all brands after calibration
Display:3.5" TFT color LCD; 10 level brightness adjustable
Power Supply:AC Power：100V-240V，50Hz/60Hz，≤45VA
Communication Port:USB,RJ45 for future use, Ethernet Port
Battery:Rechargeable Lithium battery, DC11.1V，3000mAh；
operating time: ≥9h@5ml/h
Alarm Voice:Standard Medical Alarm Voice with Mute function, 8 levels adjustable.
Event Log:10000 event log, can be transmitted to PC with USB
Software Upgrade:Upgrade the software with USB
Classification:Class II， Type CF；IPX4
Physical characteristic
Operation Environment:+5℃- +40℃
Relative humidity：20%-90%
Atmospheric pressure：70 – 106 Kpa
Dimension:Size：275mm×145 mm×160mm
Weight：2.1kg
Package included:
1X SH-510i Vet Veterinary Syringe Pump
1X Power cord
1XBracket
1X User manual
Optional Function:Double CPU, Password function, Multi Language, Pressure Release function,90 ºrotable IV pole, 4 soft function key, key lock function, numeric keypad, Pause Function, etc.
