Product Description
Veterinary Ultrasound Vet Handheld Scanner veterinary pregnancy Ultrasound Machine For sheep cow horse

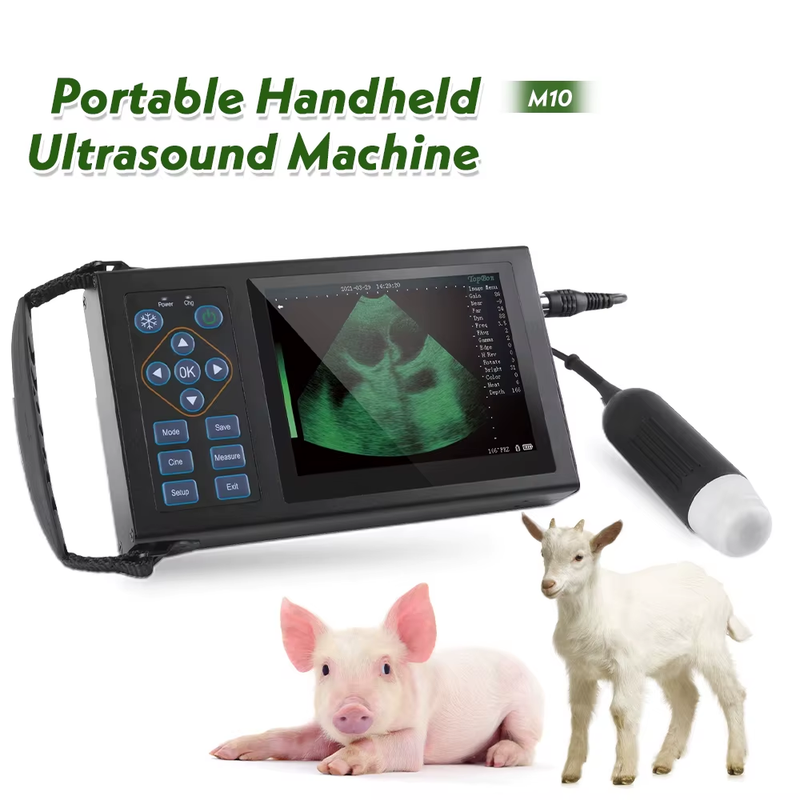

Veterinary Ultrasound Vet Handheld Scanner veterinary pregnancy Ultrasound Machine For sheep cow horseInstructions:M10 Palm pig sheep cow horse pregnancy Ultrasound Machine veterinary portable ultrasound system

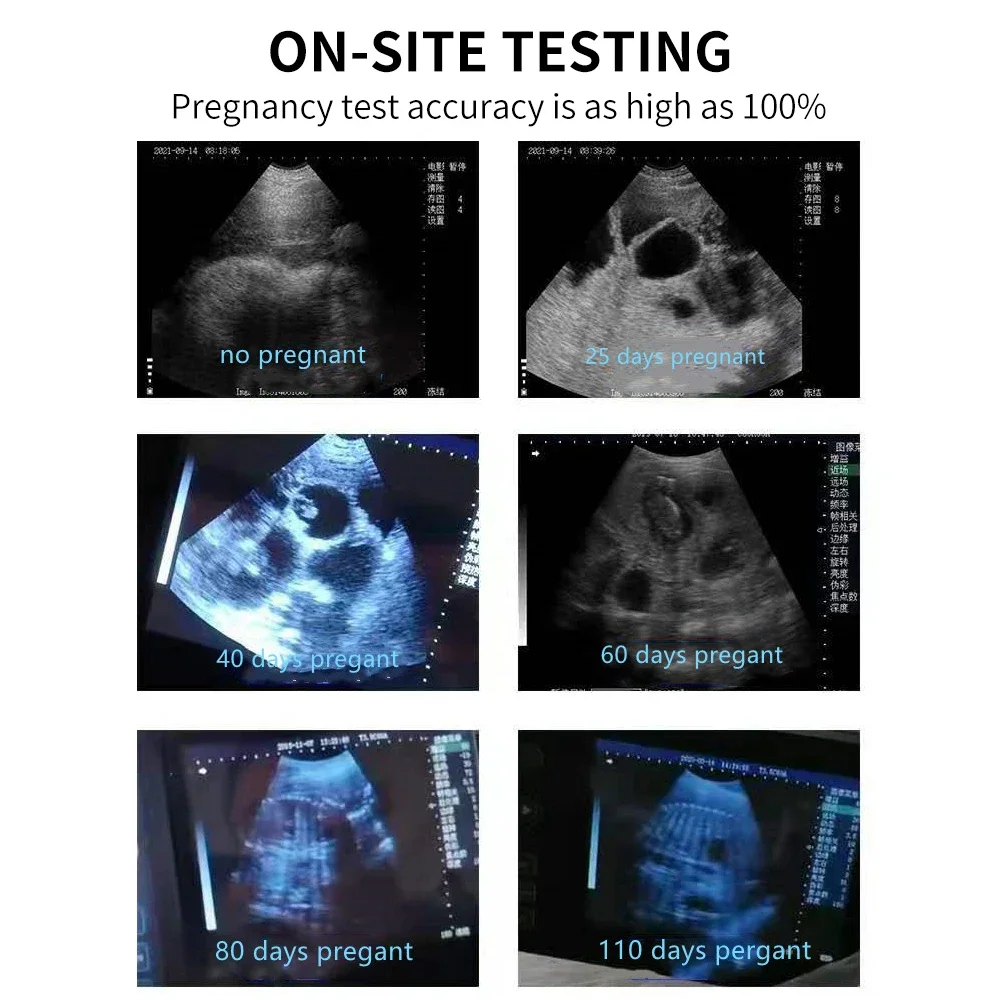

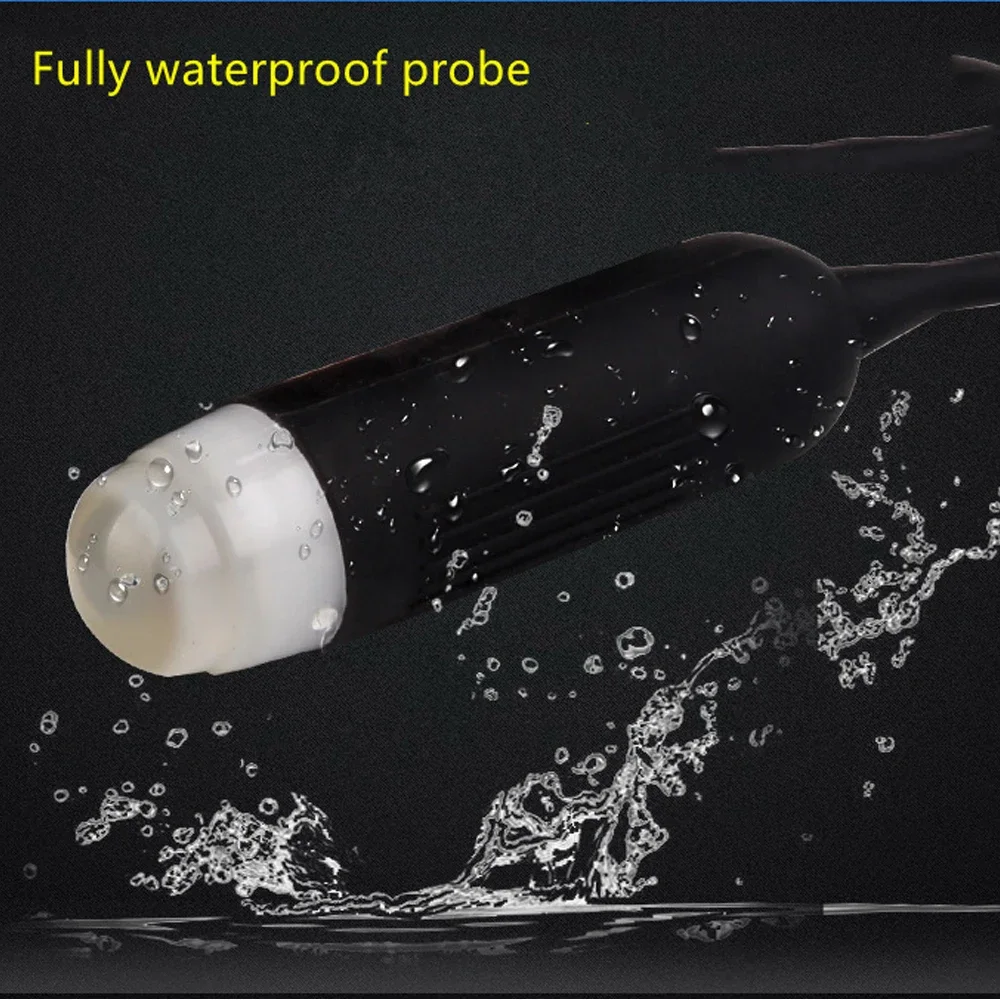

M10 is a handheld ultrasound scanner with total waterproof design, is becoming the ideal ultrasound scanner for all veterinary ultrasound scanning(bovine, equine, swine, ovine and small ruminants), extremely suitable for fast and reliable livestock pregnancy diagnosis, meat quality, sexing, dairy farm reproduction and herd fertility.
Application:The ultrasound probe is specifically designed for Animals ultrasound examinations. The extremely light weight and power efficiency makes it very helpful in Animals pregnancy diagnoses. For veterinary pregnancy test and disease test. Use for : Pigs, Sheeps, Dogs.
User: Veterinary, farmer, breeder, veterinary clinic.

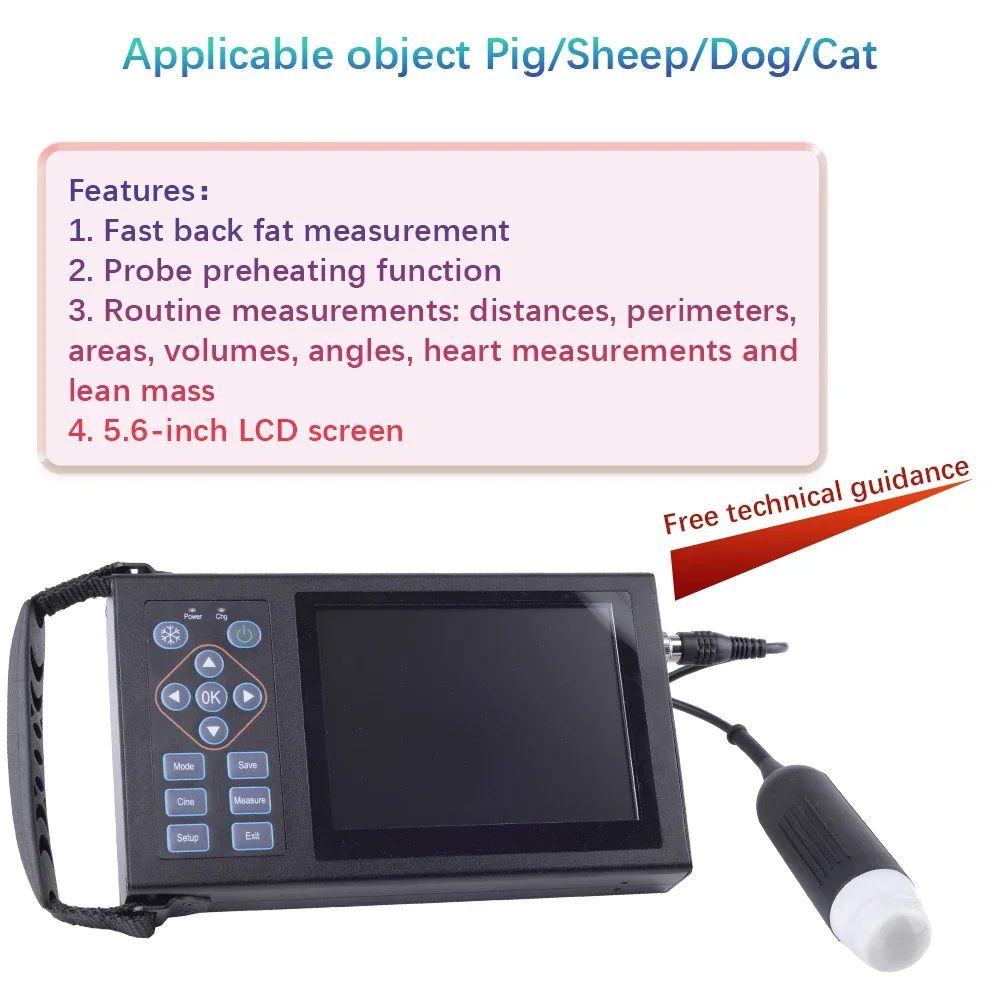

Features:
1.5.6-inch high definition LCD screen, high strength aluminum alloy metal shell.
2. Video playback function:the last test video could be played and observed, convenient for one person to operate and record videos.
3. Probe preheating function, do not need to worry about probe freeze in winter.
4. Fastly backfat function.
5. Normal power is less than 9W.
6. Permanently store tens of thousands of pictures.
7. Support external U disk, monitor,printer,etc.
8. Support multi-language customization.
9. Fast back fat measurement, high strength aluminum alloy metal shell.
10. Probe preheating function, friendly use in severe cold environments.
11. Postural markers: ≥ 18 kinds with additional annotation function to facilitate text and body marker labeling.
12. Routine measurements: distances, perimeters, areas, volumes, angles, heart measurements and lean mass.
13.256-frame video playback, image measurement note and save function.
14. With grid scale and dot scale function for quick reading of detection target size.
15. With image rotation function, the image can be flipped up and down, left and right.
16. High-strength aluminum alloy metal shell, heat dissipation design
17. Large-capacity lithium battery with 18650 battery cells, continuously work for 5 hours.
18. With time and date, key tone switch, winter mode, parameter mode, standby protection, multi-language selection, custom pregnancy week and other settings.
Technical Specification:

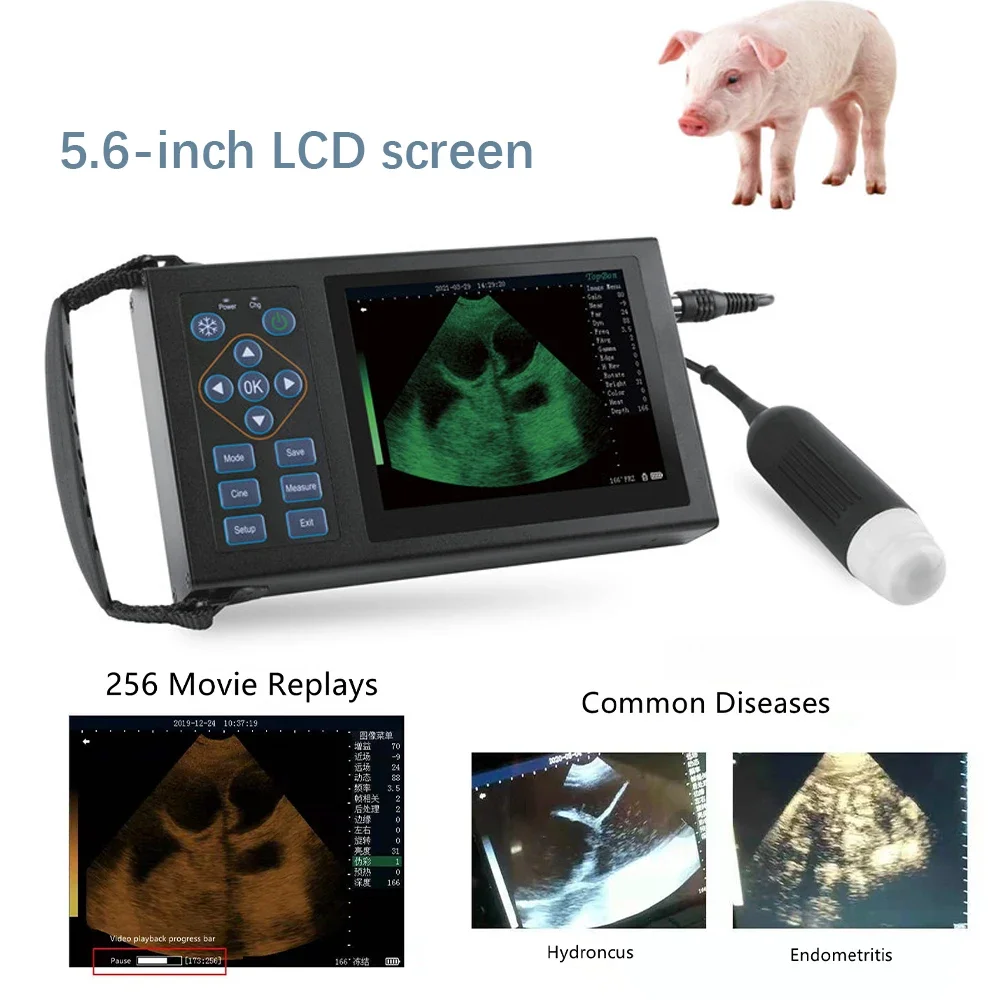

1. Display: 5.6-inch LED display;
2. Scanning mode: 3.5m mechanical fan scanning;
3. Display mode: B, m, BM, B + B, 4b;
4. Fast backfat function (mobile caliper);

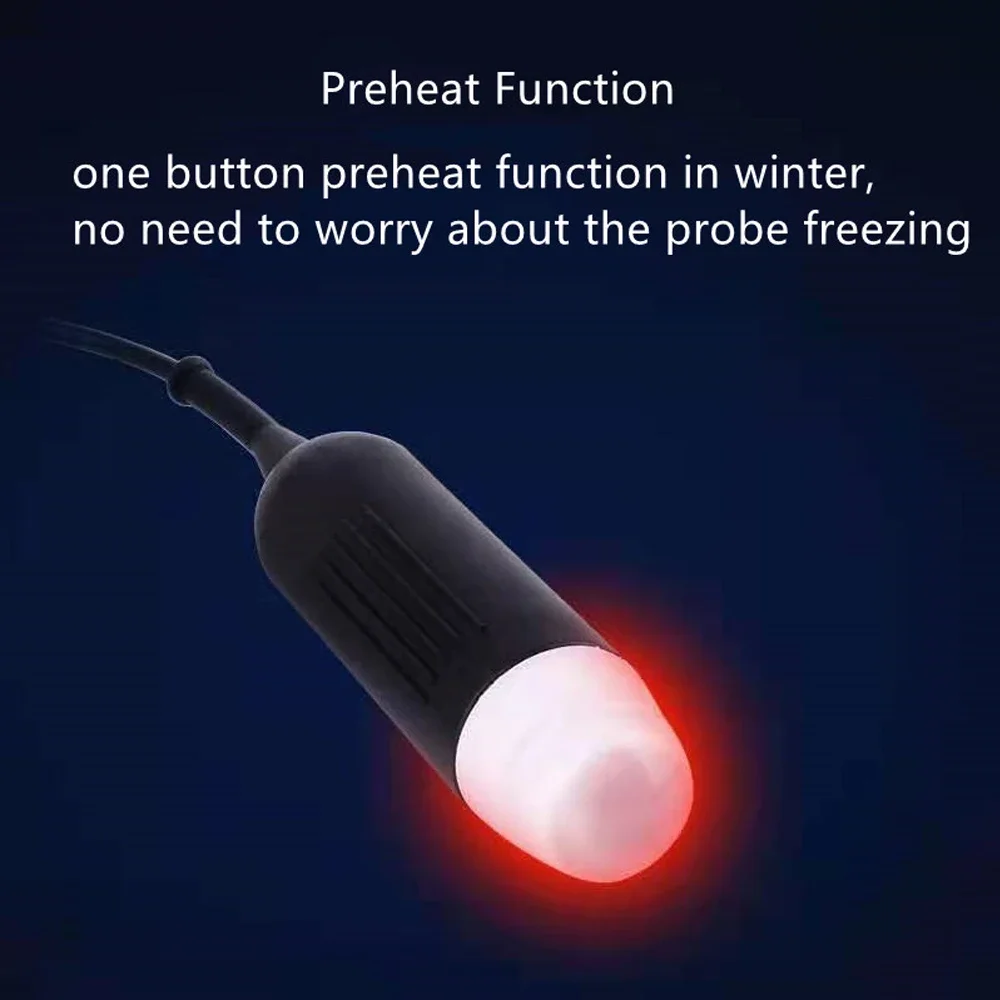

5. Preheat function: one button preheat function in winter, no need to worry about the probe freezing;
6. In addition, it has annotation function, which is convenient for text and body mark annotation;
7. Metal wire drawing fuselage, 35mm thick, metal texture, cool fuselage, high heat dissipation;

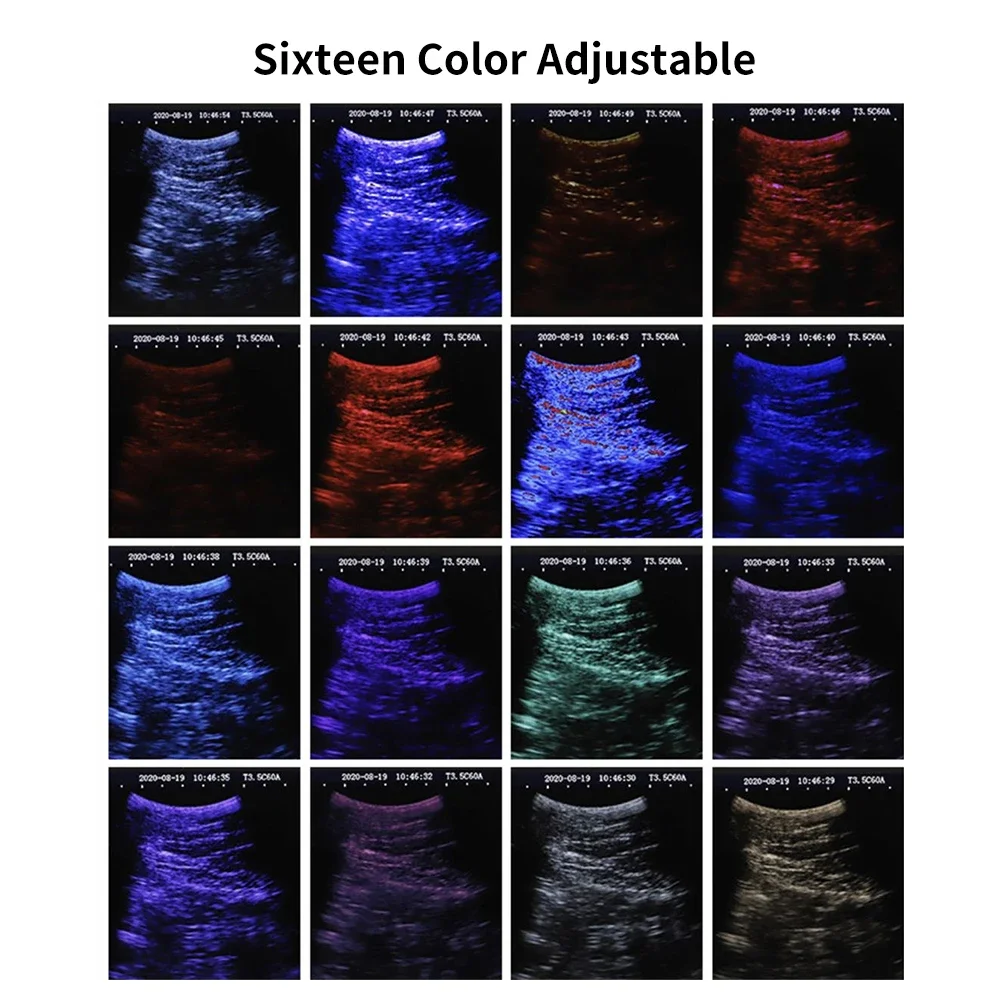

8.16 kinds of false color function;
9. Frequency conversion: 2.0MHZ, 2.5MHz, 3.5MHz, 4.0mhz, 5.0mhz;
10. Routine measurement: distance, perimeter, area, volume, angle, heart measurement and lean meat rate;
11. Specialized measurement: it has the function of gestational weeks setting, and can modify the gestational weeks of animals. Obstetric measurement of 8 kinds of animals
12. It has 256 frame movie playback function, which can be played back frame by frame and video playback, and can select any image measurement annotation to save frame by frame playback;
13. It has the functions of grid ruler and point ruler, which can read the size of the detected object quickly
14. Storage: the built-in 8g storage can store tens of thousands of pictures, and the external U disk storage can browse pictures on this machine and transfer the built-in pictures to U disk;
15. Dynamic range: 0-135db;
16. Image processing: gamma correction (0-7), frame correlation (0-3), edge enhancement (0-3), left and right flip (0-1)
17. The maximum display depth is 270mm;:
18. Interface: USB interface, video output interface (can connect video printer and monitor), power interface, probe interface;
19. Display magnification: 16 level magnification adjustment;
20. Gain range: 0-100db;
21. Near field adjustment range: - 31 ~ 0;
22. Far field adjustment range: 0 ~ 31;
23. With image rotation function, the image can be flipped up, down, left and right;
24. It has time and date, key tone switch, winter mode, parameter mode, standby protection, multi language selection, custom gestational age and other settings;
25. Large capacity lithium battery, imported 18650 standard cell, can work for about 5 hours;

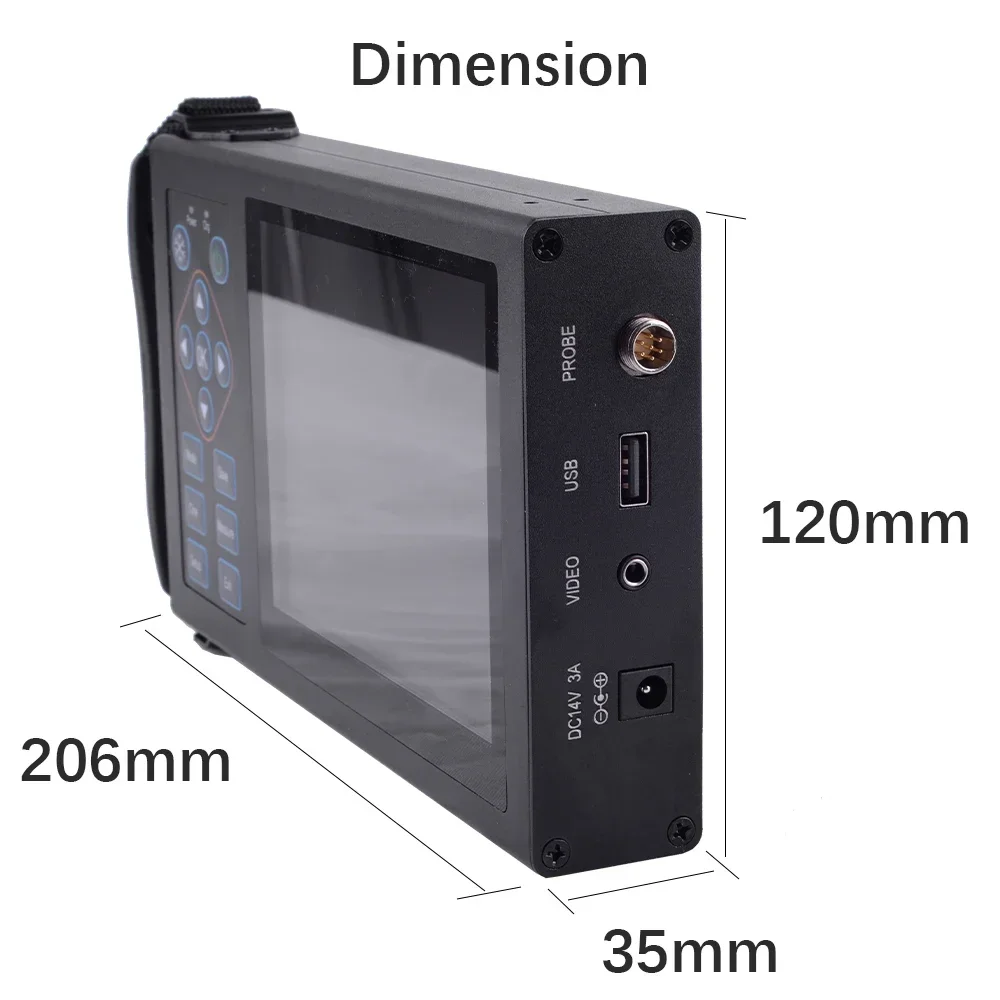

26. Host size: 206x120x35mm (length x width x height);
27. Main engine weight: 950g;
28. No noise, high strength aluminum alloy metal shell natural heat dissipation design
Physical Identity:
Product weight:0.95kg
Product Size:21*12*3.5cm
Package weight:3.9kg
Package size:41*37*18cm
Package included:

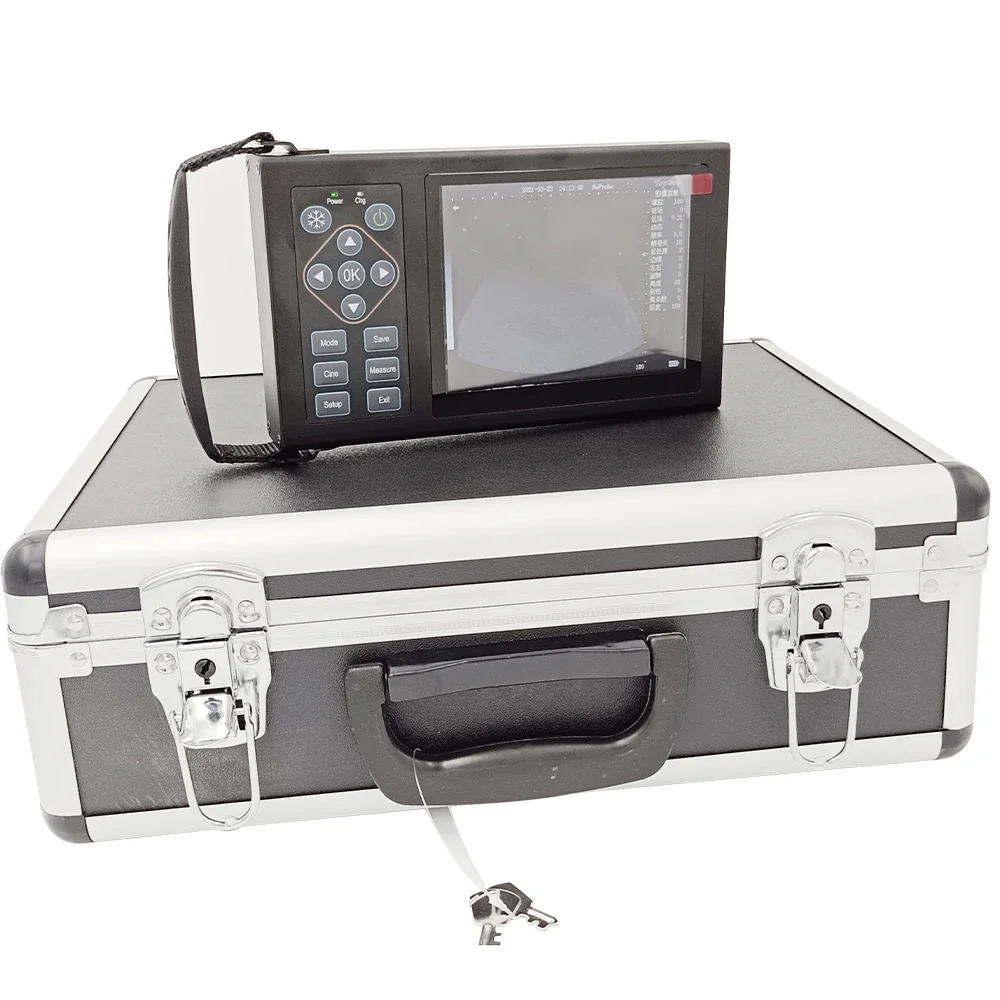

1X M10 veterinary portable ultrasound machine

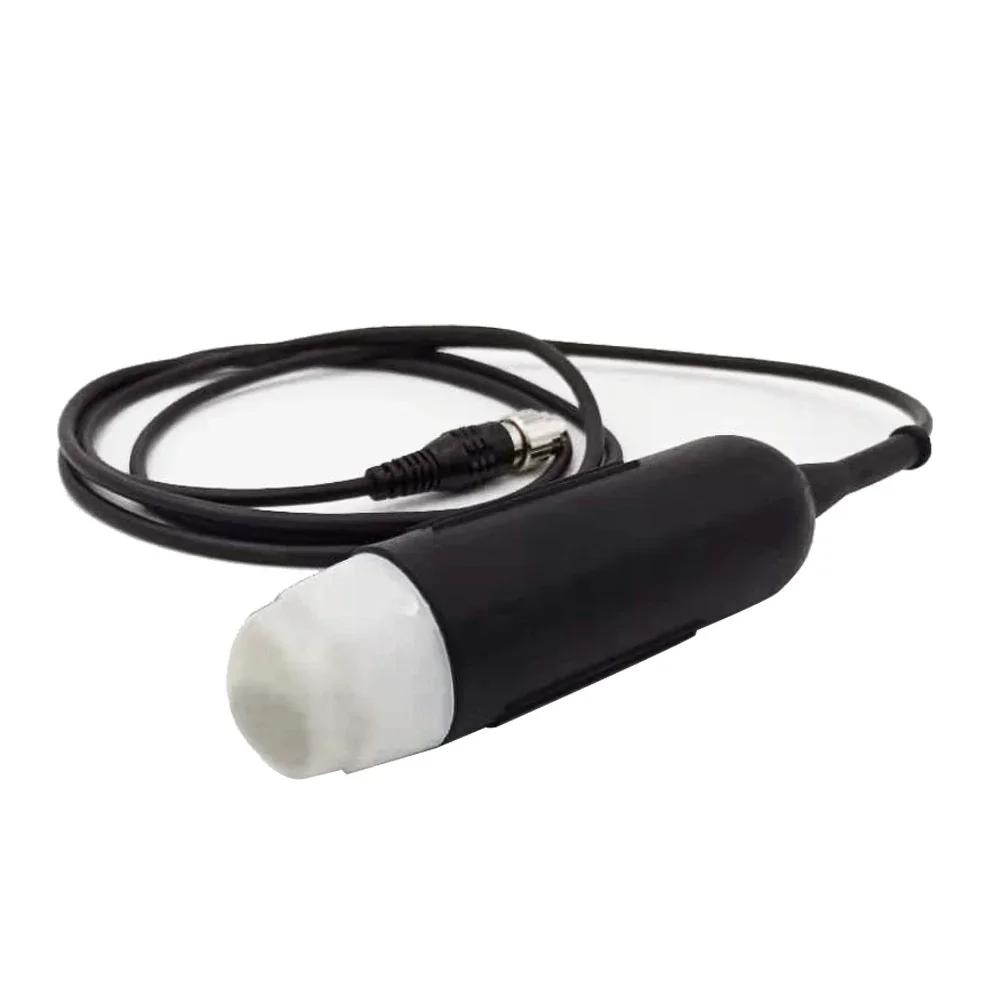

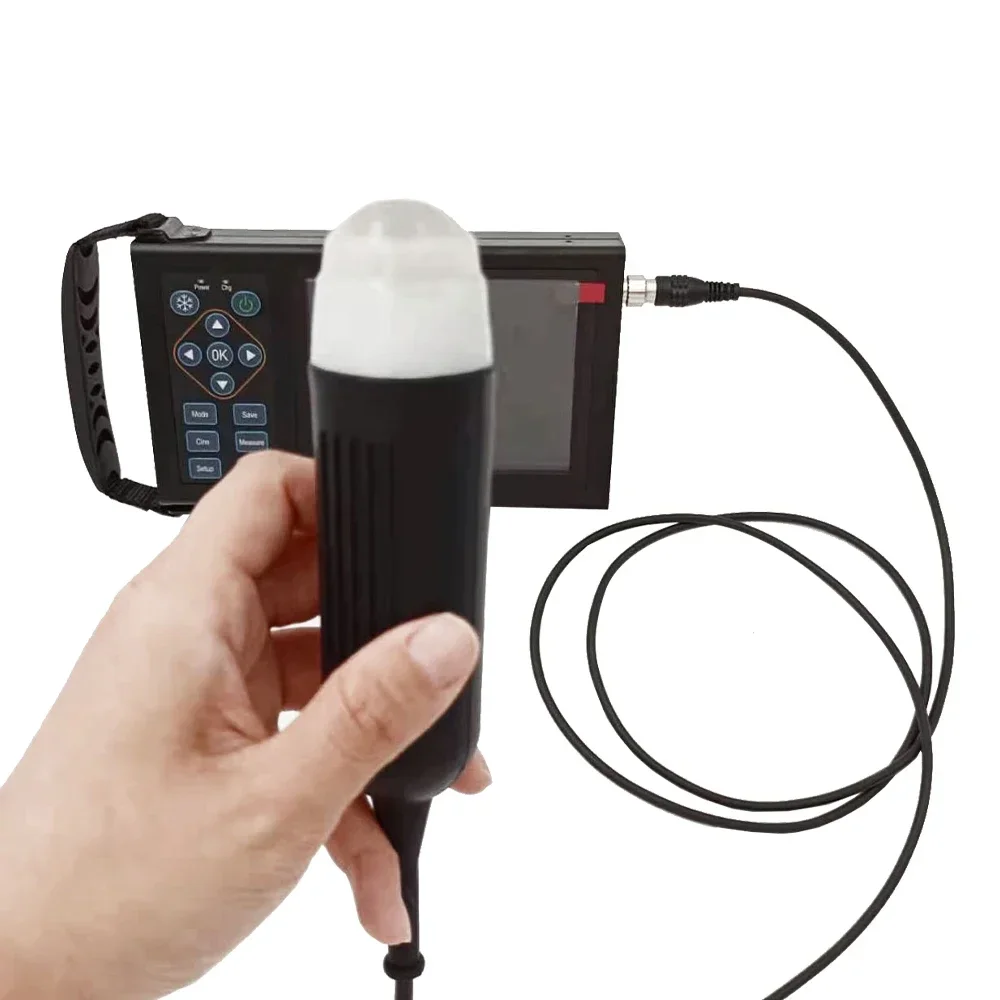

1X 3.5Mhz probe
1X Charge adapter
1X Charger Cable
1X User manual
