Product Description
Veterinary ECG Machine 3/6channel Touch Screen Veterinary Electrocardiograph 7" ECG Nurse Veterinary Equipment
Veterinary ECG Machine 3/6channel Touch Screen Veterinary Electrocardiograph 7" ECG Nurse Veterinary EquipmentInstructions:A3-12 is an Touch Screen Veterinary Electrocardiograph which can collect 12-lead ECG signal and print waveform by the thermal printing system. It features in, recording and displaying ECG waveform in AUTO/Manual mode, measuring and diagnosing ECG waveform parameters automatically, prompting for "Lead off" and "Lack of paper", multi-language interface, AC/DC, selecting any rhythm lead, case database management.

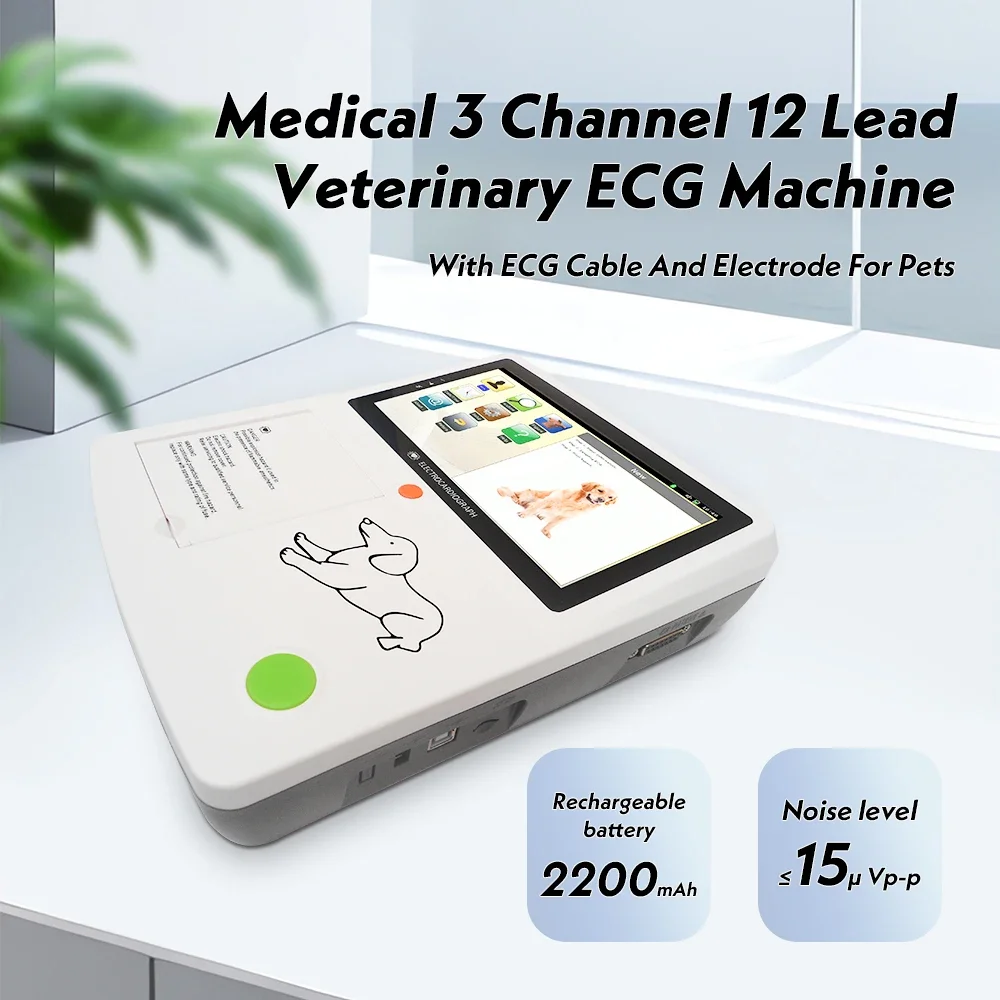

Veterinary Medical Equipment 3 Channel 12 Lead Veterinary ECG Machine With ECG Cable And Electrode For Pets.
Application:The device can record real time clear and exact 12 channel ECG waveform and remark continually for pets.
Features:
1. 12 lead ECG synchronous sampling system.
2. Thermal printer with 80mm print paper, synchronization print.

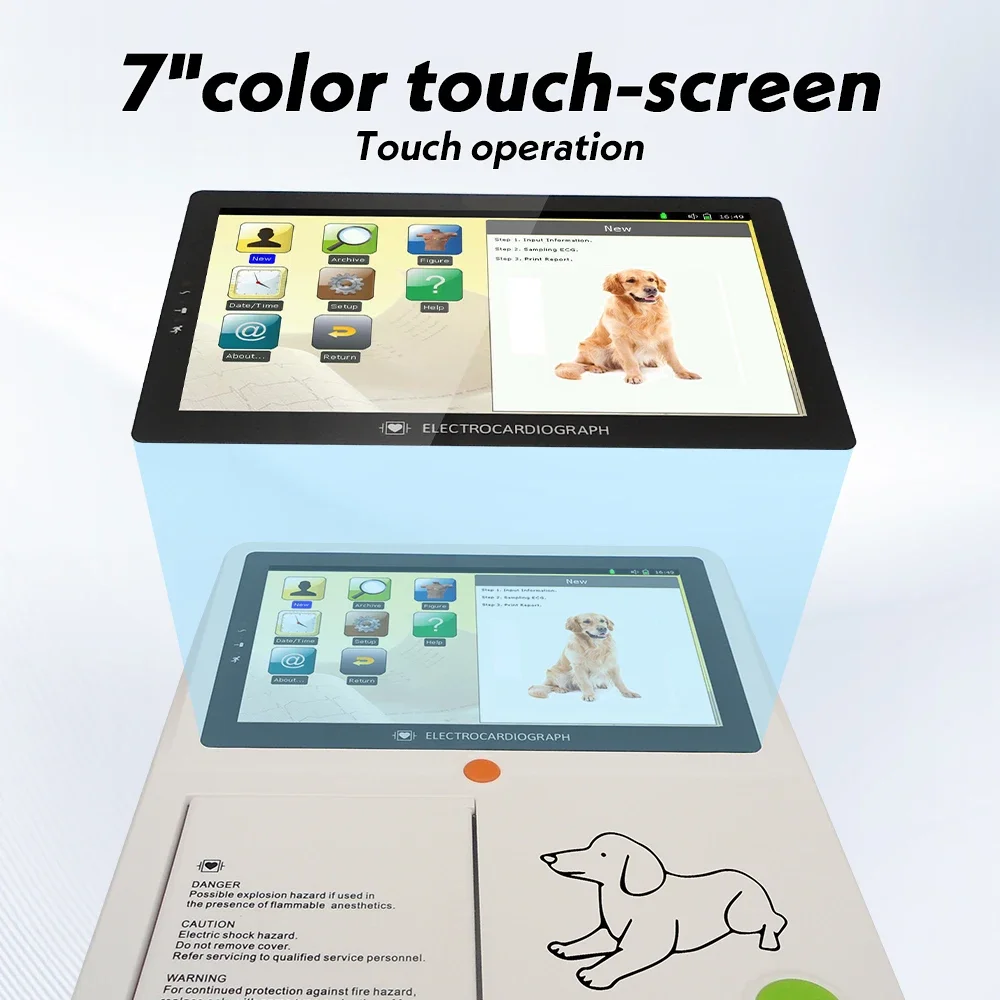

3. 7"color touch-screen, touch operation.
4. Automatic measurement, calculation, analysis, waveform freezing.
5. Support USB flash disk & SD memory.
6. Data transmitting to PC via USB.
7. Patient's information can be input.
8. Historical data can be reviewed and printed.
9. Built-in rechargeable li-ion battery, AC/DC power conversion.
10. Sleep mode to save energy and extend TFT screen life.
11. Support USB Keyboard/Mouse.
12. Lead off & lack off paper detection function.
13. 7 level printing thick can be chosen.
14. Adapt to 110-230V, 50/60Hz AC power supply.
Technical Specification:
CMRR:≥ 100dB, with AC Filter
Calibrating voltage:1mV± 3%
Input circuit:Floating
Voltage tolerance:± 500mV
Input circuit current:≤ 0.1µ A
Time constant:> 3.2s
Resolution:12bit/1000Hz
Frequent response:0.05Hz~150Hz
Operation mode:Manual/Auto
Noise level:≤ 15µ Vp-p
Filter:AC. EMG Filter
Threshold:≤ 20µ V
Drift filter:Anti-Drift System
Paper speed:12.5, 25, 50mm/s (± 3%)
Input Impedance:> 50MΩ
Sensitivity:5,10,20mm/mV
Patient current leakage:< 10µ A
Recorder:High resolution thermal printer
Specification of fuse:T1.6A 250V Ø5×20
Battery:Built-in rechargeable Li-ion battery 11.1V(2200mAh)
Recording paper:Thermal recording paper
Physical Identity:
Product Size:25*20*6.5cm
Product Weight:1.2kg
Package Size:35*17.5*25cm
Package weight:2.8kg
Package included:
1X A3-12 Veterinary ECG Machine
1X ECG Cable
1X ECG electrode
1X 80mm*20m Thermal recording paper
1XPower cord
1XUser manual
