Product Description
Portable Veterinary Ultrasound Machine Vet B-Ultra Pregnancy Machine Handheld Ultrasound Scanner for Pig/Sheep/Cow/Dog
Portable Veterinary Ultrasound Machine Vet B-Ultra Pregnancy Machine Handheld Ultrasound Scanner for Pig/Sheep/Cow/DogInstructions:A10 veterinary portable ultrasound Machine Palm pig sheep cow horse pregnancy Ultrasound system Test Pregnance, numbers of births, Uterine disease
A10 is a handheld ultrasound scanner with total waterproof design, is becoming the ideal ultrasound scanner for all veterinary ultrasound scanning(bovine, equine, swine, ovine and small ruminants), extremely suitable for fast and reliable livestock pregnancy diagnosis, meat quality, sexing, dairy farm reproduction and herd fertility and disease test.
Application:The ultrasound probe is specifically designed for Animals ultrasound examinations. The extremely light weight and power efficiency makes it very helpful in Animals pregnancy diagnoses. For veterinary pregnancy test and disease test.
User: Veterinary, farmer, breeder, veterinary clinic. Use for Pigs, Sheeps, Dogs.
Features:
1. 5.6 inch high resolution LED screen
2. Five section frequency conversion function
3. 35mm thickness metal drawing frame, high strength heat dissipation
4. Auto / Fast/ Manual one-key measure back fat and lean percentage
5. With grid scale and dot scale function for quick reading of detection target size
6. External memory support memory card, USB flash drive.

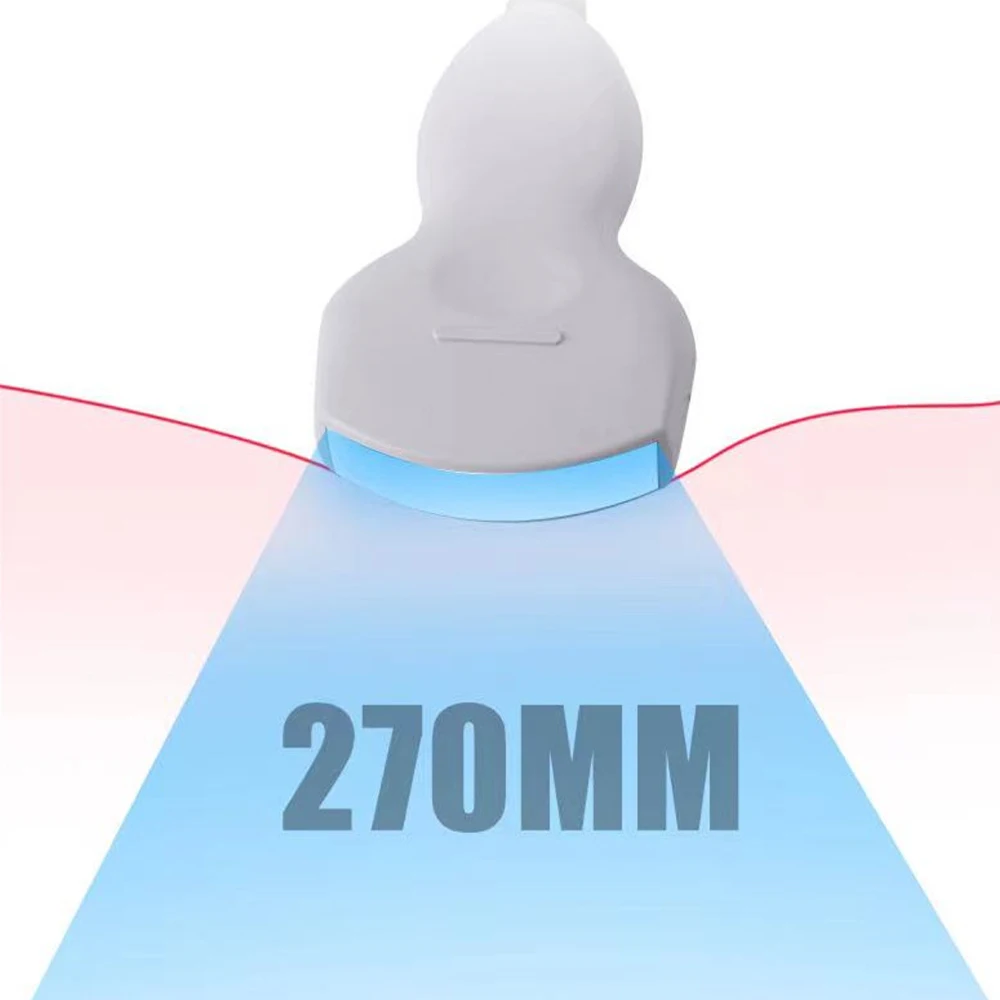

7. 270mm maximum display depth

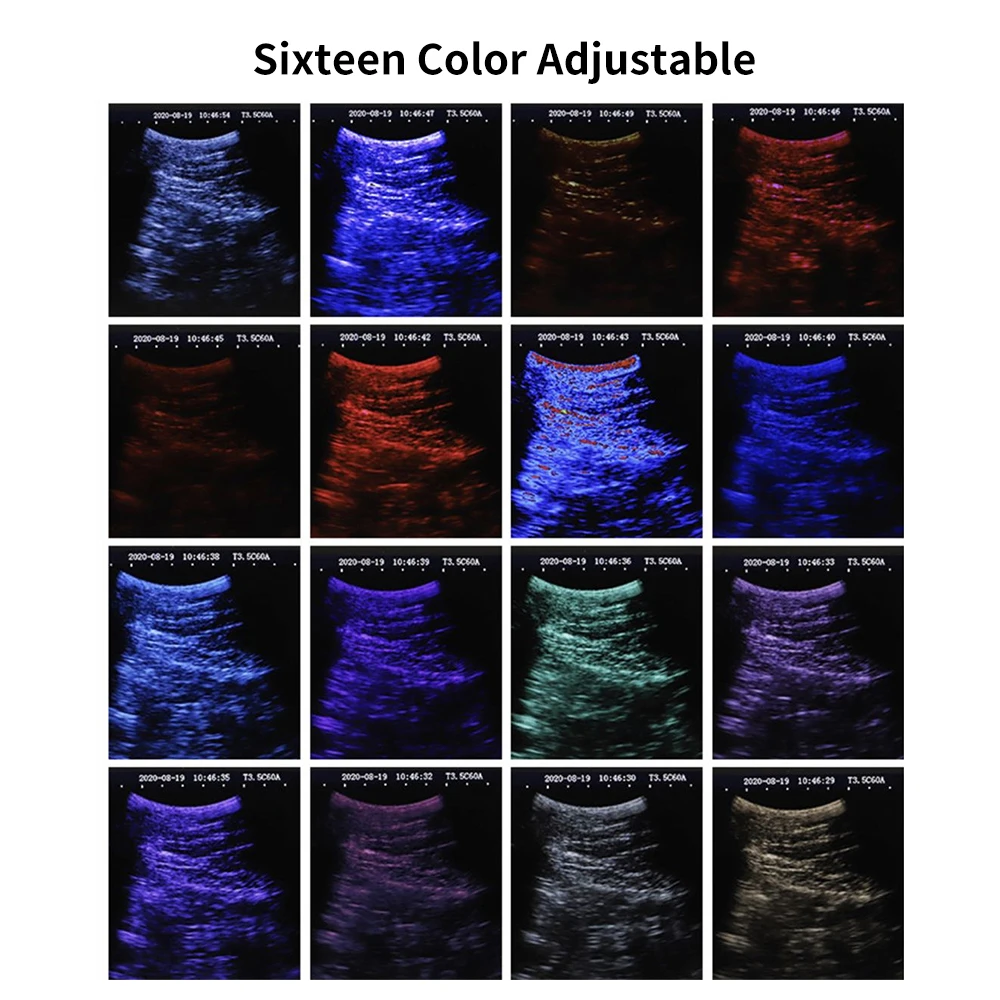

8. Image processing: γ correction (0-7), frame correlation (0-3), line correlation (0-5), edge enhancement (0-3), left and right flip (0-1), sixteen kinds of pseudo-color processing.
9. 256-frame video playback, image measurement note and save function
10. Video playback function, the last test video could be played and observed, convenient for one person to operate and record videos.
11. Probe preheating function, do not need to worry about probe freeze in winter
12. Ten colors can be adjusted to observe the disease more clearly.
13. Chinese and English can be changed at will.
14. Grid ruler, quickly read out the size of the measurement target.
15. Fully waterproof probe.
Technical Specification:
1.Display: 5.6-inch LED display;
2.Scanning mode: convex array scanning
3.Metal wire drawing fuselage, 35mm thick, metal texture, cool fuselage, high heat dissipation;
4.It has automatic backfat function (intelligent one key measurement), fast backfat function (mobile reading ruler) and manual backfat measurement function;
5.Display mode: B, B + B, 4b, B + m, m;
6.Electron focusing: four stage electron focusing;
7.There were more than 18 body position markers;
8.Frequency conversion: five section frequency conversion
9.Image image: rotate the image up, down, left and right, and flip the interface in black and white;
10.With image rotation function, the image can be flipped up, down, left and right;
11.In addition, it has annotation function, which is convenient for text and body mark annotation;
12.Routine measurement: distance, perimeter, area, volume and angle;
13.Specialty measurement, heart measurement and lean meat rate measurement;Obstetric measurement of 8 kinds of animals
14.It has the functions of grid ruler and point ruler, which can read the size of the detected object quickly
15.Character display: gain, frequency, dynamic, date, time;
16.It has 256 frame movie playback function, which can be played back frame by frame and video playback, and can select any image measurement annotation to save frame by frame playback;
17.Storage: can be connected to memory card and U disk storage, can browse pictures on this machine;
18.Dynamic range: 0-135db;
19.Image processing: gamma correction (0-7), frame correlation (0-3), line correlation (0-5), edge enhancement (0-3), left and right flip (0-1), sixteen kinds of pseudo color processing;
20.Blind area: ≤ 4
21.The maximum display depth is 270mm:
22.organization harmonic, histogram function
23.Interface: USB interface, PAL-D / NTSC video, VGA;
24.Geometric accuracy: transverse ≤ 5%, longitudinal ≤ 5%
25.Resolution: lateral ≤ 2mm, axial ≤ 1mm
26.Display magnification: 16 display modes;
27.Gain range: 0-100db;
28.Near field adjustment range: - 31 ~ 0;
29.Far field adjustment range: 0 ~ 31;
30.It has time and date, video output, TV mode, key tone switch, parameter mode, standby protection, custom gestational age and other settings;
31.Battery power indication, U disk indication, prompt information display;
32.Large capacity lithium battery, imported 18650 standard cell, can work for about 4 hours;
33.Host size: 206x120x35mm (length x width x height);
34.Main engine weight: 950g;
35.No noise, high strength aluminum alloy metal shell natural heat dissipation design
Physical Identity:
Product weight：0.95kg
Product Size：21*12*3.5cm
Package weight：3.9kg
Package size：41*37*18cm
Package included:
1X A10 veterinary portable ultrasound machine
1X 3.5Mhz Convex probe
1X Charge adapter
1X Charger Cable
1X User manual
