350M1080P Wireless Hdmi Video Transmitter and Receiver 5G Mini HDMI Extender for

Product Description

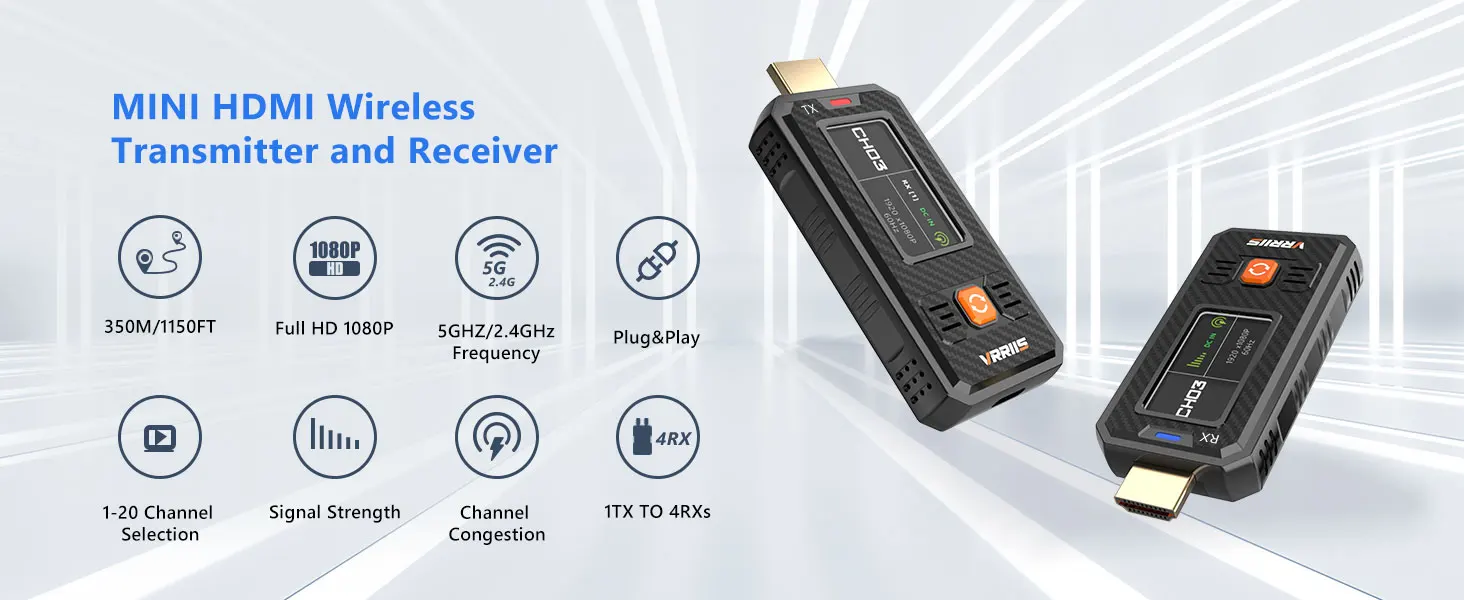

WL087 Mini HDMI Transmitter and Receiver

1. 20 Adjustable Channels: Ranging from CH01 to CH20, allowing manual switching to the optimal channel. Prevent signal congestion by adjusting channels.

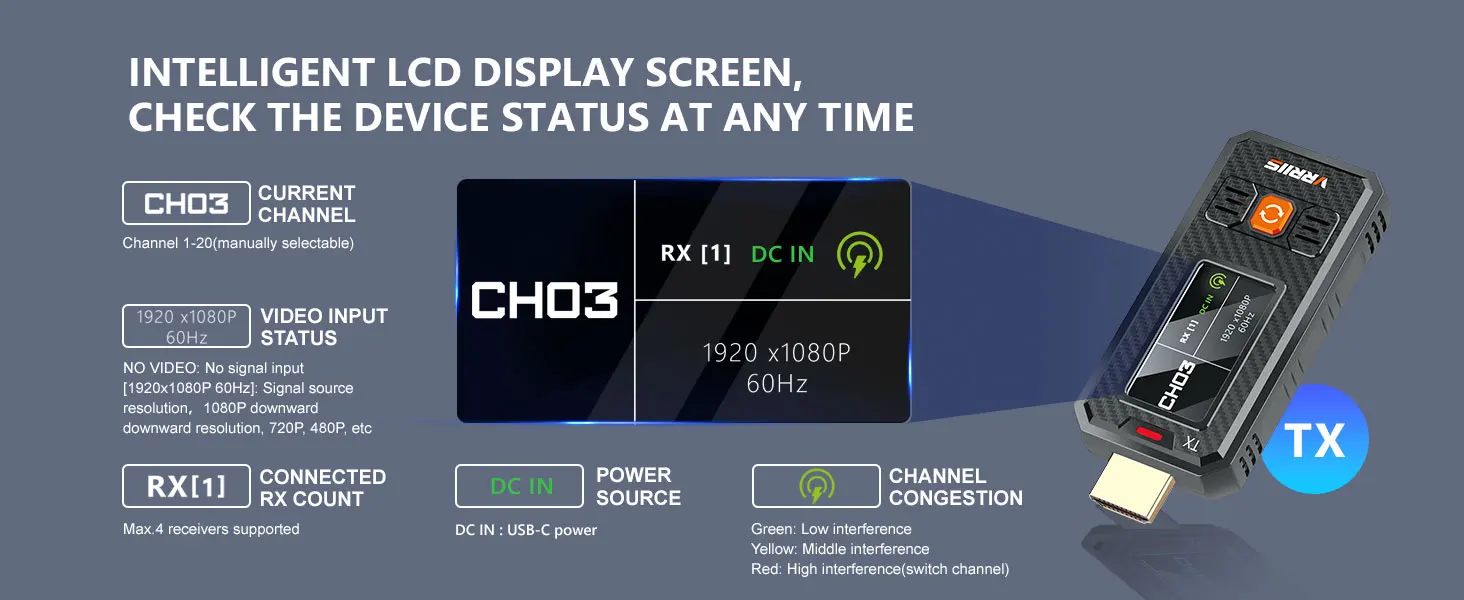

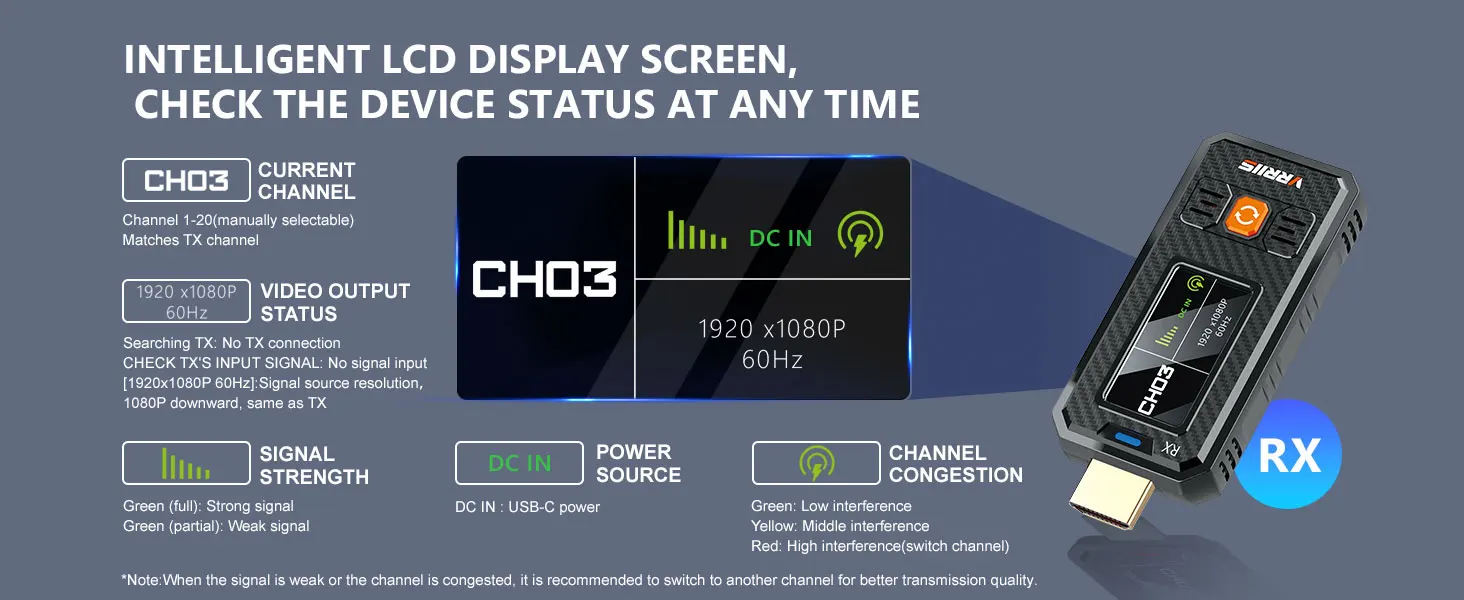

2. Color LCD Screen Display: Enables real-time monitoring for enhanced user experience.

3. Long-Range Transmission: Reaches up to 350 meters/1150 feet in open areas.

4. 1080P HDMI Input and Output: Supports high-definition video transmission.

5. Low Latency: Only 0.05s for smooth and seamless transmission.

6. Multi-Receiver Support: Compatible with 1 transmitter to 4 receivers (1TX to 4RXs).

7. Mini Style: Portable and suitable for business trips.

8. 5GHz Frequency: Ensures stable and reliable transmission.

9. H.265 Video Coding: The HDMI transmitter and receiver provides efficient video compression for high-quality transmission.

10. Flexible Power Supply Options: Includes TYPE-C and DC 5V/1A for convenient charging.

11. 20Mbps Transmission Code Rate: Ensures fast and efficient data transfer.

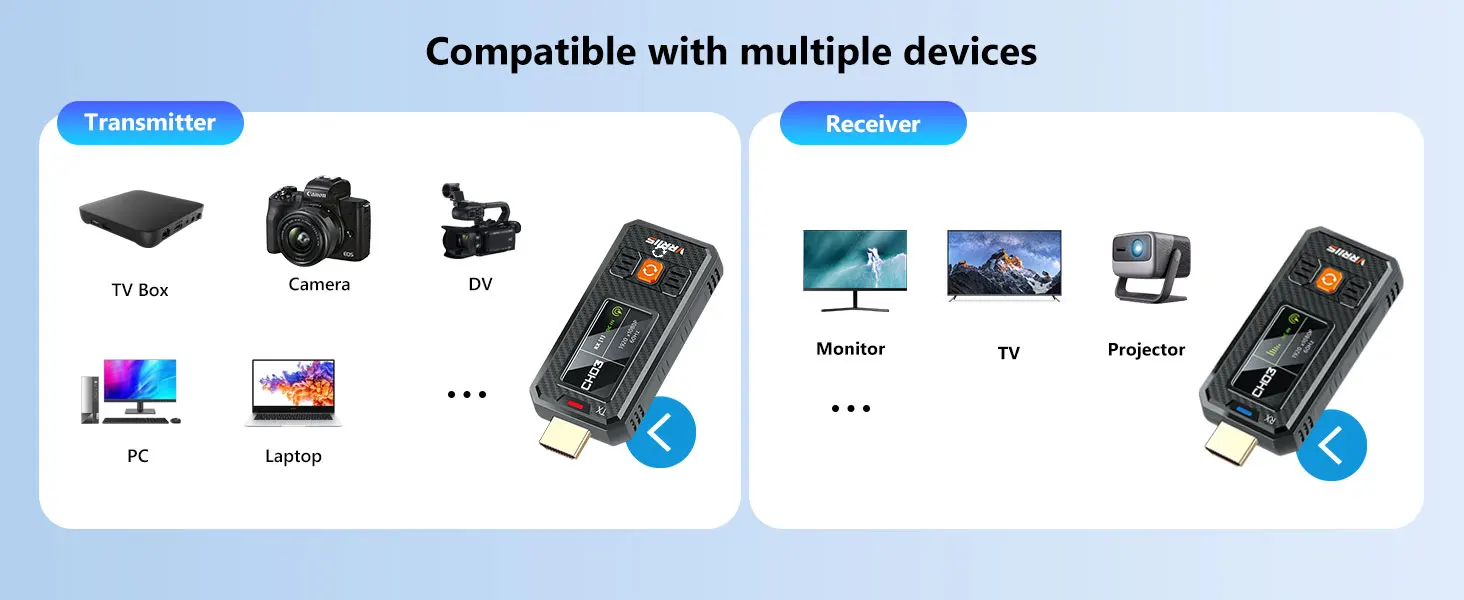

12. Wide Compatibility: Works with PC, laptops, PS4/PS5, TV boxes, cameras, and more.

13. Rapid Heat Dissipation :Adopting advanced heat dissipation technology can ensure rapid heat dissipation and prevent overheating.

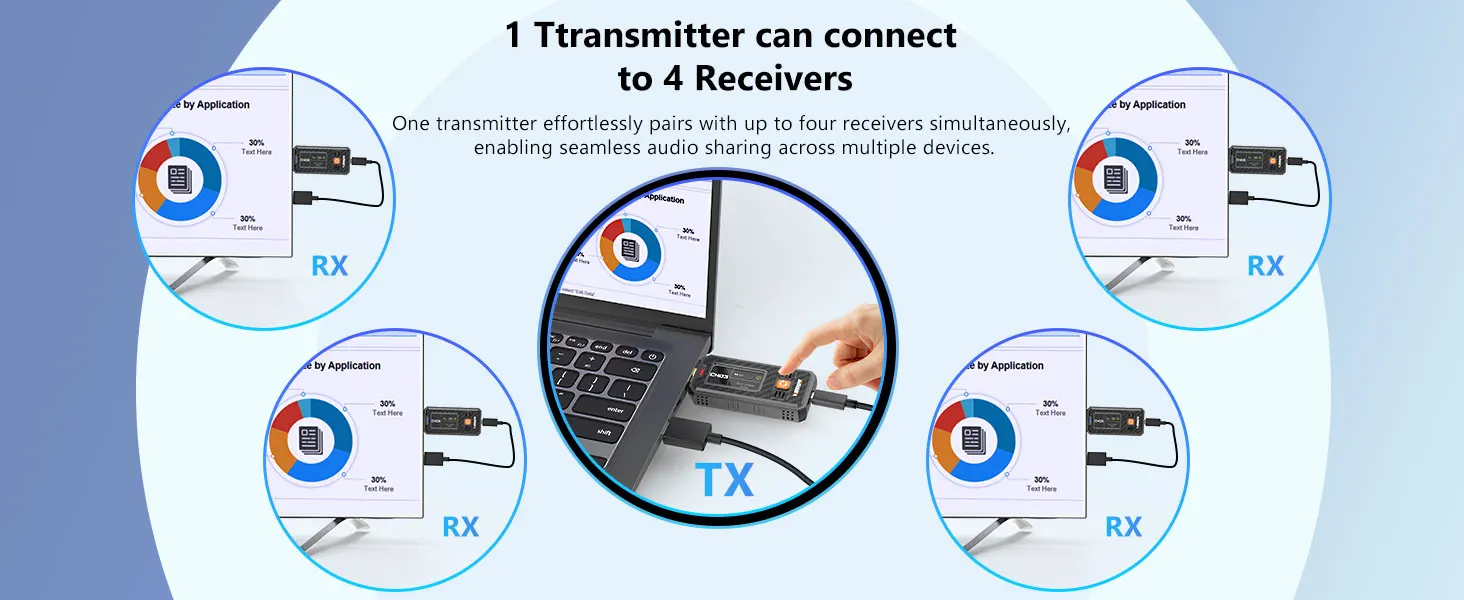

One transmitter supports four receivers:

1TX to 1RX: 1150FT/350Meters

1TX to 2RX: 920FT/280Meters

1TX to 3RX: 590FT/180Meters

1TX to 4RX: 390FT/120Meters

Product Parameters

Operating Frequency 5GHz

Distance 350M/1150FT

Delay: 0.05S

Resolution: 1920x1080P@60Hz

Support: 1 transmitter and 4 receivers

HDMI Protocol:HDMI 1.3

Code:20Mbps

Method of Use

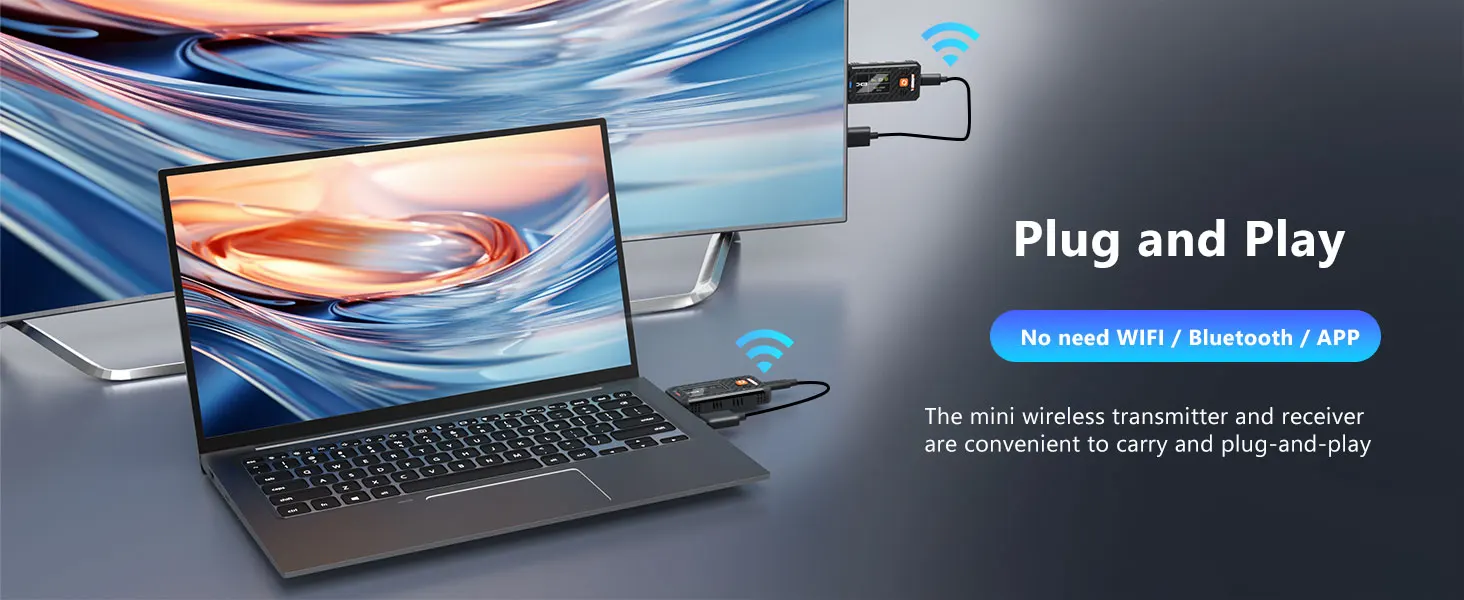

1. Automatic device pairing, plug and play.
2. The TX and RX must be powered on during use.

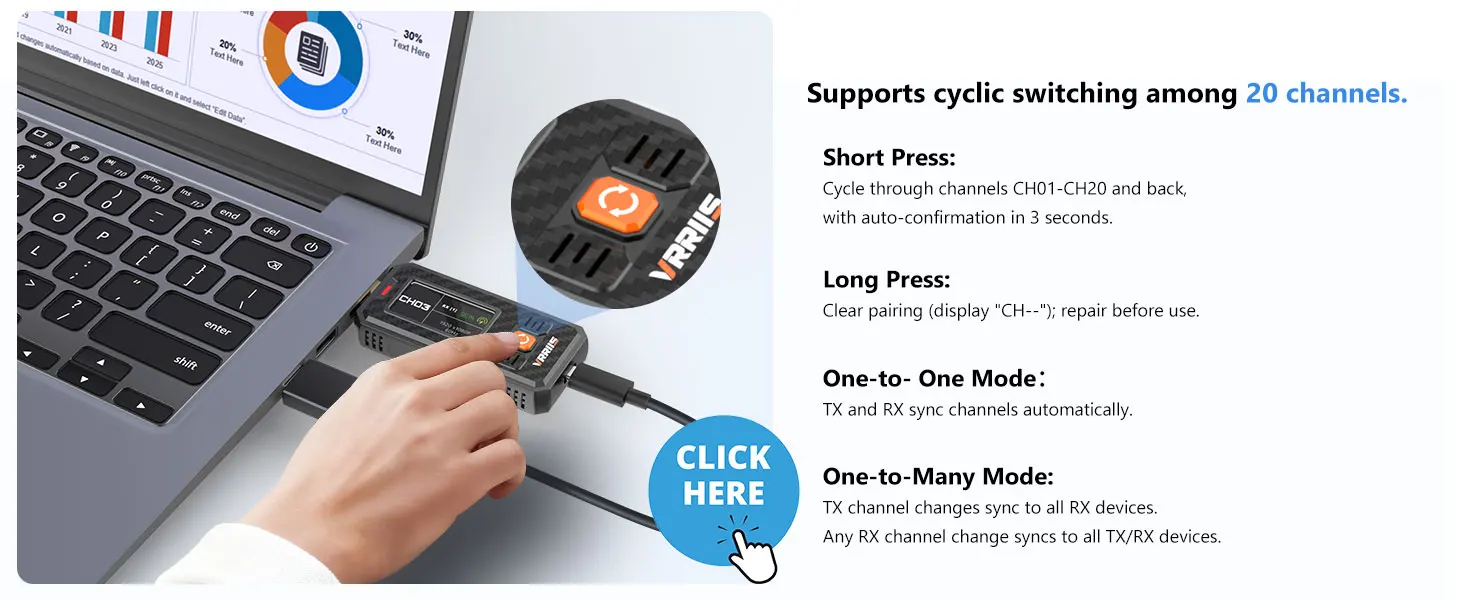

3. Click the button to switch channels

Plug-and-Play

1. Connect the receiver (RX): Use a Type-C power cord to connect the receiver to an independent power supply (5V/1A), and then plug it into the HDMI input port of a display device, such as a TV or monitor.

2. Connect the transmitter (TX) to the computer for screen mirroring: After powering the receiver independently with a 5V/1A power source via a Type-C power cord, connect the transmitter to a computer or other HDMI-enabled device with video output capabilities.

*Attention: Before using the product, first power on the TX and RX, and then connect them separately to the HDMI terminal.

This product is re paired and plug and play before leaving the factory. If there is an issue with connection failure or an additional RX is added, please follow the steps below to pair it.

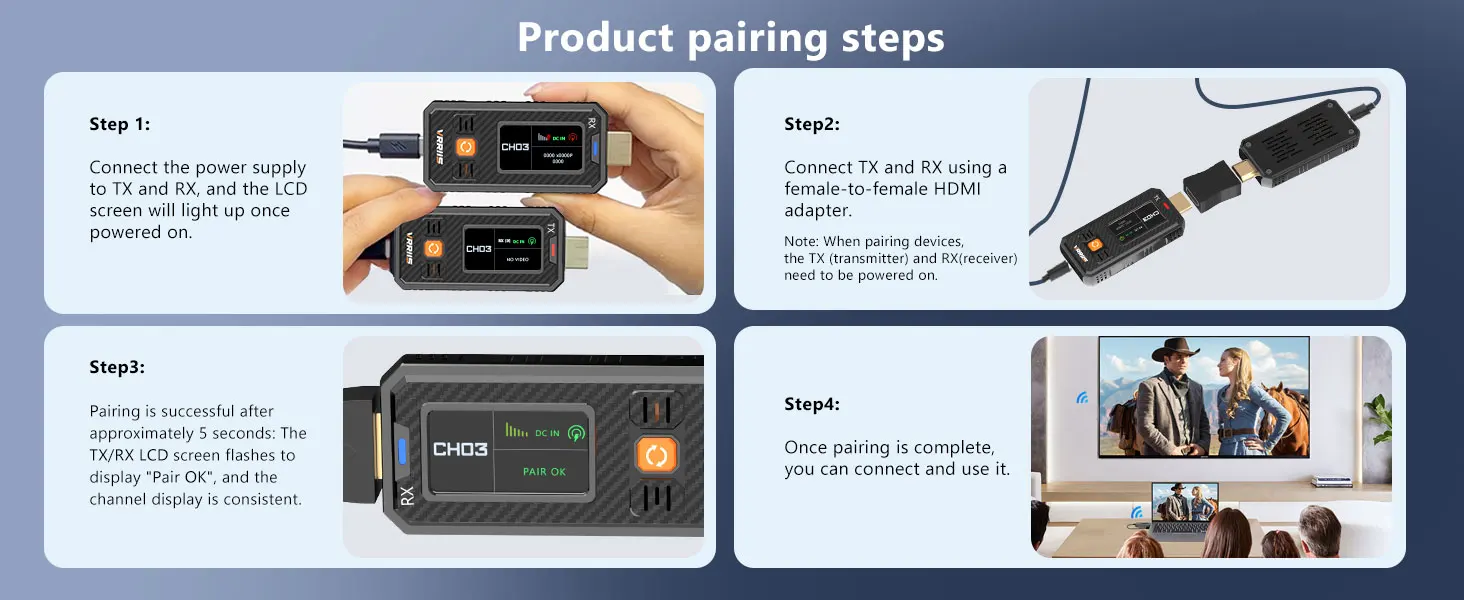

Step 1: Connect the power supply to TX and RX, and the LCD screen will light up once powered on.

Step2: Connect TX and RX using a female-to-female HDMI adapter.

Step3:Pairing is successful after approximately 5 seconds: The TX/RX LCD screen flashes to display "Pair OK", and the channel display is consistent.

Step4: Once pairing is complete, you can connect and use it.

What do I do if the product is not working?

>No signal: Check if the HDMI port is securely plugged in and restart the device; If the above issues are not resolved, re pairing is required.

>Screen delay: Avoid obstacles, ensure unobstructed communication between the transmitter and receiver, and reduce interference sources (such as microwave ovens and WiFi routers).

>Short transmission distance: Confirm that the device is within a valid range of 350 meters/1150ft.

>Display resolution mismatch: adjust the output resolution in the signal source device to the support range of the display device 1080P@60Hz Or below.

Note:

TX = Transmitter, RX = Receiver. They cannot be used alone. TX+RX works as a set.

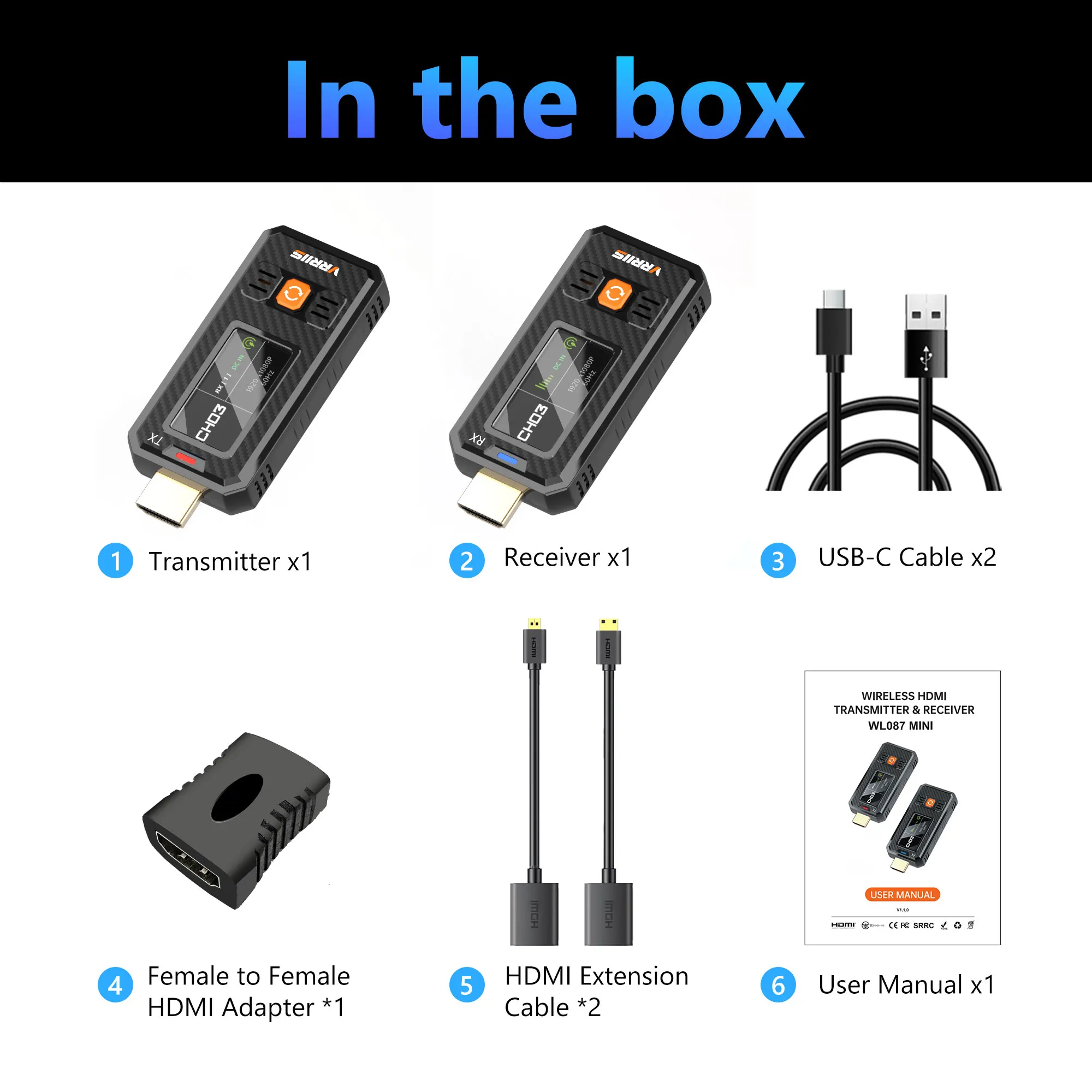

In the box:

Only RX Option Packing List

350m Wireless Receiver * 1

Charge Cable * 1

Quick Guide*1

1TX 1RX Option Packing List

350m Wireless Transmitter * 1

350m Wireless Receiver * 1

Charge Cable * 2

HDMI Extension
Cable *2

Type-C to HDMI Adapter Cable*1

Quick Guide*1

1TX 2RX Option Packing List

350m Wireless Transmitter * 1

350m Wireless Receiver * 2

Charge Cable * 3

HDMI Extension
Cable *2

Type-C to HDMI Adapter Cable*1

Quick Guide*1

1TX 3RX Option Packing List

350m Wireless Transmitter * 1

350m Wireless Receiver * 3

Charge Cable * 4

HDMI Extension
Cable *2

Type-C to HDMI Adapter Cable*1

Quick Guide*1

1TX 4RX Option Packing List

350m Wireless Transmitter * 1

350m Wireless Receiver * 4

Charge Cable * 5

HDMI Extension
Cable *2

Type-C to HDMI Adapter Cable*1

Quick Guide*1
