500M Wireless Extender Kit 1080P Wireless HDMI Transmitter and Receiver Video Tr

Product Description

Main Features

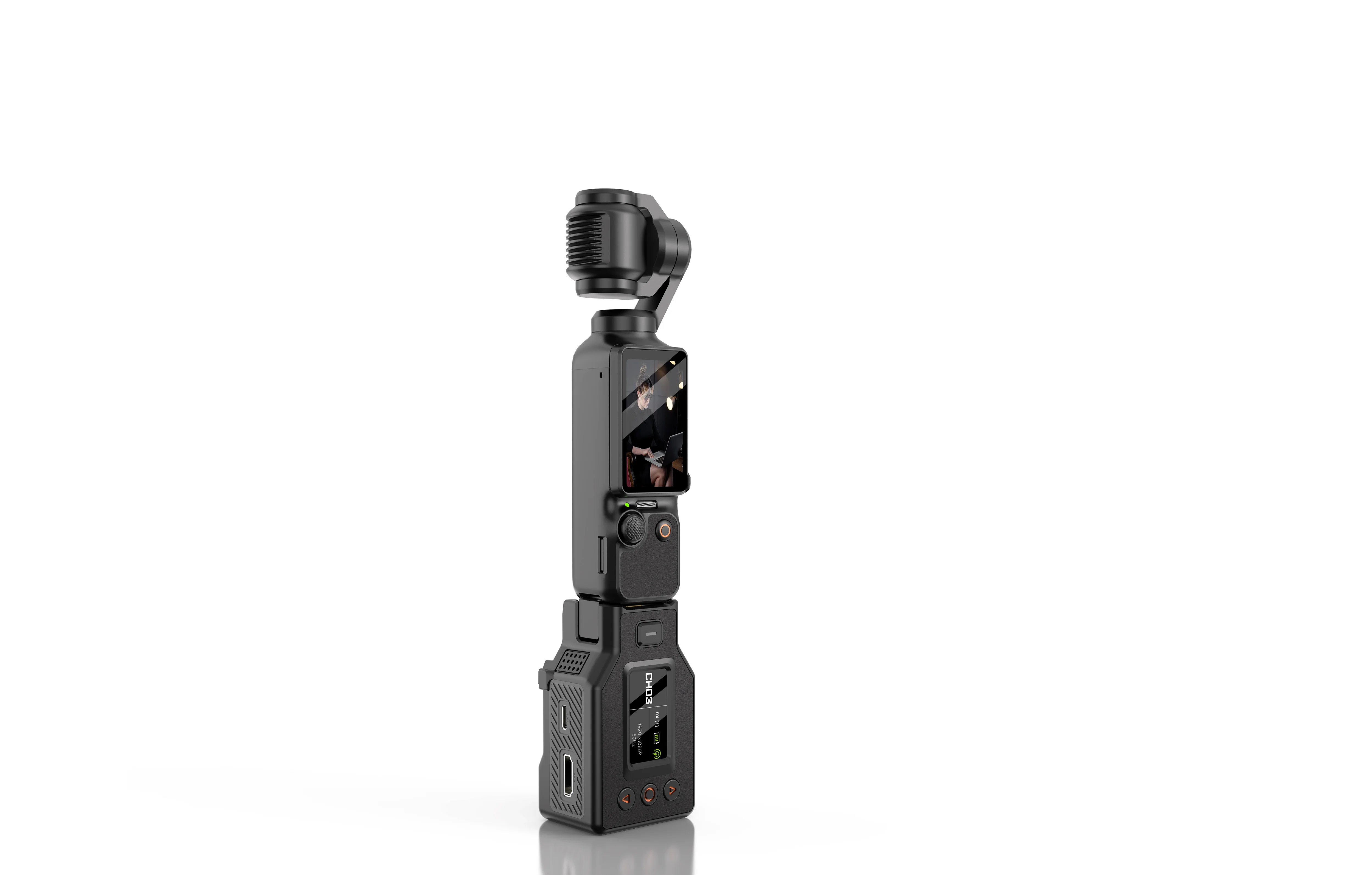

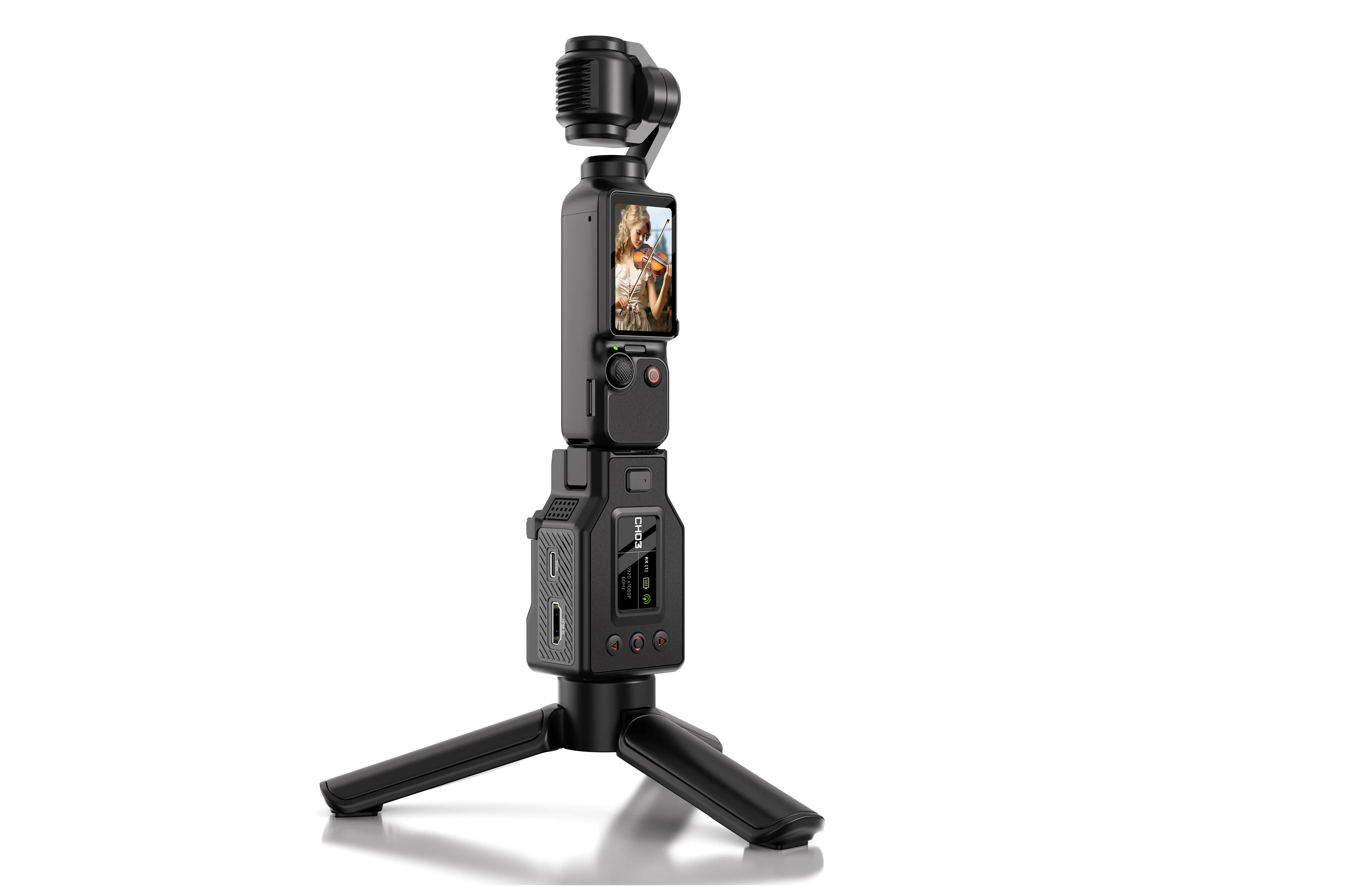

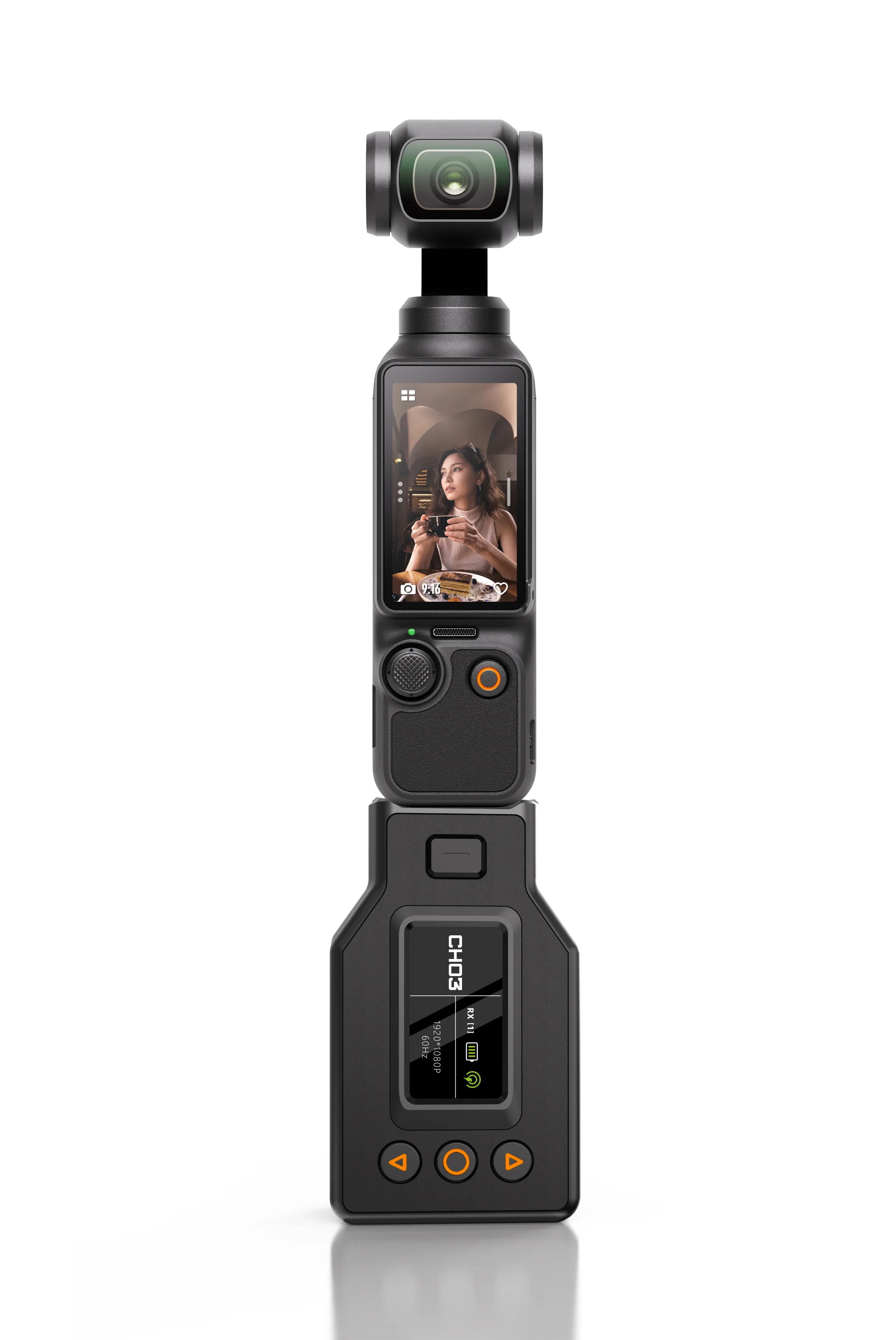

• Wireless transmitter is suitable for DJIPocket 3

The WL087Pro transmitter comes with a Type-C male connector for direct connection and immediate usefor DJI Pocket 3.

• UVC Live Streaming with HD Output Compatibility

The receiver features a UVC output port, allowing direct connection to a computer for use as an HD camera.The wireless receiver supports up to 1080P@60Hz live output and is compatible with mainstream streaming software like OBS.

• 1640FT/500M Long-Range HD Wireless Transmission

The HDMI wireless device supports 1080P@60Hz HD video transmission with a maximum range of 1640FT/500M (in open environments), latency below 0.05seconds,ensuring stable and smooth video quality.

• 5GHz Band with 20 Selectable Anti-Interference Channels

The HDMI transmitter and receiver with 5GHz Band with 20 manually selectable anti-interference channels, supporting independent channel switching control on both the transmitter and receiver ends.

• Plug-and-Play

Ready to use upon power-on. There's no need for intricate wiring or complex computer setups; simply plug the transmitter into the HDMI port of your computer or other source device, and connect the receiver to the HDMI input port of your TV, projector, monitor. Supports manual frequency adjustment and quick re-pairing, facilitating device expansion and troubleshooting.



• LCD Display for Real-Time Status Monitoring

LCD Display & Status Monitoring, equipped with LCD displays for real-time visibility of connection status, signal strength, channel selection, and resolution information to prevent channel congestion. Operation is intuitive, and status is clear at a glance.



• 1 Transmitter up to 5 Receivers

Multi-Scenario Applicability, supports one transmitter connecting to up to five receivers. simultaneously,meeting multi-screen monitoring needs. The wireless video kit is suitable for filming, live streaming, conferences, teaching, and other scenarios.

• Flexible Power Supply & Portable Mounting Options

The video transmitter receiver is compatible with NP-F series batteries, USB-C, and DC power.Equipped with a 1/4" screw hole for easy mounting on cameras,monitors, and other equipment, adaptable to various indoor and outdoor environments.

Pairing Preparation:

1. Ensure devices have sufficient battery/power;

2. Prepare a short HDMI cable (<1 meter);

3. Operate in a low-interference environment.

Pairing Steps:

1.Power off both TX and RX,Disconnect all cables,Power on;

2.Connect TX's HDMI IN to RX's HDMI OUT using an HDMI cable;

3.Wait 25 seconds,LCD displays "Pair OK" and flashes;

4.Remove HDMI cable,Power off and restart devices;5.Reconnect normally for use.

Q&A

Q1:Can it connect to a phone?

A: Requires phone to support HDMI output and an adapter.

Q2:Can it connect to game consoles?

A: Supports PS4/PS5/Xbox/Switch (requires dock).Wireless transmission involves latency, so it is not recommended forgames with high real-time requirements.

Q3: What if the device doesn't have a screen?

A: 1.Check power switch;2.Reconnect HDMI cables;3.Verify TX/RX channel match;4.Confirm camera/PC has output.

Q4: What should I do if the device is stuck?

1.Reduce distance between TX/RX;2.Press "CH+" to switch to a clear

channel;3.Let device rest/cool down;4.Avoid microwaves, WiFi routers.

Q5: What if the computer cannot recognize UVC?

1.Try a different USB 3.0 cable;2.Try a different USB port on PC; 3.Check computer camera permissions; 4.Restart computer.

1TX to 5RX transmission distance

1TX to 1RX: 500 meters/1640 feet

1TX to 2RX:450 meters/1500 feet

1TX to 3RX:400 meters/1312 feet

1TX to 4RX:300 meters/990 feet

1TX to 5RX:200 meters/656 feet

Note: This product is detected in an open environment, different use environment or signal interference will result in shorter distance.

Package List

Package Content for the option of "1 TX 1 RX"

Wireless Transmitter * 1

Wireless Receiver * 1

Antenna * 2

5V2A Power Adapter * 2

USB Power Cable * 2

User manual * 1

Package Content for the option of " Only RX " :

Wireless Receiver x 1

5V 2A Power Adapter x 1

USB Power Cable x1

User manual x 1

Note: if you choose "Only 1 receiver ", it comes the accessories is for 1 receiver only, No transmitter.

Package Content for the option of "1 TX 2 RX"

Wireless Transmitter * 1

Wireless Receiver * 2

Antenna * 4

5V2A Power Adapter * 3

USB Power Cable * 3

User manual * 1

Package Content for the option of "1 TX 3 RX"

Wireless Transmitter * 1

Wireless Receiver * 3

Antenna * 6

5V2A Power Adapter * 4

USB Power Cable * 4

User manual * 1

Package Content for the option of "1 TX 4 RX"

Wireless Transmitter * 1

Wireless Receiver * 4

Antenna * 8

5V2A Power Adapter * 5

USB Power Cable * 5

User manual * 1
