Product Description

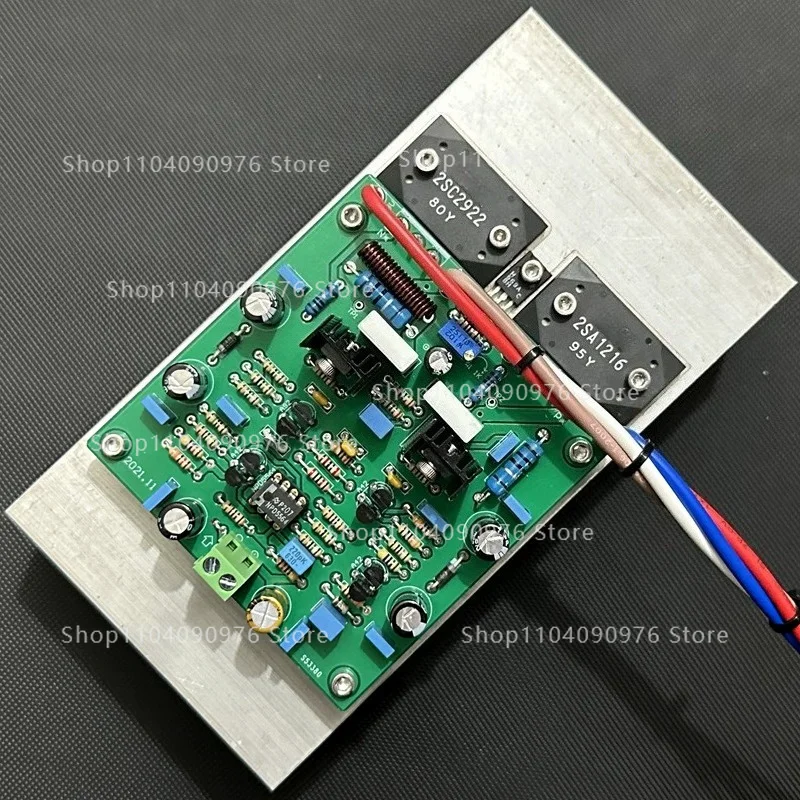

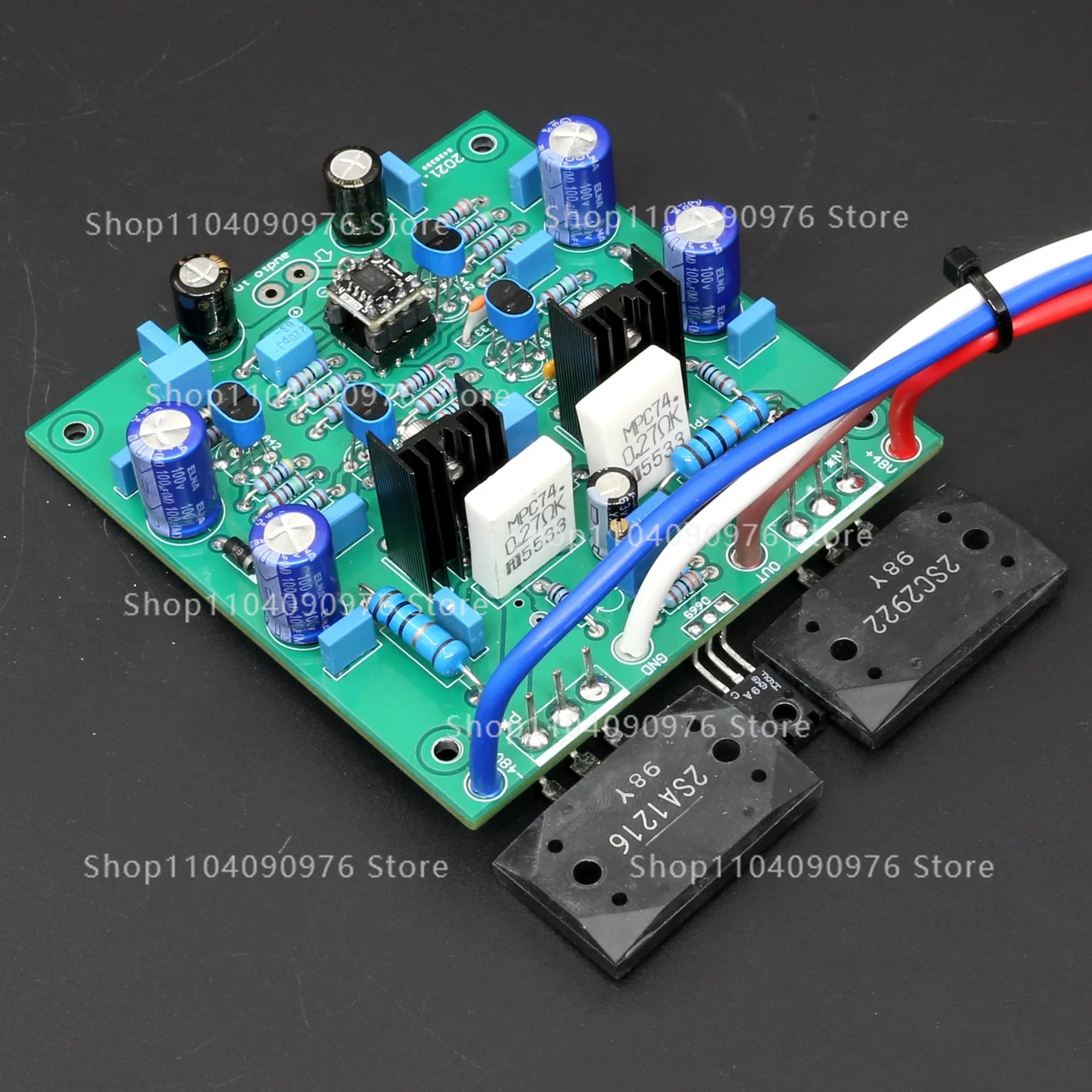

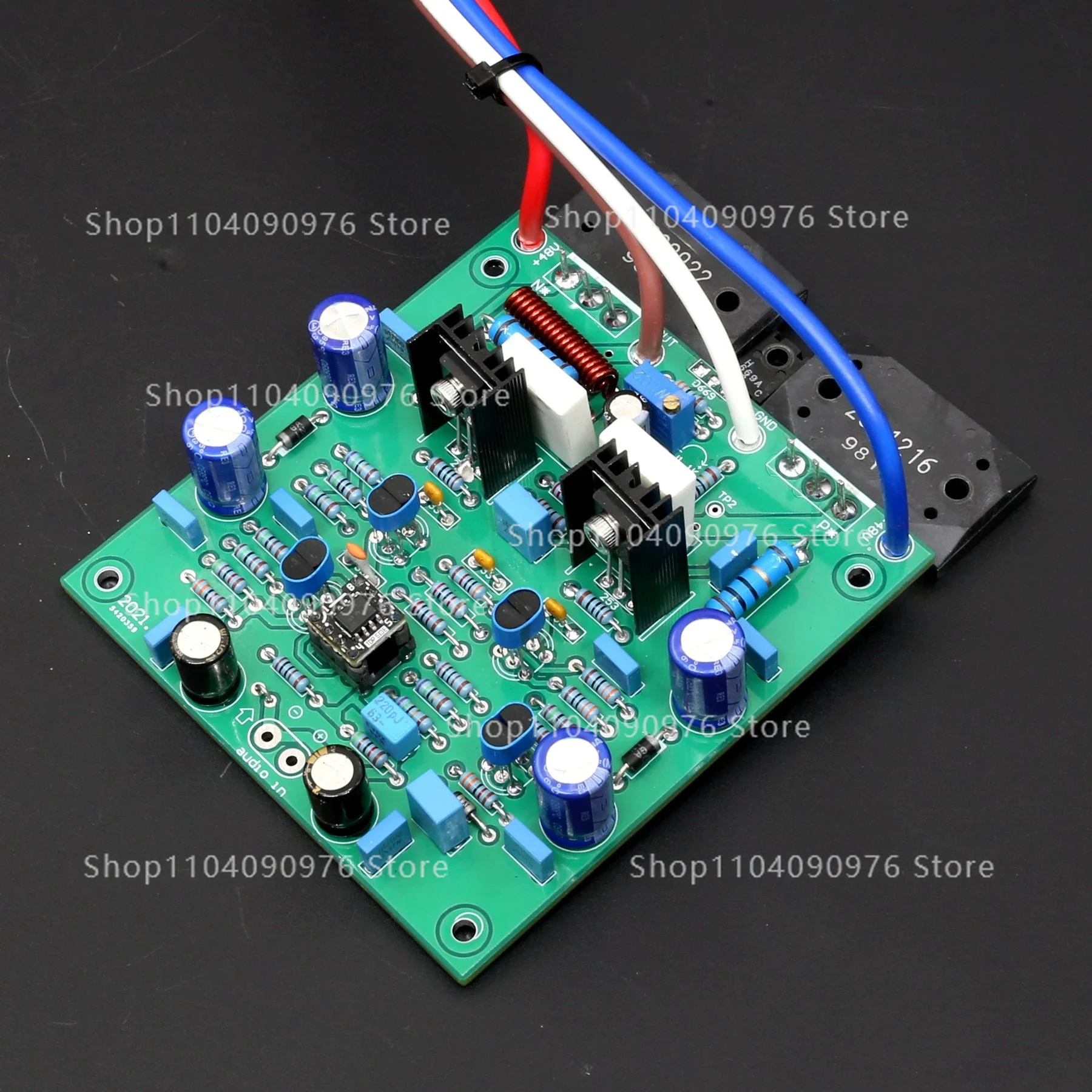

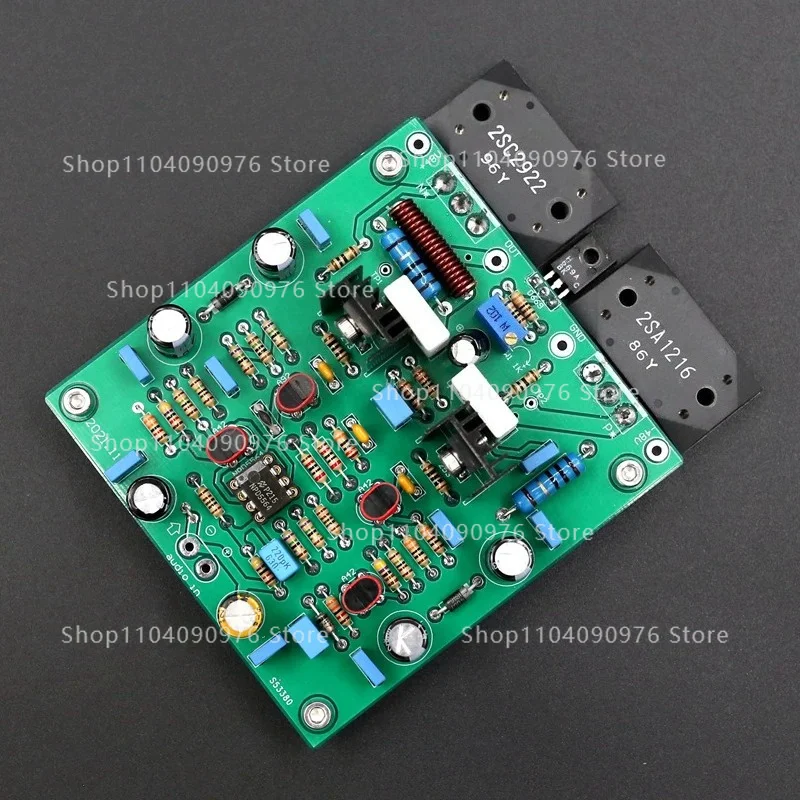

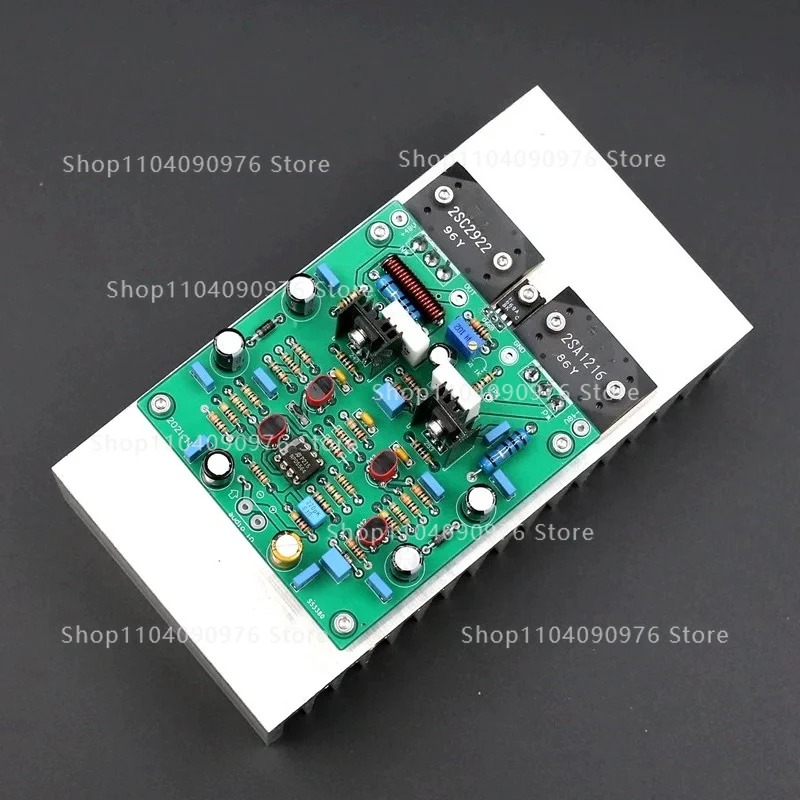

C3264A1295 Gowan line, mono amplifier board (with AP test)
C3264A1295 Gowan line, mono amplifier board (with AP test)Route features
Adopting Gawain to Construct Pure Post-stage Lines
Design material

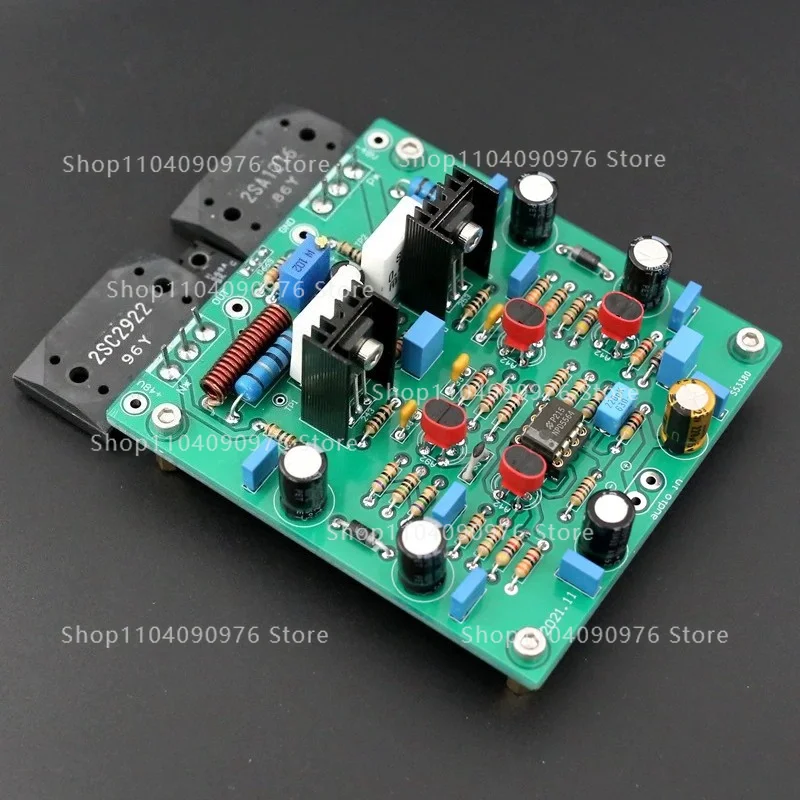

New three Ken tube king C2922A1216
Audiophile grade JFE2140 twin FET pair
Welded by American ALPHA solder wire
Specifications
Supply voltage:DC±35v---±60v Recommended ± 48v, 100w/8 euros

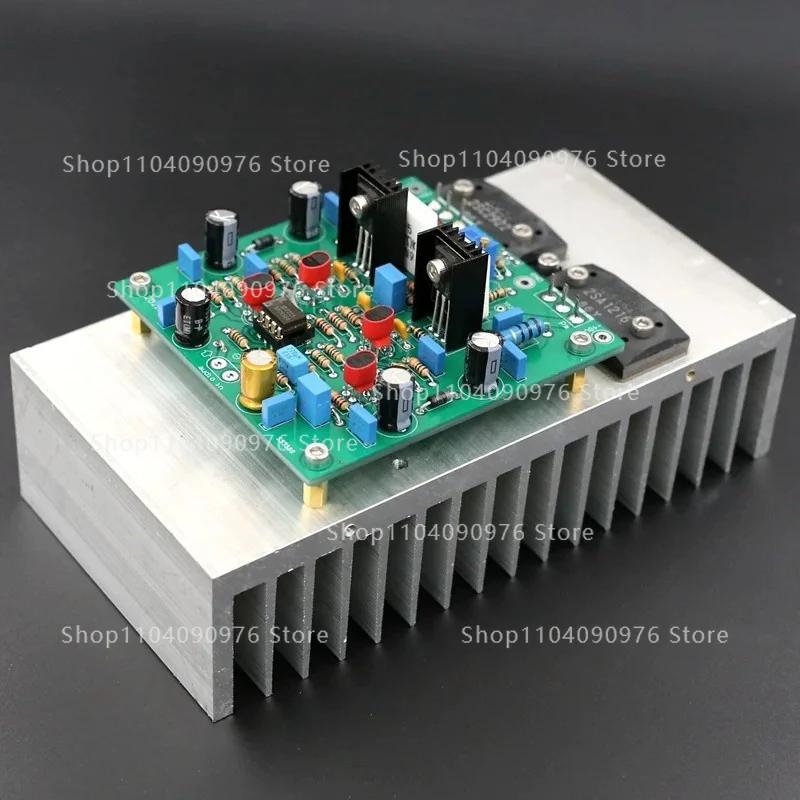

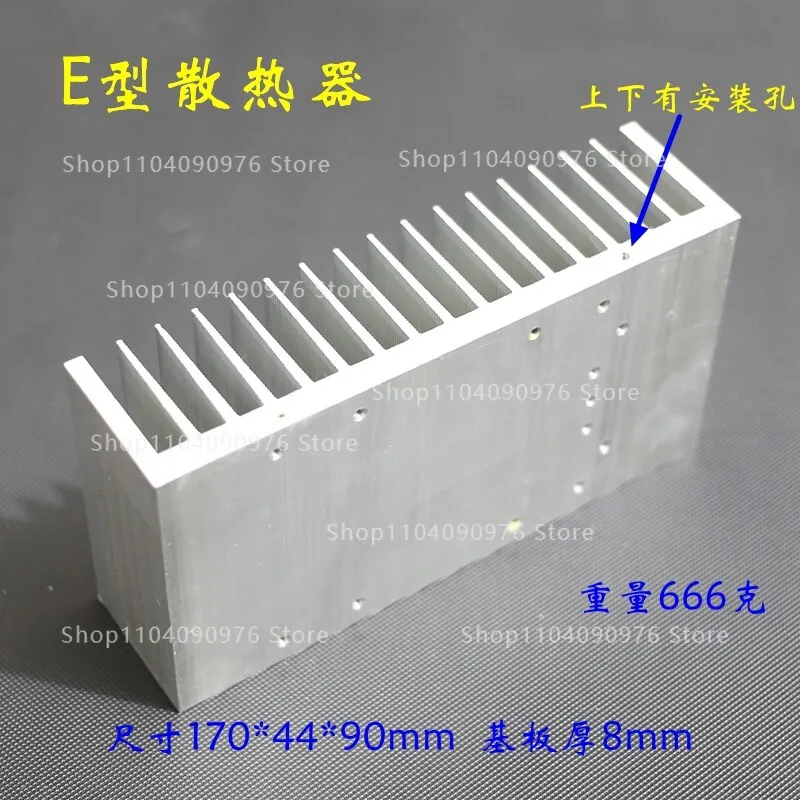

Printing board size:89*84mm Power tube horizontal installation: 84 * 112mmPower tube canvertical installation

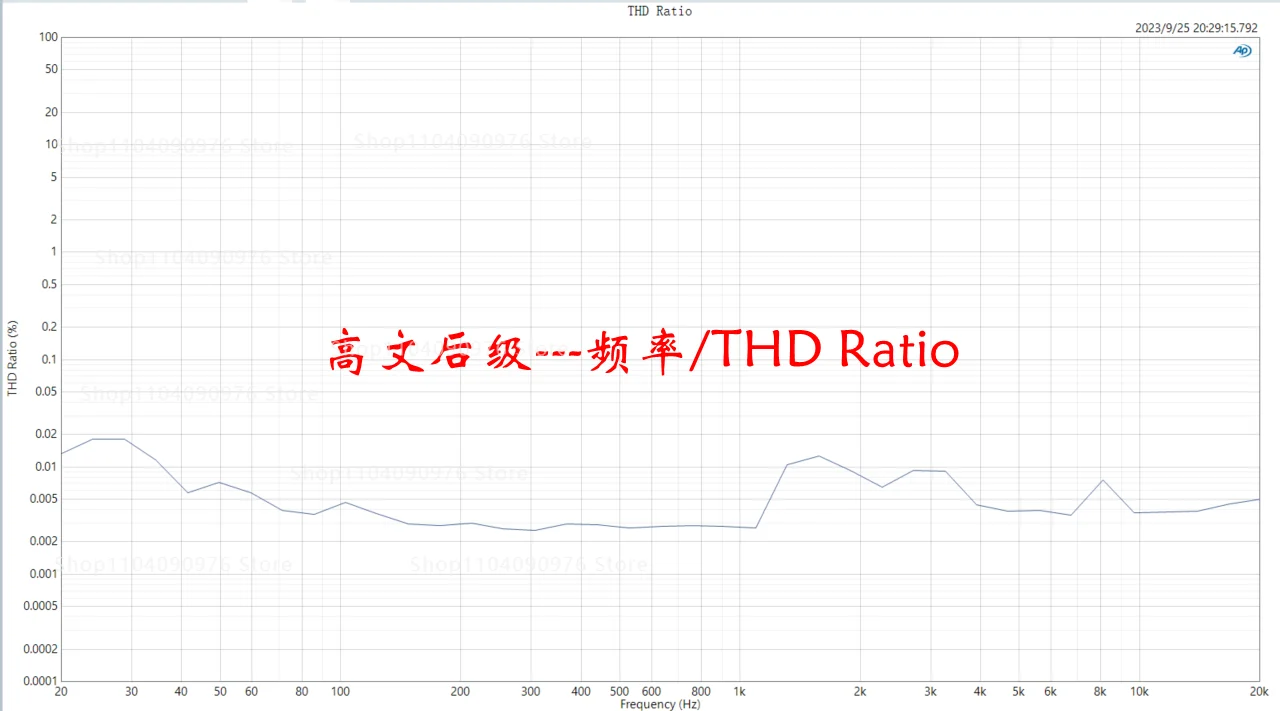

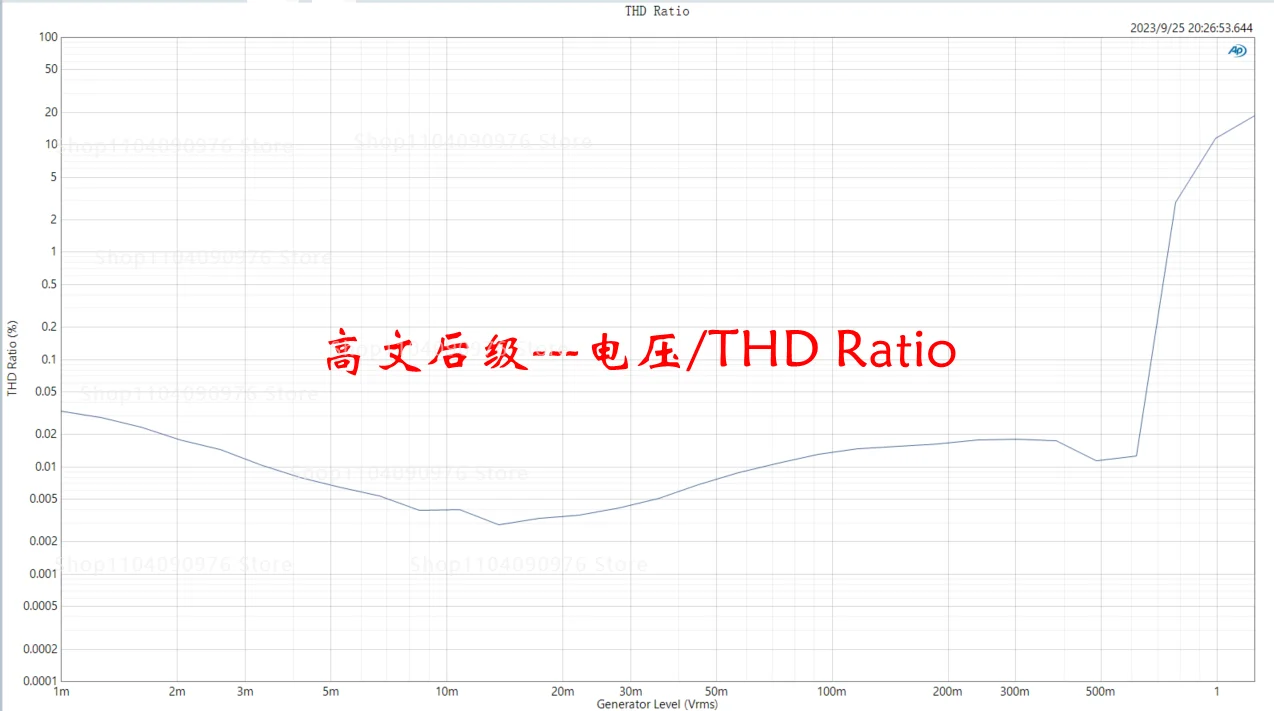

AP test parameterstest conditions:AC27.3V power supply,With 8 ohm 800 watt load test data

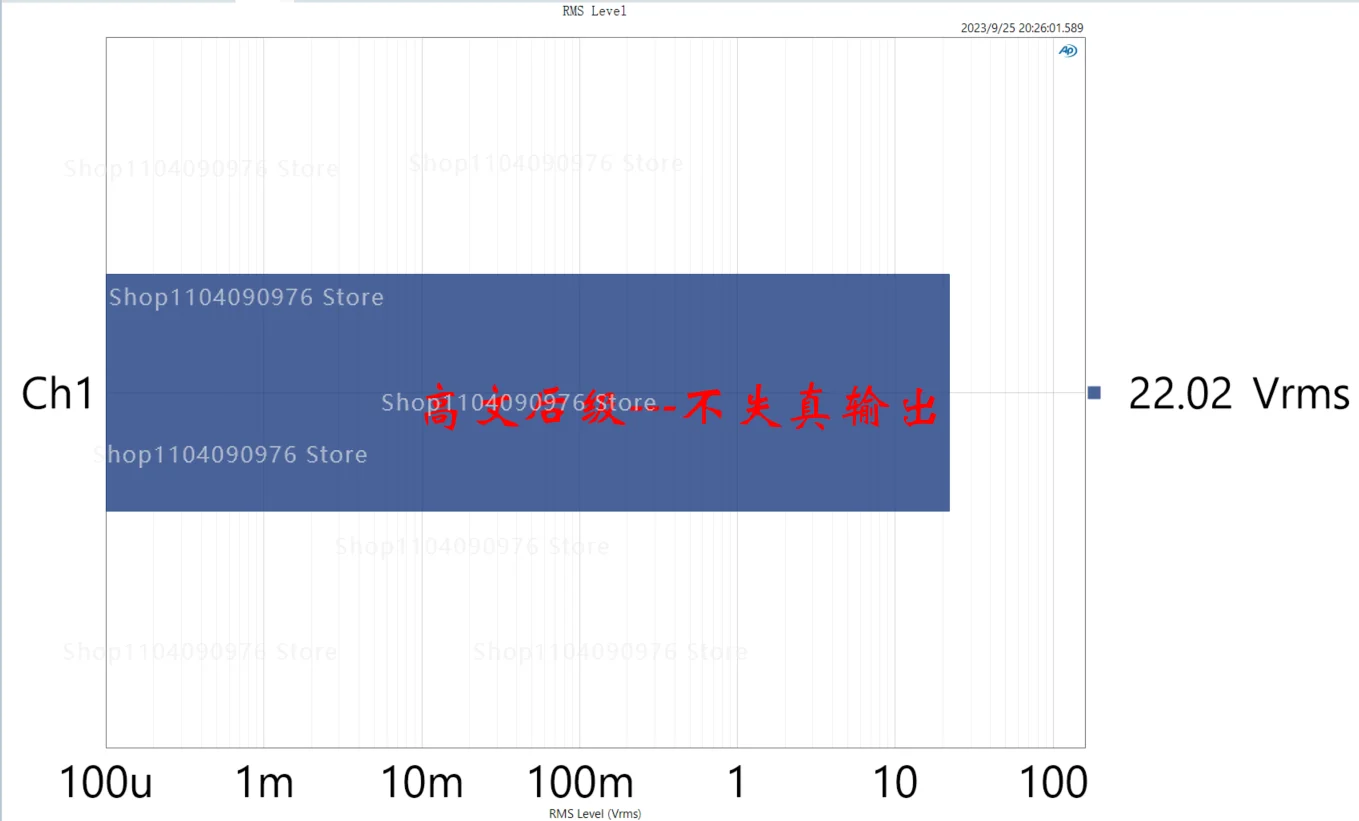

Output valid value: 22Vrms

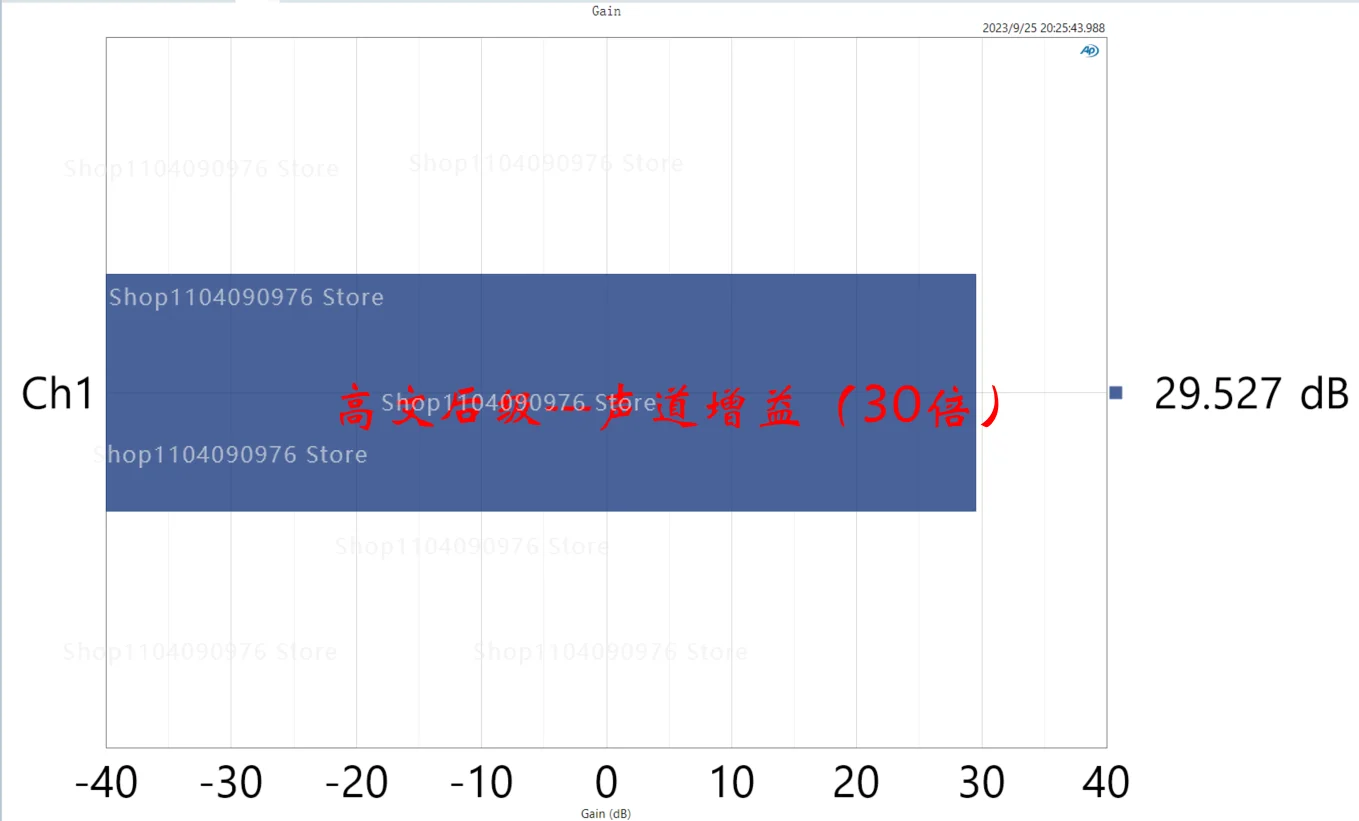

Channel Gain: 29.530 times

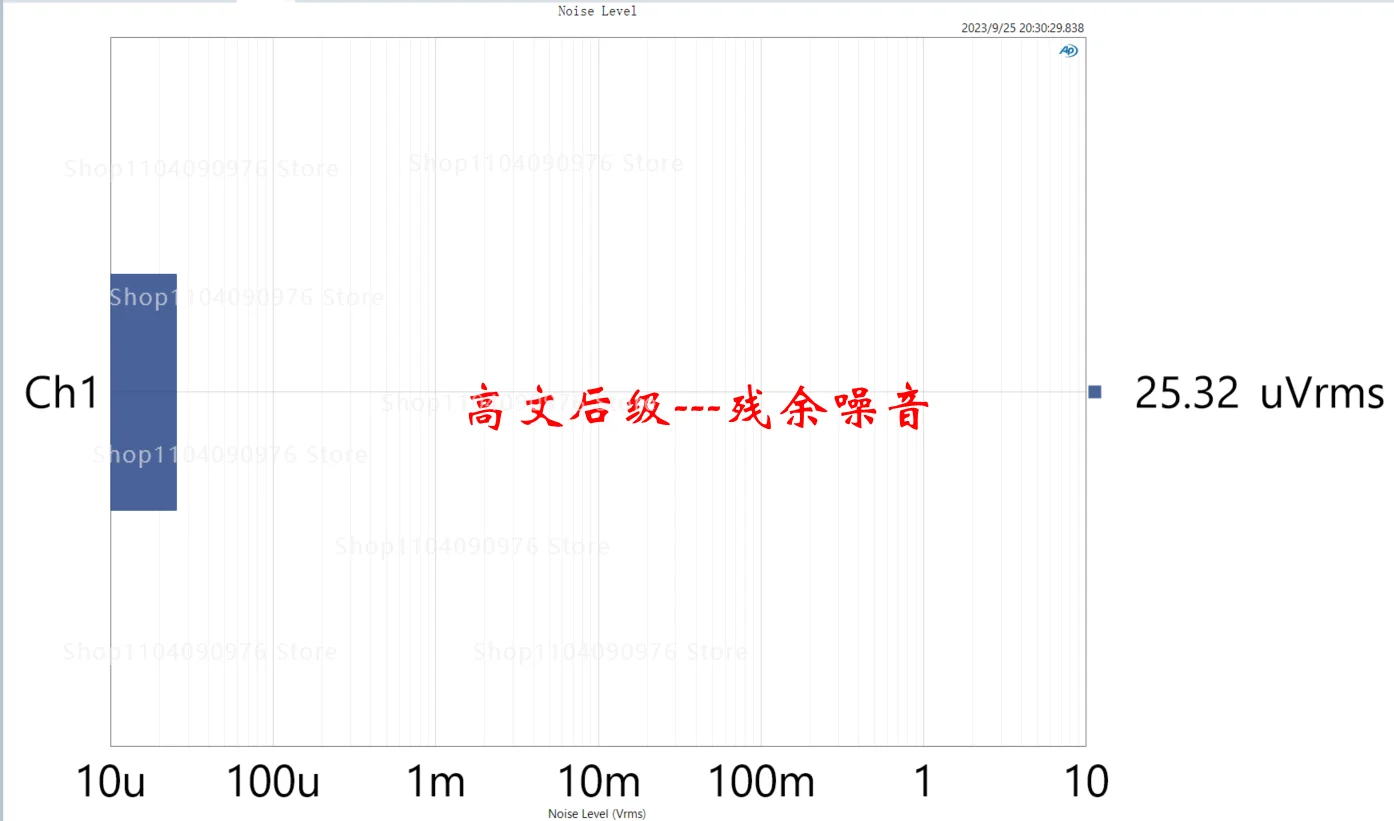

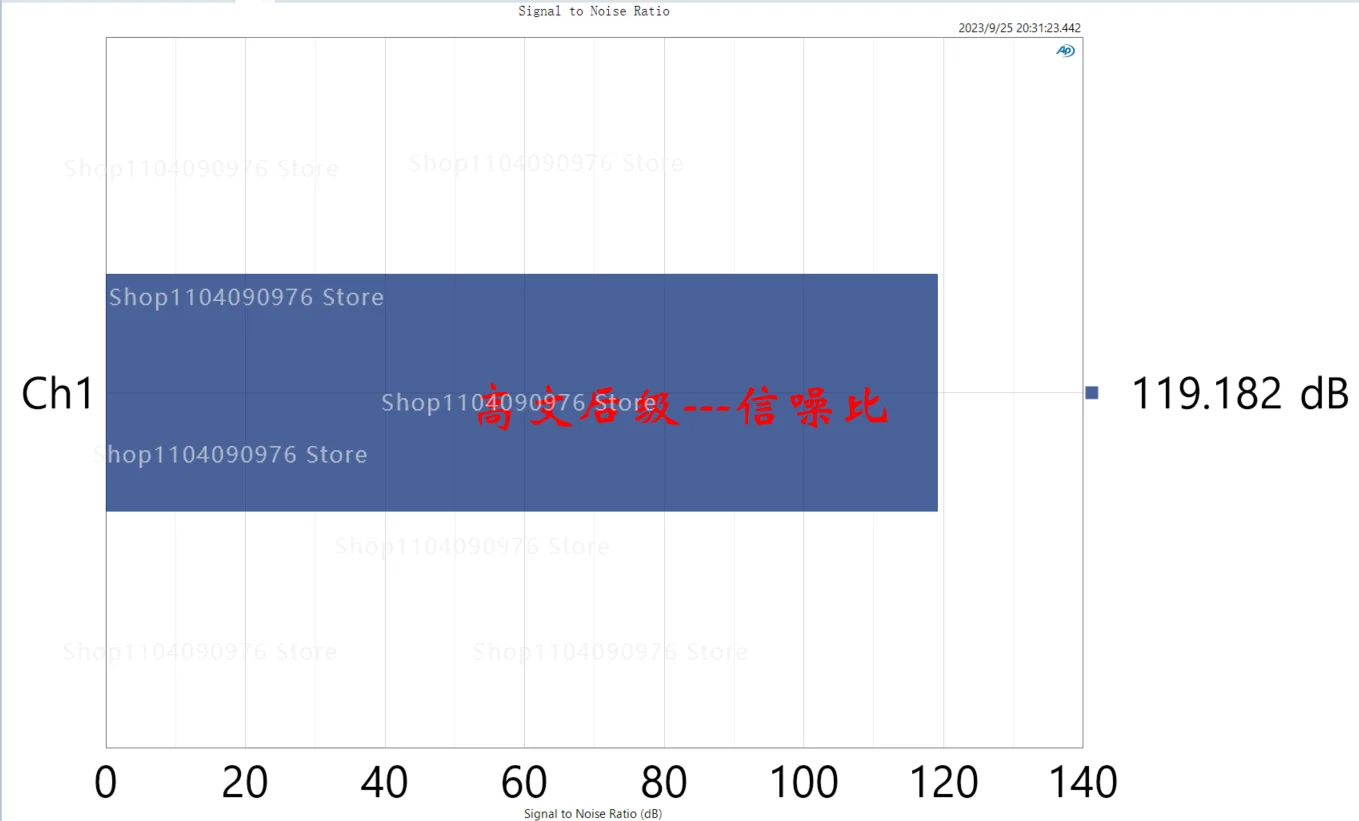

Signal to noise ratio: 119.2dB
Dynamic range: 119.2dB

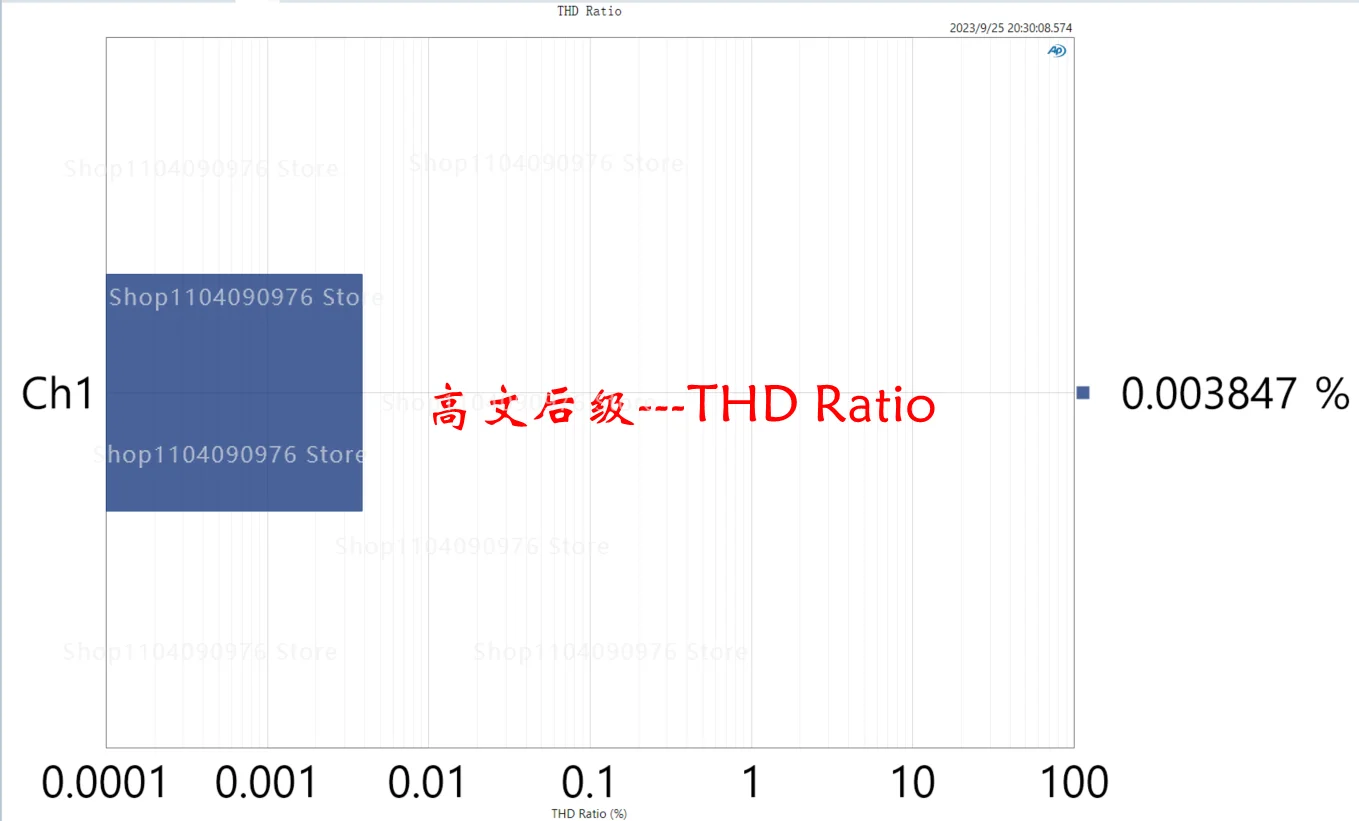

THD Distortion: 0.0038%

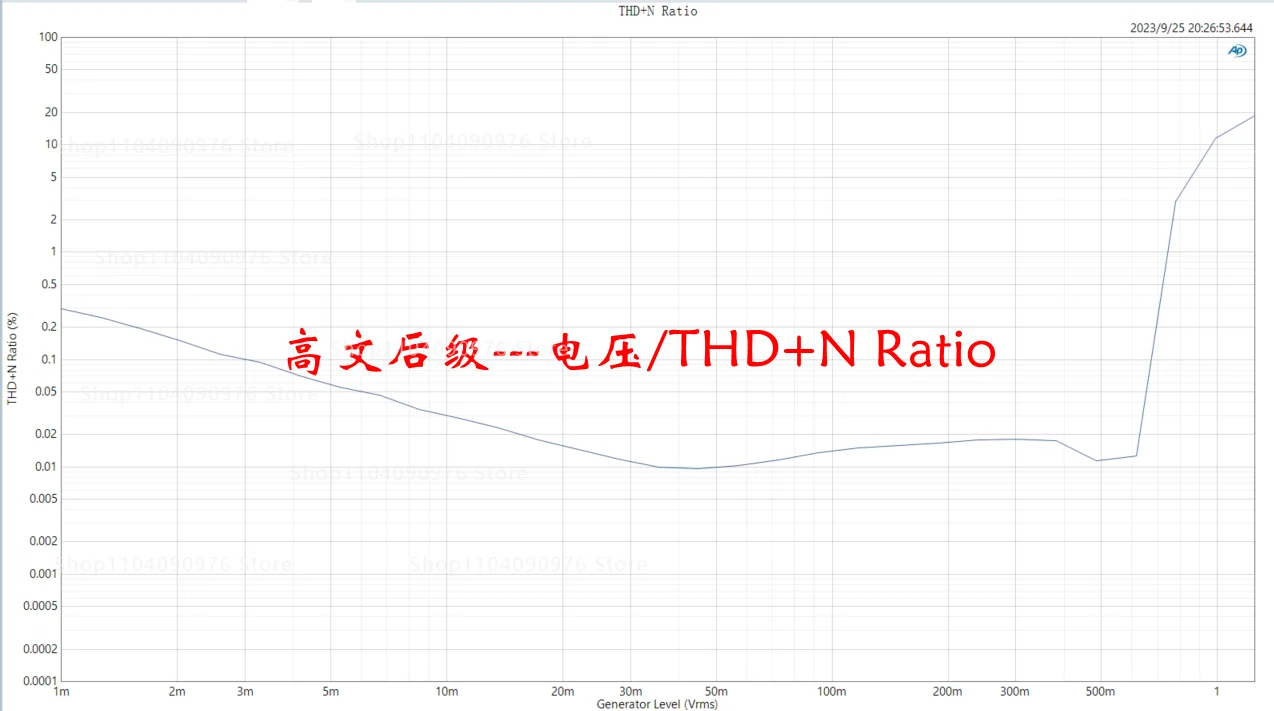

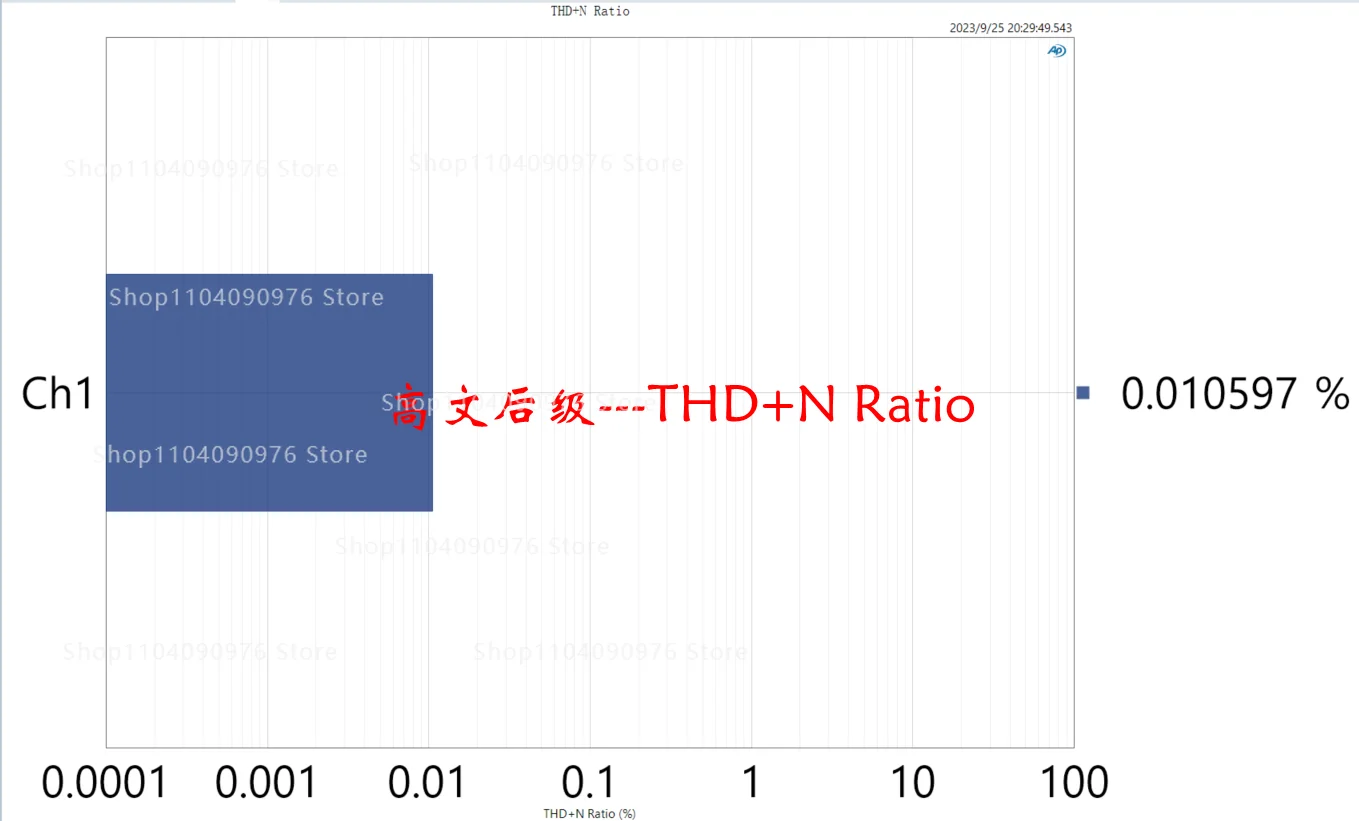

THD + N Distortion: 0.010%

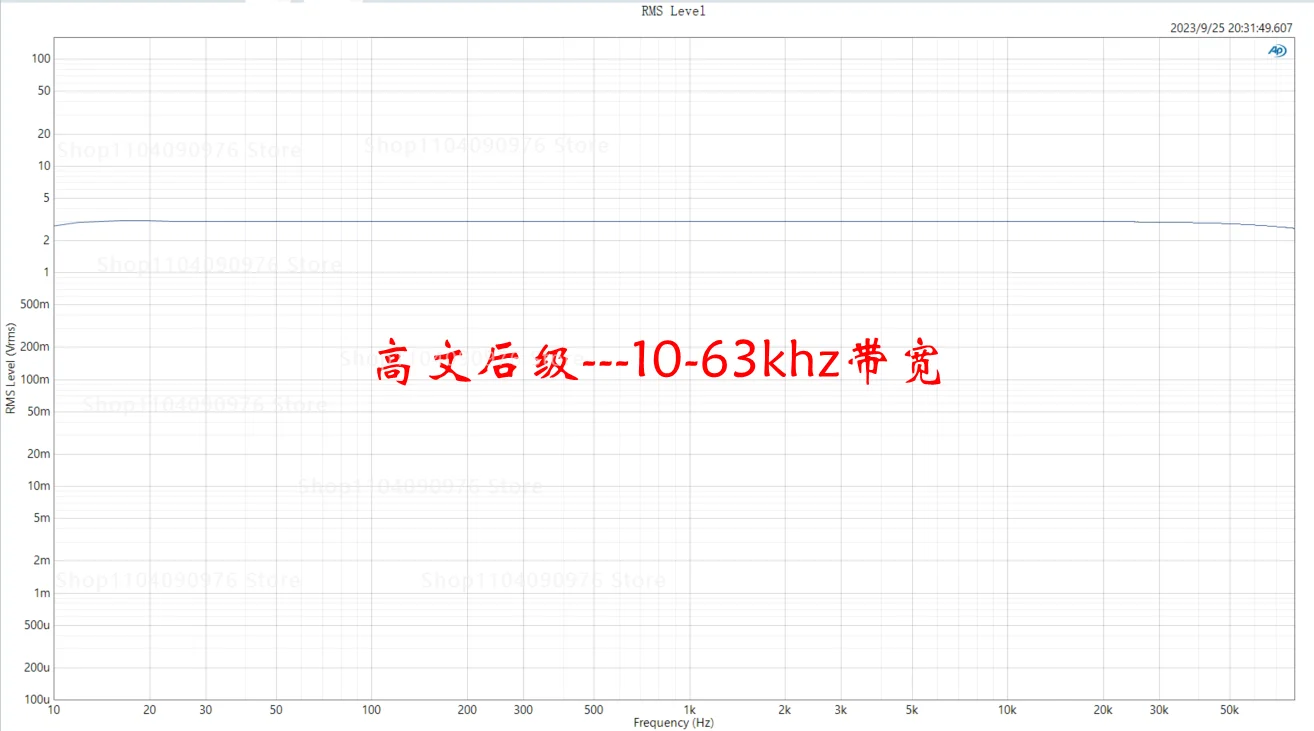

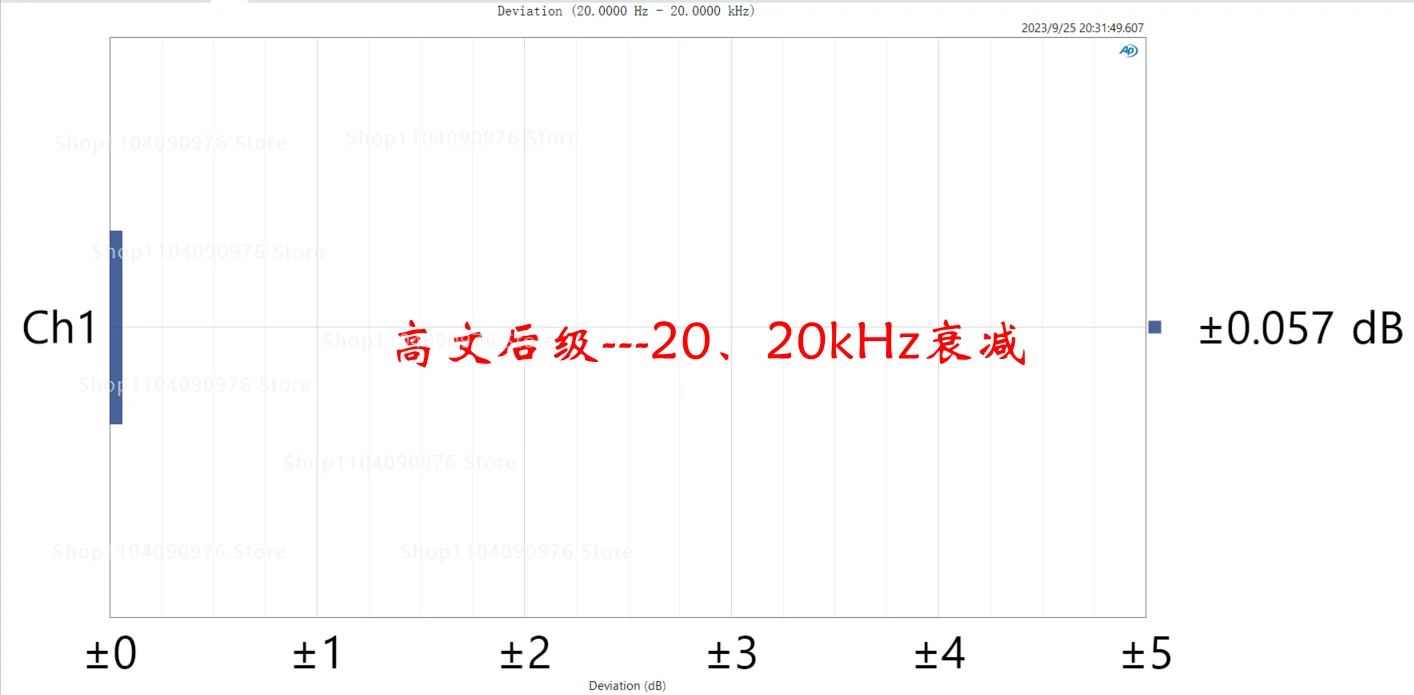

Frequency response bandwidth: ± 0.057dB
after-sales services
Each finished board must be tested for distortion, noise, midpoint, magnification, etc. before delivery, and will not be shipped until it is qualified.
The finished board does not support a 7-day trial, and can guide installation, repair, etc.

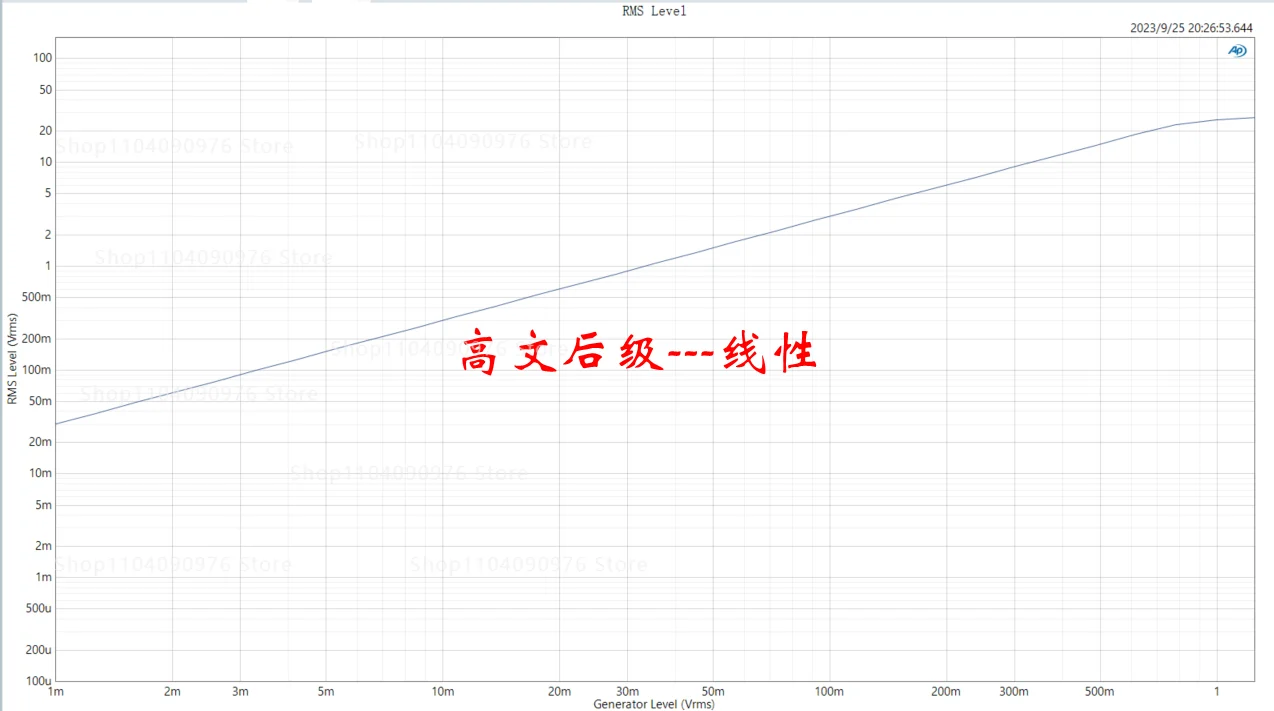

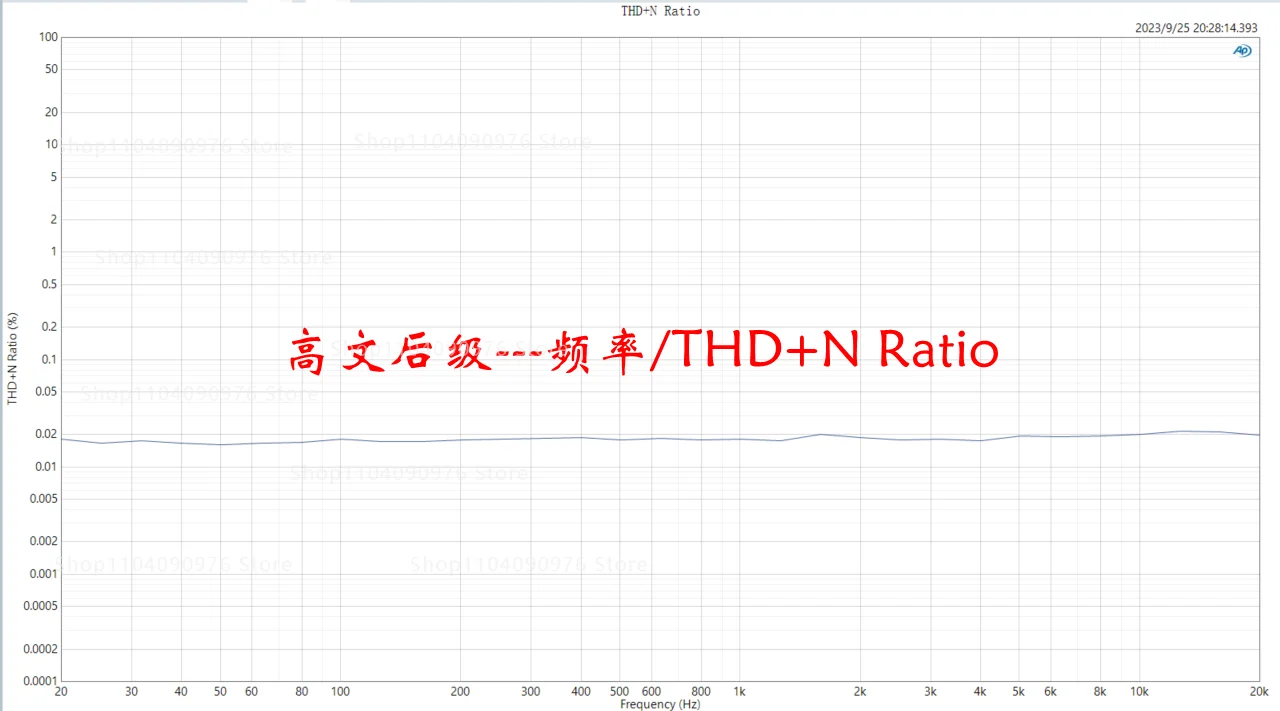

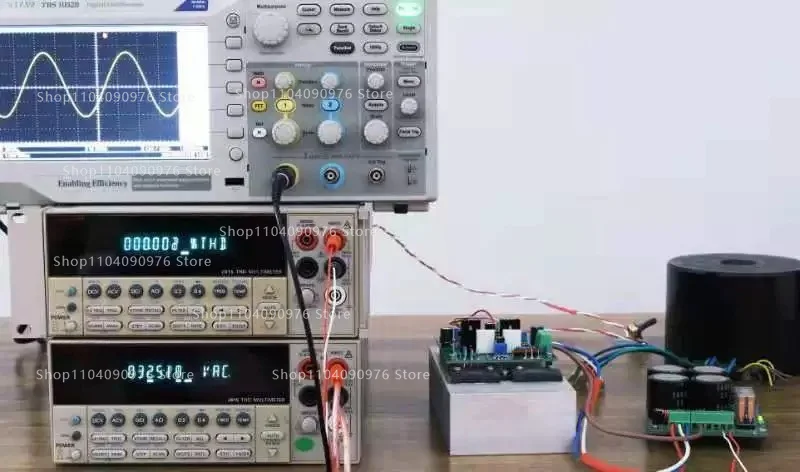

Gowan Mono Post-Level AP TestTest conditions: ± 37v power supply, with 800w load
This board ultra low distortionThe following figure outputs 32.5v.With 8 ohm loadOutput 132wDistortion 0.0015%

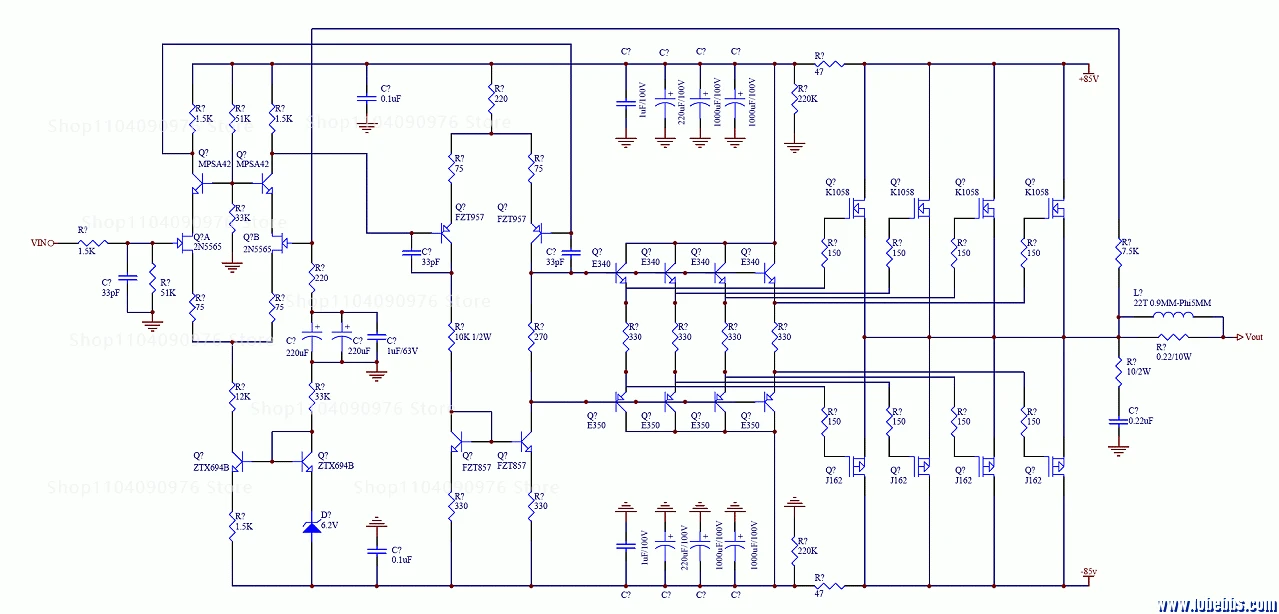

The picture below shows the Gawain line, and this board pairsPromotion level and final levelChanged
